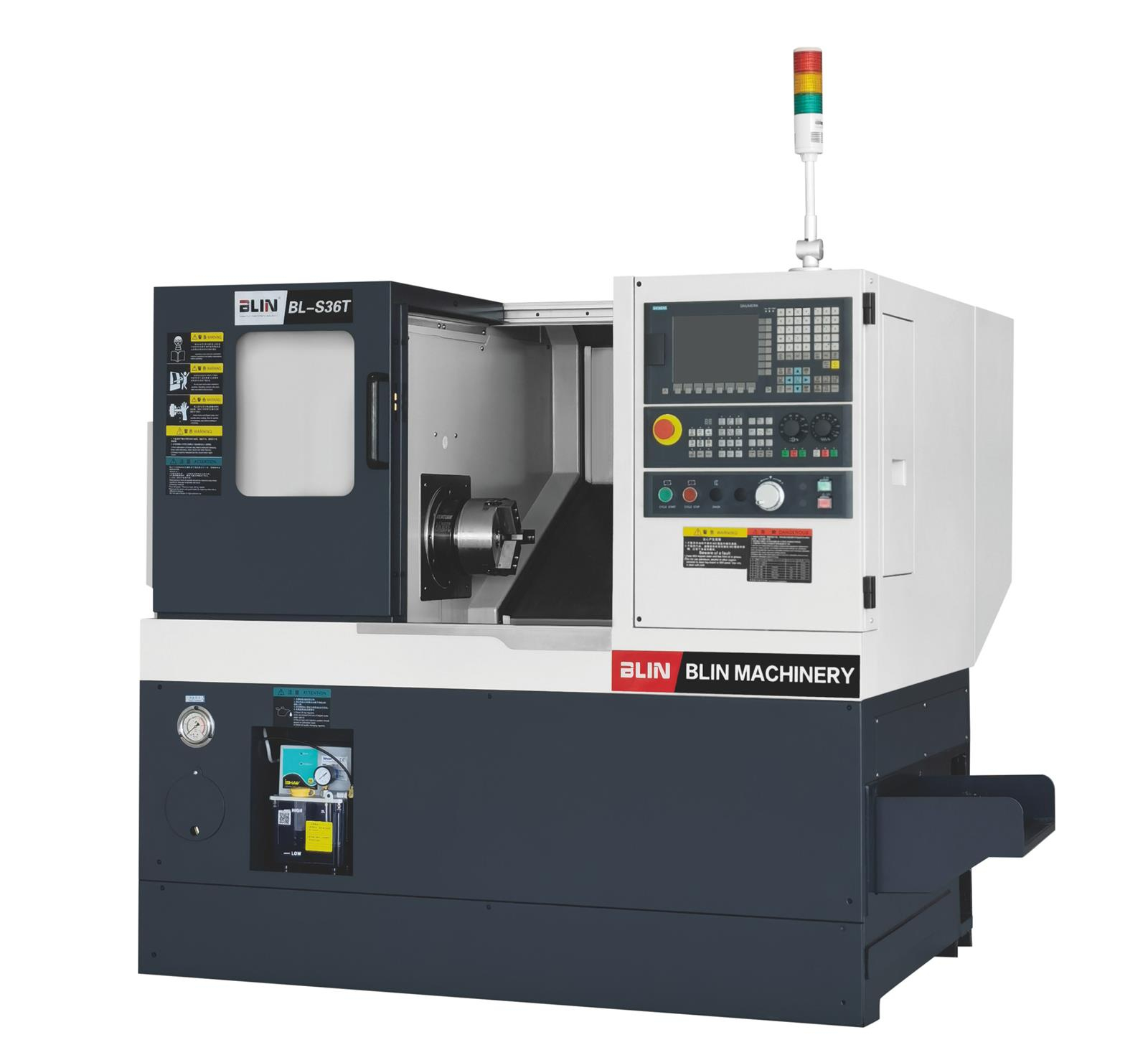

S PRECISE Series
TAIWAN technology
6'' chuck
Gang tool/8T tool turret
Without tailstock
Standard configuration:
SIEMENS 808D ADVANCED CNC controller
Hydraulic chuck
Gang tool(S36)/8 station Hydraulic-servo tool turret(S36T)
Features:

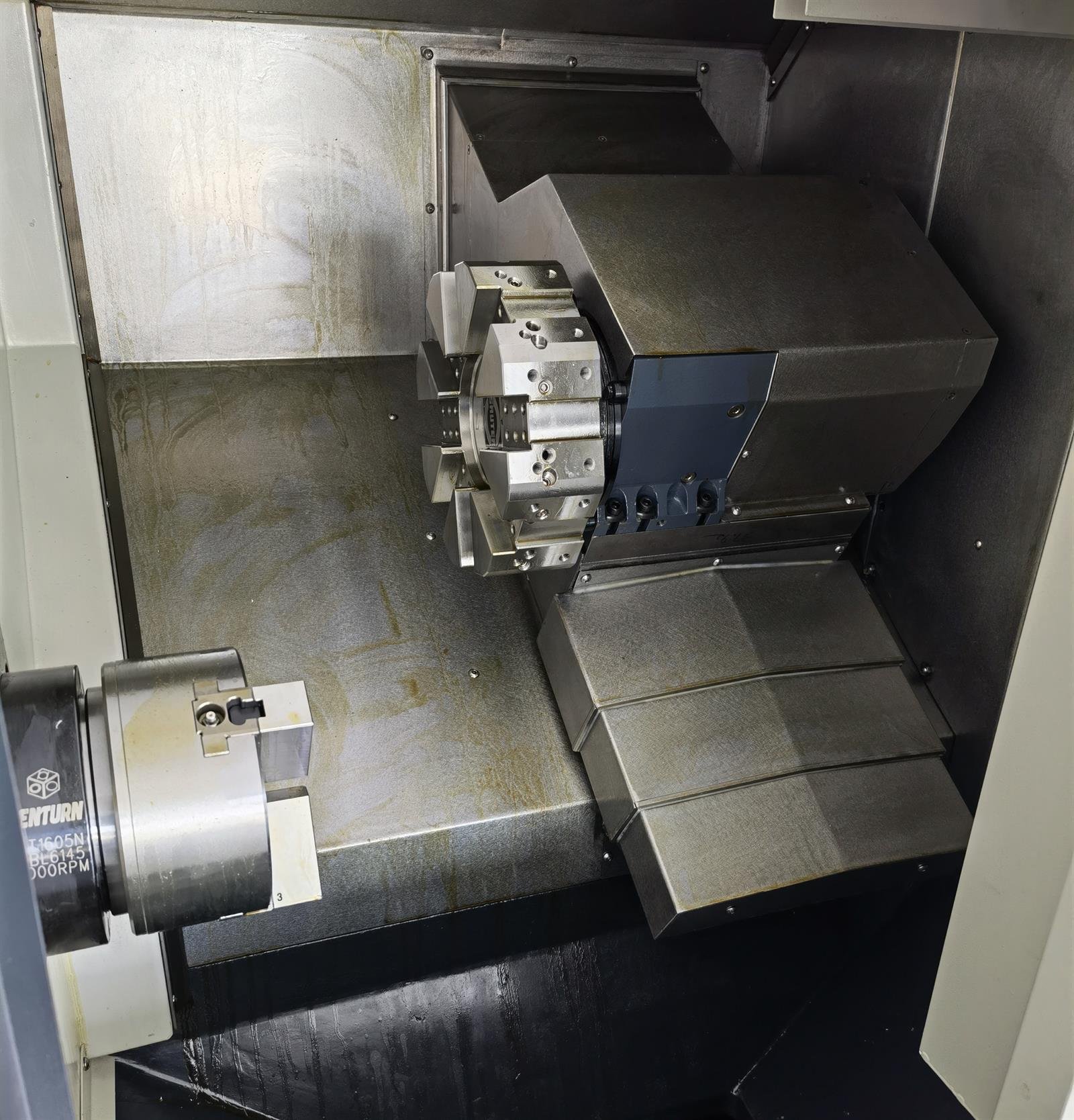

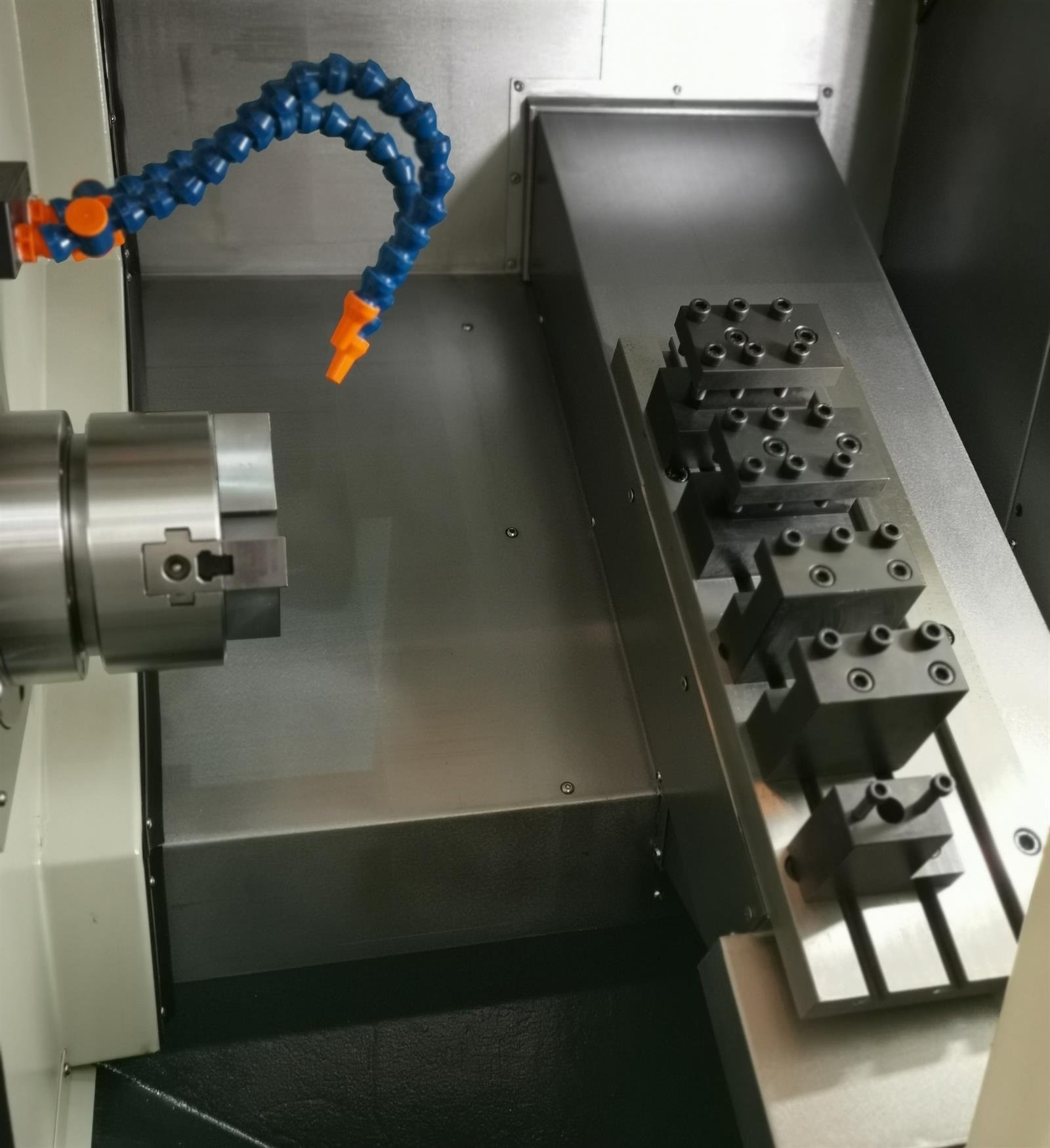

S36 mount gang tool device, S36T mount 8 station HYDRAULIC-SERVO tool turret.
Super compact structure, big inside space, modern appearance
Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand.

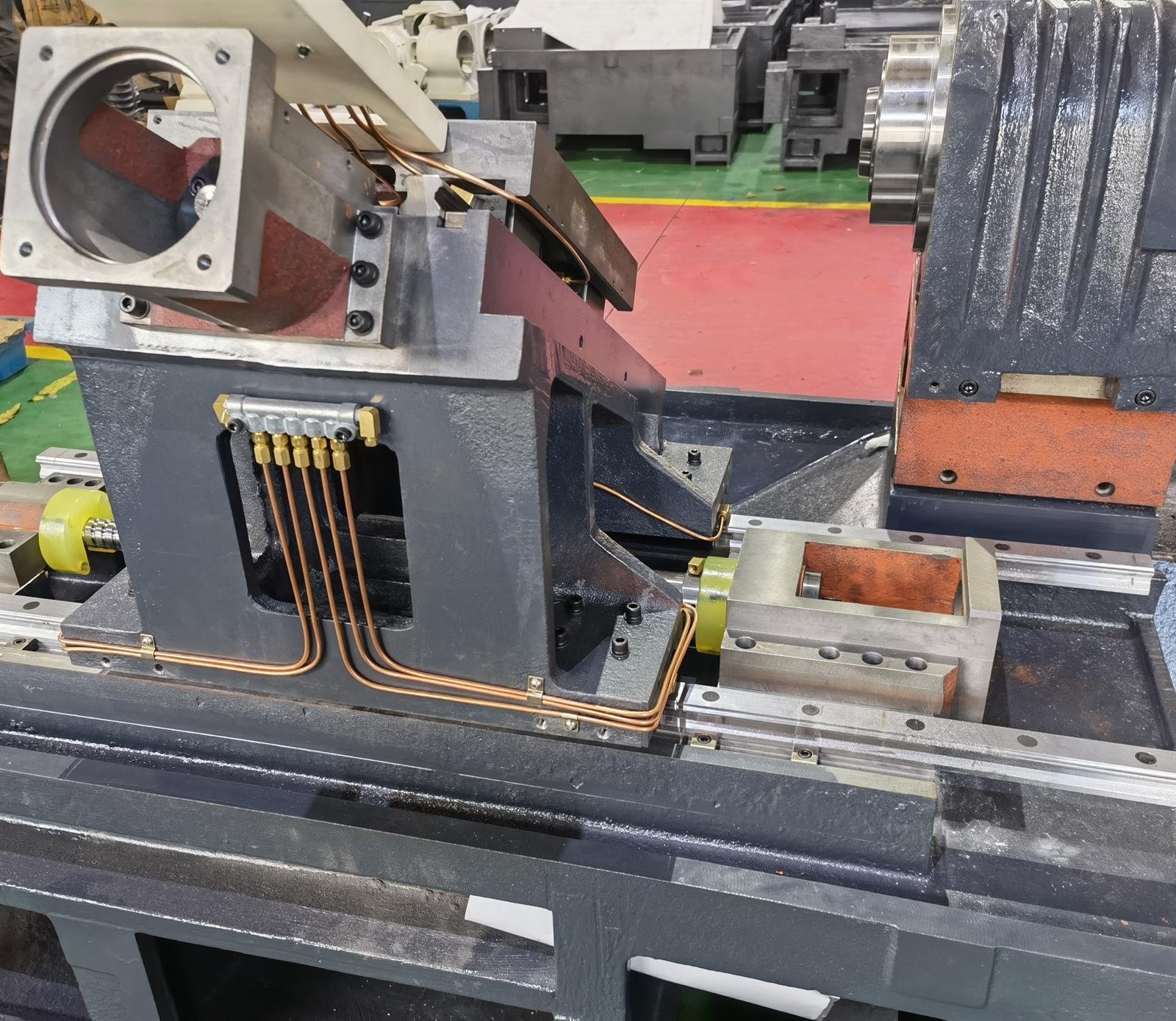

Bed adopt flat bed, slide board adopt 30°slant design(structure similar as JAPAN TSUGAMI M06/08), high rigidity, good machining flexibility, easy for chip conveying

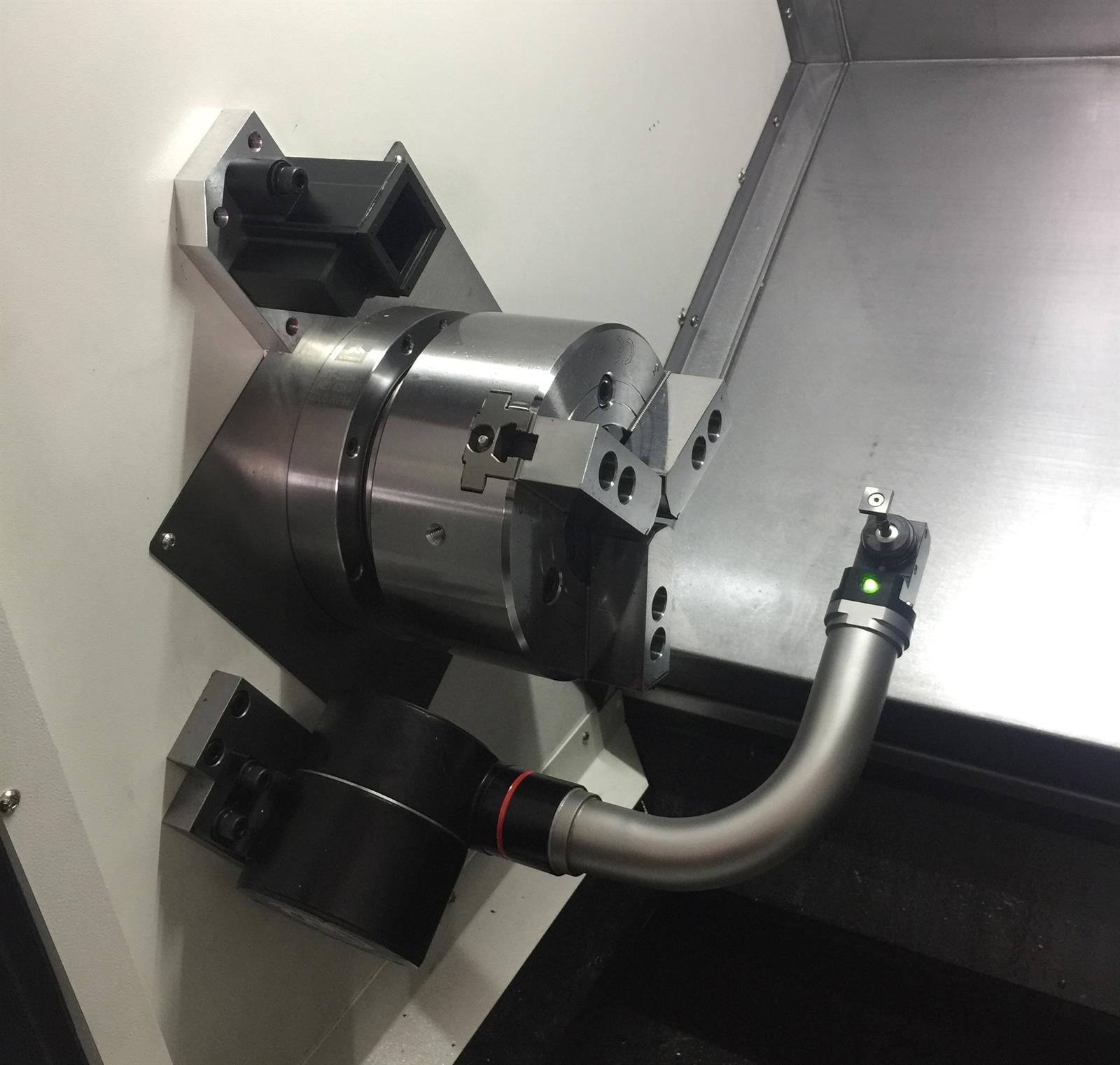

Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, robot etc.
Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability.
Frame adopt oil-coolant separation design, adopt independent coolant tank

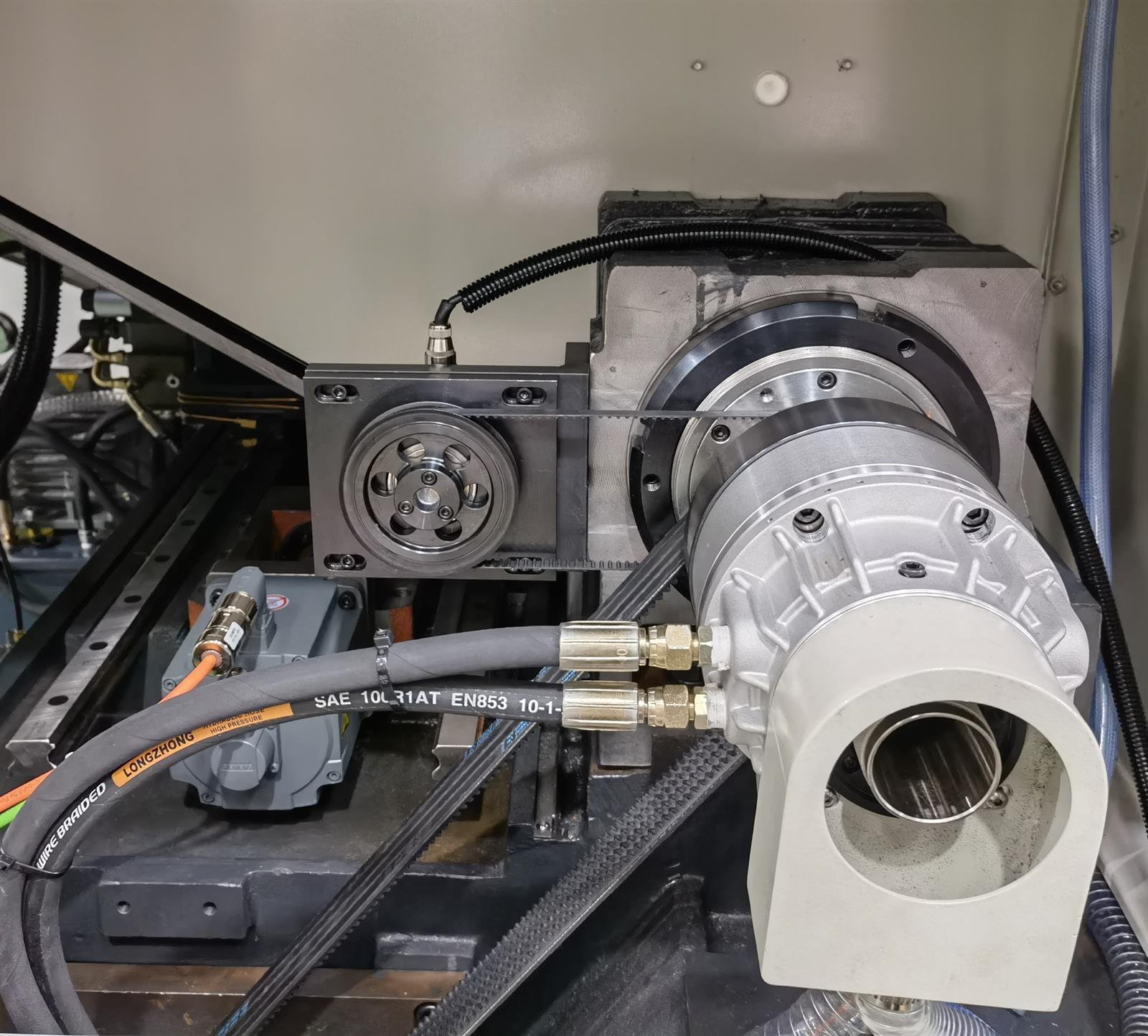

Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range

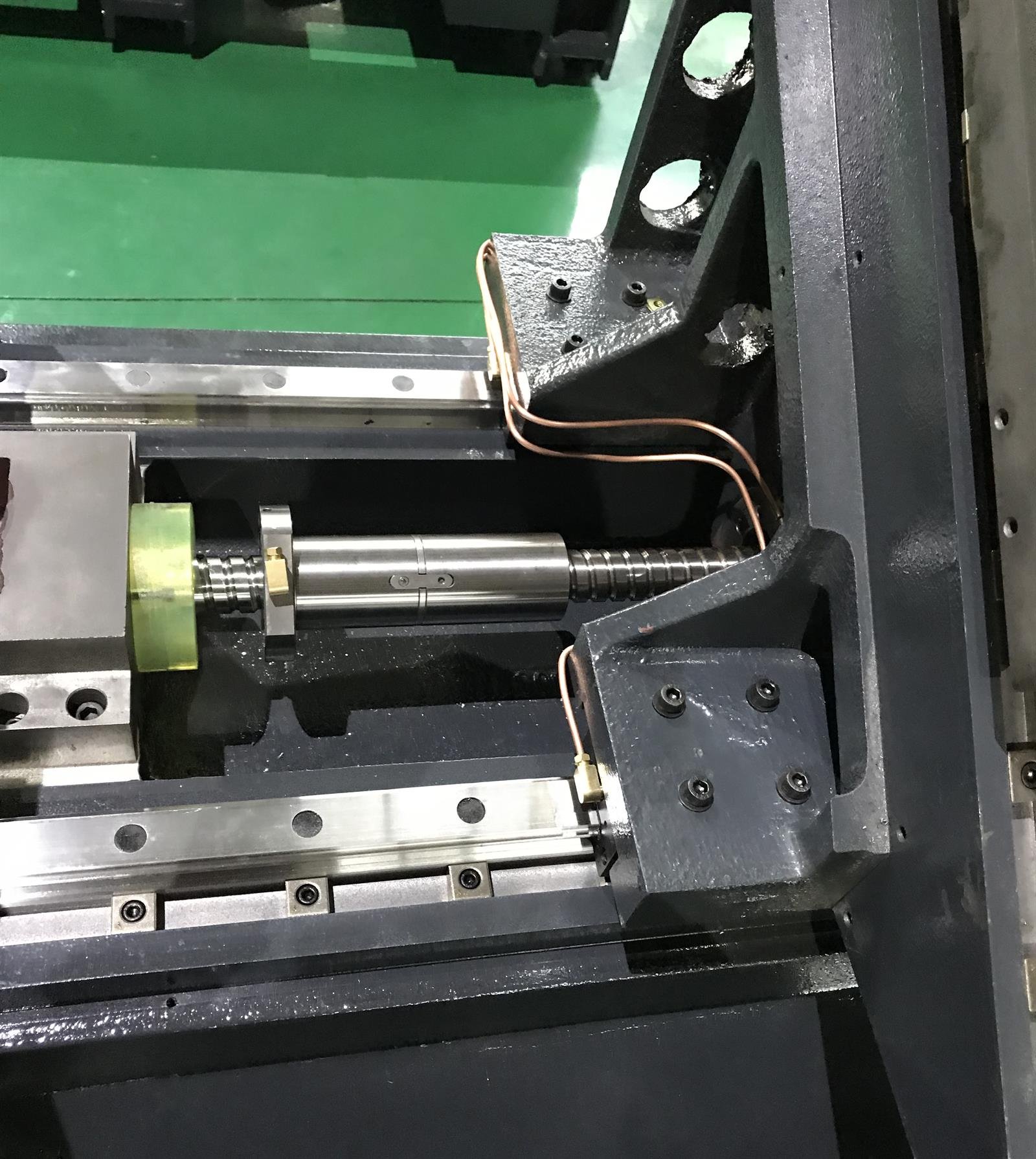

Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity, can realize μ class precise turning.
Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for precise machining
For S36T, mount energy-storage tank,reduce pressure fluctuation during tool change
Can mount right-setting or back-setting chip conveyor
