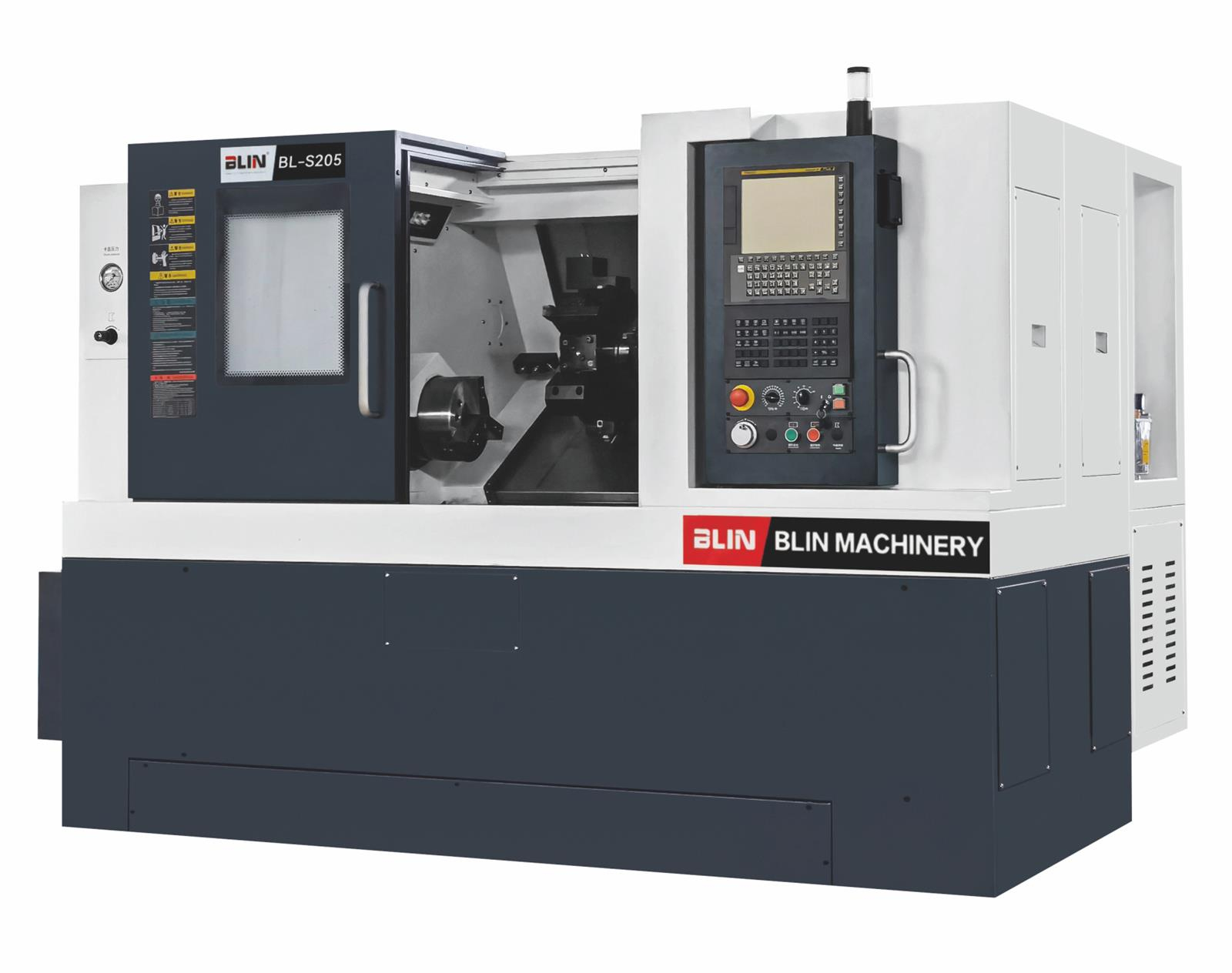

S PRECISE Series
JAPAN technology
8''/10'' chuck
8T/12T tool turret
Heavy-duty type
Standard configuration:
SIEMENS/FANUC CNC controller
Hydraulic chuck
Features:
Adopt similar structure as JAPAN MAZAK, bed adopt flat bed, slide board adopt 30° slant design, high rigidity, good machining flexibility
Adopt JAPAN technology, designed by JAPAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, parts catcher, robot etc

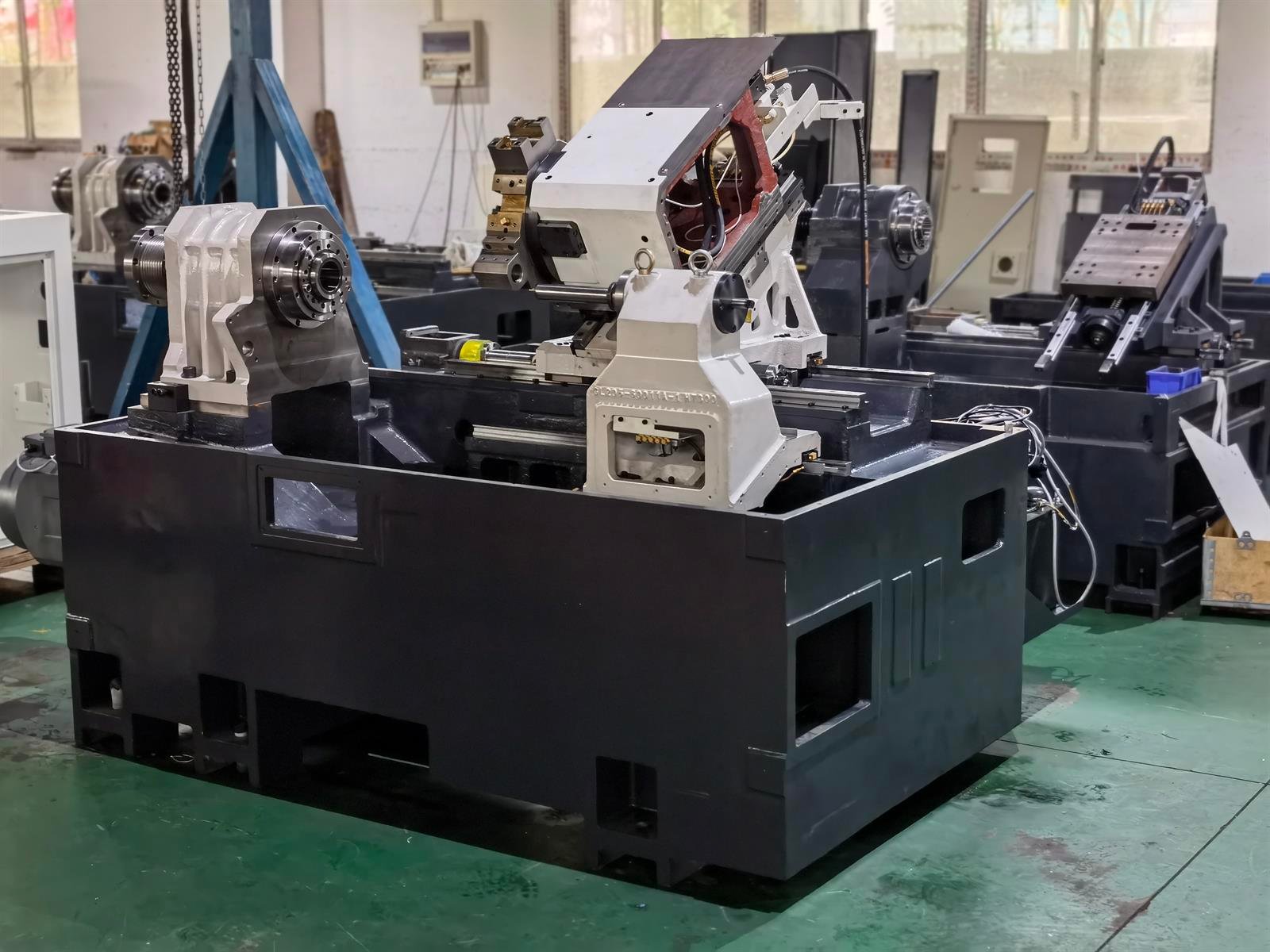

Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability
Base adopt multilayer strengthening rib, ensure bed's strength and stability
Frame adopt oil-coolant separation design, adopt independent coolant tank

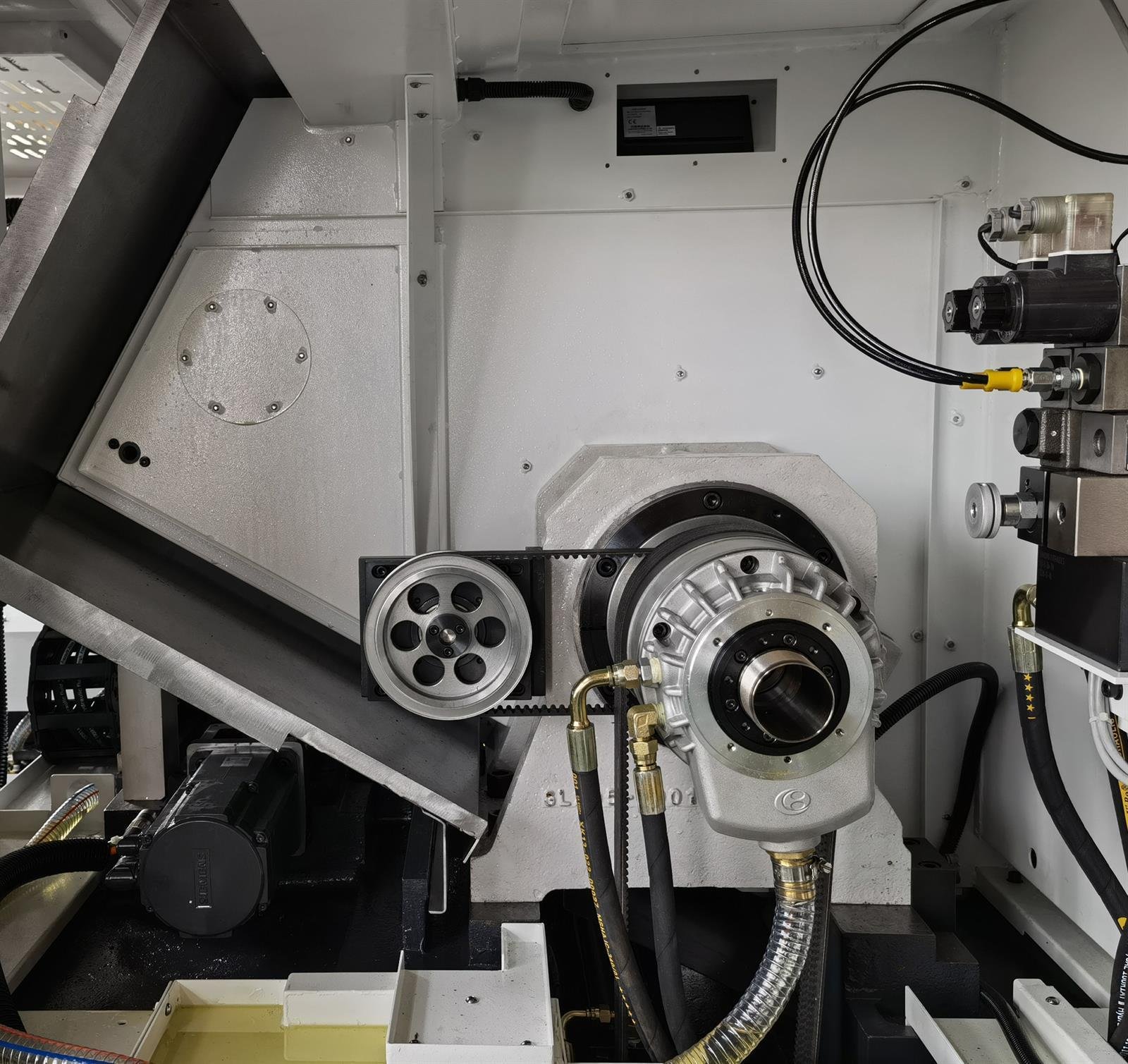

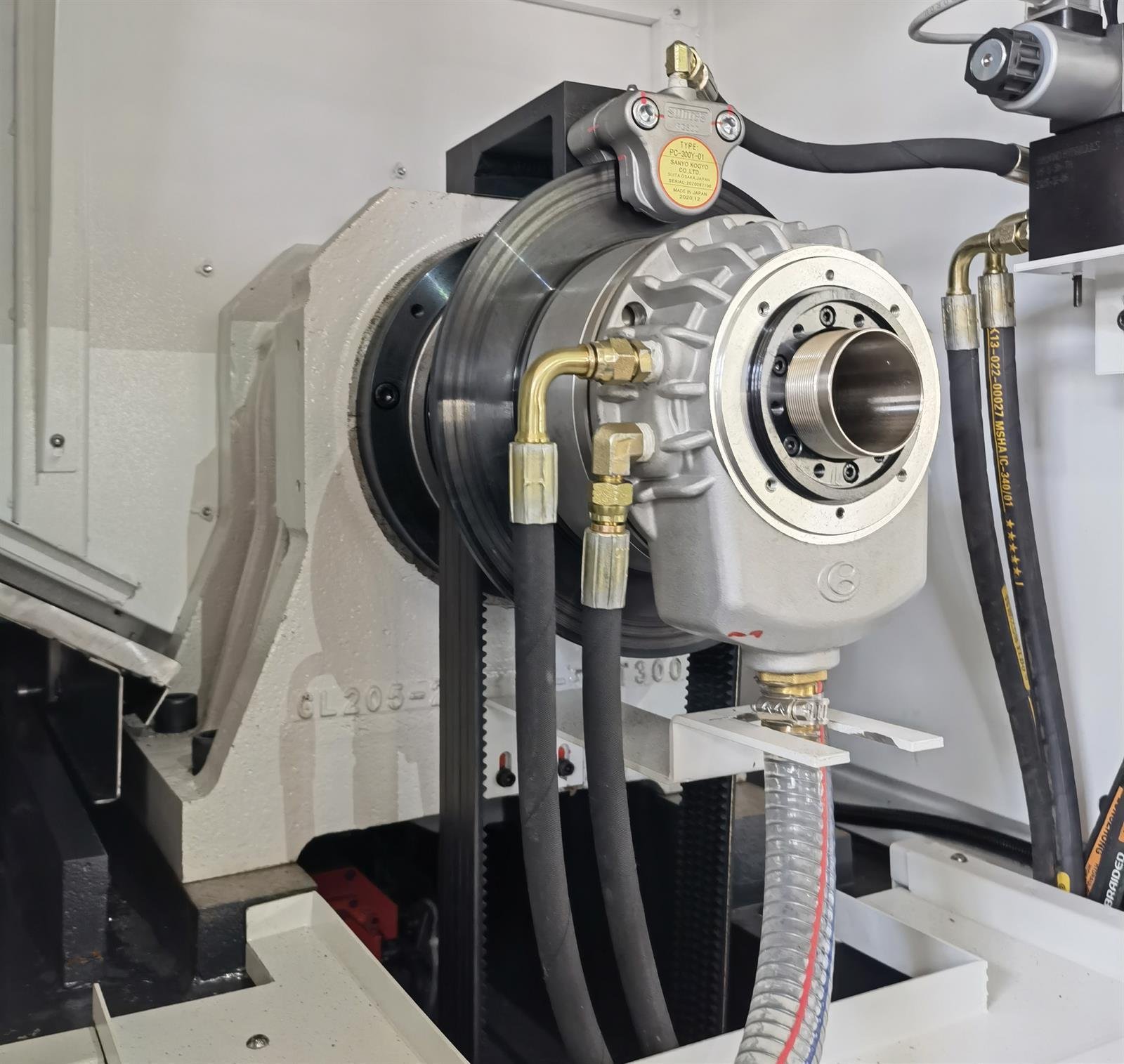

Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
Adopt high precision pre-stretched ball screw(double nuts), coupled with motor directly by linkager,high transmission rigidity, can realize μ class precise turning.

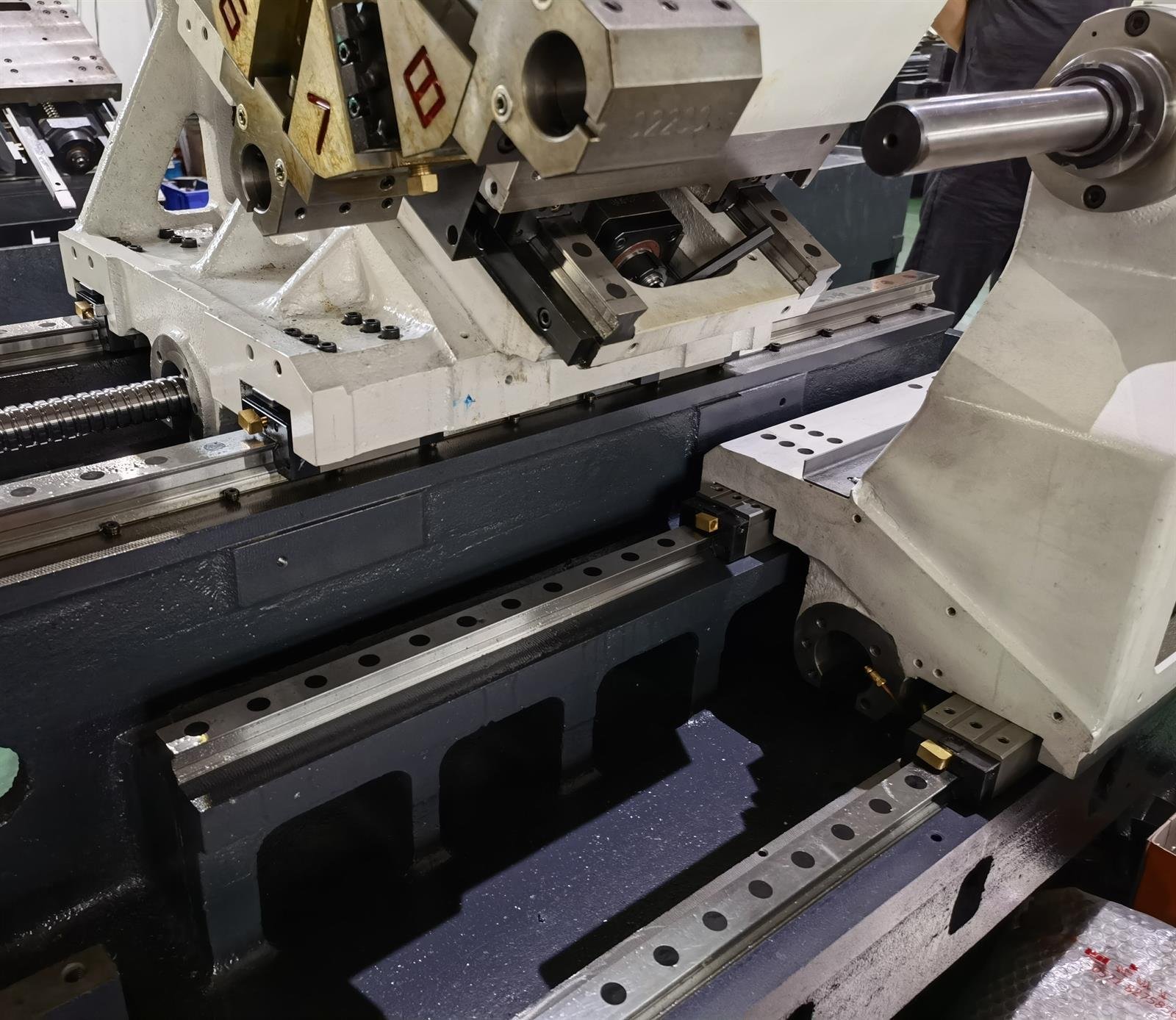

Adopt high precision ROLLER type linear guideway, high rigidity, good accuracy holding, suitable for heavy loading and precise machining
Adopt Hydraulic-servo tool turret/powered tool turret,fast tool changing, good repeatability,high efficiency

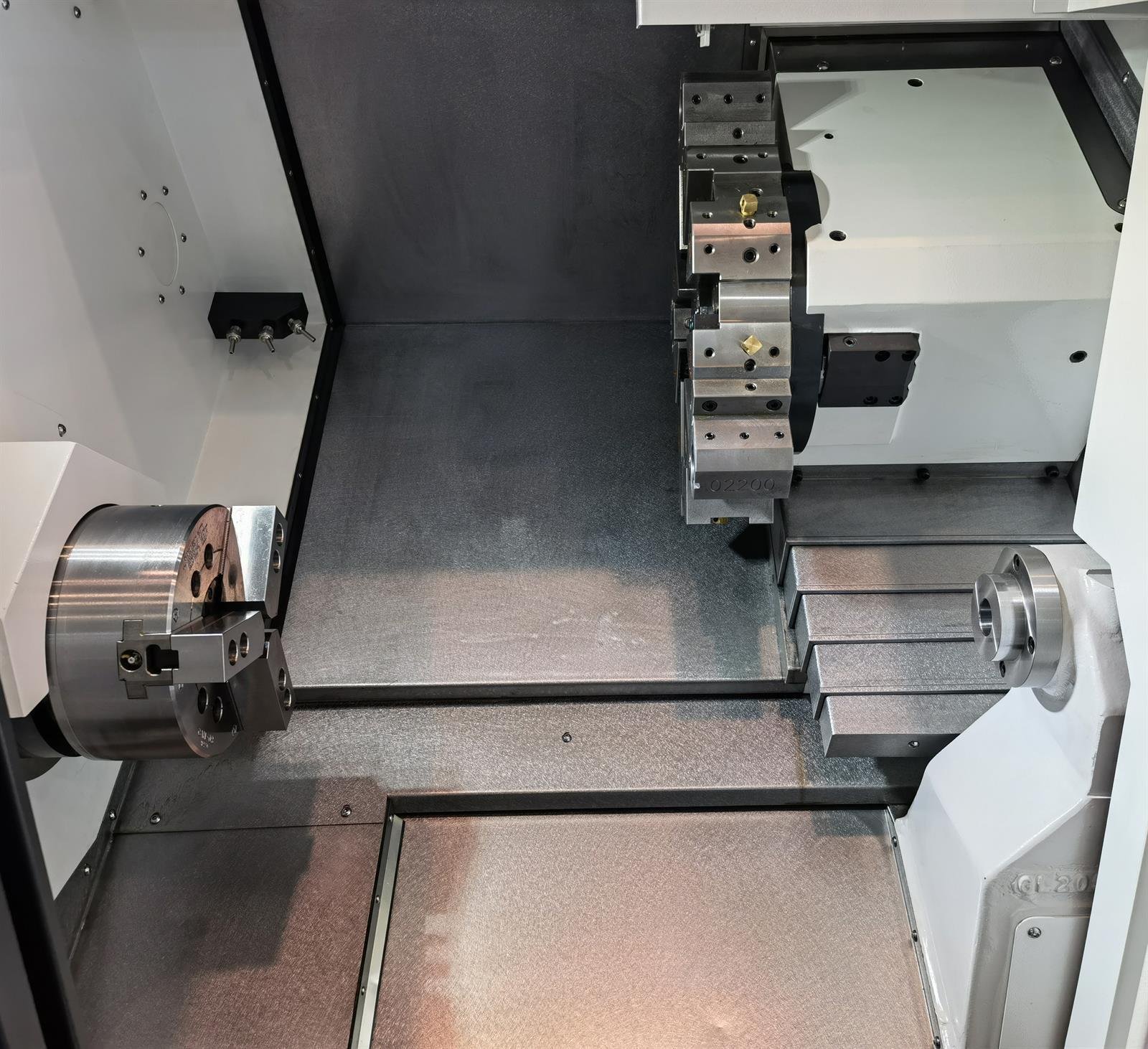

S205/205M/205Y adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder on linear guideway

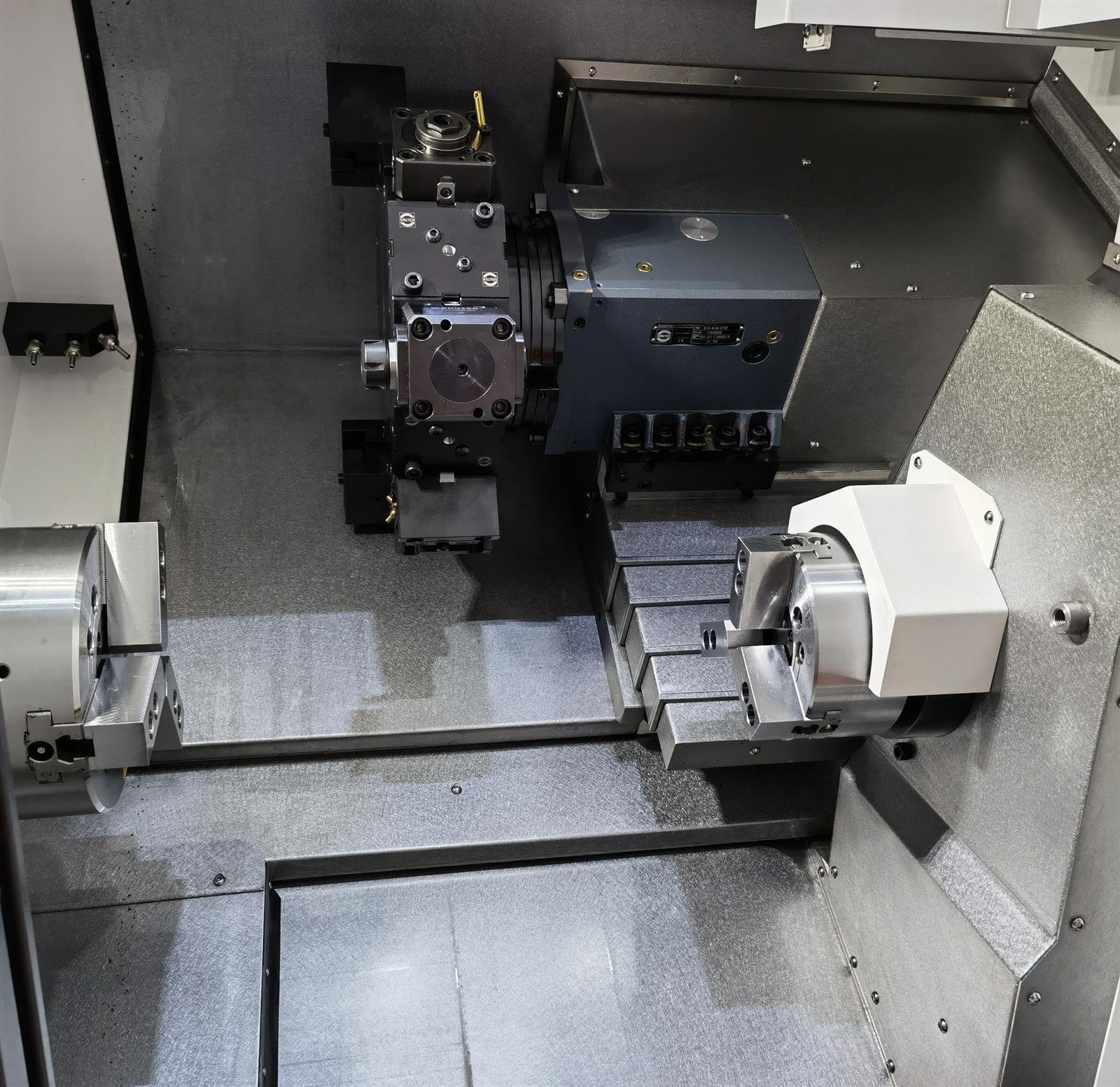

S205S/205SM/205SY adopt high precision electro-spindle as Sub-spindle
Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity

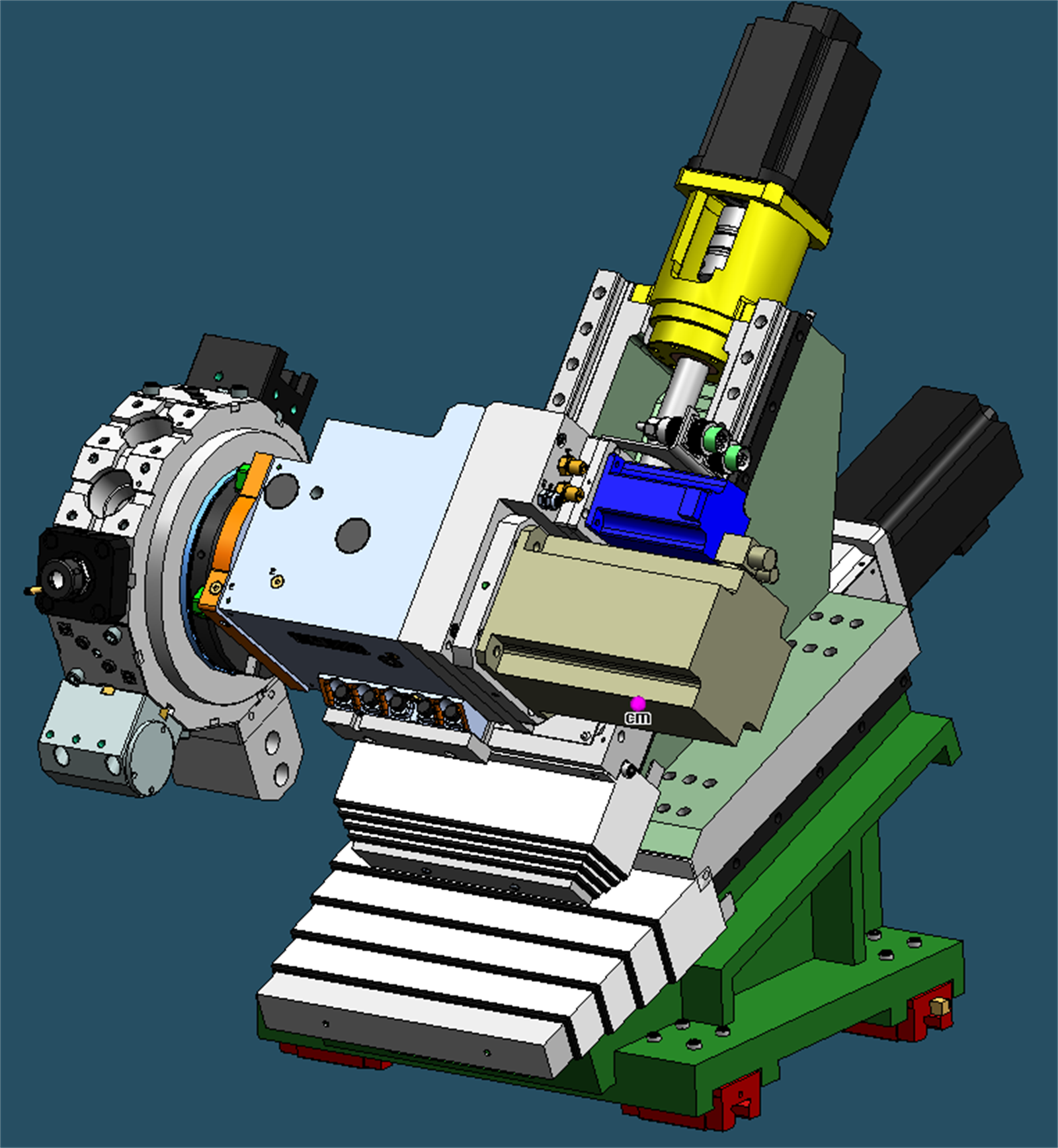

S205: 8T/12T hydraulic-servo tool turret+tailstock; S205M: 12T powered tool turret+tailstock; S205Y: 12T powered tool turret+Y axes+tailstock;
S205S: 12T hydraulic-servo tool turret+Sub-spindle; S205SM: 12T powered tool turret+Sub-spindle ; S205SY: 12T powered tool turret+Y axes+Sub-spindle
