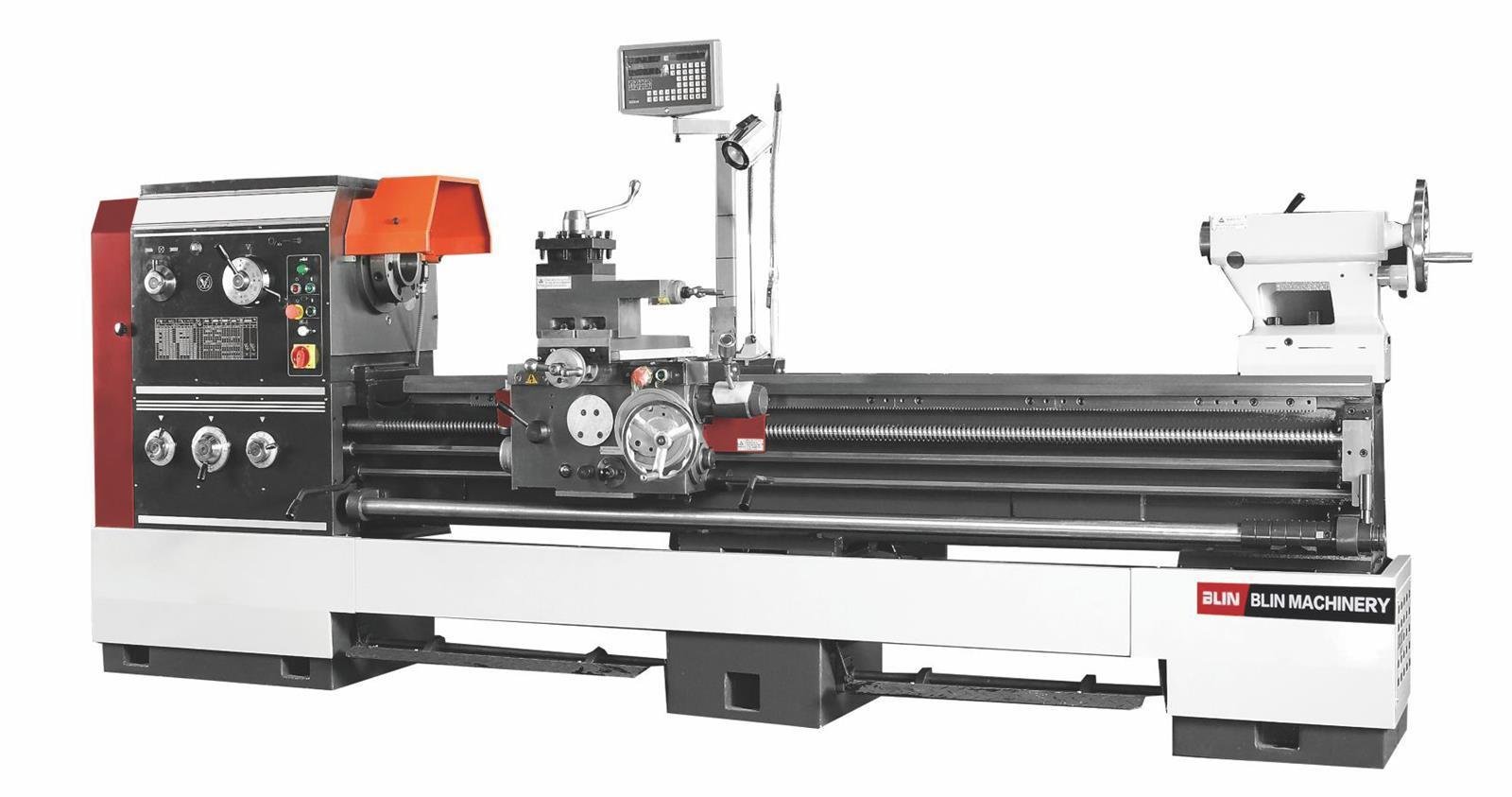

Blin BL-HL-B66 Conventional lathe (BL-HL-B66)

Brand : Blin

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Lathes

Conventional Lathe

B PRECISE HEAVY-DUTY Series
390mm guideway width
CHINA top quality

Features:
Guideway width 390mm
Adopt high strength cast iron,after repeated aging treatment
Guideway is hardened by ultrasonic frequency and precise grinding

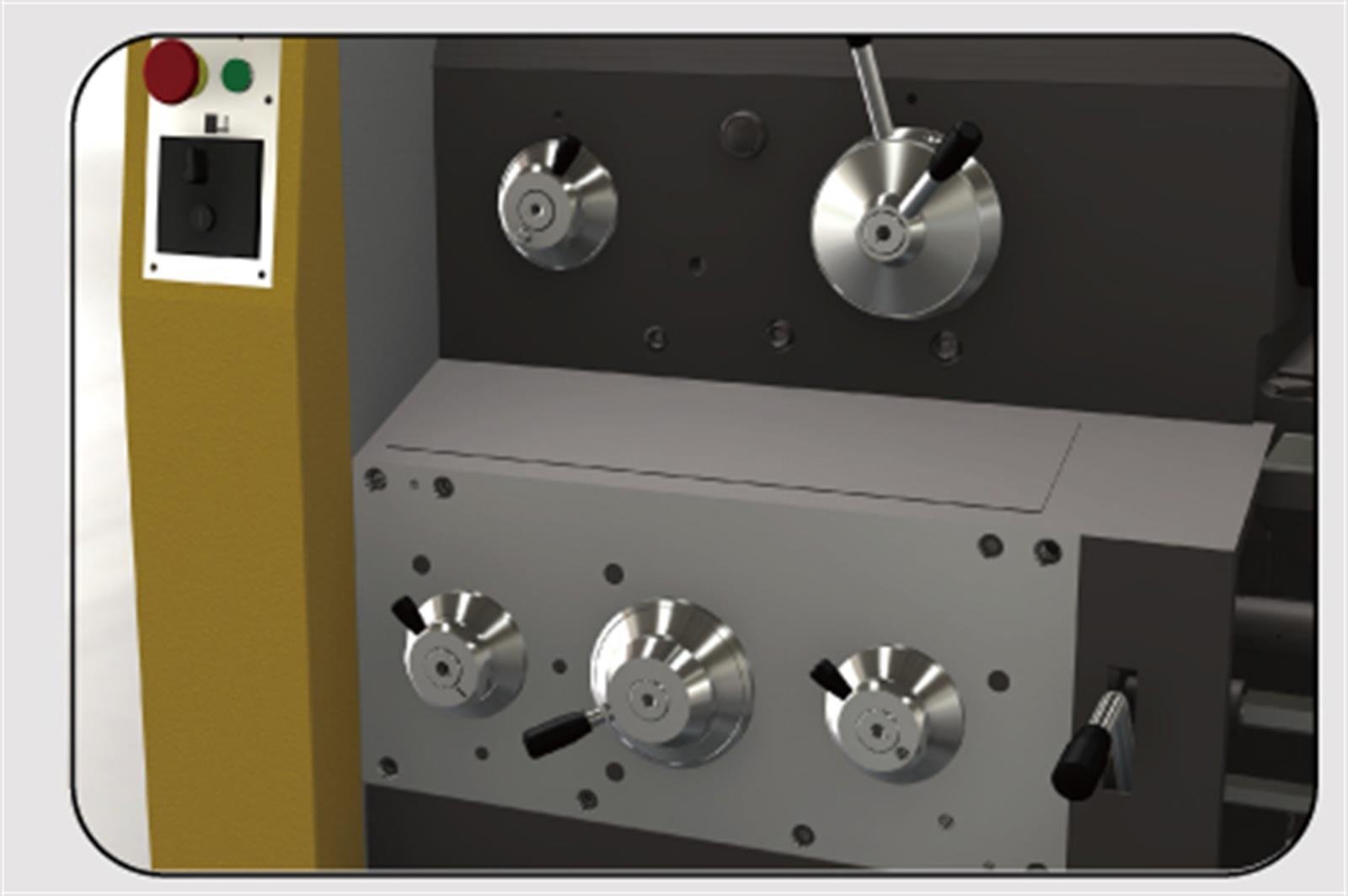

Headstock is after precise machining, spindle and gears are hardened by ultrasonic frequency and precise grinding
Guideway adopt scrapping and stick TF material
Wide speed range, can directly turn metric or inch thread
Can mount Gap

Item		Unit	BL-HL-B66
Capacity	Guideway width	mm	390
	Max. swing dia. over bed	mm	Φ660
	Max. swing dia. over cross slide	mm	Φ420
	Max.swing dia. over gap	mm	Φ870
	Max.effective length in gap	mm	240
	Center distance	mm	750/1000/1500/2000/3000
	Max. turning length	mm	700/950/1450/1950/2950
	Max. Feeding force	Nm	3500
Spindle	Spindle bore	mm	Φ52(Opt.:Φ82,Φ105)
	Spindle hole taper	/	MT6#(Φ52mm bore),Φ90 1:20(Φ82mm bore),Φ113 1:20(Φ105mm bore)
	Spindle nose	/	ISO 702/III NO.6(Φ52mm bore),ISO 702/II NO.8(Φ82,105mm bore)
	Spindle speed range	rpm	9~1600(24 steps,for Φ52,82mm bore),36~1600(12steps, for Φ105mm bore)
	Spindle max. output torque	Nm	1200
Feeding	Longitudinal rapid moving speed	m/min	50hz:4.5,60hz:5.4
	Cross rapid moving speed	m/min	50hz:1.9,60hz:2.3
	Longitudinal basical feeding	mm/r	0.063~2.52(65kinds)
	Longitudinal reduce feeding	mm/r	0.028~0.056(13 kinds)
	Longitudinal enlarge feeding	mm/r	2.86~6.43(15 kinds)
	Cross basical feeding	mm/r	0.027~1.07(65 kinds)
	Cross reduce feeding	mm/r	0.012~0.026(13 kinds)
	Cross enlarge feeding	mm/r	1.21~2.73(15 kinds)

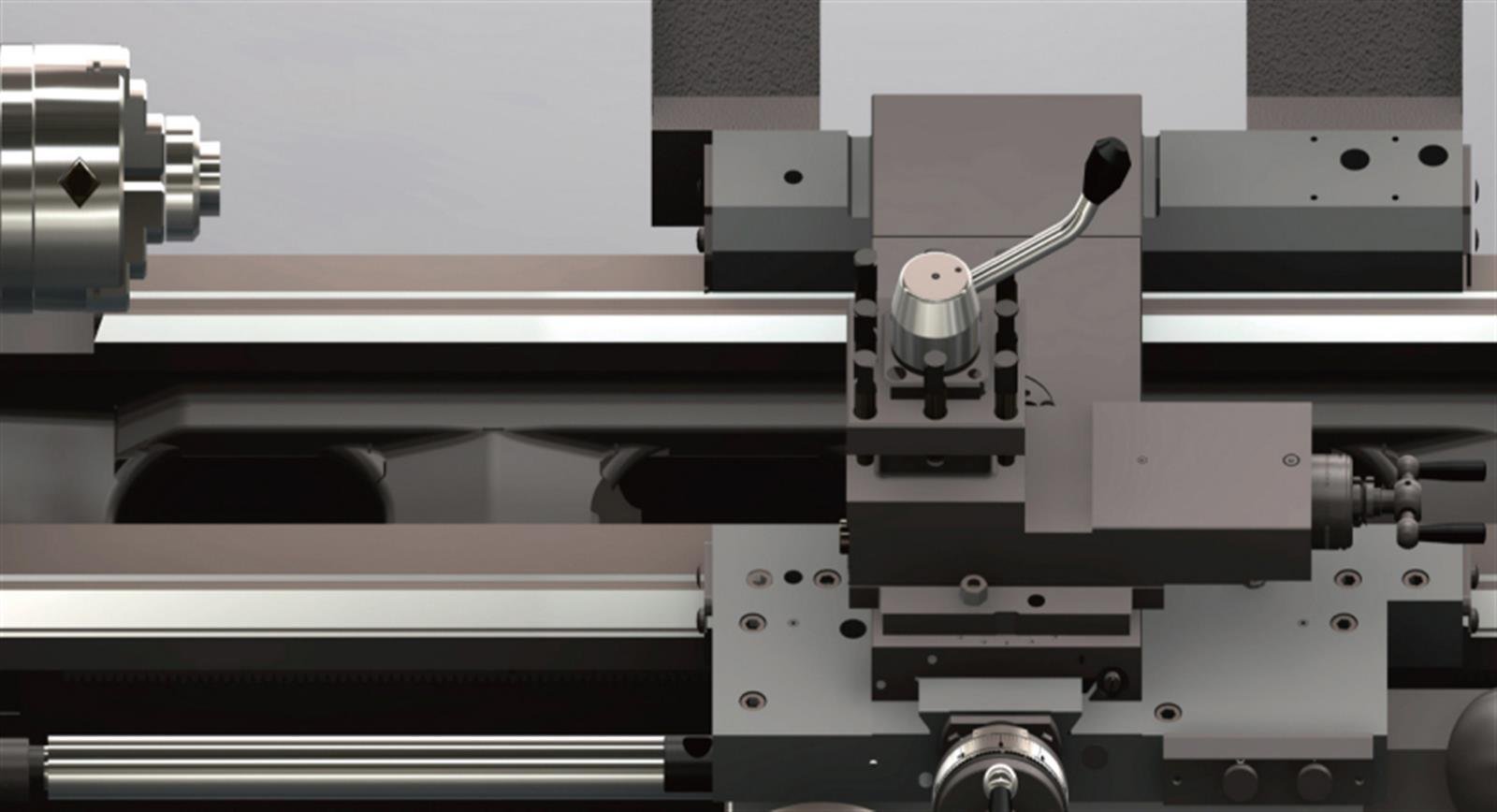

Tool post	Upper tool post travel	mm	145
	Lower tool post travel	mm	310
	Tool qty	/	4
	Toolshank size	mm	25×25
	Distance from spindle center to tool support face	mm	28
	Max rotary angle scale of square tool post	/	±90°
Thread	Metric thread	mm	0.5~224(48kinds)(for Φ52,82mm bore),1~14(22kinds)(for Φ105mm bore)
	Inch thread	TPI	72~1/8(46kinds)(for Φ52,82mm bore),28~2(25kinds)(for Φ105mm bore)
	Module thread	M.P.	0.5~112(42kinds)(for Φ52,82mm bore),0.5~7(18kinds)(for Φ105mm bore)
	Diametrical pitch thread	D.P.	56~1/4(45kinds)(for Φ52,82mm bore),56~4(24kinds)(for Φ105mm bore)
Tailstock	Travel of tailstock quill	mm	150
	Dia. of tailstock quill	mm	Φ75
	Taper of tailstock quill	/	MT5#
	Tailstock cross movement	mm	±15
	Spindle motor power/speed	/	7.5kw, 1450r/min(50Hz);1750r/min(60Hz)
Motor	Rapid movement motor power	/	0.3kw,1360r/min(50Hz), 1750r/min(60Hz)
	Coolant motor power	kw	0.15
Others	Coolant pump flow	L/min	25
	Weight	kg	2150/2200/2400/
			2600/3000
	Machine length	mm	2380/2630/3130/3630/4630
	Machine width×height	mm	975×1350
