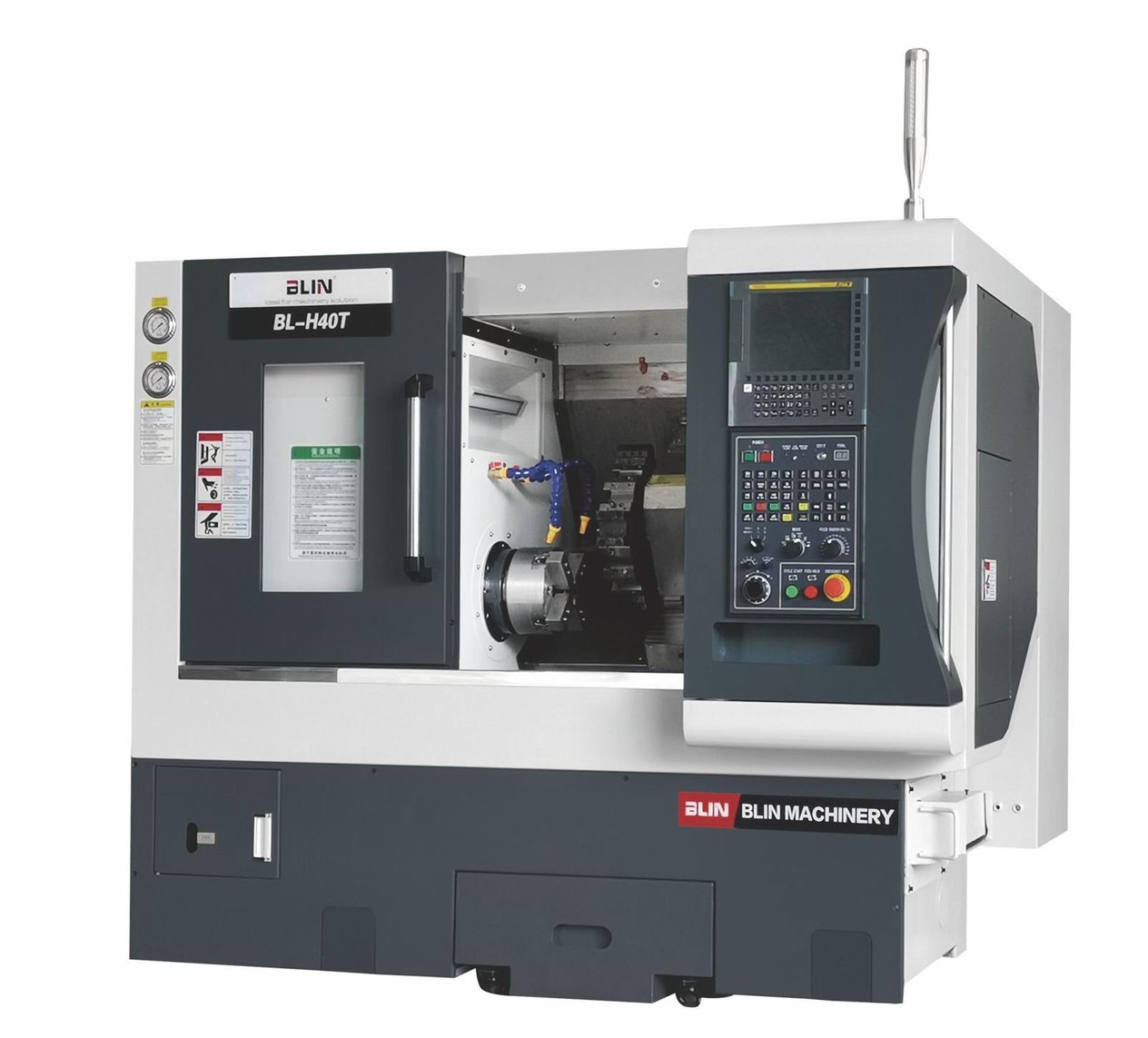

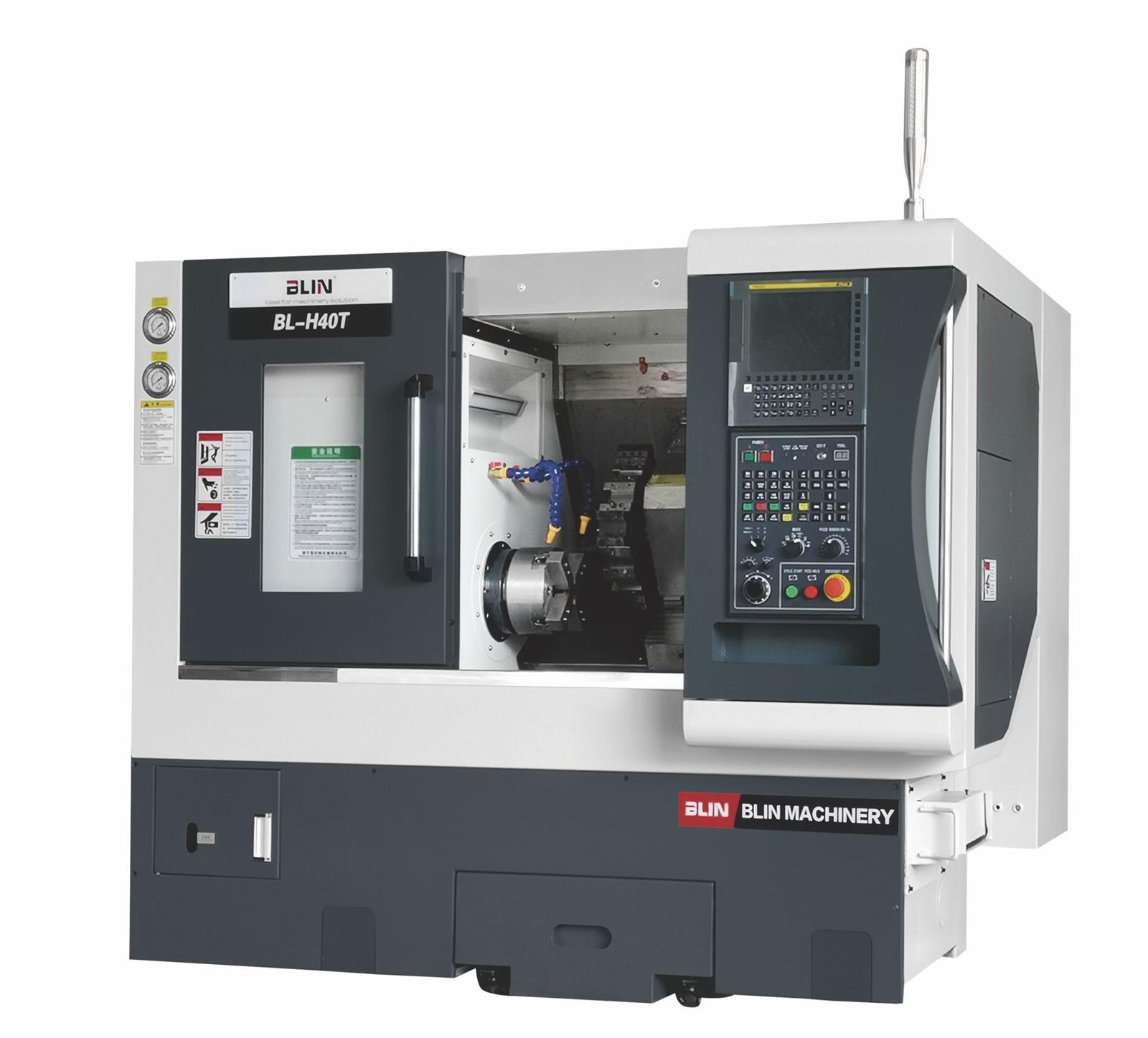

H STANDARD Series TAIWAN technology 6''/8'' chuck 8T/12T tool turret Hydraulic tailstock
Standard configuration: SIEMENS 808D ADVANCED CNC controller Hydraulic chuck Hydraulic-servo tool turret Hydraulic tailstock

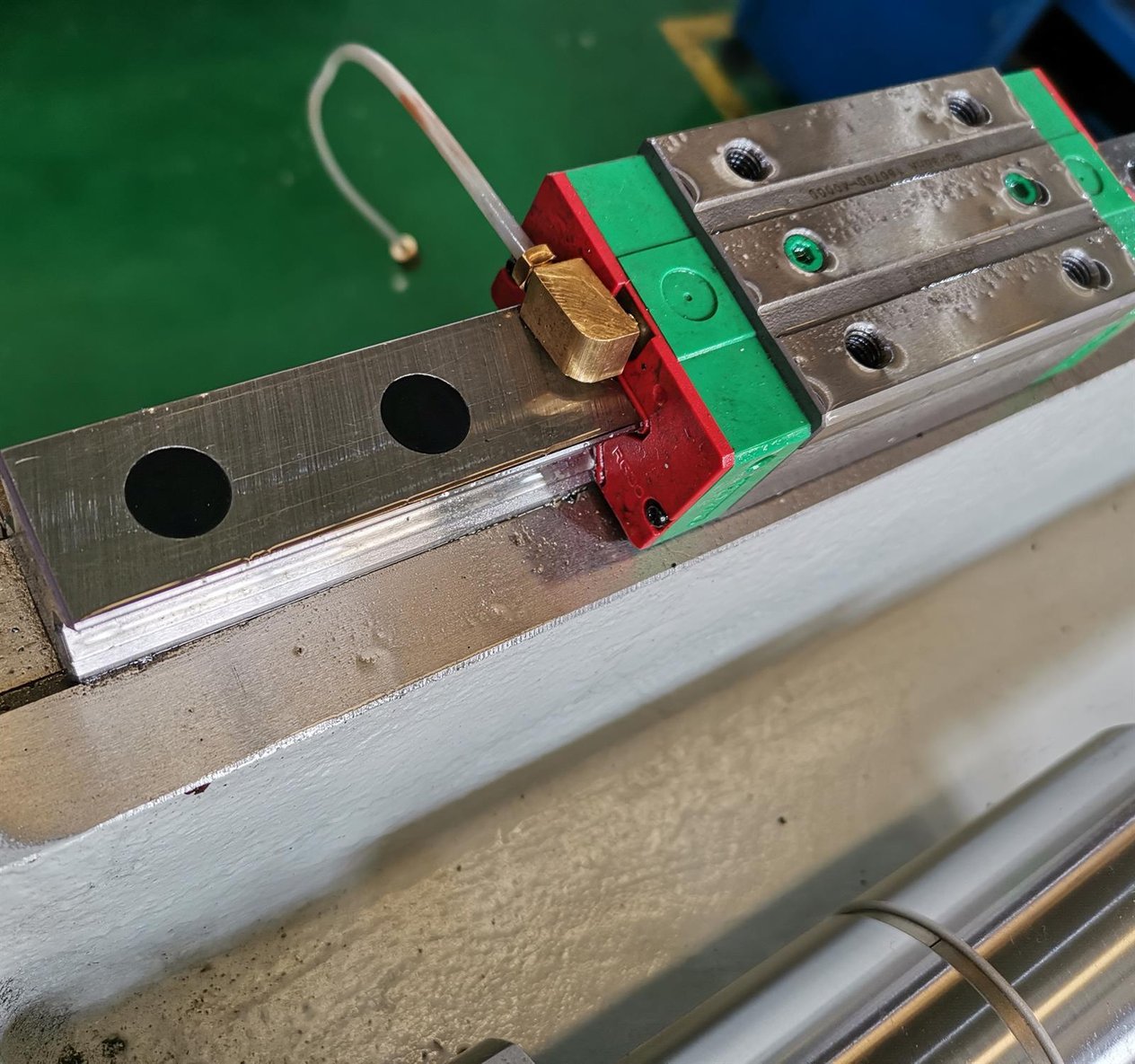

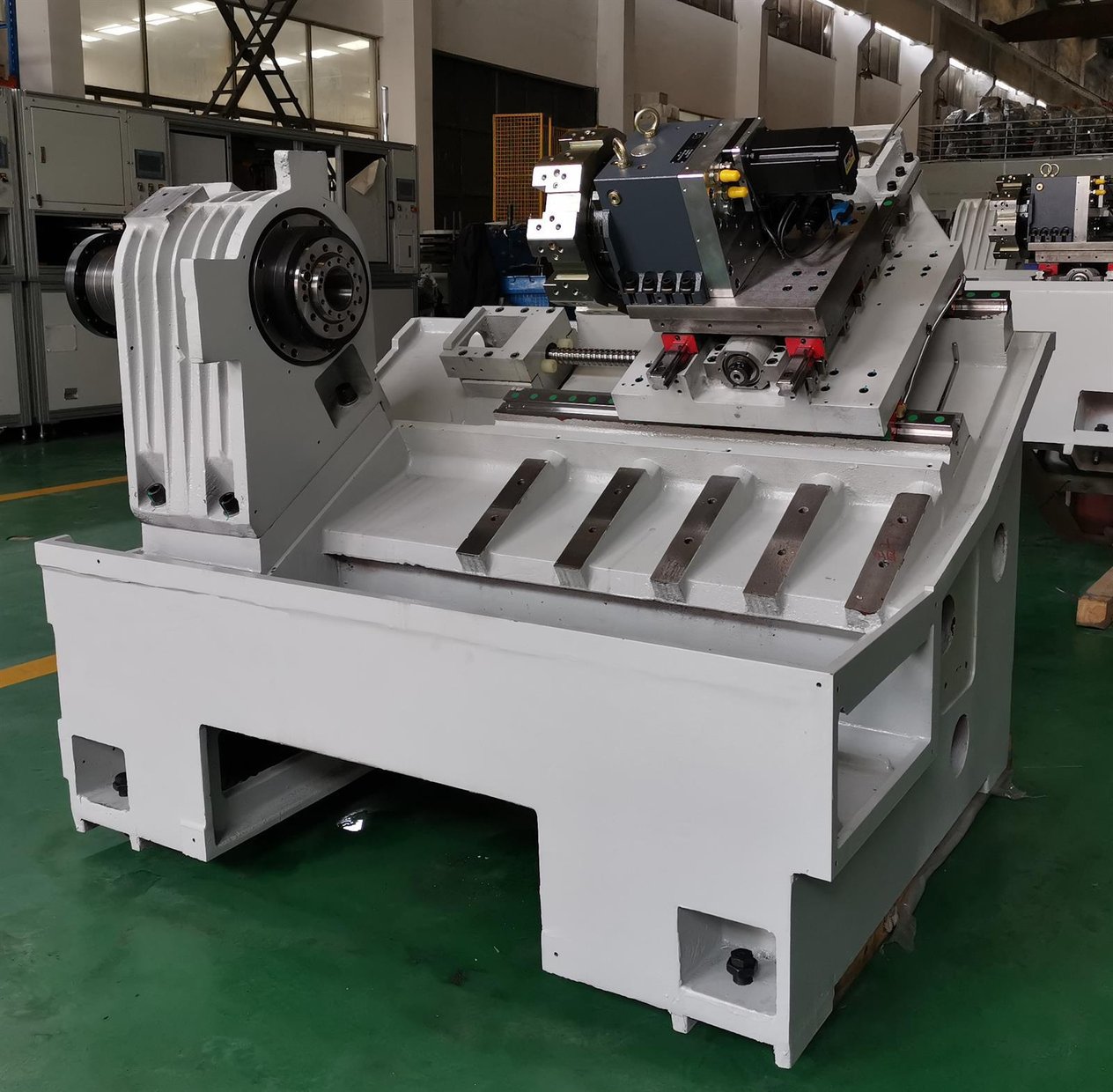

Features: Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/TAIWAN brand Adopt 30° integral slant bed design Z axes adopt ROLLER type linear guideway,super high rigidity Adopt modularization design, easy for various especial configuration choice, such as tool setter etc Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability Base adopt multilayer strengthening rib, ensure bed’s strength and stability Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity H40T mount 8T hydraulic-servo tool turret H40TC mount C axes and 12T Powered tool turret H40TY mount C axes and 12T Powered tool turret with 90°Y axes
260/240(BMT40,6''/8'' * chuck); 250/235(VDI30*, 6''/8'' * chuck）
