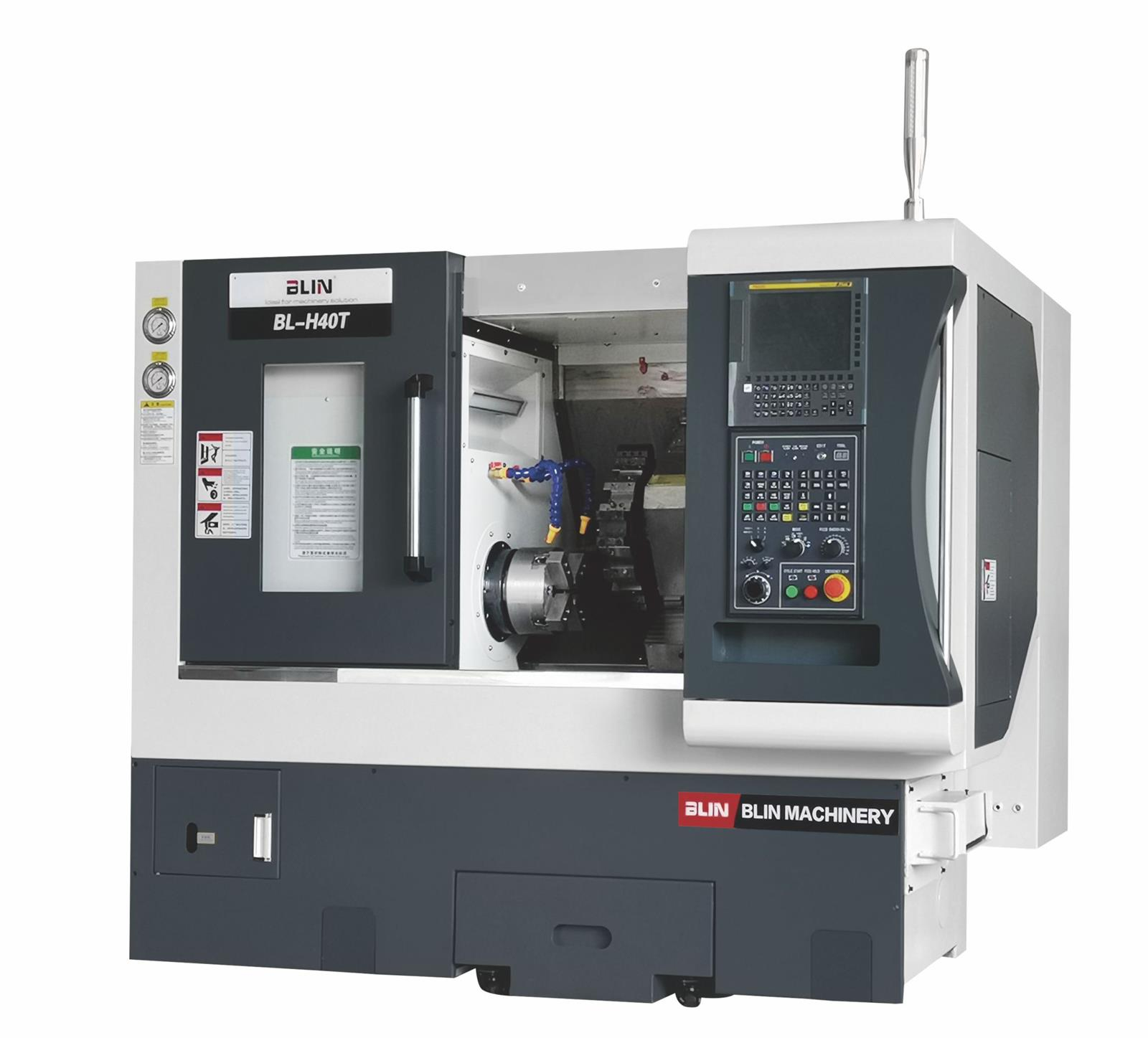

Blin BL-H40T Slant Bed CNC Lathe(H Standard Series) (BL-H40T)

H STANDARD Series
TAIWAN technology
6''/8'' chuck
8T/12T tool turret
Hydraulic tailstock

Standard configuration:
SIEMENS 808D ADVANCED CNC controller
Hydraulic chuck
Hydraulic-servo tool turret
Hydraulic tailstock

Features:
Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/TAIWAN brand
Adopt 30° integral slant bed design
Z axes adopt ROLLER type linear guideway,super high rigidity
Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
Base adopt multilayer strengthening rib, ensure bed’s strength and stability
Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
H40T mount 8T hydraulic-servo tool turret
H40TC mount C axes and 12T Powered tool turret
H40TY mount C axes and 12T Powered tool turret with 90°Y axes







Item	Brand
Spindle unit	TAIWAN-ROYAL
Tool turret	TAIWAN-GSA/GERMANY-SAUTER/TAIWAN-YULIN/SWIFT
Ball screw	TAIWAN-HIWIN C3 class
Ball screw bearing	GERMANY-FAG
Linear guideway	TAIWAN HIWIN P class
Lubrication system	TAIWAN-ISHAN
Rotary oil cylinder&chuck	TAIWAN-AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
Heat exchanger	Joint-venture
Main electricity parts	FRANCE-SCHNEIDER

SYNTEC/SIEMENS 828D/FANUC CNC controller
C axes& powered tool turret
Y axes
Automatic chip conveyor
Tool setting probe

Item	Specification	Unit	BL-H40T
Capacity	Chuck size	/	6''(8'' *)
	Max. swing dia. over bed	mm	Φ400
	Max. swing dia. over saddle	mm	Φ300
	Max. turning length	mm	300(6'' chuck);290(8'' chuck*)
	Max. turning dia.	mm	Φ310
	Standard turning dia.	mm	Φ150(6'' chuck);Φ200(8'' chuck*)
Spindle	Spindle bore	mm	Φ56(Φ66*)
	Spindle end type	/	A2-5(A2-6*)
	Spindle speed	rpm	5000(4000*)
	Max. bar through dia.	mm	44(51*)
	Spindle motor power	kw	11
X/Z axes	X/Y/Z axes linear guideway type	/	BALL type/BALL type/ROLLER type
	X/Y/Z axes linear guideway width	mm	30/30/30
	X/Y/Z axes ball screw O.D.	mm	Φ32
	X/Y/Z axes ball screw pitch	mm	10
	X axes travel	mm	180
	Y axes travel	mm	/
	Z axes travel	mm	320
	X/Z axes rapid moving speed	m/min	30
	Y axes rapid moving speed	m/min	/
Tool turret	Tool turret type	/	8T/12T* Hydraulic-servo tool turret
	Toolshank size	mm	25×25, Φ40(SAUTER 8T); 20*20,Φ25/32(SAUTER 12T*);  25×25, Φ32(GSA 8T*)
	Live tool type		/
Tailstock	Tailstock quill taper	/	MT4#
	Tailstock quill dia./travel	mm	Φ70/70
Accuracy	Positioning accuracy(X/Z)	mm	0.008/1000
	Repeat positioning accuracy(X/Y/Z)	mm	≤0.005
Others	Overall size	mm	2180×1830×1710
	N.W.	kg	3100
