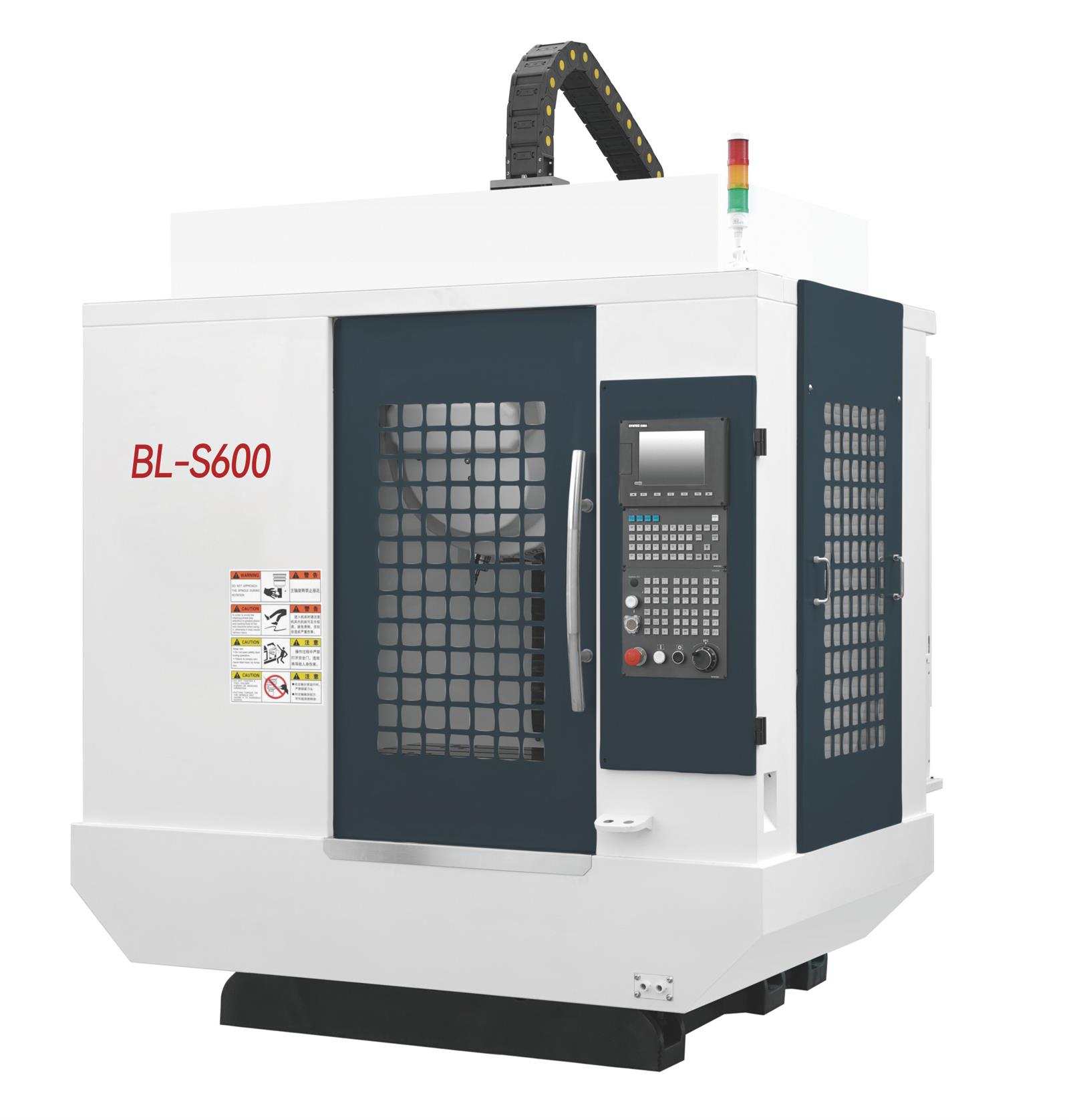

Blin BL-S600 CNC Drilling & Tapping ( BL-S600)

Brand : Blin

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Drilling & Tapping Machines

CNC Drilling & Tapping Machines

16T/21T SLANT DISC tool magazine
High SPEED
High EFFICIENCY

Standard configuration:

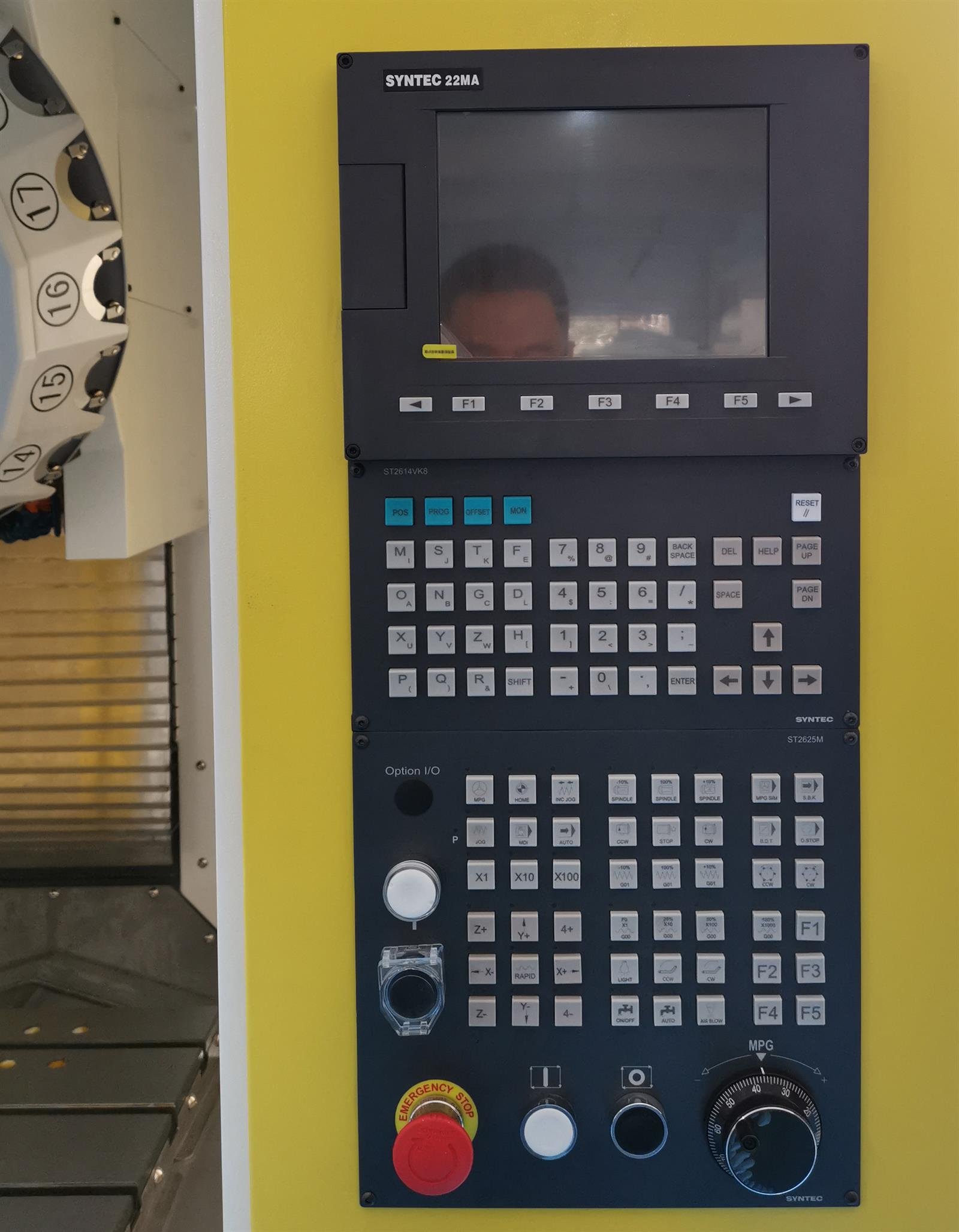

SYNTEC 22MA CNC controller

Features:
Adopt HT300 class cast iron
3 axes adopt wide linear guideway, high rigidity
3 axes adopt big pre-stretched ball screw
Adopt Slant Disc type 21T/16T tool magazine,fast tool changing

Item	Brand
Ball screw	TAIWAN-HIWIN/PMI
Linear guideway	TAIWAN-HIWIN/PMI
Ball screw bearing	SWEDEN SKF/GERMAN FAG
Spindle	TAIWAN
Tool magazine	TAIWAN-SANJET
Main electric parts	FRANCE-SCHNEIDER

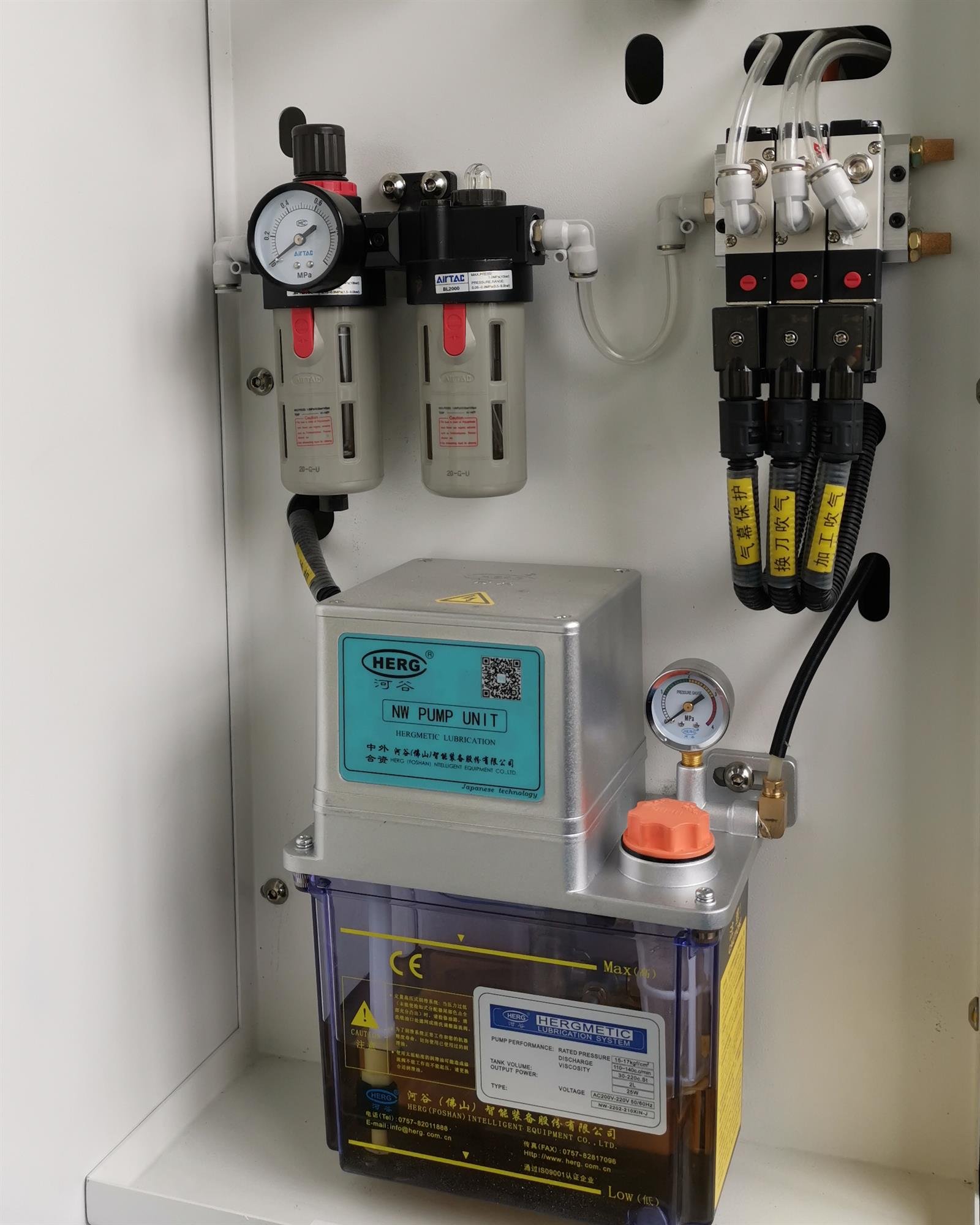

Pneumatic parts	TAIWAN-AIRTAC
Lubrication pump	JAPAN-HERG

Optional configuration:
FANUC 0I MF CNC controller
4th axes

Item	Specification	Unit	BL-S600
Capacity	Max. drilling dia.(U driller)	mm	Φ18
Capacity	Max. tapping dia.	mm	M16

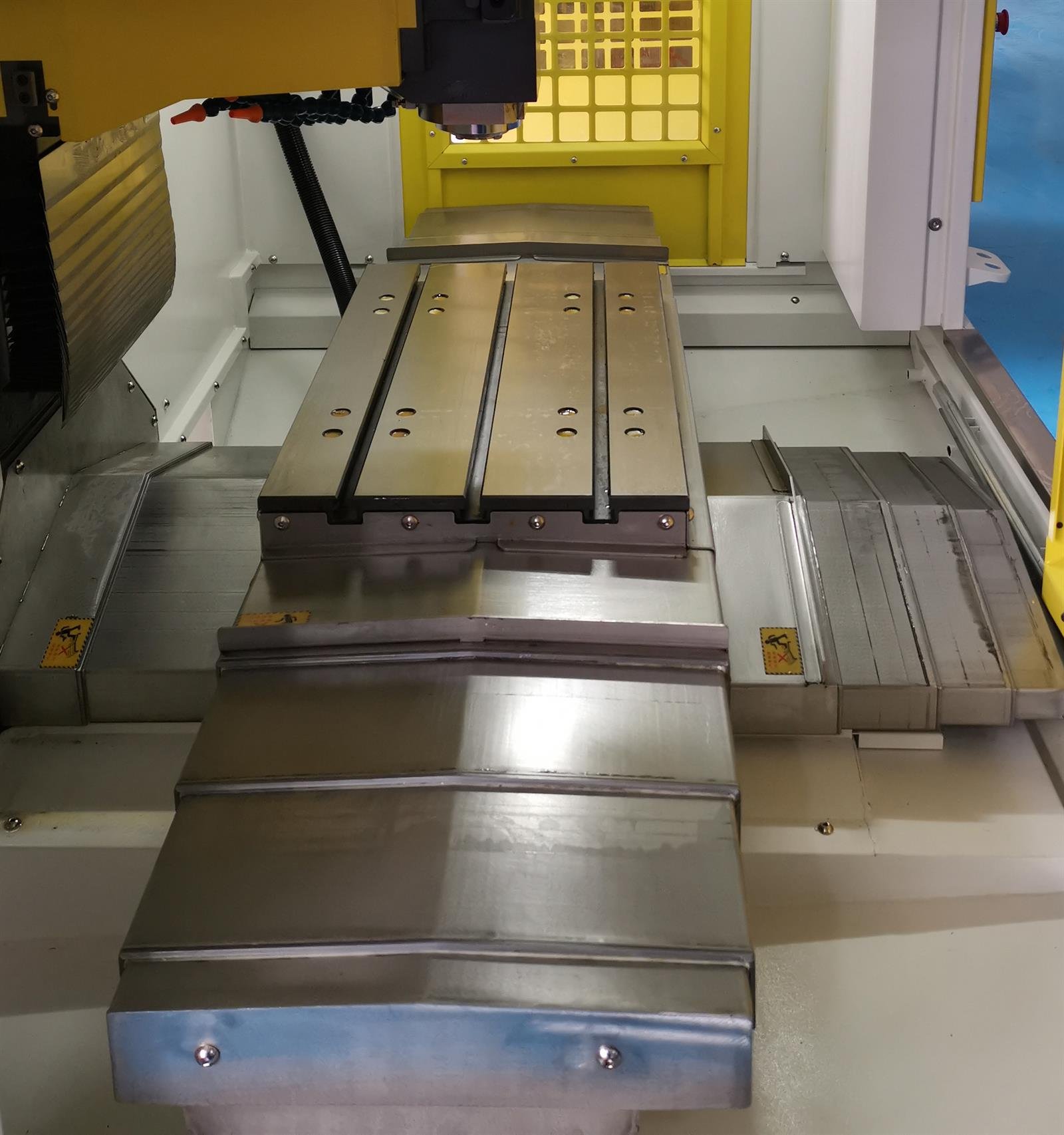

Worktable	Table size(L×W)	mm	700×420
	T slot(NO./width/distance)	mm	3/14/125
	Table max. loading	kg	300
Spindle	Spindle motor power	kw	5.5/7.5
	Spindle type	/	BT30
	Spindle max. speed	rpm	Direct-drive 12000(opt.:20000)
	Distance from spindle nose to table face	mm	135~485
Feeding axes	X/Y/Z axes travel	mm	600/400/350
	Cutting feed speed	mm/min	5~15000
	X/Y/Z axes rapid moving speed	m/min	48/48/48
	Positioning precision	mm	±0.003/300
	Repeatable positioning precision	mm	0.003
Tool magazine	Tool magazine type	/	Slant disc type
	Tools qty	/	21
	Tool changing time(tool to tool)	s	1.6
	Max. tool dia.(full/(no adjacent tool)	mm	Φ50/Φ120
Others	Overall dimension(L×W×H)	mm	1900×2100×2200
Others	Weight	kg	3000
