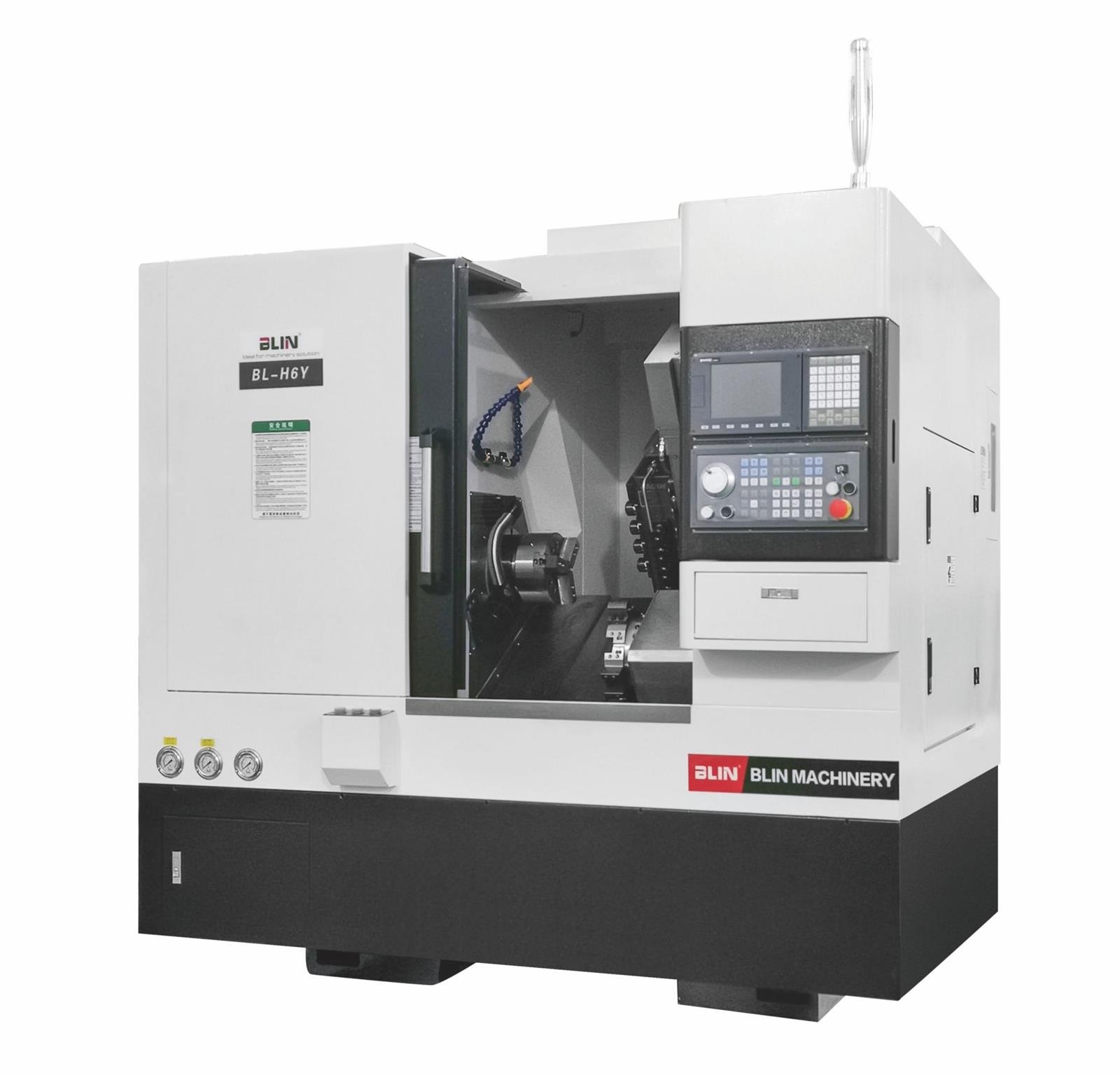

Blin BL-H6Y Slant Bed Cnc Lathe(H standard series)Heavy Duty Lathe machine ( BL-H6Y)

H STANDARD Series
TAIWAN technology
6''/8'' collet chuck
8T tool turret &4+4 Live tool with Y axes
Without tailstock

Standard configuration:
SYNTEC 21TBCNC controller
Hydrauliccollet chuck
8T hydraulic tool turret
4+4 Independent live tool group with Y axes

Features:
Adopt TAIWAN technology, most parts adopt GERMANY/TAIWAN brand
Adopt 30° mono-block slant bed design,super-heavy bed, high stability
Adopt modularization design, easy for various especial configuration choice, such as parts catcher etc
Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
Base adopt multilayer strengthening rib, ensure bed’s strengthand stability
Adopt high precision integral spindleunit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
Mount 8T hydraulic tool turret and 4+4 Independent live tools with Y axes





Item	Brand
Spindle unit	TAIWAN-ROYAL
magnet ring encoder	TAIWAN-SYNTEC
Brake system	JAPAN-SANYO
Tool turret	TAIWAN-GSA/YULIN/SWIFT
Live tool group	CHINA top
Ball screw	TAIWAN-HIWIN C3 class
Ball screw bearing	GERMANY-FAG
Linear guideway	TAIWAN HIWIN
Lubrication system	TAIWAN-ISHAN
Rotary oil cylinder	TAIWAN-AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
Heat exchanger	Joint-venture
Main electricity parts	FRANCE-SCHNEIDER

FANUC 0i TF CNC controller
Automatic chip conveyor
Parts catcher
Bar feeder

Item	Specification	Unit	BL-H6Y
Capacity	Collet chuck size	/	6''	8''
	Max. swing dia. over bed	mm	Φ350
	Max. turning length	mm	250
	Max. turning dia.	mm	Φ200
	Standard turning dia.	mm	Φ150
Spindle	Spindle bore	Mm	Φ56	Φ66
	Spindle end type	/	A2-5	A2-6
	Spindle speed	rpm	4500	4000
	Max. bar through dia.	mm	44	51
	Spindle motor power	kw	11
X/Z axes	X/Y/Z axes linear guideway width	mm	30/30/30
	X,Y,Z axes ball screw O.D./Pitch	mm	Φ32/10,Φ25/10,Φ32/10
	X axes travel	mm	350
	Y axes travel	mm	220
	Z axes travel	mm	300
	X/Y/Z axes rapid moving speed	m/min	24/16/24
Tool turret	Tool turret type	/	8T Hydraulic tool turret&4+4 Independent live tool group with Y axes
	Live tool collet size	/	ER25
	Live tool speed	rpm	3000
	Tool shank size	mm	20×20, Φ25
Tailstock	Tailstock	/	N/A
Accuracy	Positioning accuracy(X/Y/Z)	mm	0.008/1000
	Repeat positioning accuracy(X/Y/Z)	mm	≤0.005
Others	Overall size	mm	2270×1940×2070
	N.W.	kg	3000
