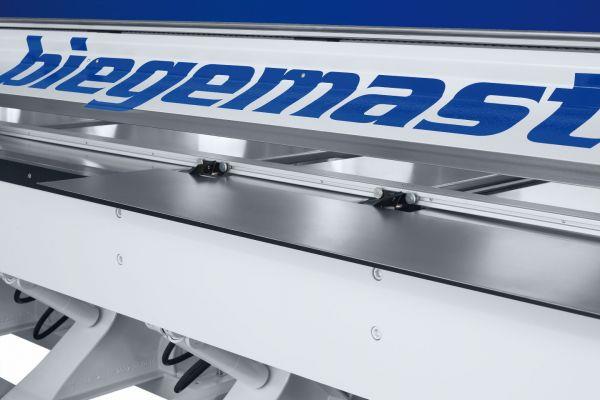

Precise positioning of the sheet metal
Computer-operated back gauge fingers enable the simple and precise positioning of sheet metals. The back gauge fingers hereby drive automatically into the correct position with each new bending phase. All back gauge fingers can be freely positioned over the entire bending length for optimal adjustment to the workpiece.
Thanks to the freely positionable foot switch, both hands remain free when fixing the sheet metal.
Computer-operated electronic precision back gauge
Operator-independent positioning
Reproducible bending results
Driven by a maintenance-free timing belt

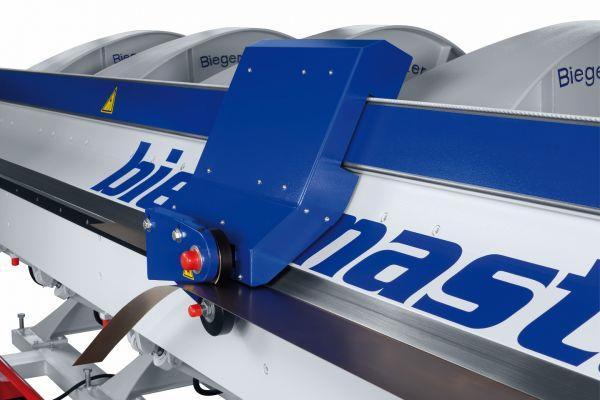

Precise sheet metal cutting
The sheet metal is cut with millimetre precision using the integrated shear right from the first fixing. The Dura can optionally be equipped with an electrical or manual cutter. Fitting the clamping beam on the machine body eliminates constraining contours and force effects. Driven by a maintenance-free timing belt.
Cutting device driven by a maintenance-free timing belt
Cutting capacity of up to 3 mm steel
Fitting the clamping beam on the machine body eliminates guide rails and force effects through cutting
Kraftvolles und präzises hydraulisches Biegen

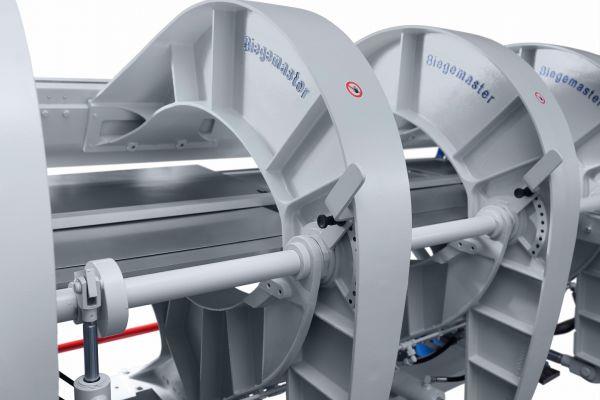

Each stand / tension arm unit is equipped with an electro-kinetically driven bending joint. The robust and rigid construction ensures an even bending capacity over the entire length. Thanks to the newly developed electro-kinetic drive, the bending process is faster and quieter than with hydraulically driven machines.n.
Quick, precise bending in two directions thanks to a hydraulic drive unit
Demanding bending parts: The clamping beam can be controlled with millimetre precision
All common profiles from 3 to 15 metre bending lengths with material thicknesses of up to 3 mm can be precisely folded.

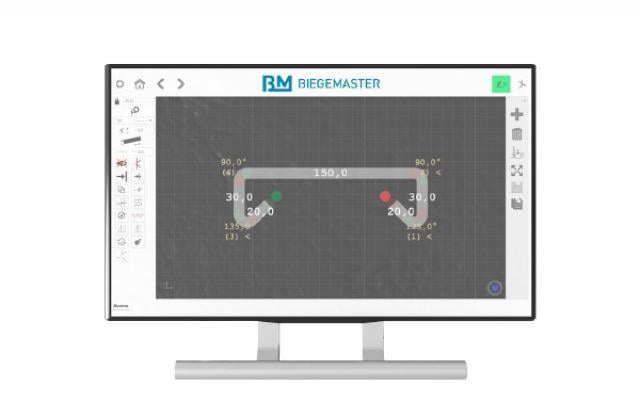

Profile creation via touch display or office computer
The BMS multi-touch control system enables intuitive operation by touching the screen. This ensures that new profiles can be created quickly or created using touchscreen painting. The control system can draw on stored profiles. Automatic bend sequence calculations with graphic simulation and illustration complete this all-rounder. The BMS multi-touch control system allows even untrained users to create profiles themselves in no time.
Fernwartung
Über eine Fernwartungsfunktion kann Biegemaster die Anwender des BMS Multi-Touch bei der Erstellung von Profilen unterstützen oder Parameter für eine nachfolgende Analyse auslesen.
Vorbereitung am Büro-PC
Für eine hoch effiziente Arbeitsvorbereitung ist die einfache Profilerstellung auch vorab mit unserer Software am Büro-Arbeitsplatz möglich und im Anschluss auf die Maschine transferierbar.
Draw profiles directly at the machine using screen painting
Simply load stored profiles from the archive
Simply create profiles on the office computer using our software and subsequently transfer them onto the machine
We also provide remote support via remote maintenance
Die DURA-Serie kann neben der BMS Multi-Touch-Steuerung auch mit allen anderen Steuerungen ausgestattet werden.
Demanding bending parts
With the Biegemaster Dura even demanding profiles can be created easily and reproducibly. The bending beam can be controlled precisely and with millimetre precision for perfect folds. You can precisely fold all common profiles with a bending length ranging from 3 to 15 metres with material thicknesses of up to 3 mm. Durch die optimale Spannwangengeometrie werden große Biegewinkel (150°) bei gleichzeitig viel Freiraum im Inneren der Maschine ermöglicht. Hydraulische Spannwangenverstellung Der Biegemaster DURA ist optional mit einer hydraulischen Spannwangenverstellung zum Ausgleich verschiedener Blechstärken ausgestattet. The manual adjustment to pre-set each clamping beam separately serves to reduce overbends on short profiles.
Many useful additional functions,oriented towards the demands in practice
Clamping beam can be operated with millimetre precision for optimal folds
Adjustable clamping beam for material thickness adjustment
