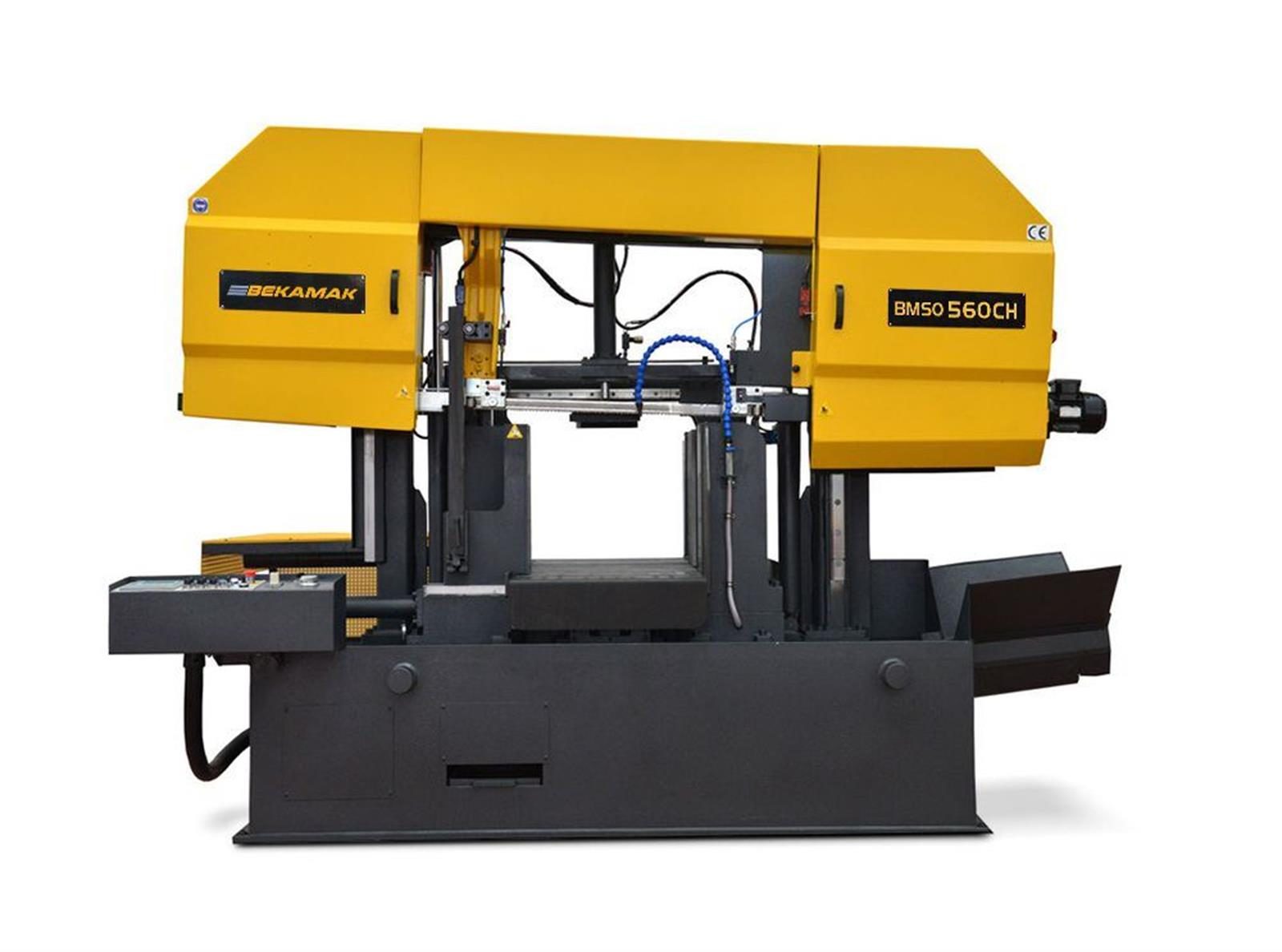

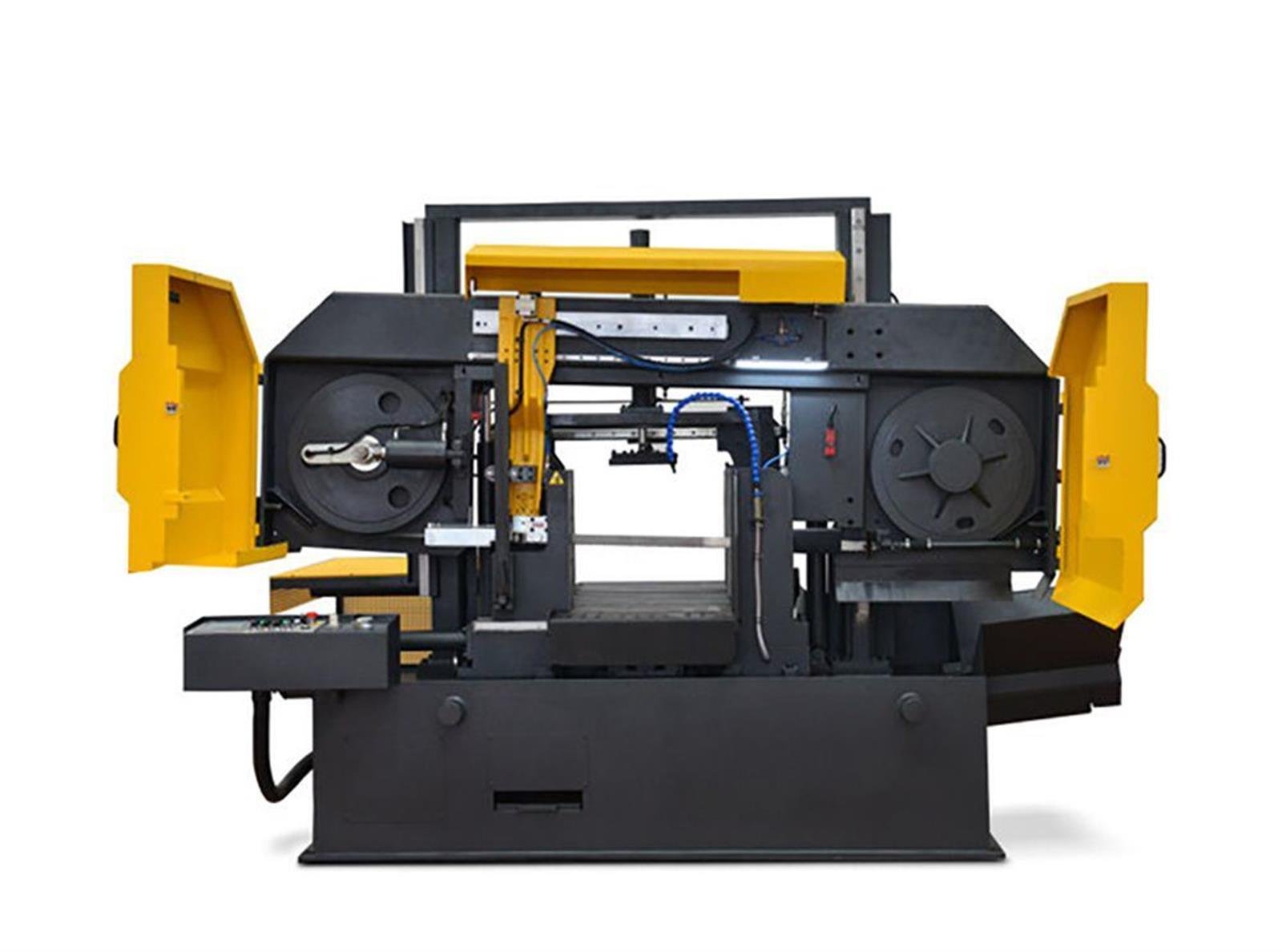

Fully automatic bandsaw machine with hydraulic feeding
Machine description : • Fully automatic NC band saw for sawing thick-walled profiles and solid materials • Robust constructed monoblock saw frame with hydraulic vertical motion and linear guide • Feed length in a train 500 mm • Cutting length and average number input via NC (programmable logic controller ) of " SIEMENS " for 10 different programs • Continuously adjustable belt speed 20 - 100 m / min • Hydraulic-mechanical belt tension • Automatic machine shutdown at band breaks • Accurate position measurement of the slide on magnetic scale • Sensitive cutting pressure regulation function of the material properties • Eilvorlauf the saw frame with automatic saw feed in transition ( light sensor ) • Automatic Führungsarmverstellung , synchronously with hydraulic clamping of the horizontal vise • Tape guide with hard metal pads sheets and rolls • Automatic belt break protection • Chip brush
