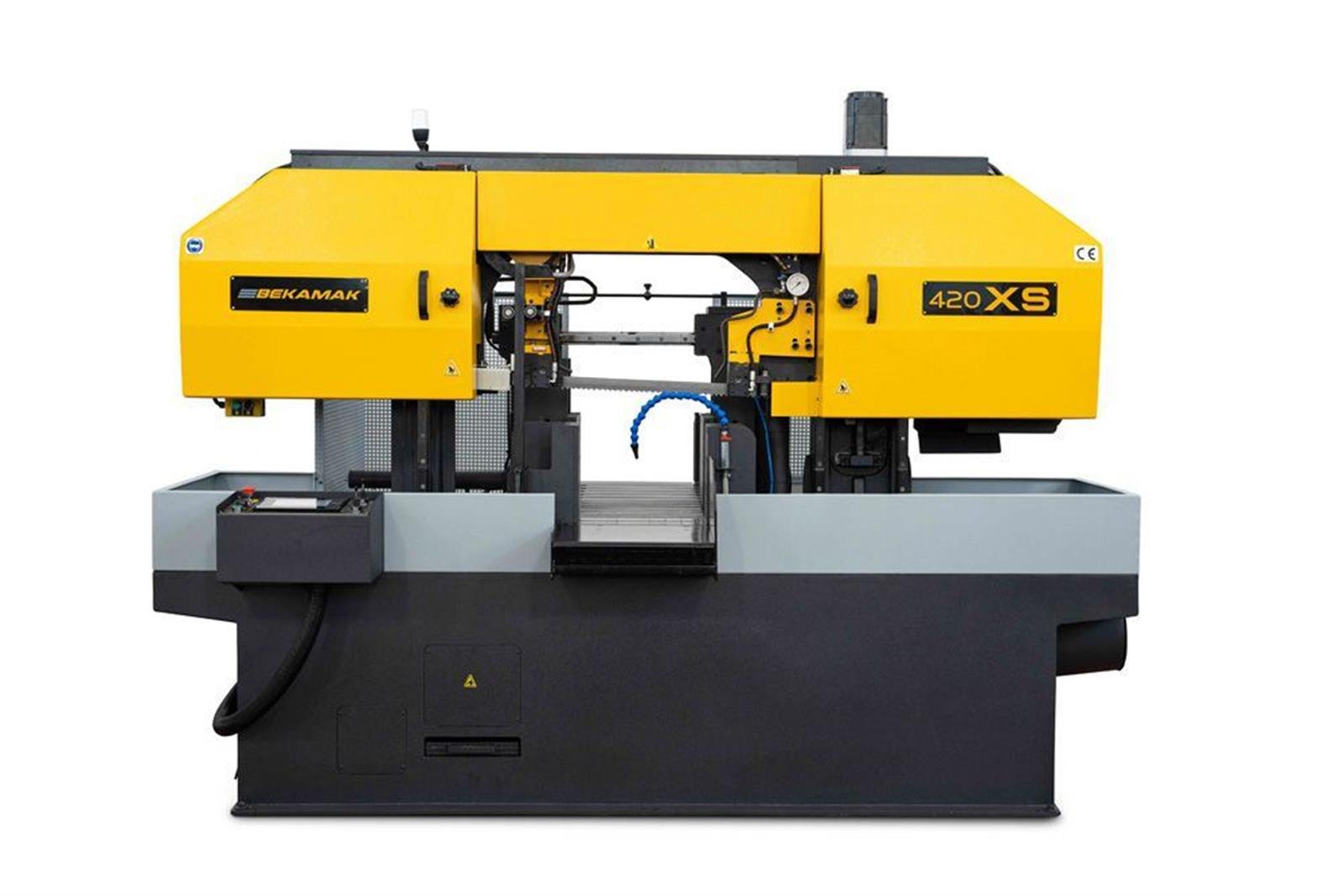

THE ULTIMATE BANDSAW MACHINE
The new BMSO 420XS is designed to maximize our customers' production of heavy metal, profile and pipe cuts in high-volume units with a fully automatic servo feeding and cutting system. Automatic controls and sensors maximazes performans/cost ratio and extends lifetime of blade up to 50% longer.
CHARACTERISTICS
- Smart cut and user friendly touch screen with Omron CNC cutting program.
- Ability to save up to 50 different cutting lenght steps in 100 different programs.
-Cutting parameters are CNC controlled for an optimal processing of workpiece.
-Manual cutting parameters input.
-Servo feeding with 700mm stroke.
-Guide arm travels on linear guide way and moves in coordination with the moveable vise jaw.
-Hydrulic actuated carbide blade guides.
-Idle Wheel motion detector and automatic deflection sensor.
-Vibration free cutting with 3 linear way.
-Motorized swarf brush.
-Planatery Gearbox.
OPTIONALS
-Hydraulic top clamping.
-Microspray cooling system.
-Hexagonal vices for bundle tube cutting.
-15 kW motor
