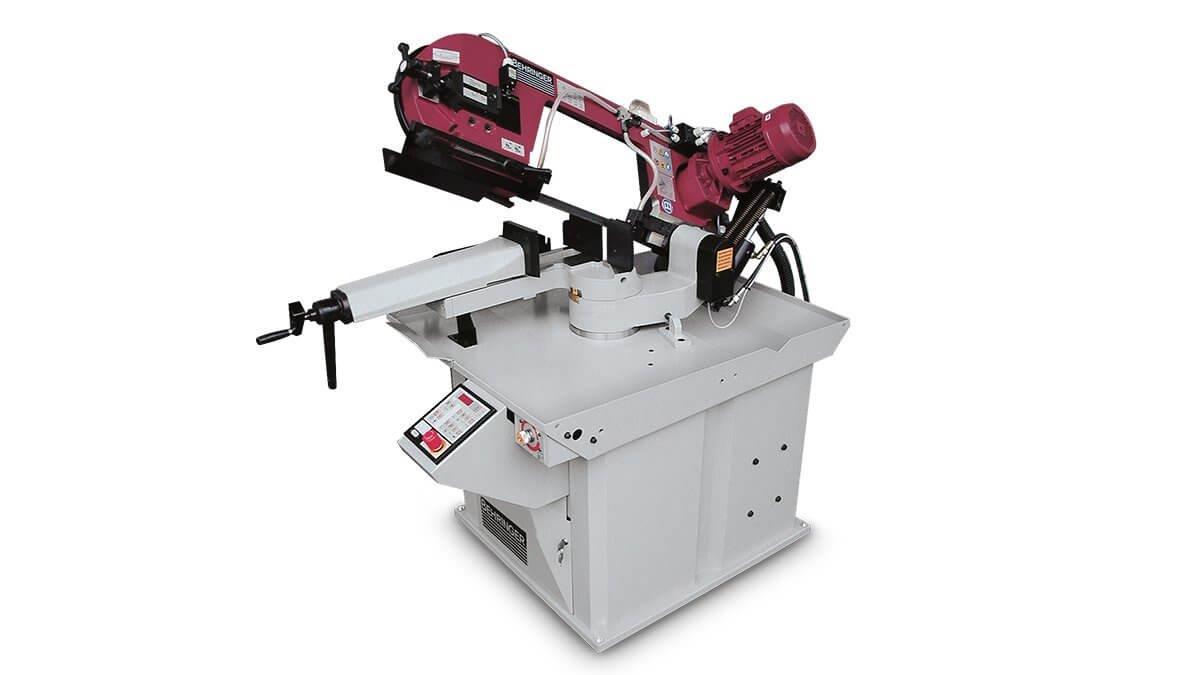

Behringer SLB230G Mitre Bandsaw (SLB230G)

The mitre bandsaw of the SLB series from Behringer is a reliable partner for daily sawing tasks in the workshop and factory. The SLB230G is suitable for cutting tubes, profiles and solid material made of metal and comparable plastics.

In addition to the attractive price, cutting precision, performance and reliability play the main role. Due to the simple operation and the small space requirement, the mitre saw is ideally suited for use in locksmiths, maintenance companies, blacksmiths and training workshops.

• Miter Adjustment
  The miter angle can be adjusted to one side. The saw frame is locked by means of a quick-release clamp. The pivot point is in the area of intersection between the saw band and the datum vice - this does not change the reference line.

• Robust Material Vice
  The material is clamped using a manual vice with a quick-release lever.

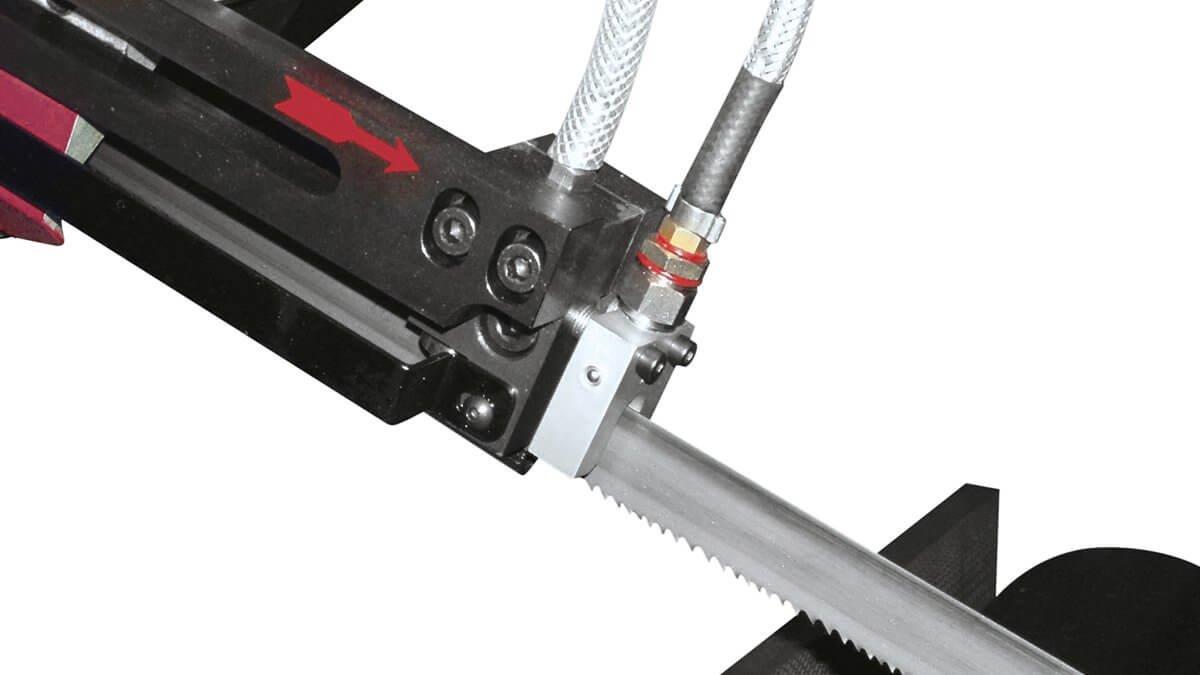

• Precise Band Guides
  Combination of roller and carbide guide of the saw band. Adjustment of the movable band guide according to the cutting width.

• Material Handling from a Single Source
  The swing frame bandsaw machines of the SLB series can be perfectly tailored to your application with roller conveyors and measuring devices.

• Hydraulic Saw Feed
  The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

• Coolant System
  The machine is equipped with 2 regulated coolant nozzles. The coolant tank can be removed for easy cleaning.

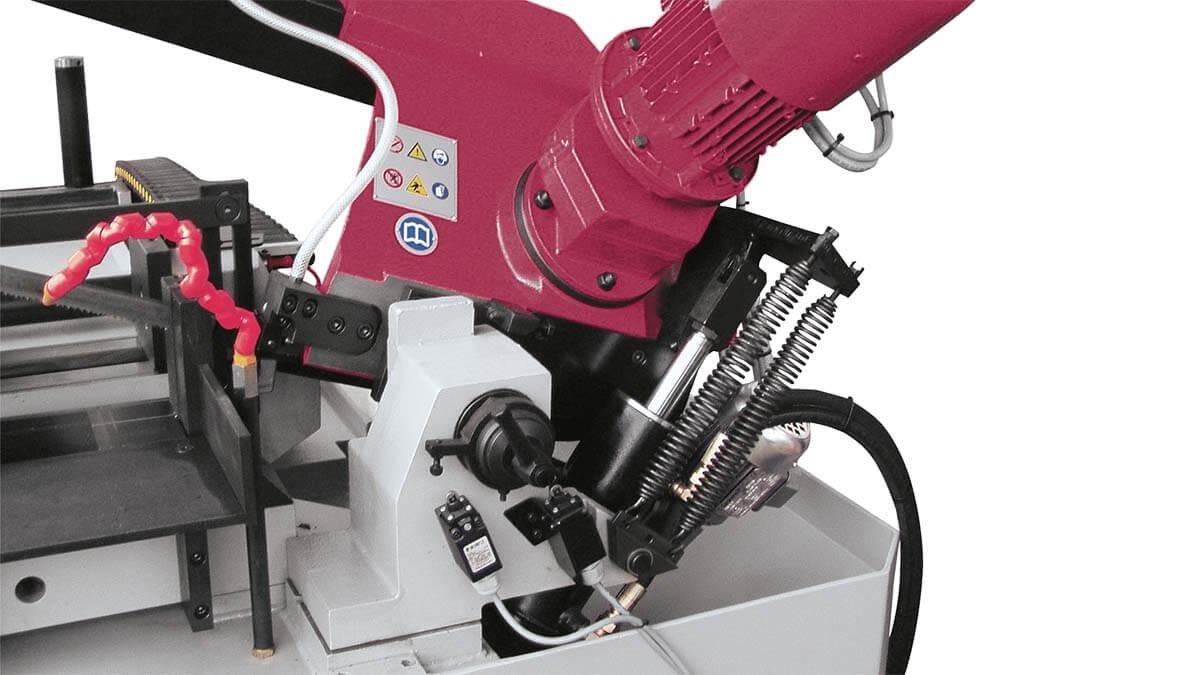

• Saw Band Tensioning
  The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically. In order to prevent overloading during the sawing process, the pressure is equalized by means of a pretensioned disc spring package. In the event of a band break, the sawing machine switches off automatically.

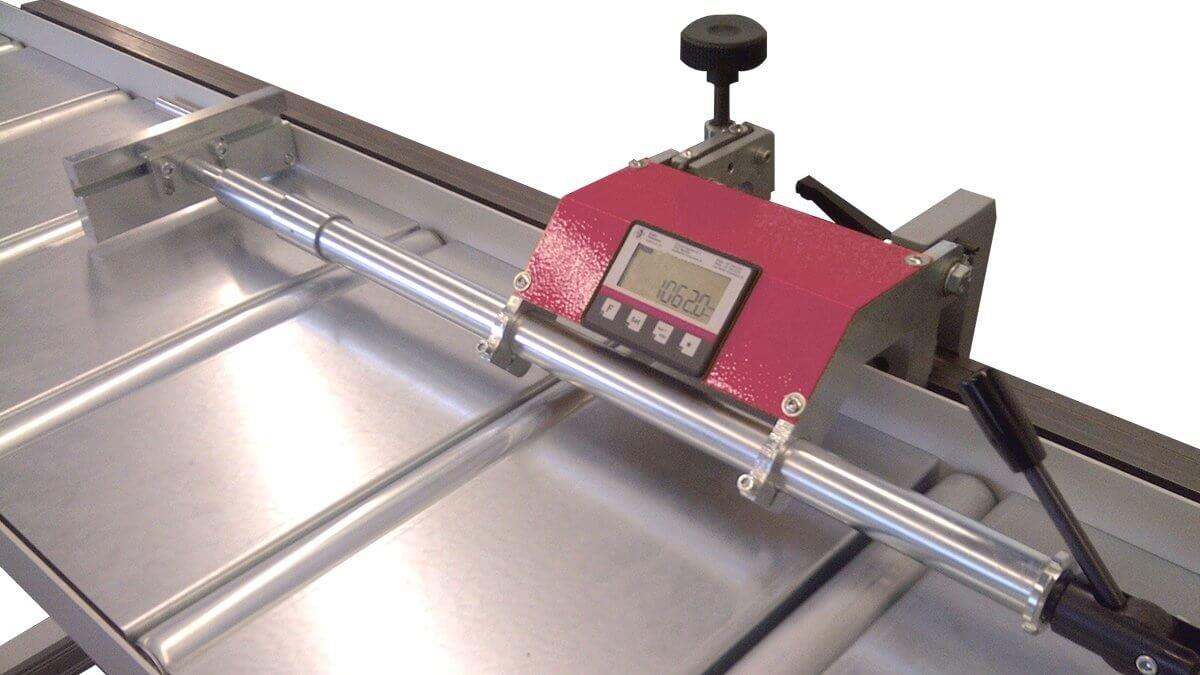

• Standard Measuring Stop
  with millimeter scale up to 600 mm
