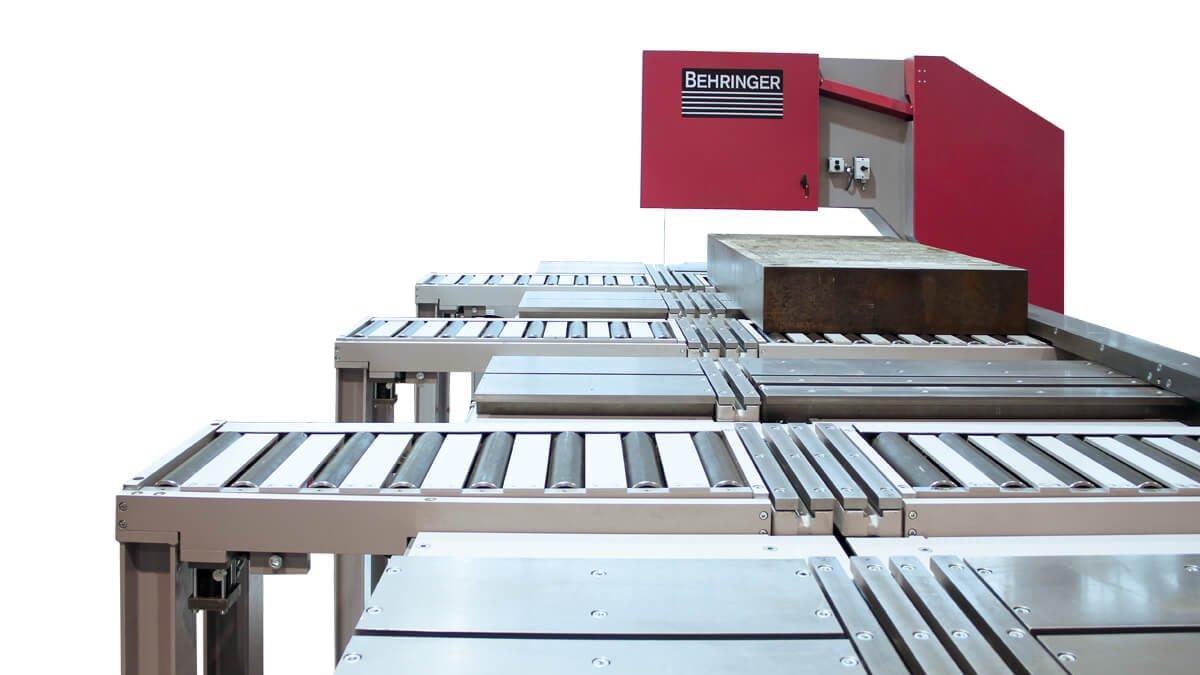

Behringer LPS40-160-3 Vertical Bandsaw (LPS40-160-3)

Especially for sawing large plates and solid blocks, the vertical bandsaw LPS40-160-3 has an extremely robust design. It is characterized by outstanding precision and cutting performance. Especially at sawing difficult to cut materials such as inconel or titanium. Thanks to its modular design, the block saw can be flexibly adapted to customer requirements.

• Cast iron band guiding parts
  are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

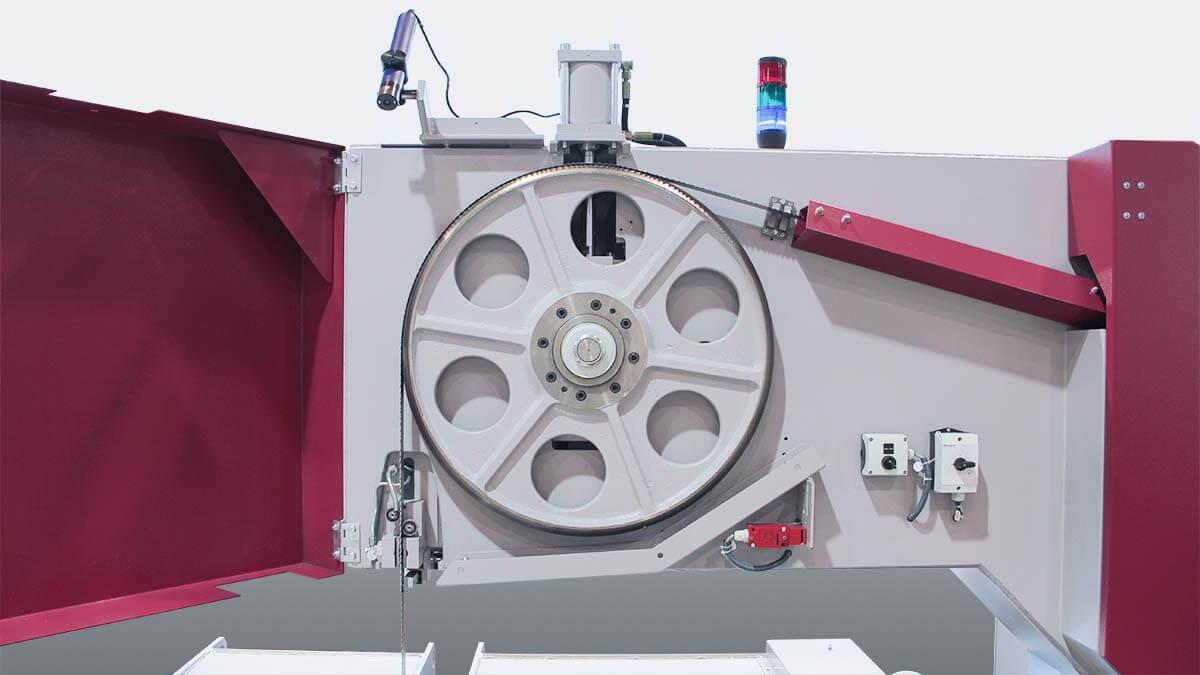

• Quick bandsaw blade change
  Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.

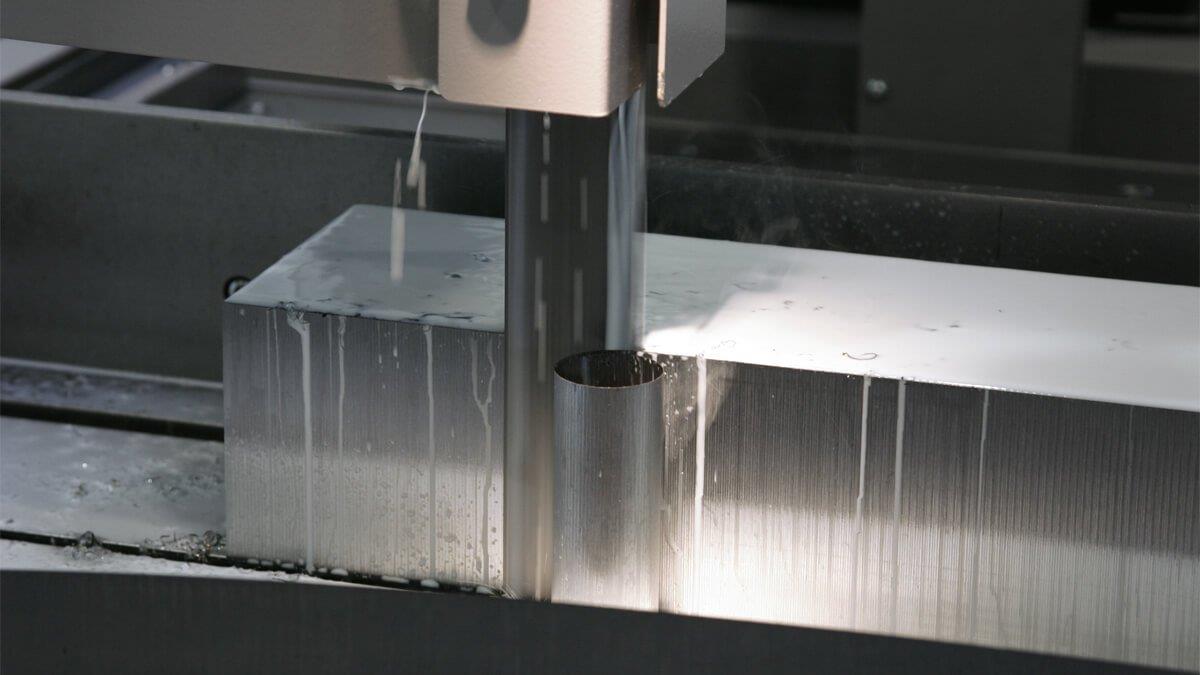

• Unsurpassed precision and cutting performance
  The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame. In comparison to plate and block bandsaw machines from other manufacturers, the force for the saw feed is applied directly beneath the cutting point, which results in feed movements that are considerably more accurate.

• Modular design
  The design of the block saw can be flexibly adapted to special requirements. Whether larger plate dimensions or higher table loads - almost all requirements can be met thanks to the modular design from the ground up.

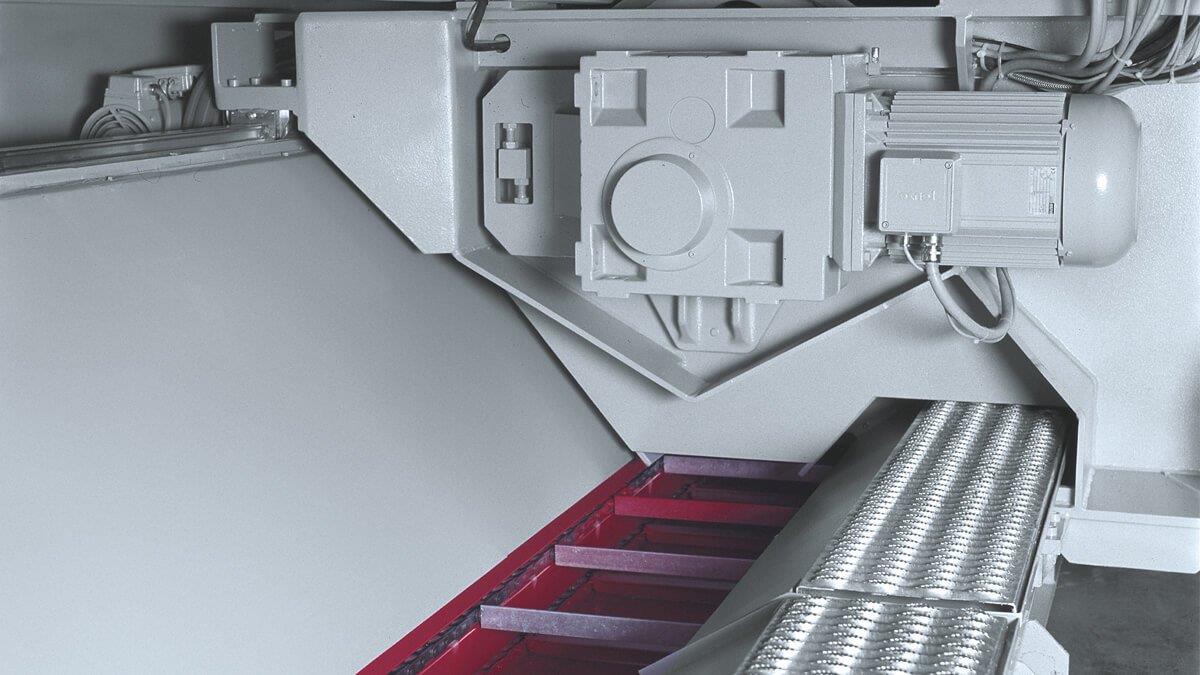

• Servo Feed System
  The Behringer servo feeding system ensures constant chip removal and makes better use of the capabilities of modern bandsaw blades. The rapid response of the servo feeding system to the sensors for the cutting pressure regulation systematically prevents overloading and premature wear of the bandsaw blades.

• A carefully designed machine concept
  The longitudinal cutting method is a typical feature of the Behringer plate saws. The workpiece remains firmly clamped to the material table while the saw unit moves.

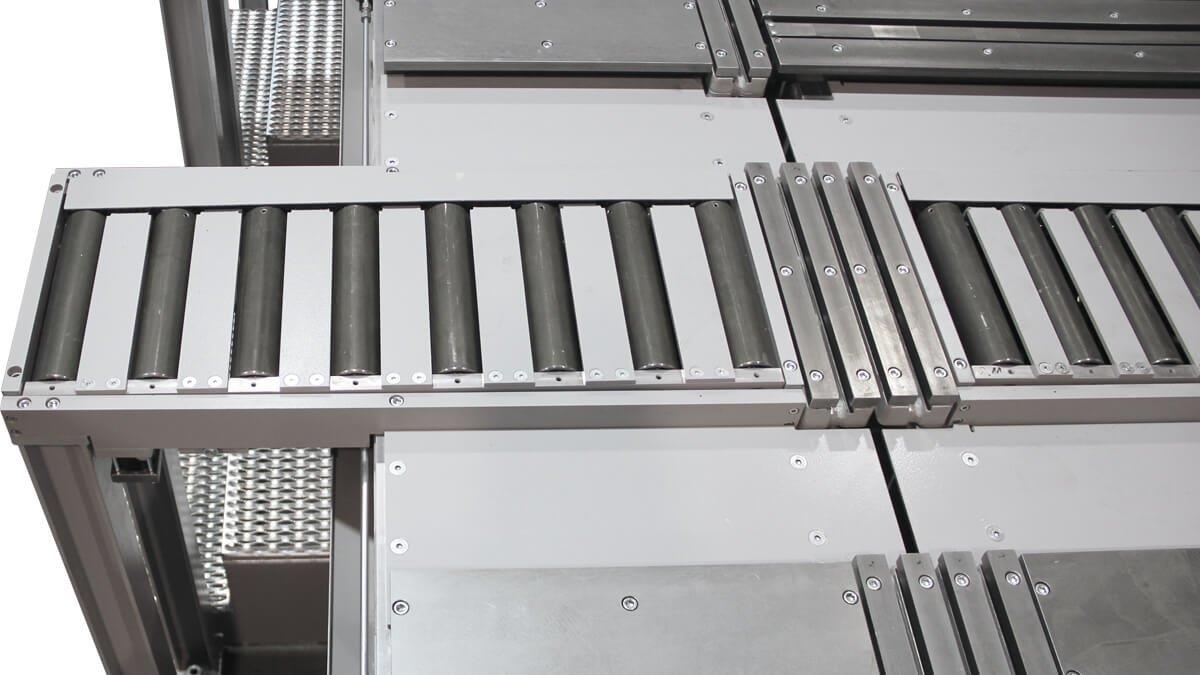

• Application-specific table versions
  LPS vertical bandsaws can be adapted to suit your exact requirements. The material support table has a modular construction and can be equipped with a variety of different options with a spacing pattern of 250 mm.
