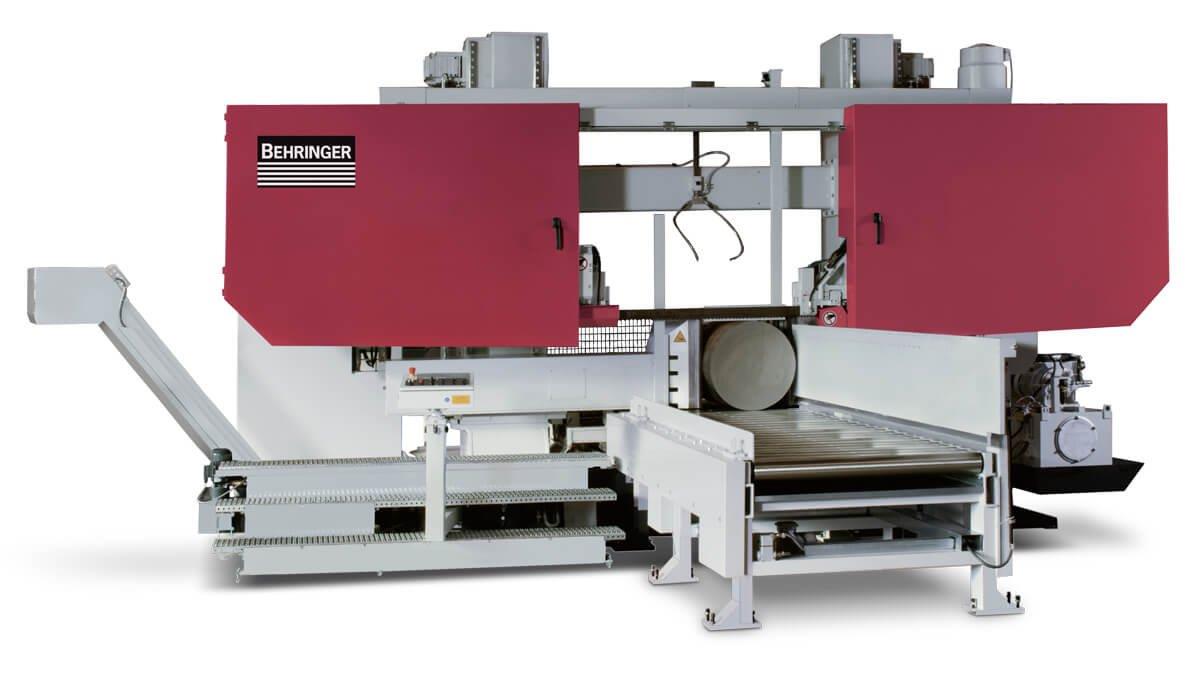

Behringer HBP1100-2100 Large Bandsaw with Roller Conveyor (HBP1100-2100)

The large horizontal bandsaws with roller conveyor are the "great" allrounders from Behringer. Especially when cutting long solid materials - rolled or rough turned - or processing large pipes, these saws make for dramatic improvements in productivity. The good accessibility to all important components simplifies maintenance and servicing.

• Optimum accessibility

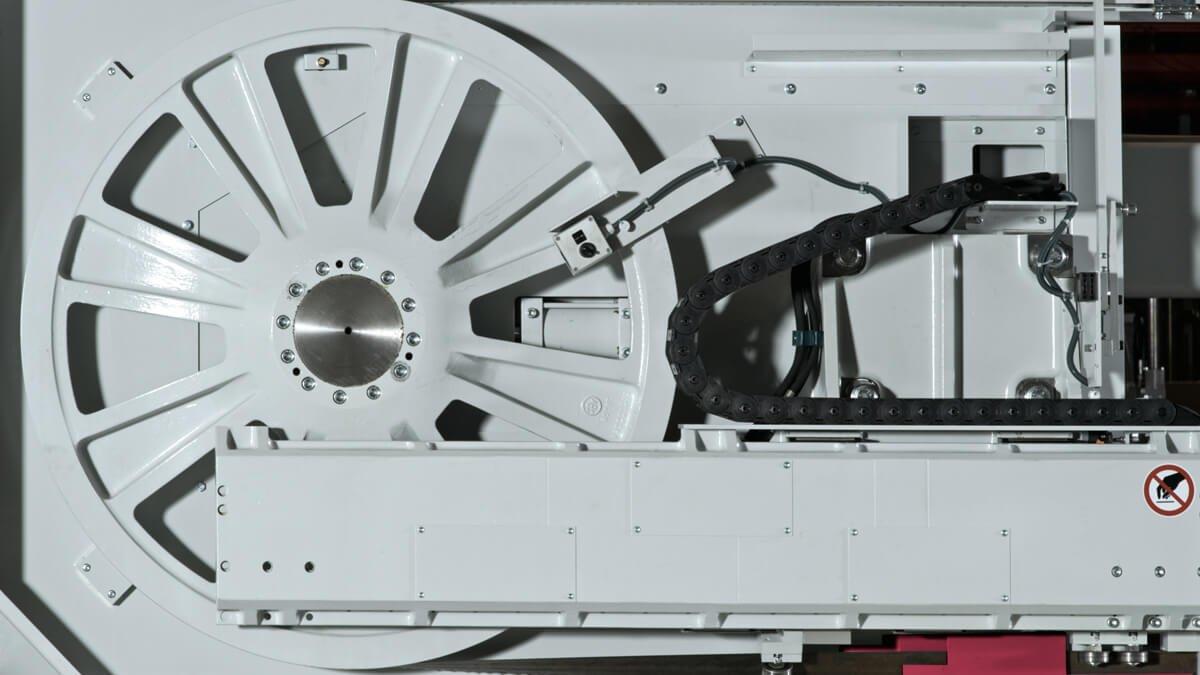

  Behringer attaches great importance to the aspect of maintenance and servicing: All the important parts and components are very accessible. The open design offers direct access to all wearing parts, optimizing both maintenance and repairs and simplifying saw blade changes.

• Blade guiding parts in grey cast iron
  By dampening vibrations directly at the sawing point, blade-guiding elements made by Behringer help to increase tool service life. These elements are cast in-house in our own foundry, benefiting from experience handed down over decades.

• Strong saw drive
  Behringer large band saws feature a high-torque frequency controlled saw drive with heavyduty hollow shaft gearbox. Drives with different speed ranges are available to suit particular materials.

• Powered duplex chip brushes
  actively clean the blade and prevent chips being drawn into the cutting channel. The brushes are adjusted automatically towards the saw blade, ensuring uniform cleaning action. The benefits: Increased tool service life and lower brush wear.

• Servo feed system with two ball screw spindles
  The BEHRINGER servo feed system with cutting pressure control produces constant chip removal, especially with slow feed movements. Large and difficult-to-cut materials are thus sawn with the highest cutting performance and at the same time longer blade life.

• Precise guiding system in portal design
  The portal design of the machine concept is the most recognizable feature of the Behringer large band saws. Two solid columns and support bars form a balanced machine concept to address the most stringent demands. The effects of this highly stable gantry design include minimal vibrations during sawing, high loading capacity, and an extremely long service life.

• Efficient chip removal
  The chip conveyor is located directly underneath the sawing point, which catches the saw chips and surplus cooling emulsion. The funnelshaped machine base ensures that these are efficiently carried out of the machine. The conveyor is fitted with an integrated coolant tank and can be pulled out of the machine for simple cleaning.
