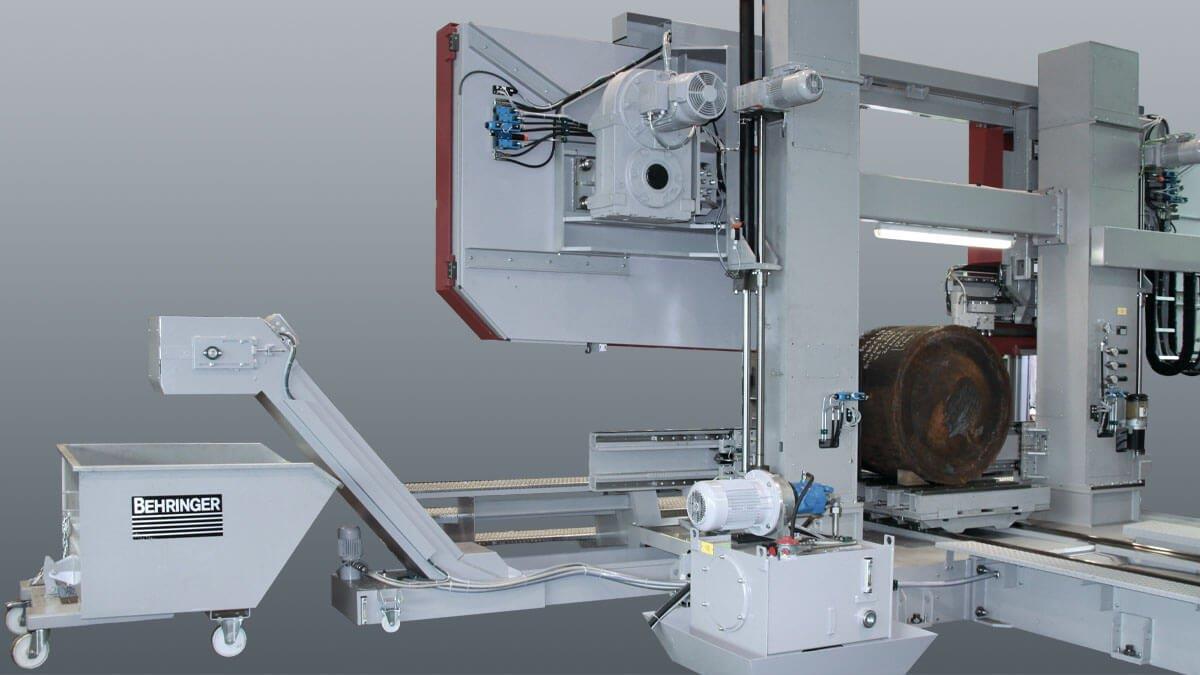

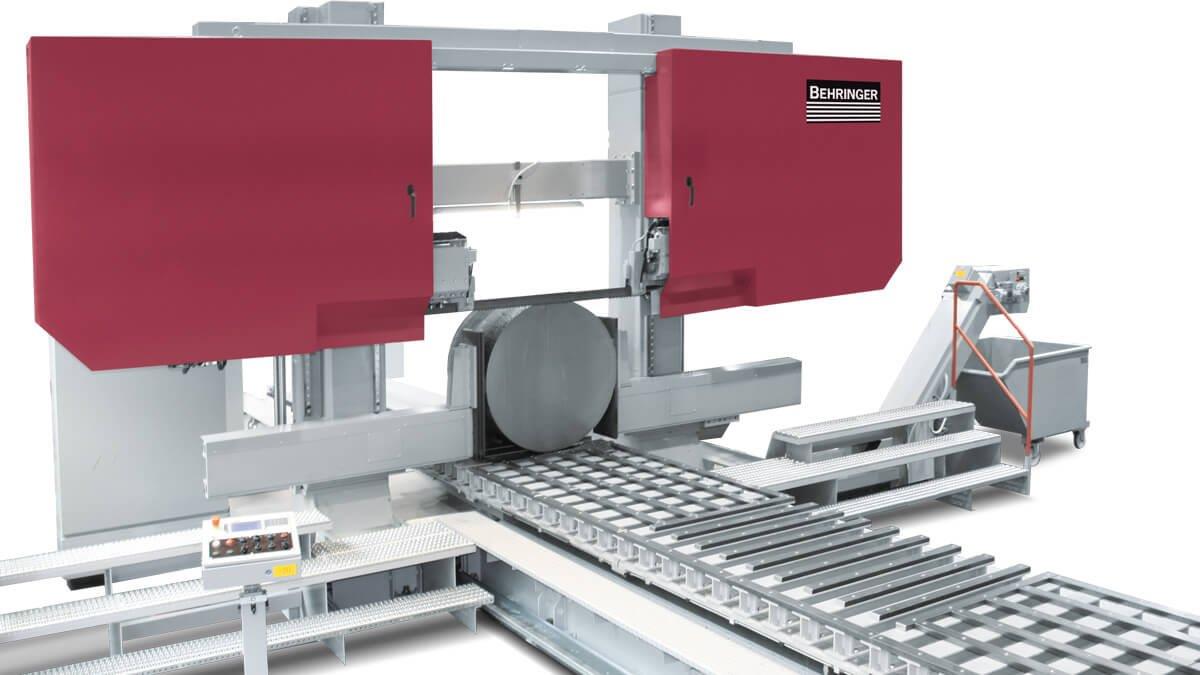

Behringer HBP1100-1800T Table Band Saw (HBP1100-1800T)

Behringer horizontal bandsaws in table design are ideal for use in forges, rolling mills and die casting factories, in steel finishing works and for tool and mold making. Their individually traversable material clamping vices and blade guide arms make these ideal for cutting bulky materials. The low table height makes this type of machine ideally suited for use on normal hall floor level.

• Centric material clamping
  The optimum solution for bulky material. The material clamping vices and blade guide arms can be traversed independently of each other. The material is clamped in the position in which it was placed on the table, without the need for it to be moved to meet the fixed side of a vice.

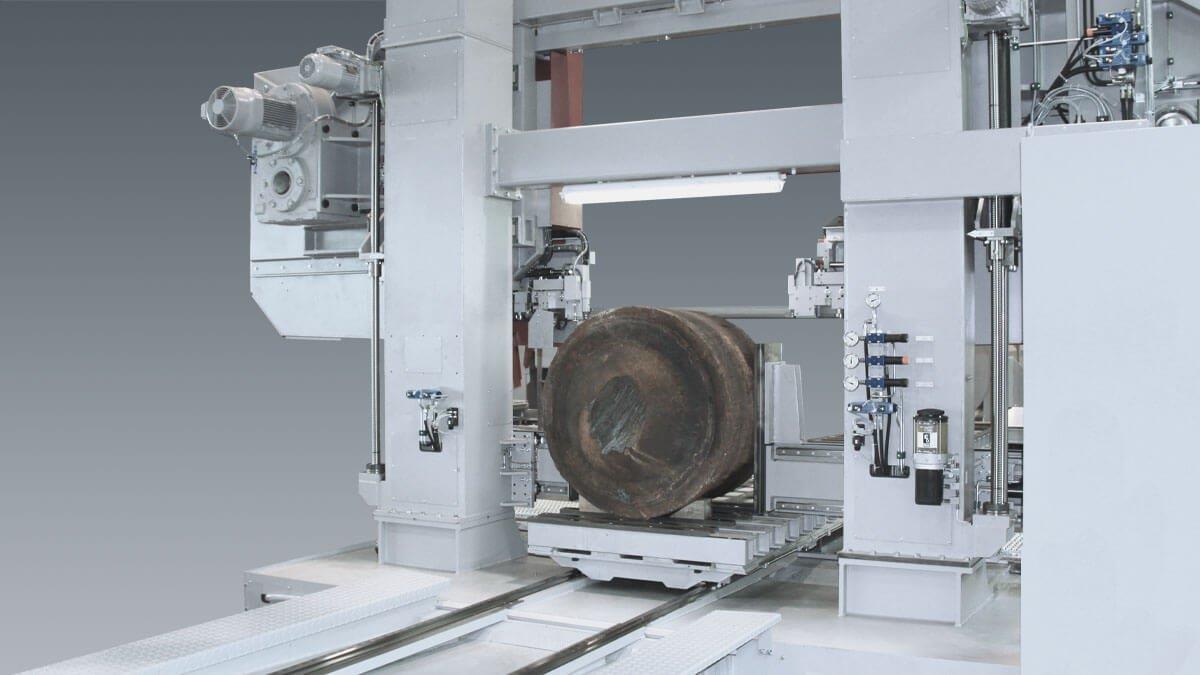

• Precise guiding system in portal design
  The portal design of the machine concept is the most recognizable feature of the Behringer large band saws. Two solid columns and support bars form a balanced machine concept to address the most stringent demands. The effects of this highly stable gantry design include minimal vibrations during sawing, high loading capacity, and an extremely long service life.

• Rotatable band guide (option)
  Optionally available is the 90° rotatable band guide allowing vertical and horizontal sawing for notching material samples.

• Powered duplex chip brushes
  actively clean the blade and prevent chips being drawn into the cutting channel. The brushes are adjusted automatically towards the saw blade, ensuring uniform cleaning action. The benefits: Increased tool service life and lower brush wear.

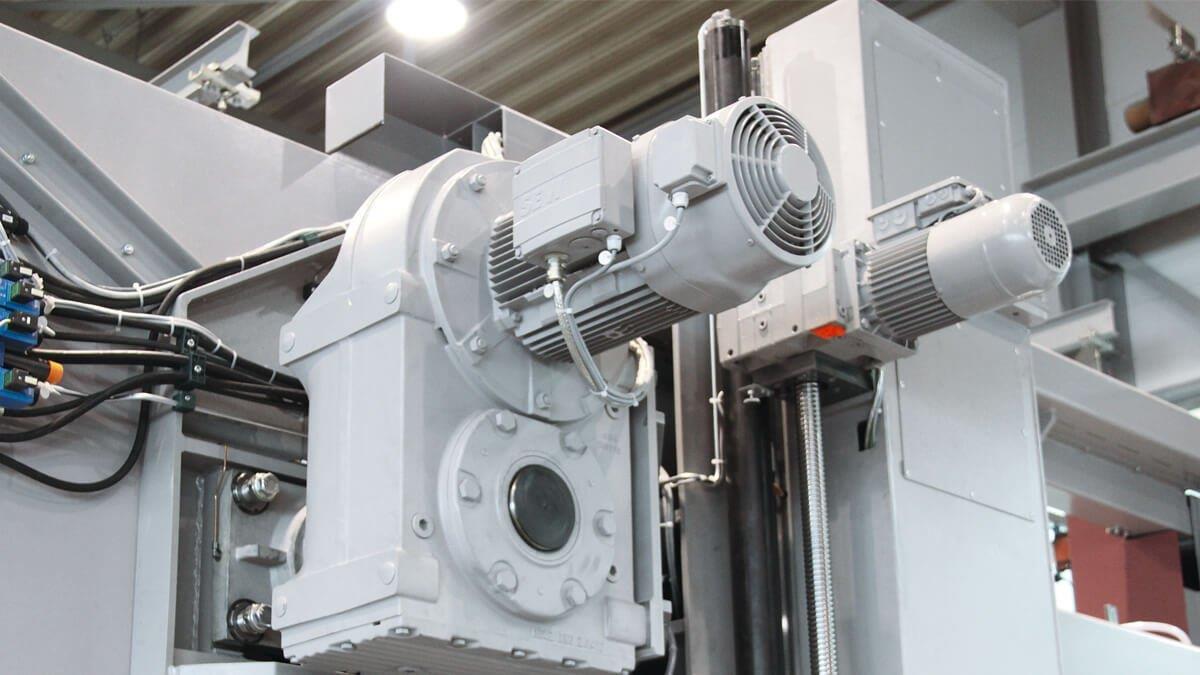

• Servo feed system with two ball screw spindles
  The BEHRINGER servo feed system with cutting pressure control produces constant chip removal, especially with slow feed movements. Large and difficult-to-cut materials are thus sawn with the highest cutting performance and at the same time longer blade life.

• Automation possible
  Behringer table machines are supplied as semi-automatic machines as standard. Automation is possible by upgrading with an additional vice at the end of the table. The positioning is axis-controlled.

• Optimum accessibility
  Behringer attaches great importance to the aspect of maintenance and servicing: All the important parts and components are very accessible. The open design offers direct access to all wearing parts, optimizing both maintenance and repairs and simplifying saw blade changes.

• No foundation work necessary
  The system is installed on the existing hall floor. Expensive foundation work is not necessary.
