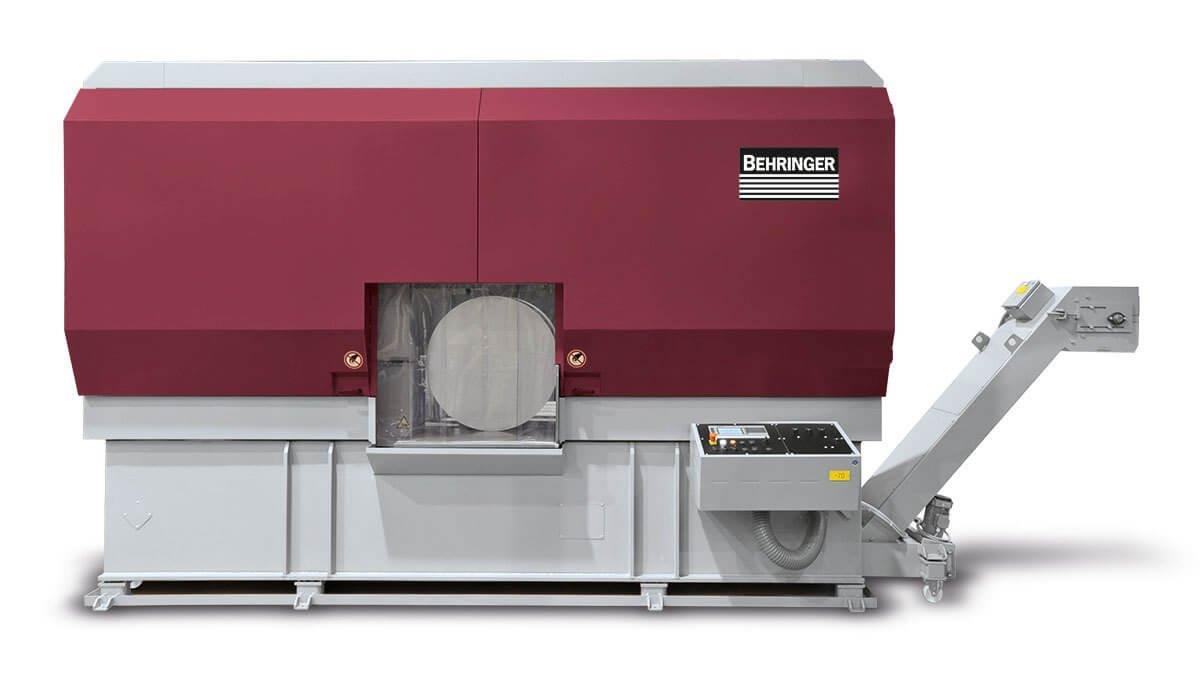

The innovative SpeedCutting technology of the HBM800A high-speed saw series allows process-reliable cutting performance that was previously unthinkable. The HBM800A shows its full potential especially when sawing tool steels to stainless steels or high-alloy materials such as Inconel or Titanium. The production bandsaw thus covers a wide range of applications in industry and the steel trade. Thanks to the combination of a powerful machine base, modern servo technology, innovative cooling system and process-reliable chip disposal, the HBM800A gets the maximum out of the tool used - regardless of whether it is a carbide or bi-metal blade.
Cutting range 90° round
800 mm
Cutting range 90° flat
800 x 800 mm
Smallest dimension to be sawn round
50 mm
Smallest dimension to be sawn flat
50 x 50 mm
Feeding length single stroke
600 mm
Drive power
11 kW
Blade speed
17 - 120 m/min
Saw blade dimensions
9,400 x 67 x 1.6 mm
Rest piece length in automatic operation
70 mm
Total power
19 kW
Saw feed
servo-feed via ball screw
Material feed
ball screw
Material clamping
hydraulic

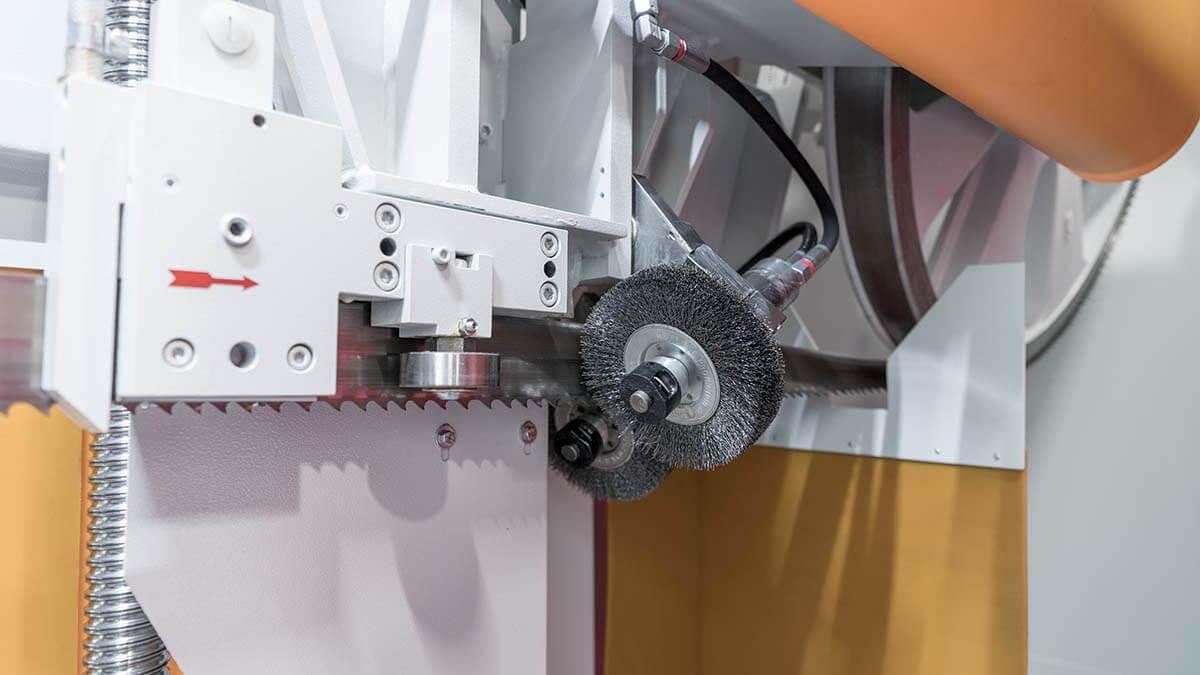

Saw blade cleaning
electrically driven chip brush
Length
2,900 mm
Width
5,150 mm
Height
3,000 mm
Weight
7,800 kg
Material support height
