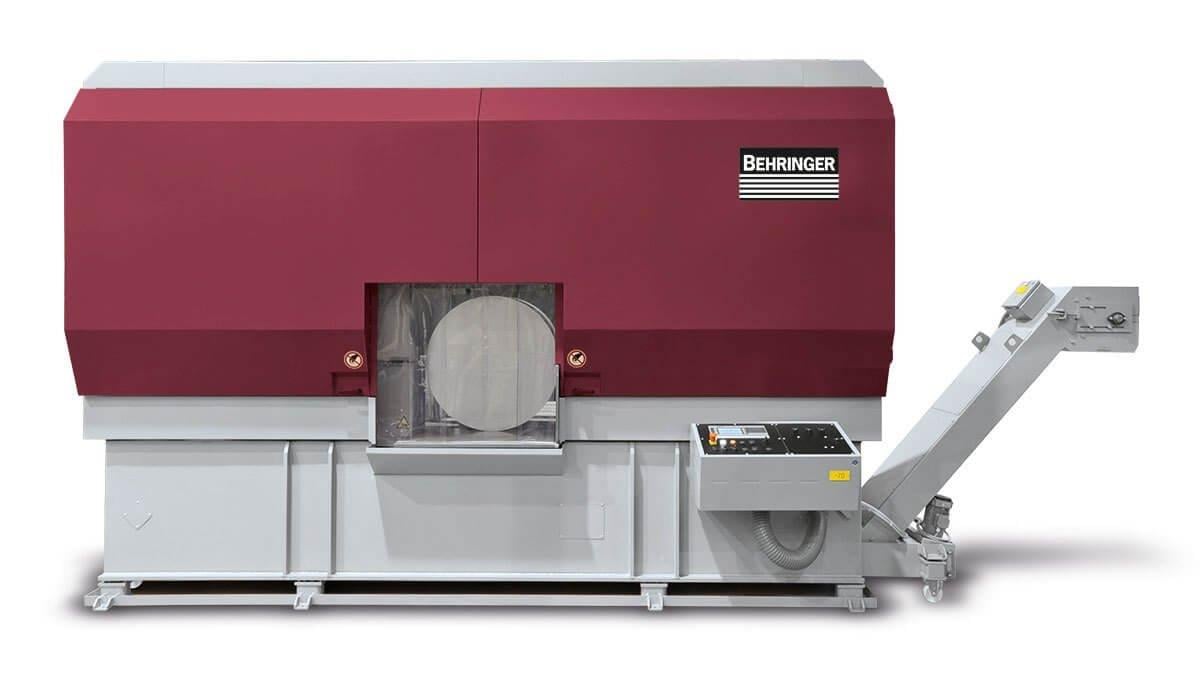

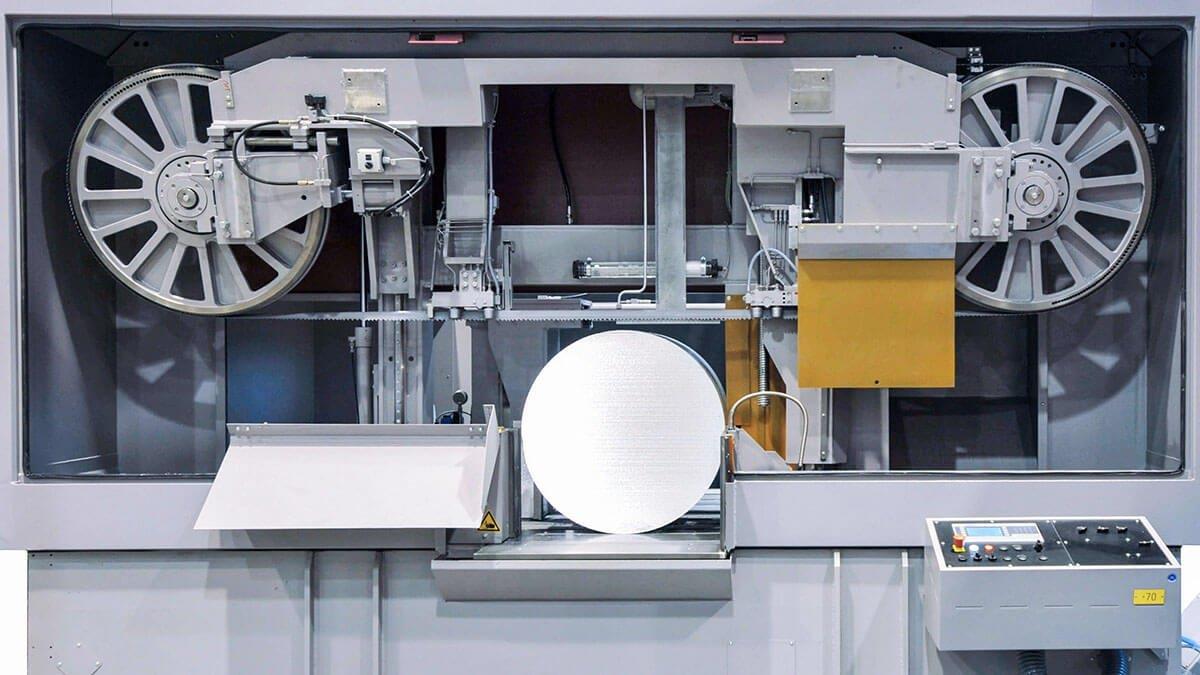

Behringer HBM800-1201ALU High-Performance Aluminium Band Saw (HBM800-1201ALU)

The aluminium bandsaw HBM800-1201ALU is specially designed for sawing ingots and billets made of aluminium or comparable non-ferrous metals such as magnesium. They cut quickly, reliably, precisely and with a small kerf, thus contributing to future-proof, resource-saving production. The aluminium saw can be designed to suit the application, from simple automatic machines with chip conveyors to automated, interlinked saw cells with integrated chip extraction.

• Prepared for automation
  A powerful machine concept puts high demands on material handling. The production band saws of the HBM series are often configured as automated sawing systems. Therefore, the machines are already prepared in the basic configuration for the connection of extensive material handling equipment.

• Chip disposal suitable for the application
  In the high-performance sawing of aluminium and non-ferrous metals, large quantities of chips are produced that have to be removed reliably. Whether with chip conveyor or connected to a central extraction system - the chip removal of the HBM aluminium saw grows dynamically with your requirements.

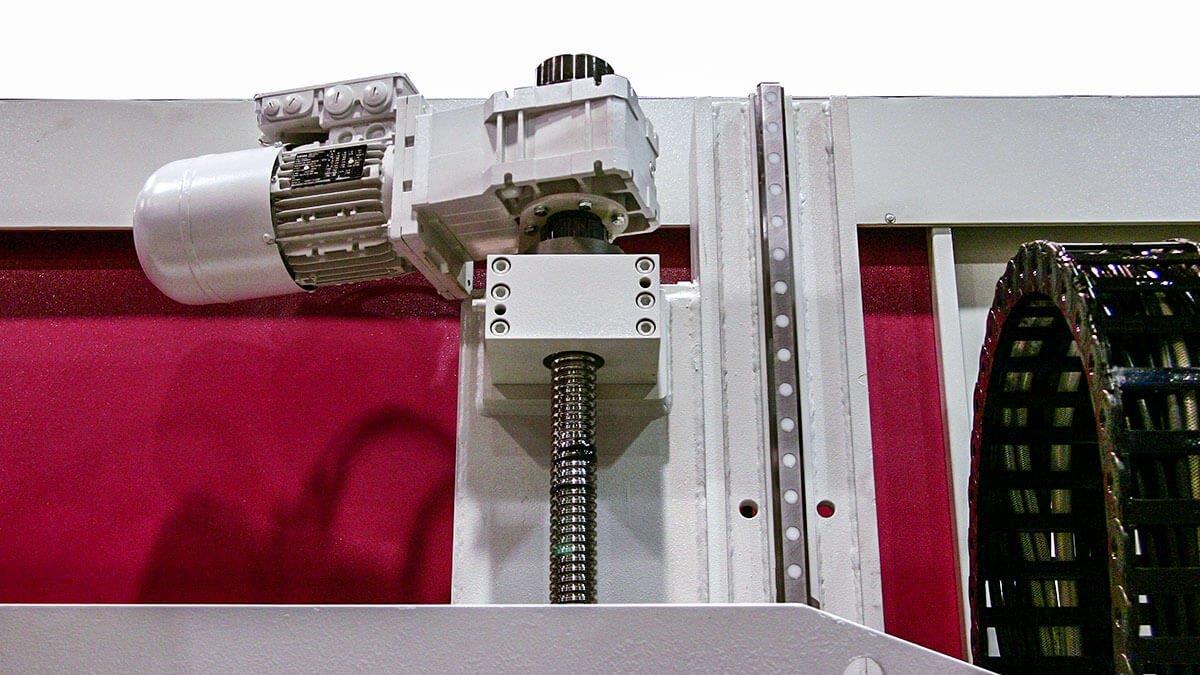

• Servo downfeed system
  The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!

• 1° inclination of the saw band
  simplifies sawing in and out of wide flat materials and reduces burr formation.

• Automatic guide arm
  Optimum sawing result without any adjustments - even with frequently changing material sizes.

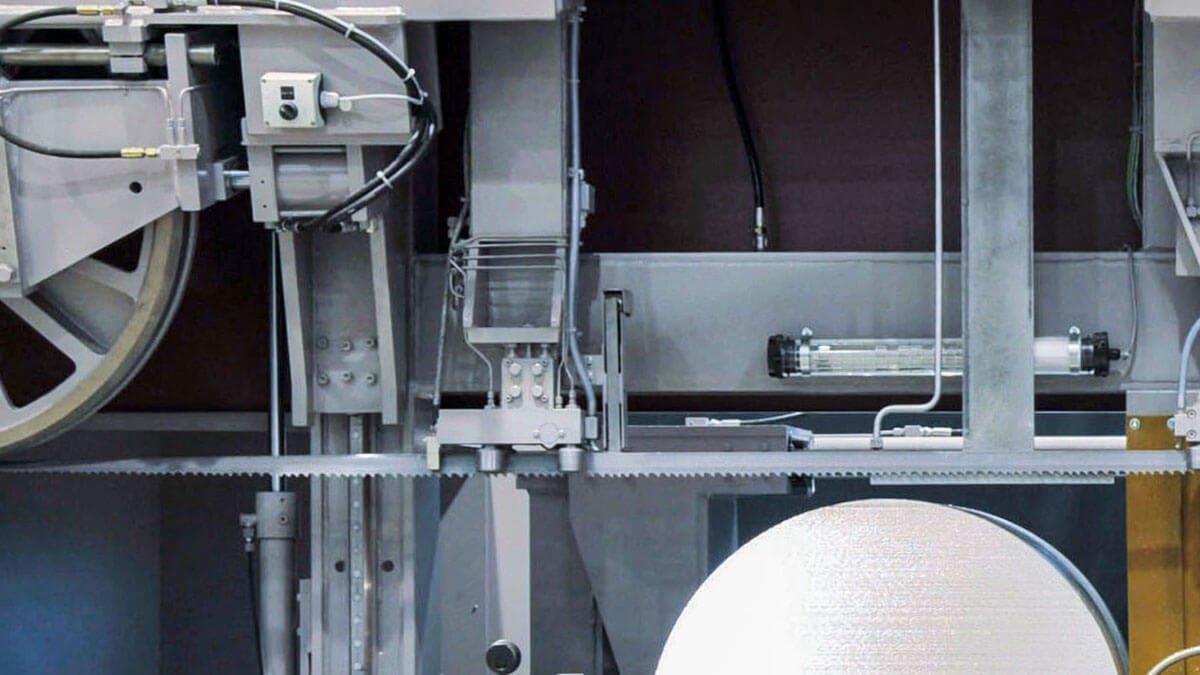

• Roller band guides
  ensure precise guidance of the saw band even at extremely high blade speeds. For a long service life, the bearings of the rollers are centrally lubricated by an automatic lubrication system.

• Micro Spray System
  for process-safe lubrication of the saw band with spray oil. Due to the special arrangement of the spray nozzles, the saw band is reliably moistened even at high speed.

• Economical use of carbide saw blades
  due to robust design, use of latest servo technology and well dimensioned chip disposal.

• Precision portal-design guide system
  The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life.

• Cast iron band guiding parts
  are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.
