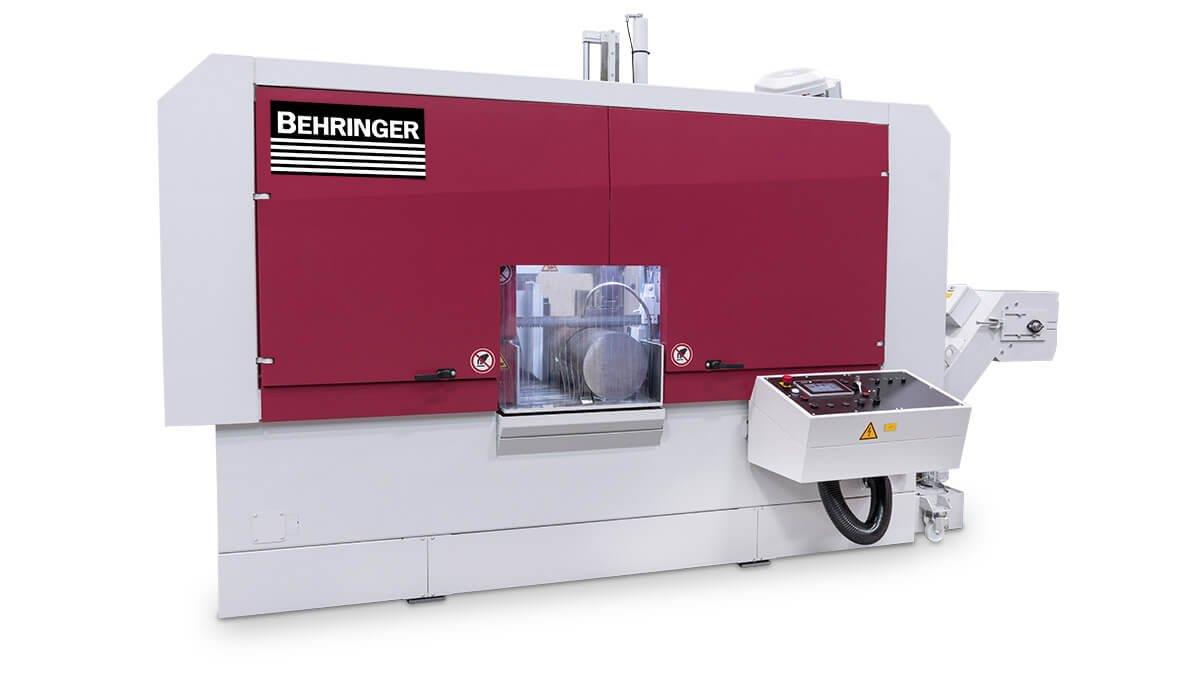

Behringer HBM440A High-Performance Production Band Saw (HBM440A)

The innovative SpeedCutting technology of the HBM440A high-speed saw series allows process-reliable cutting performance that was previously unthinkable. The HBM440A shows its full potential especially when sawing tool steels to stainless steels or high-alloy materials such as Inconel or Titanium. The production bandsaw thus covers a wide range of applications in industry and the steel trade. Thanks to the combination of a powerful machine base, modern servo technology, innovative cooling system and process-reliable chip disposal, the HBM440A gets the maximum out of the tool used - regardless of whether it is a carbide or bi-metal blade.

• SpeedCutting-Technology (option)
  The combination of SC-Performance saw blade guides, high-performance cooling system, dynamically controlled saw feed and specially optimized Auto-Feed-Control allows you to get the maximum performance and tool life.

• Prepared for automation
  A powerful machine concept puts high demands on material handling. The production band saws of the HBM series are often configured as automated sawing systems. Therefore, the machines are already prepared in the basic configuration for the connection of extensive material handling equipment.

• Servo downfeed system
  The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!

• Sensitive Behringer cutting pressure control
  increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

• Optimum chip disposal
  Highest cutting performance requires high standards of chip disposal. The wide, funnel-shaped machine base allows chips to fly freely into the chip conveyor with integrated coolant tank below. The ejection height of 800 mm or optionally 1,200 mm allows the use of large chip buckets.

• Economical use of carbide saw blades
  due to robust design, use of latest servo technology and well dimensioned chip disposal.

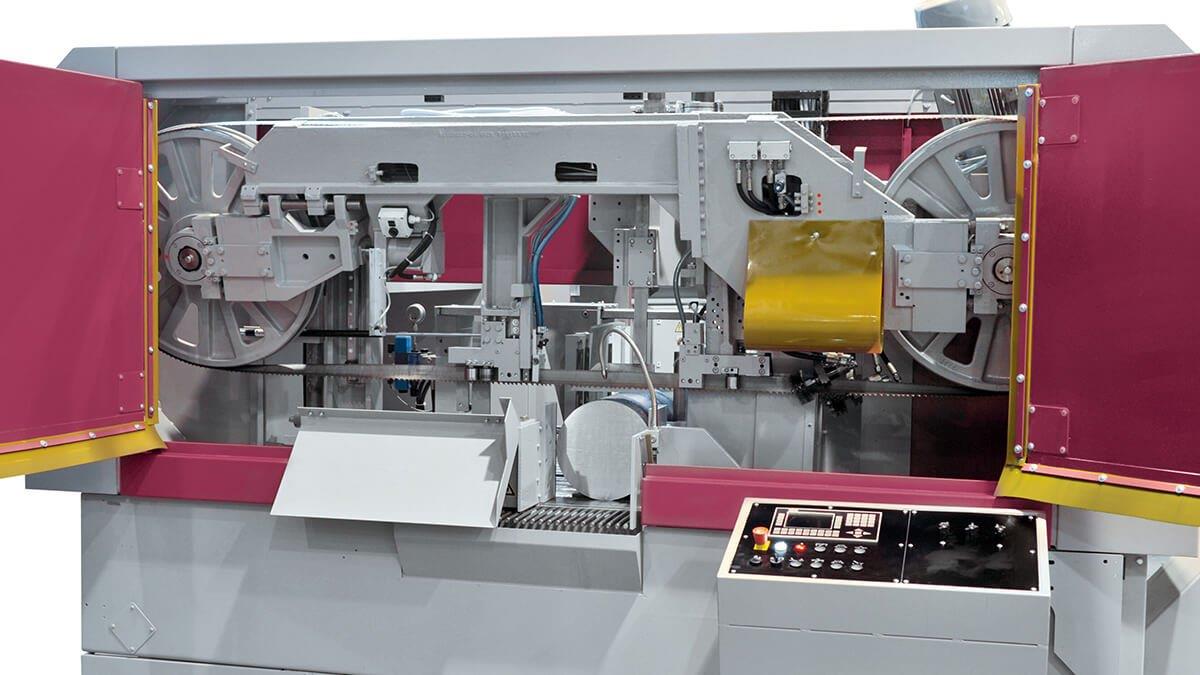

• Precision portal-design guide system
  The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life.

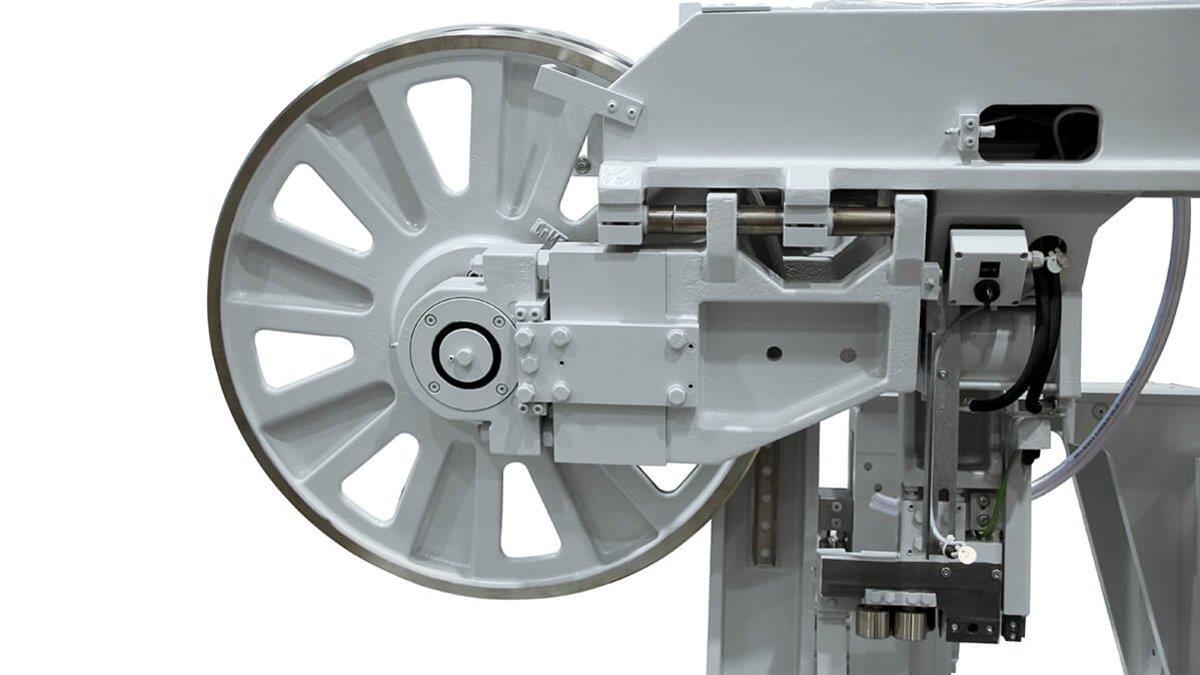

• Cast iron band guiding parts
  are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

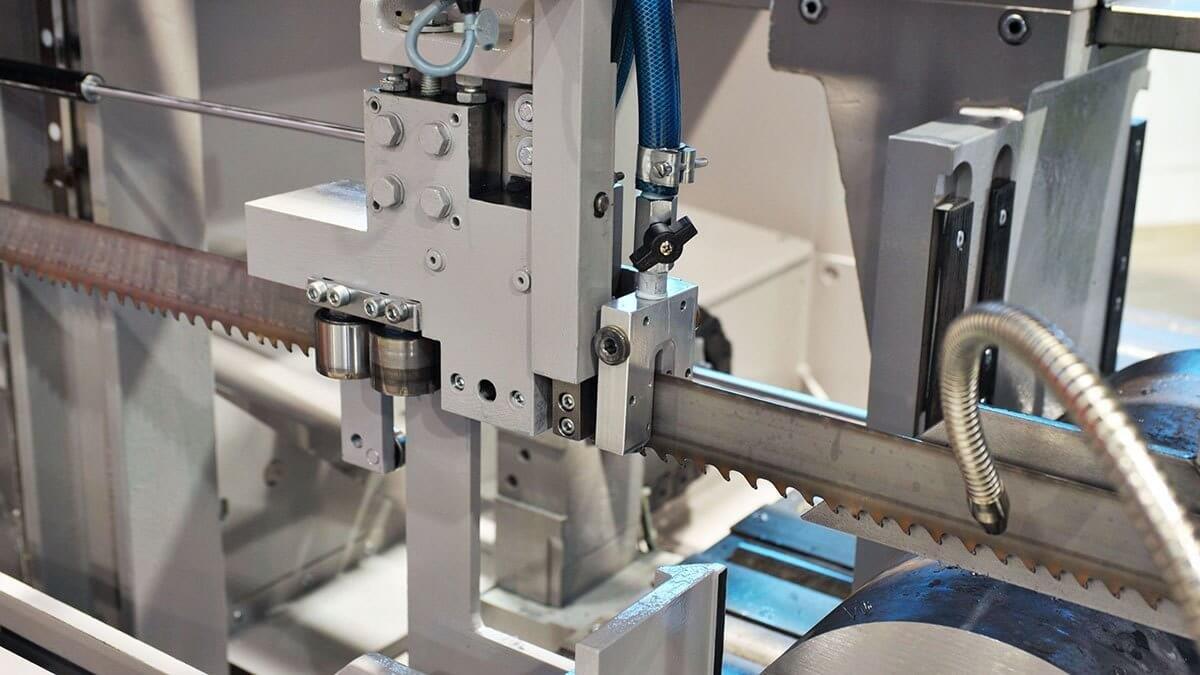

• Automatic guide arm
  Optimum sawing result without any adjustments - even with frequently changing material sizes.
