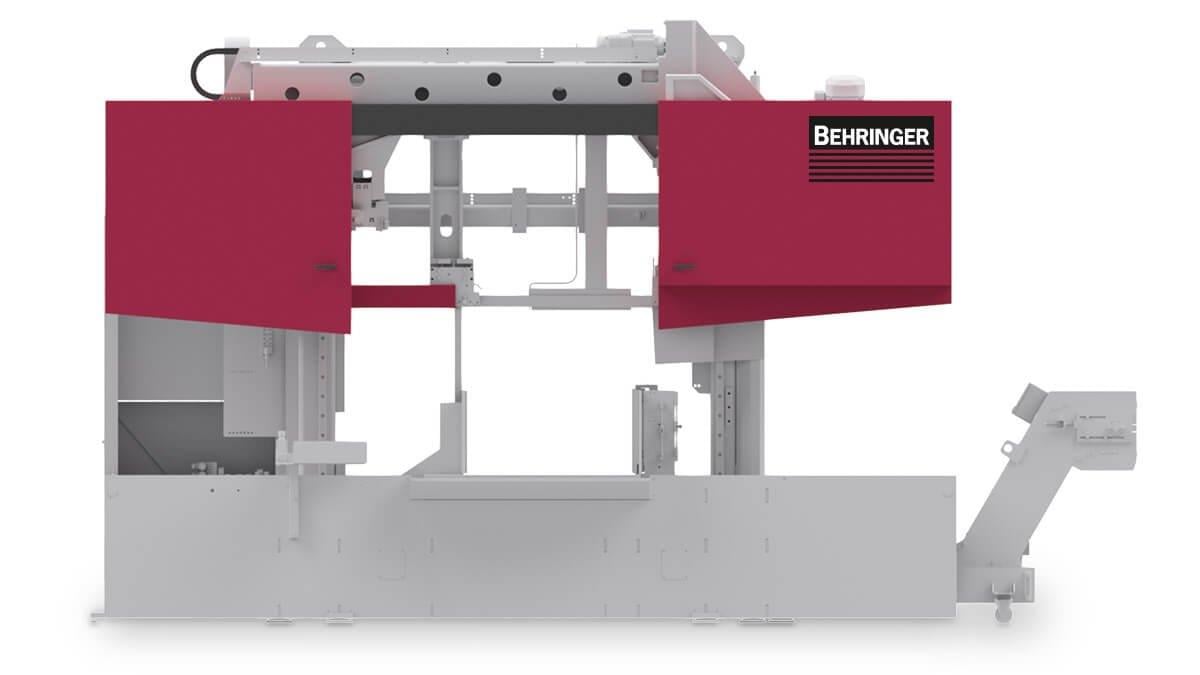

The HBE860 is a modern, semi-automatic high-performance horizontal bandsaw in a robust design for the economical cutting of solid metals of all grades and large pipes. Especially for single cuts or difficult material geometries, positioning of the parts on sight by means of a crane or roller conveyor and line laser is recommended. For machining large pipes, the HBE860 can be equipped with a measuring system.
The metal cutting bandsaw HBE860 impresses with its solid, indestructible basic construction and its high cutting performance, which also allows the economical cutting of difficult-to-machine materials such as high-alloy stainless steels, Inconel or titanium in large diameters with carbide saw blades. The HBE860 makes your production even more economical with high-performance, precise cuts and low cutting costs at the same time.
Cutting range 90° round
860 mm
Cutting range 90° flat
860 x 860 mm
Smallest dimension to be sawn round
20 mm
Smallest dimension to be sawn flat
20 x 20 mm
Drive power
5.5 kW
Blade speed
10 - 110 m/min
Saw blade dimensions
9,875 x 67 (80) x 1.6 mm
Rest piece length
40 mm
Total power
12 kW
Length
2,000 mm
Width
4,800 mm
Height
3,550 mm
Weight
8,500 kg
Material support height
800 mm
