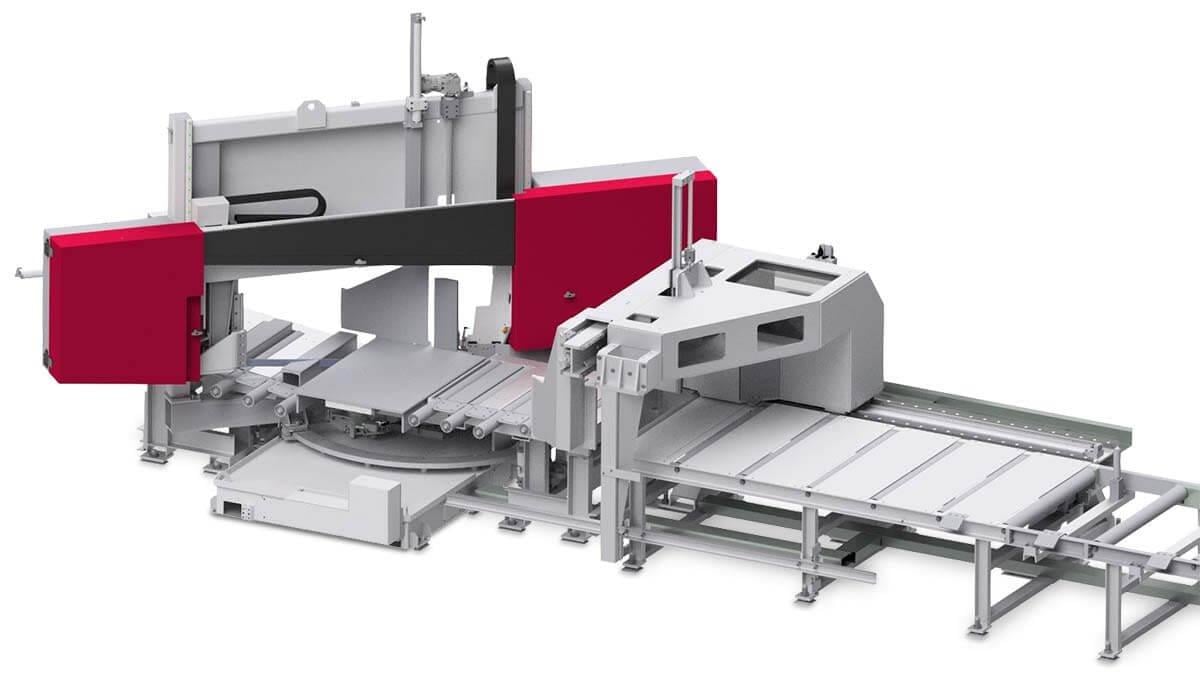

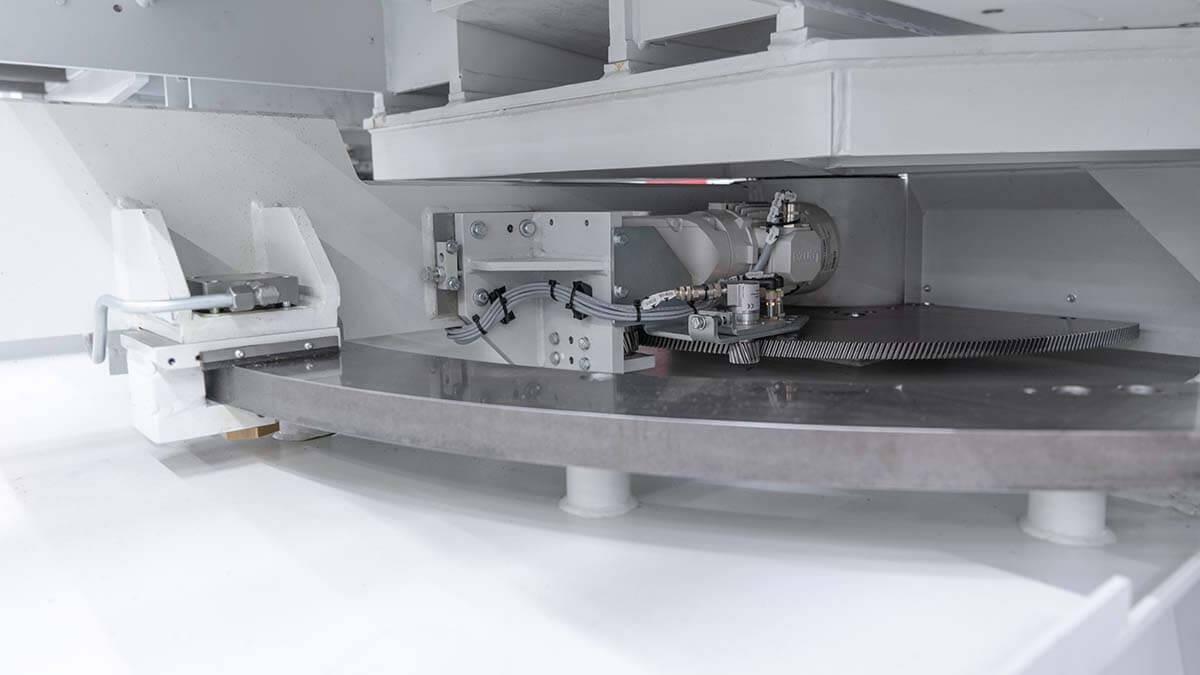

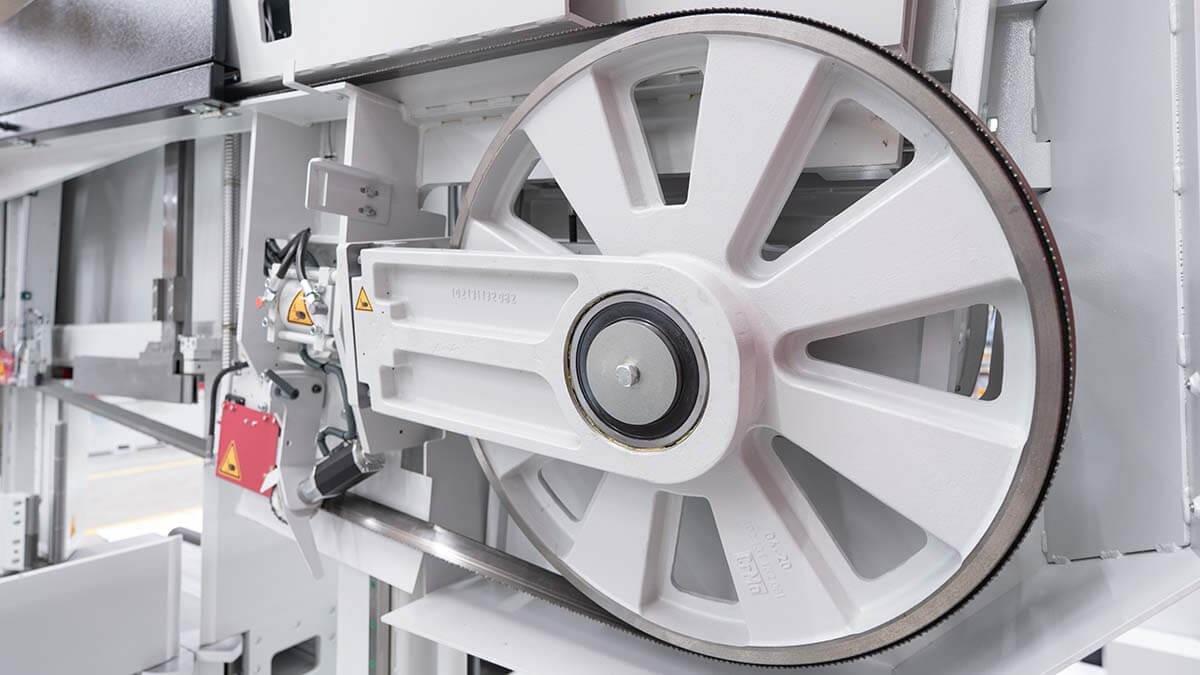

The high-performance automatic mitre band saw HBE610-1256GA is designed for automatic sawing of structural steel, profiles and pipes. Features such as electronic mitre angle adjustment, saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are provided as standard. Its stable saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands tremendously.

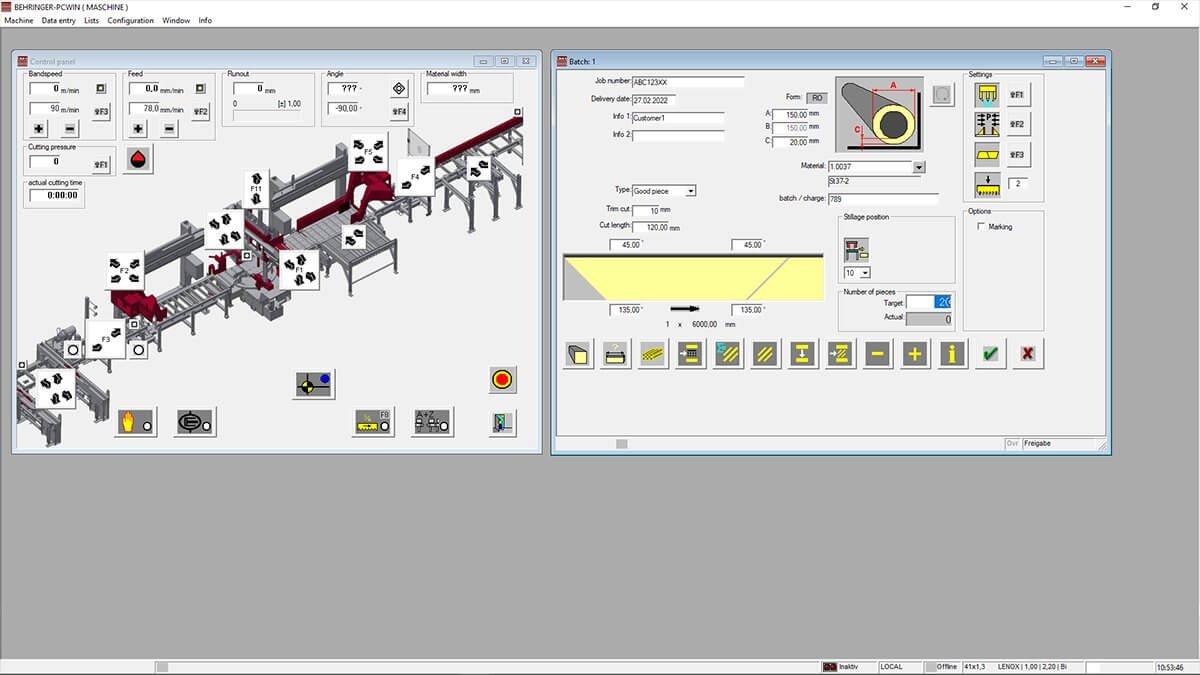

When processing large profiles, however, material handling is in addition to the cutting performance also a key factor in determining the system throughput. The HBE610-1256GA computerized mitre saw is therefore consequently designed for low-operator use in automated sawing lines. Automatic material loading and discharge systems, pre- and post-buffer lines and an intelligent control system with nesting functionality cover all requirements.
Cutting capacity 90° round
610 mm
Cutting capacity 90° flat
1.250 x 610 mm
75° Miter left round / flat
610 mm / 1.200 x 610 mm
60° Miter left round / flat
610 mm / 1.100 x 610 mm
45° Miter left round / flat
610 mm / 880 x 610 mm
30° Miter left round / flat
610 mm / 610 x 610 mm
75° Miter right round / flat
60° Miter right round / flat
45° Miter right round / flat
Smallest dimension to be sawn round
30 mm
Smallest dimension to be sawn flat
30 x 30 mm
Feeding length single stroke
3.000 mm
Drive power
7,5 kW
Blade speed
17 - 120 m/min
Saw blade dimensions
10.000 x 54 (67) x 1,6 mm
Rest piece length in automatic operation
280 mm
Minimum cut length
25 mm
Total power
16 kW
Saw feed
servo-feed via ball screw
Material feed
servo motor via gear rack
Material clamping
hydraulic

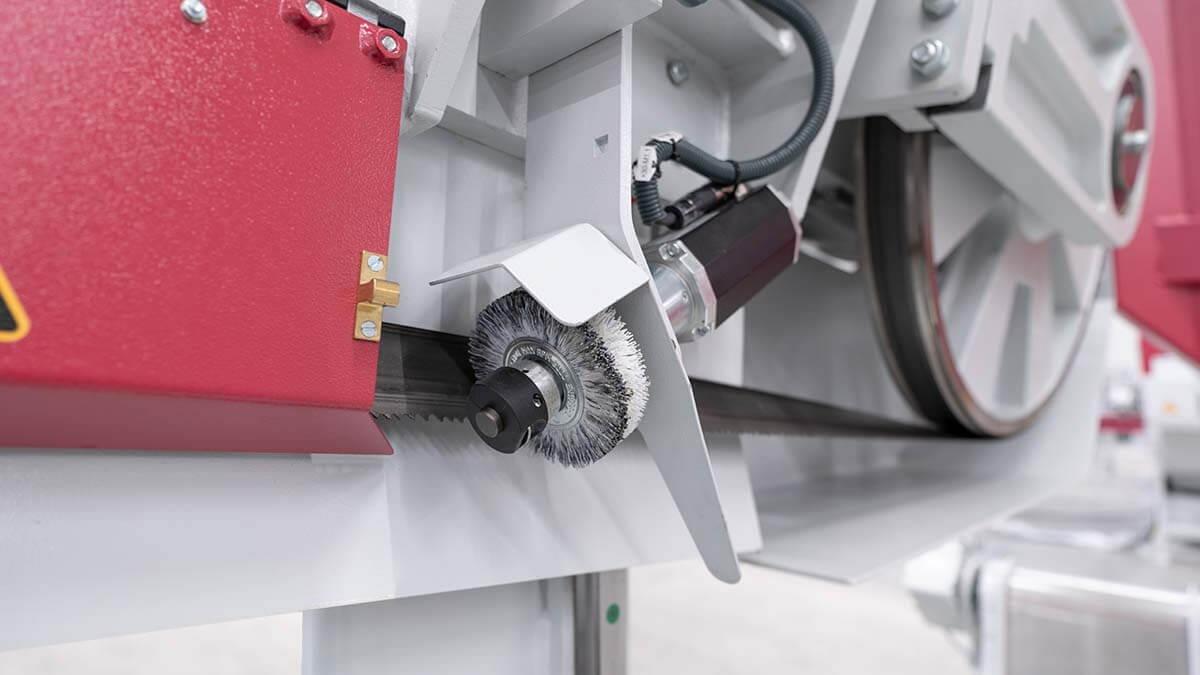

Saw blade cleaning
electrically driven chip brush
Length
7.000 mm
Width
4.700 mm
Height
3.240 mm
Weight
7.500 kg
Material support height
800 mm
