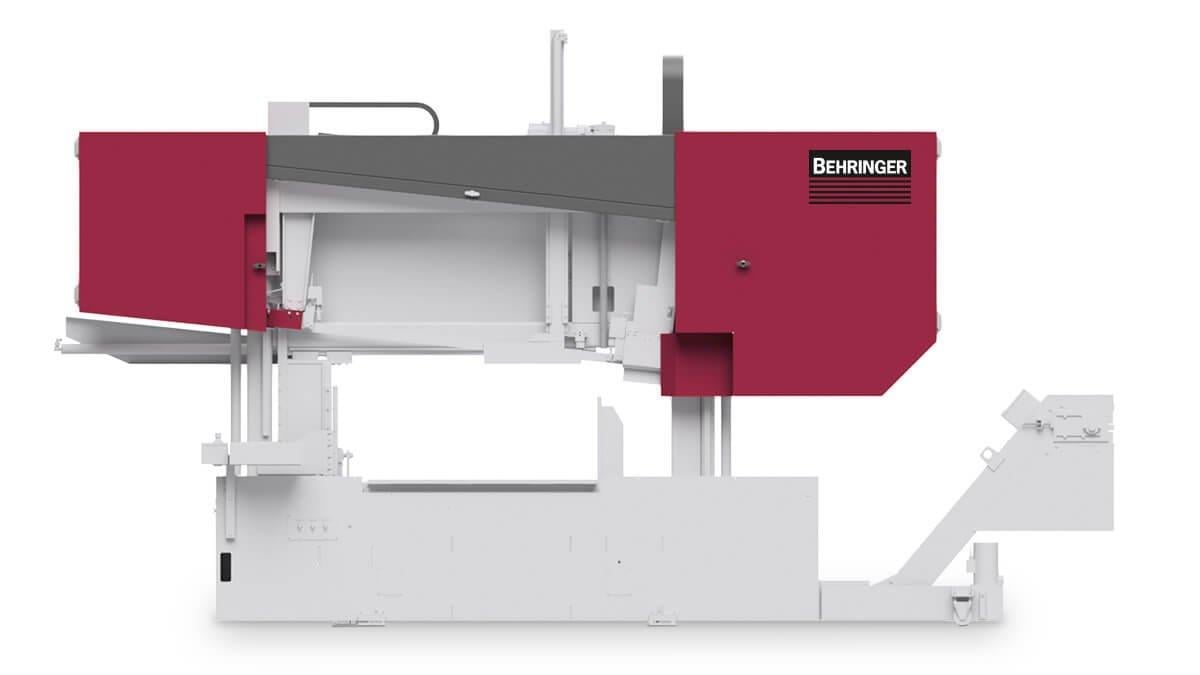

Behringer HBE610-1256 Horizontal Bandsaw (HBE610-1256)

The HBE610-1256 is a modern, semi-automatic horizontal band saw, which is suitable for sawing structural steel, profiles and plates in single cuts due to its robust design. Features such as the saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are fitted as standard. Its stable saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands.

Accordingly, with its extensive range of applications, the saw reliably covers all the requirements of small and medium-sized businesses. In short, the HBE610-1256 metal cutting bandsaw makes your production even more economical with high-performance, precise cuts at low cutting costs.

• Servo downfeed system
  The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!

• Cast iron band guiding parts
  are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

• Precision portal-design guide system
  The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

• Electrically driven chip brush
  with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

• Energy efficient
  The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

• Powerful chip conveyor
  Optimal chip disposal thanks to the funnel-shaped machine base and the paddle-style chip conveyor with an integrated coolant tank. The ejection height of 800 mm allows the use of large chip buckets

• Sensitive Behringer cutting pressure control
  increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

• Automatic guide arm
  Optimum sawing result without any adjustments - even with frequently changing material sizes.

• Double clamping vice
  is ideal for clamping single cuts. The clamping jaws are arranged on both sides of the saw band. When setting up, the material can simply be aligned with the blade. After sawing through, the horizontal bandsaw securely holds the section and the starting material.
