Behringer HBE520-926GA Automatic Mitre Bandsaw (HBE520-926GA)

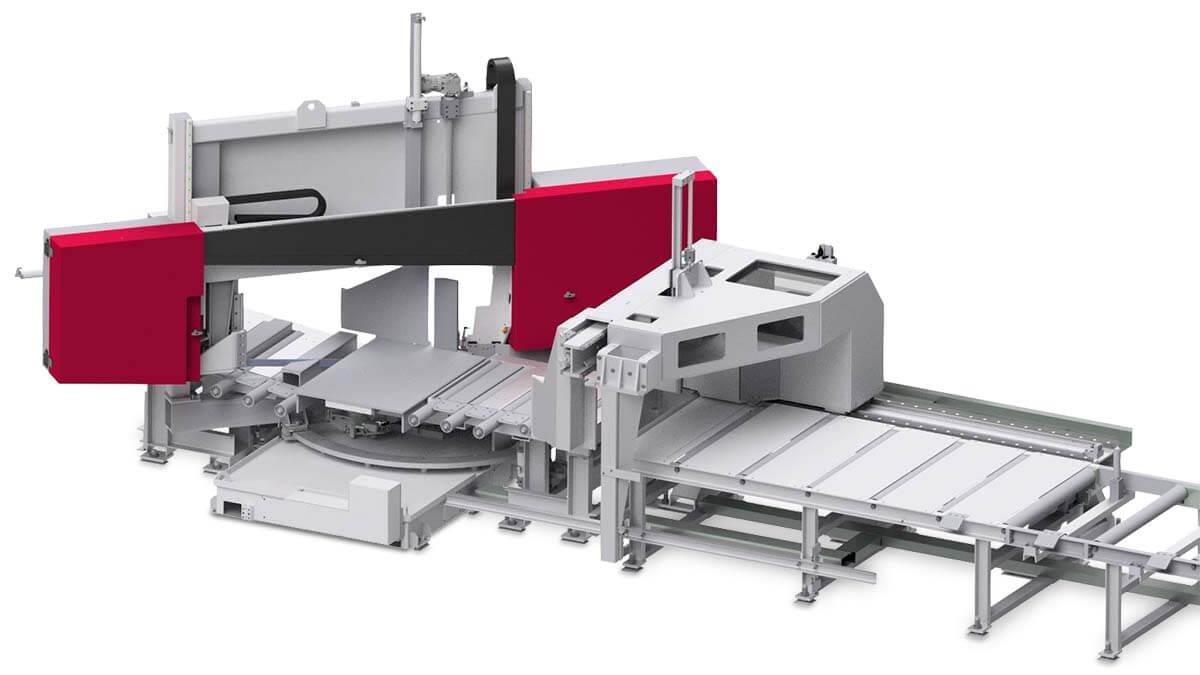

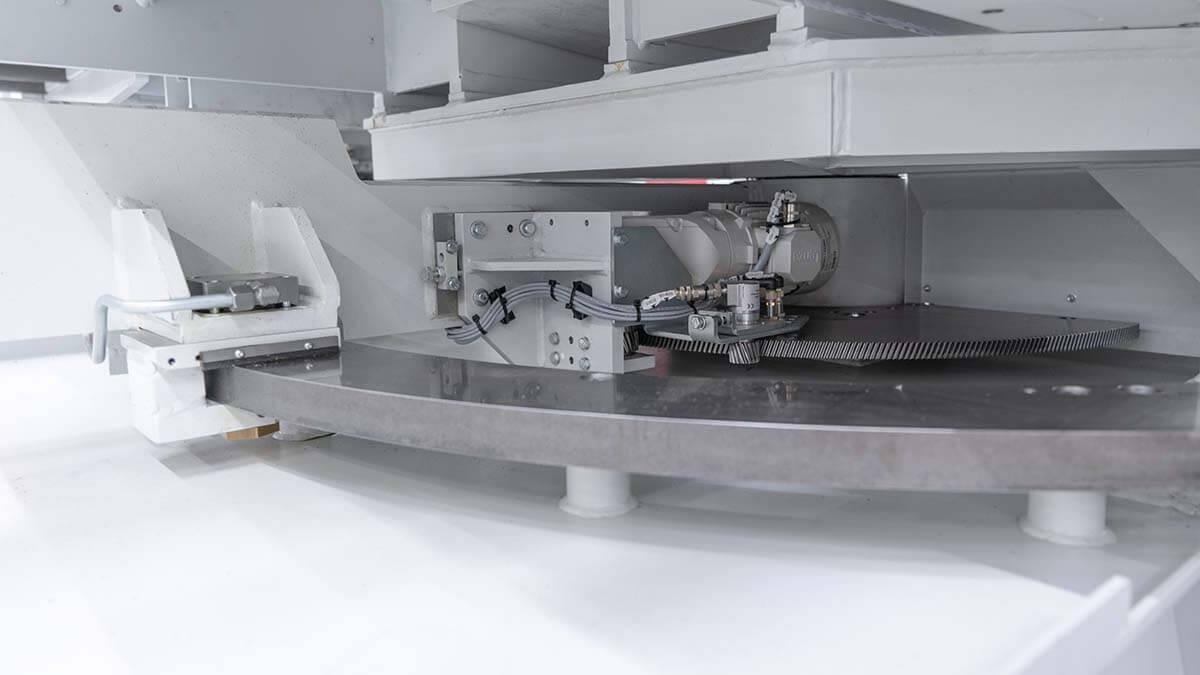

The high-performance automatic mitre band saw HBE520-926GA is designed for automatic sawing of structural steel, profiles and pipes. Features such as electronic mitre angle adjustment, saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are provided as standard. Its stable saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands tremendously.

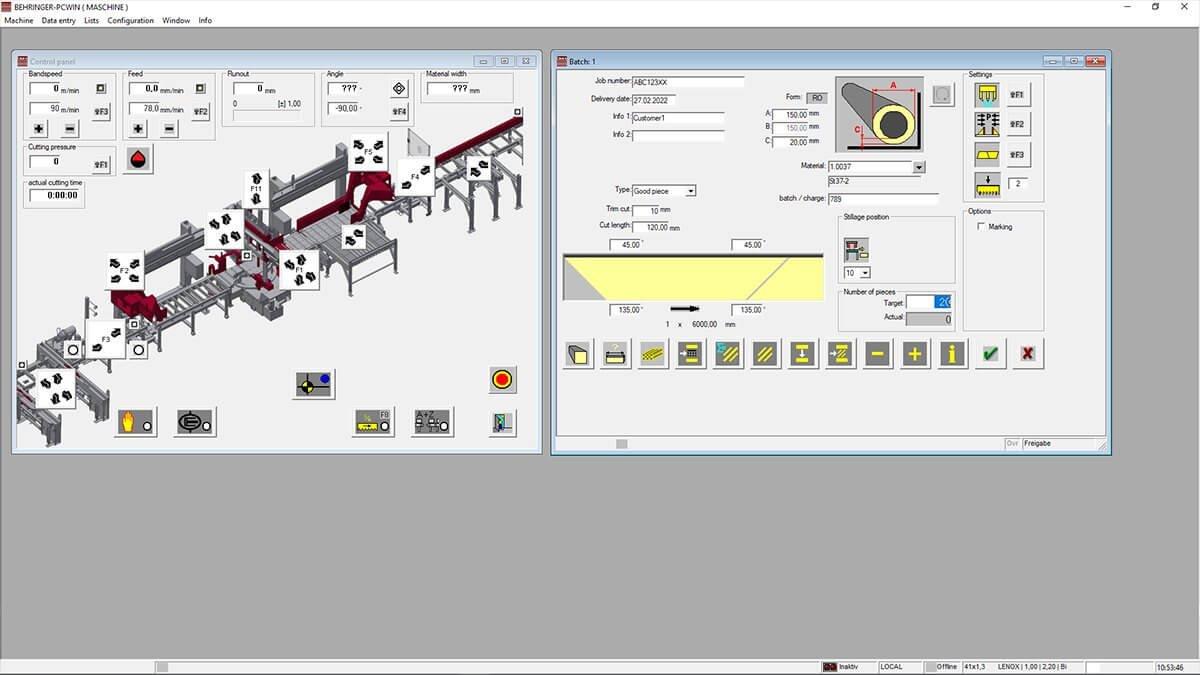

When processing large profiles, however, material handling is in addition to the cutting performance also a key factor in determining the system throughput. The HBE520-926GA computerized mitre saw is therefore consequently designed for low-operator use in automated sawing lines. Automatic material loading and discharge systems, pre- and post-buffer lines and an intelligent control system with nesting functionality cover all requirements.

• Sensitive Behringer cutting pressure control
  increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

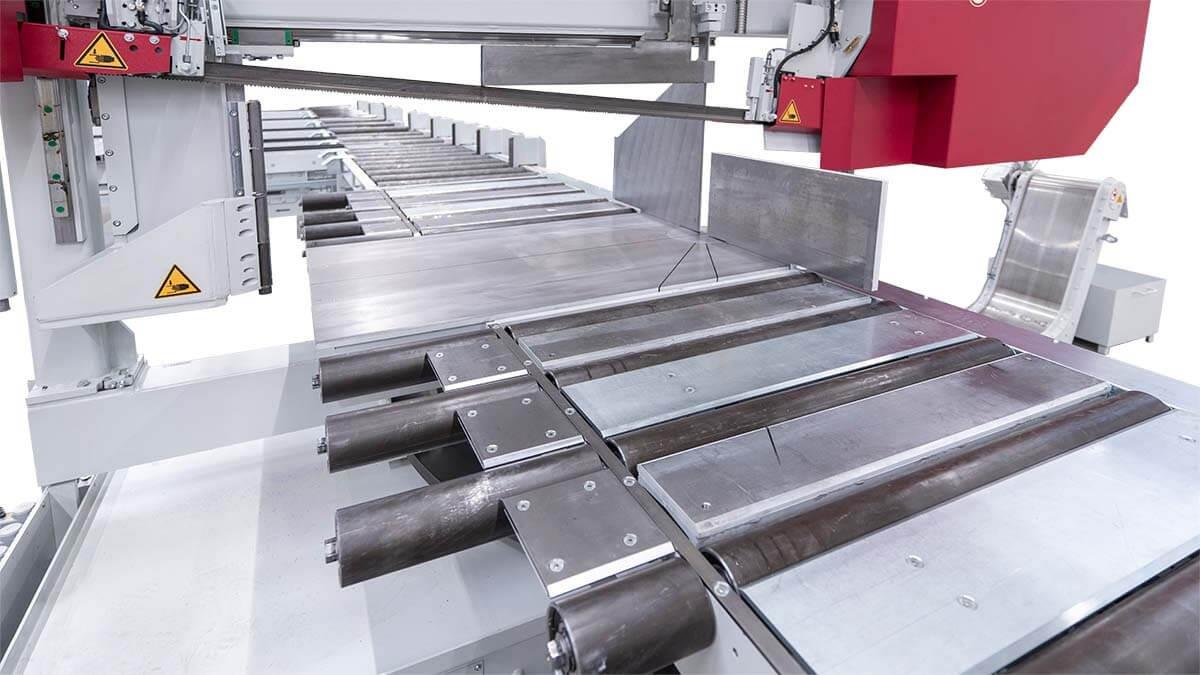

• Safe material flow - even with short starting and cut-off lengths
  The closed table support and the clever connection to material handling systems offer maximum process reliability in fully automatic operation. Jamming of short cuts and gussets is avoided in the best possible way.

• Precision portal-design guide system
  The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life of the mitre saw.

• Micro Spray System
  When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.

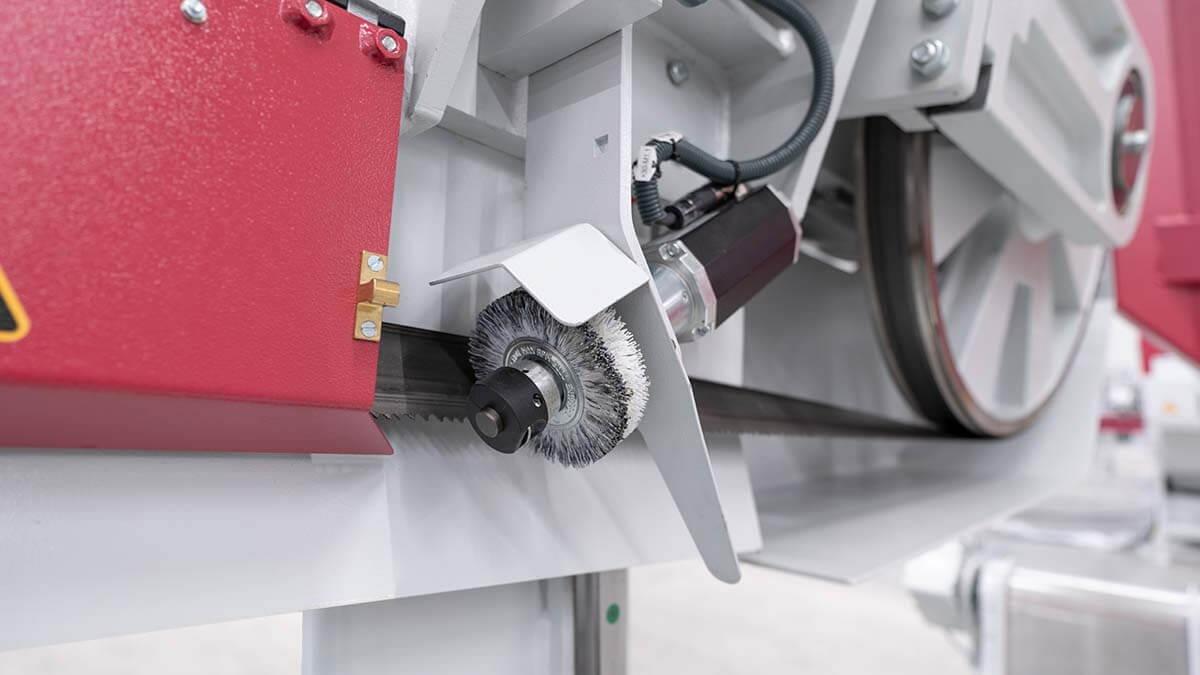

• Electrically driven chip brush
  with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

• Customer-oriented sawing concepts
  Behringer offers complete system solutions with individual material handling where everything fits together perfectly. We are a competent partner and provide comprehensive advice.

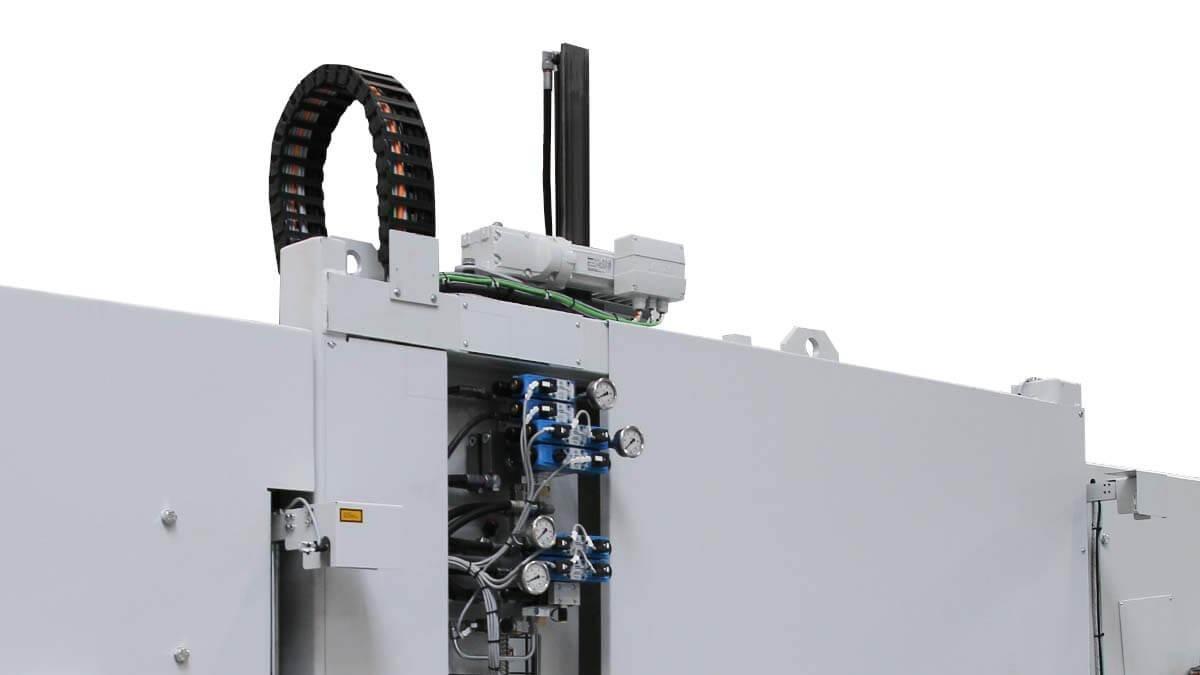

• Downfeed control with servo drive
  The saw feed is carried out by means of a ball screw and servo motor. This results in considerably shorter non-productive times and more precise saw feeds.

• 6° inclination of the saw band
  provides significantly higher cutting performance when sawing large beams and hollow profiles and reduces burr formation.

• Double clamping vice
  offers process reliability - especially when sawing bundles or making single cuts. The clamping jaws are arranged on the infeed and outfeed side and clamp both the starting material and the finished cut.

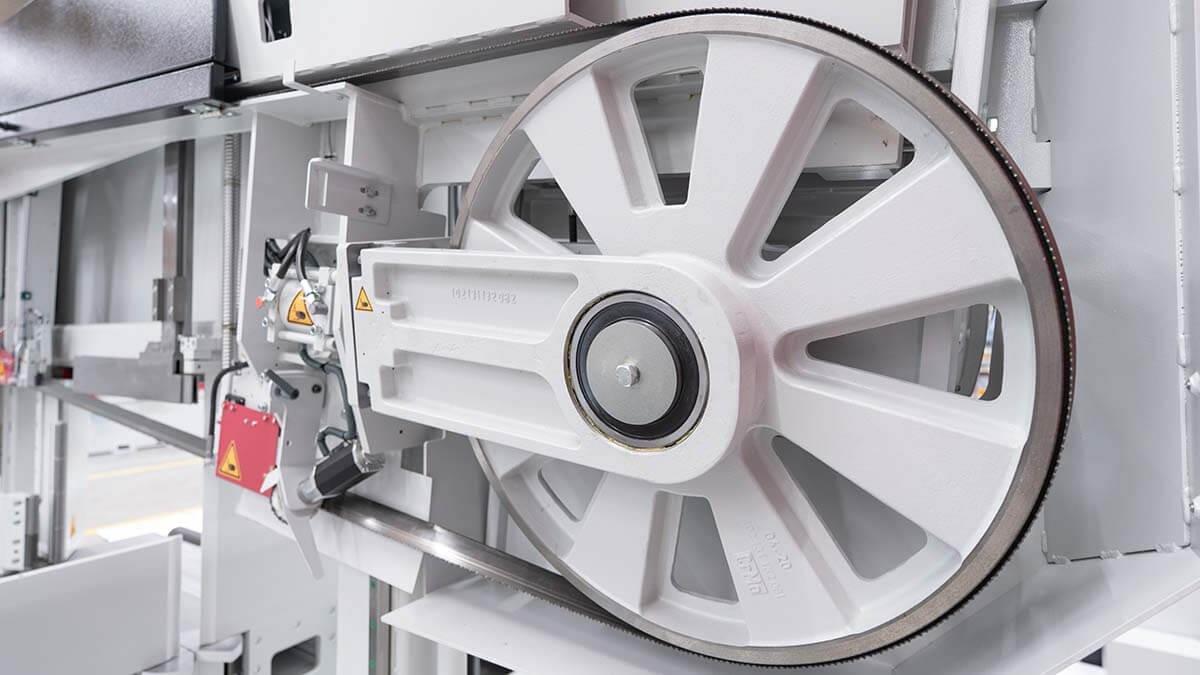

• Cast iron band guiding parts
  are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

• Automatic guide arm
  Optimum sawing result without any adjustments - even with frequently changing material sizes.

• Feed gripper with retracting fixed jaw
  For automatic positioning of the starting material, the automatic mitre band saw HBE520-926GA has a 3,000 mm long feeding gripper. Due to the retracting fixed jaw, even slightly bent profiles are reliably fed into the machine.

• Powerful saw drive
  with a wide range of blade speed adjustment offers flexibility for various starting materials from stainless steel to aluminium.
