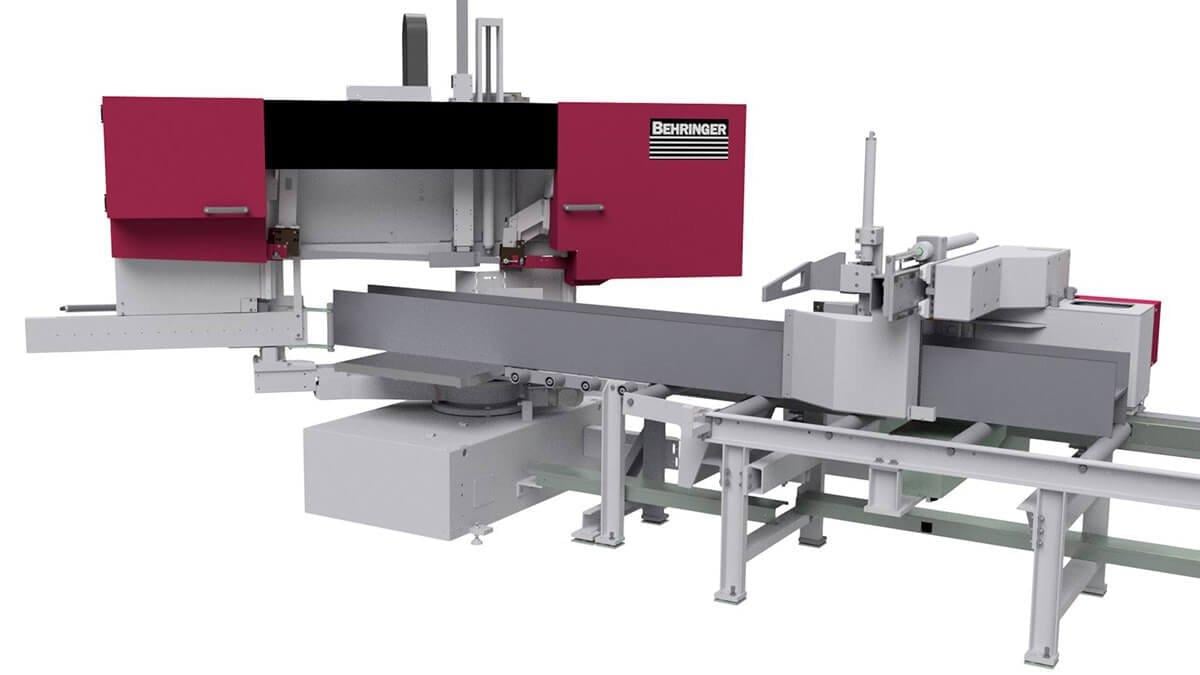

Behringer HBE420-723GA Automatic Mitre Bandsaw (HBE420-723GA)

The automatic mitre band saw HBE420-723GA scores with high cutting performance, user-friendliness and precision. It cuts profile steels, tubes and solid materials made of steel or stainless steel at almost any angle. Thanks to the precise feed gripper and fast, NC-controlled cutting angle adjustment, it is fully automatic.

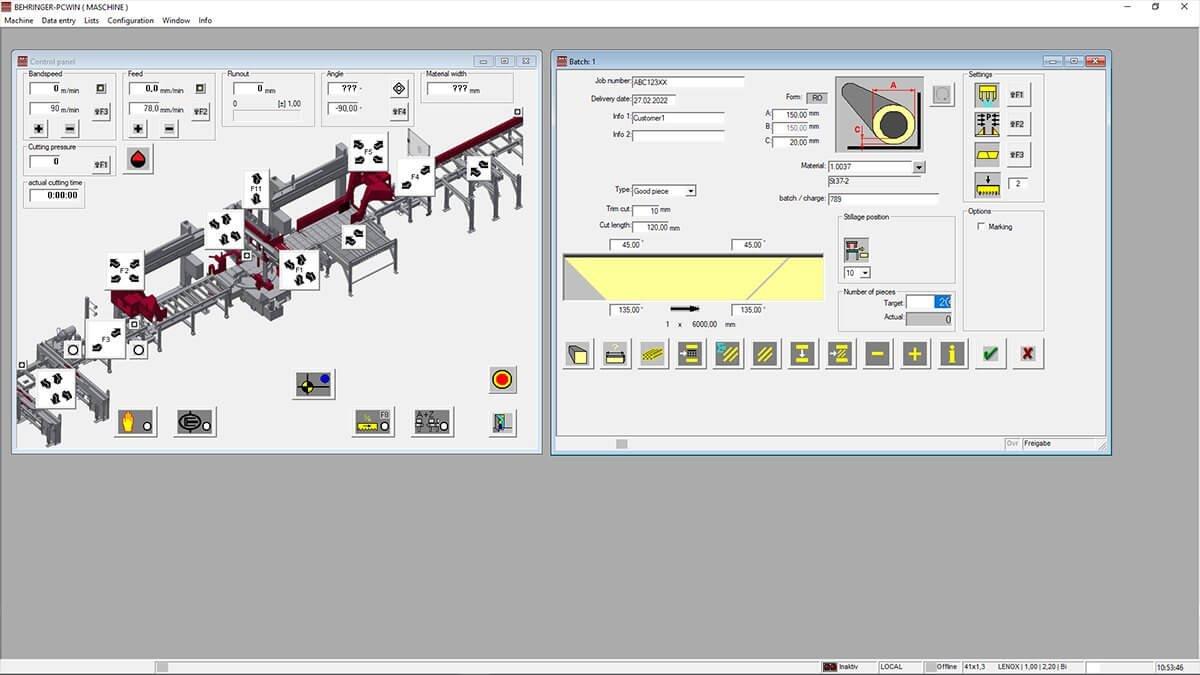

Thanks to the standard saw feed with servo drive and unique Behringer cutting pressure control, it is up to twice as fast when sawing shaped steel as conventional saws at the same price level. With its powerful PC control, the computerized mitre saw is already prepared for the attachment of material handling equipment.

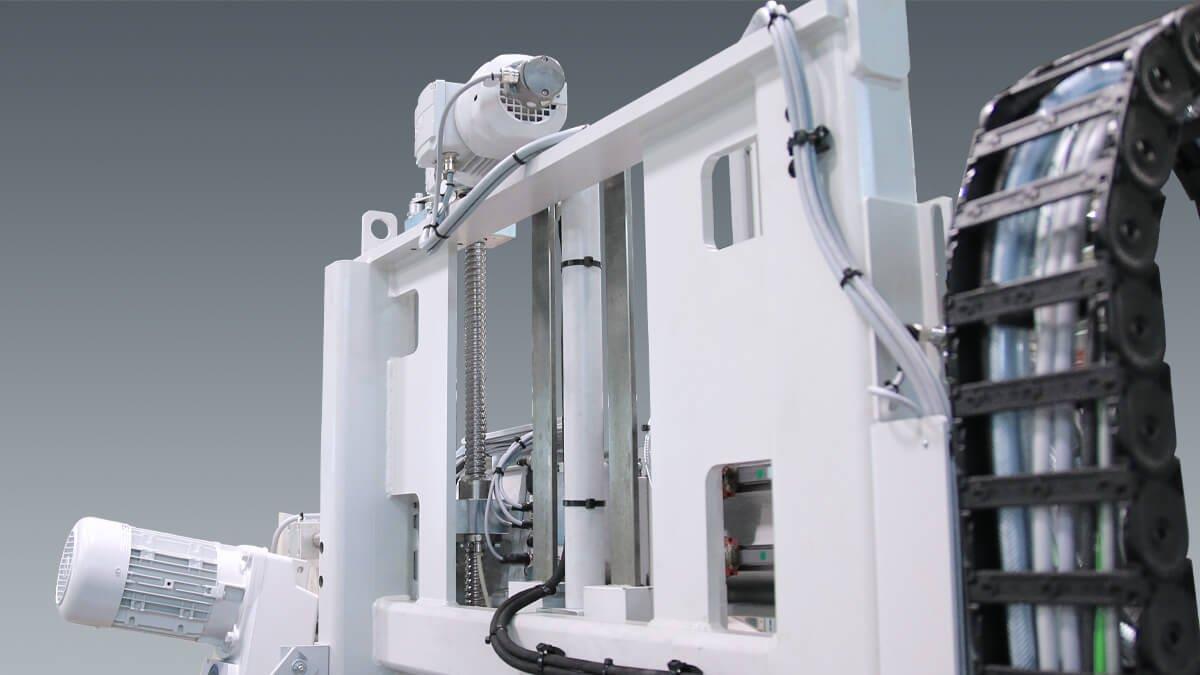

• Downfeed control with servo drive
  The saw feed is carried out by means of a ball screw and servo motor. This results in considerably shorter non-productive times and more precise saw feeds.

• Precision portal-design guide system
  The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life of the mitre saw.

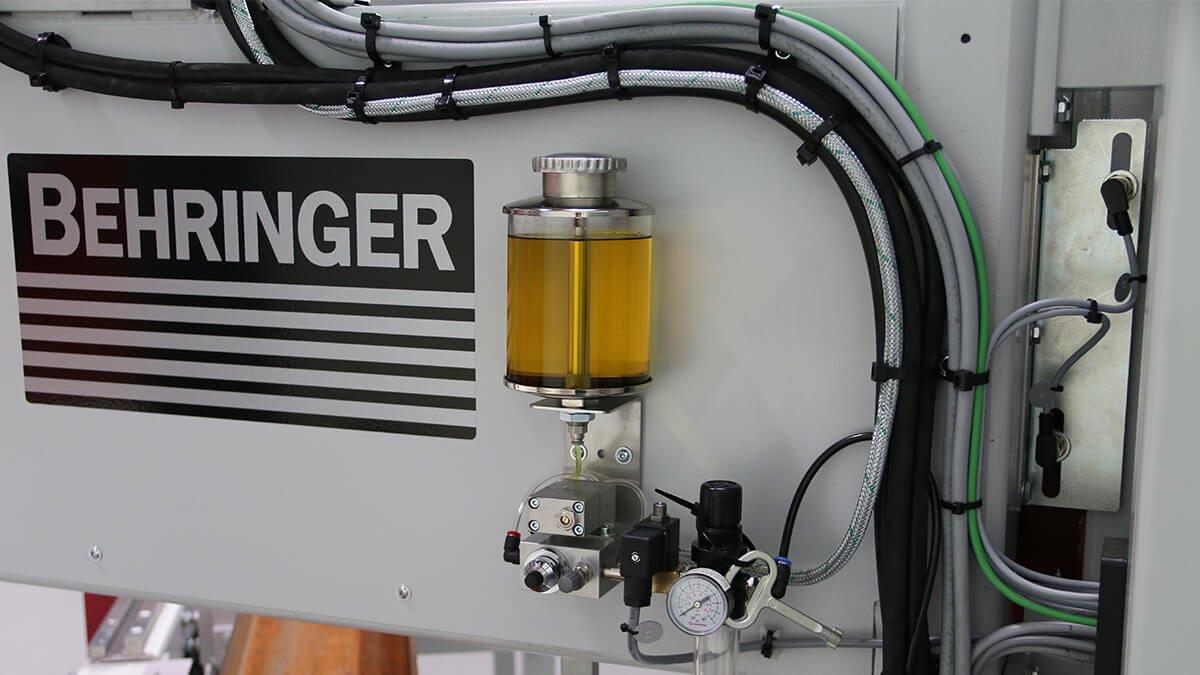

• Micro Spray System
  When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.

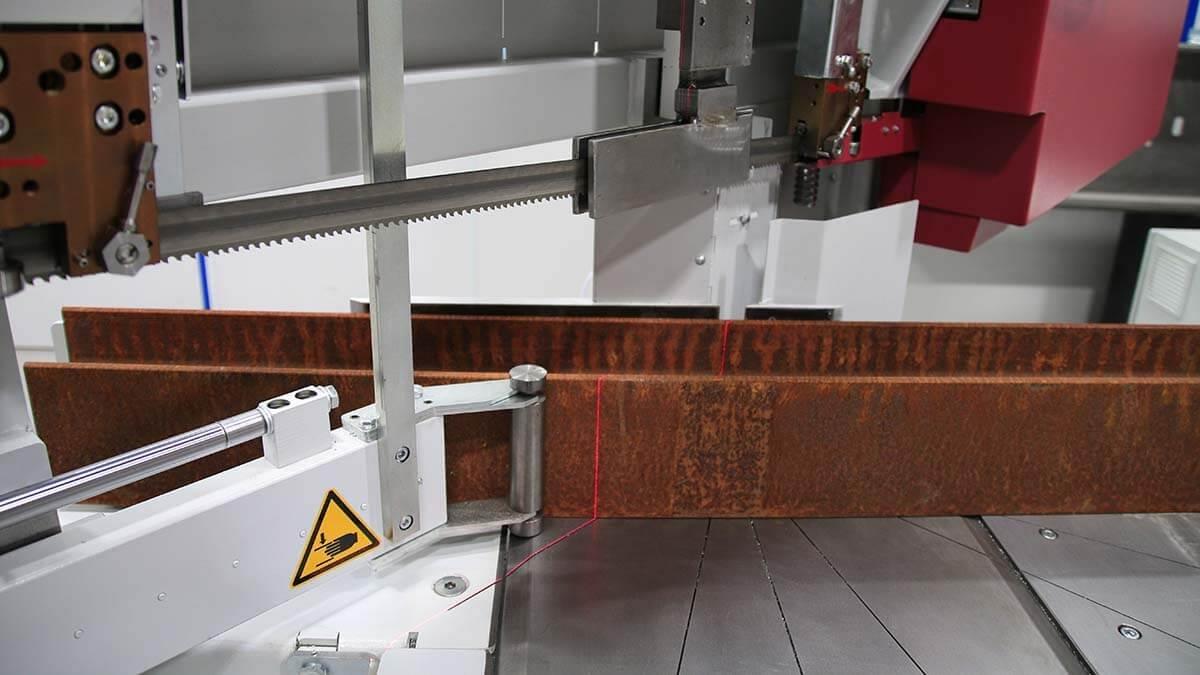

• 3° inclination of the saw blade
  provides higher cutting performance when sawing hollow profiles and beams and reduces burr formation.

• Feed gripper with retracting fixed jaw
  For automatic positioning of the starting material, the automatic mitre band saw HBE420-723GA has a 3,000 mm long feeding gripper. Due to the retracting fixed jaw, even slightly bent profiles are reliably fed into the machine.

• Customer-oriented sawing concepts
  Behringer offers complete system solutions with individual material handling where everything fits together perfectly. We are a competent partner and provide comprehensive advice.

• Safe material flow - even with short starting and cut-off lengths
  The closed table support and the clever connection to material handling systems offer maximum process reliability in fully automatic operation. Jamming of short cuts and gussets is avoided in the best possible way.

• Cast iron band guiding parts
  are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

• Sensitive Behringer cutting pressure control
  increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

• Automatic guide arm
  Optimum sawing result without any adjustments - even with frequently changing material sizes.

• Hydraulic blade tensioning
  The saw band is always optimally tensioned by a hydraulic system. When the machine is at a standstill, the saw band is relieved, thus extending its service life. In the event of a band breakage, the machine stops automatically.

• Energy-efficient drives
  More output with less energy consumption. Protects the environment and your wallet.

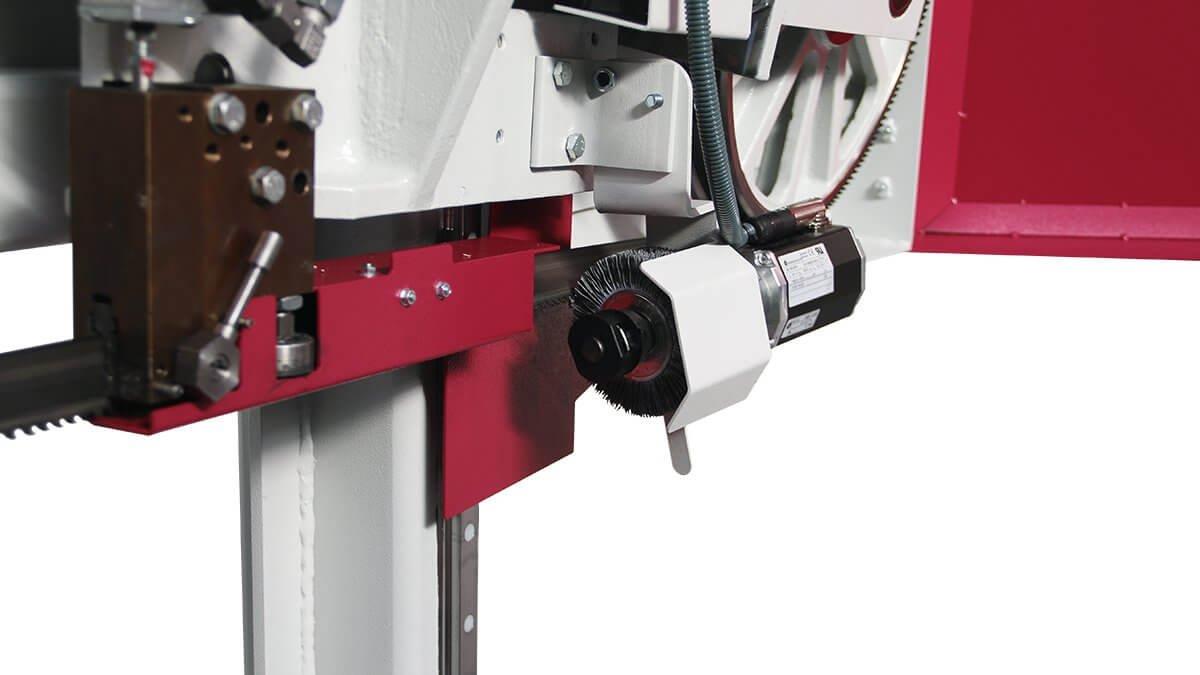

• Electrically driven chip brush
  with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.
