Behringer HBE411A Automatic Horizontal Bandsaw (HBE411A)

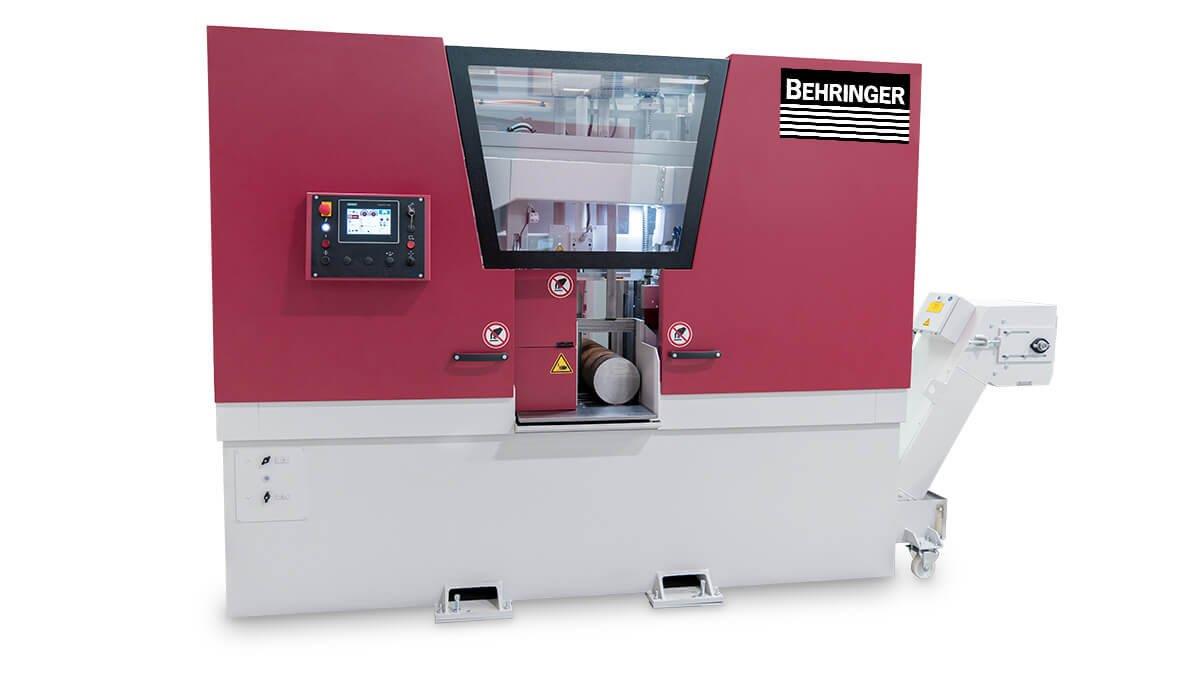

The automatic band saw HBE411A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE411A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

• Cast iron band guiding parts
  are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

• Auto-Feed-Control
  Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.

• Energy efficient
  The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

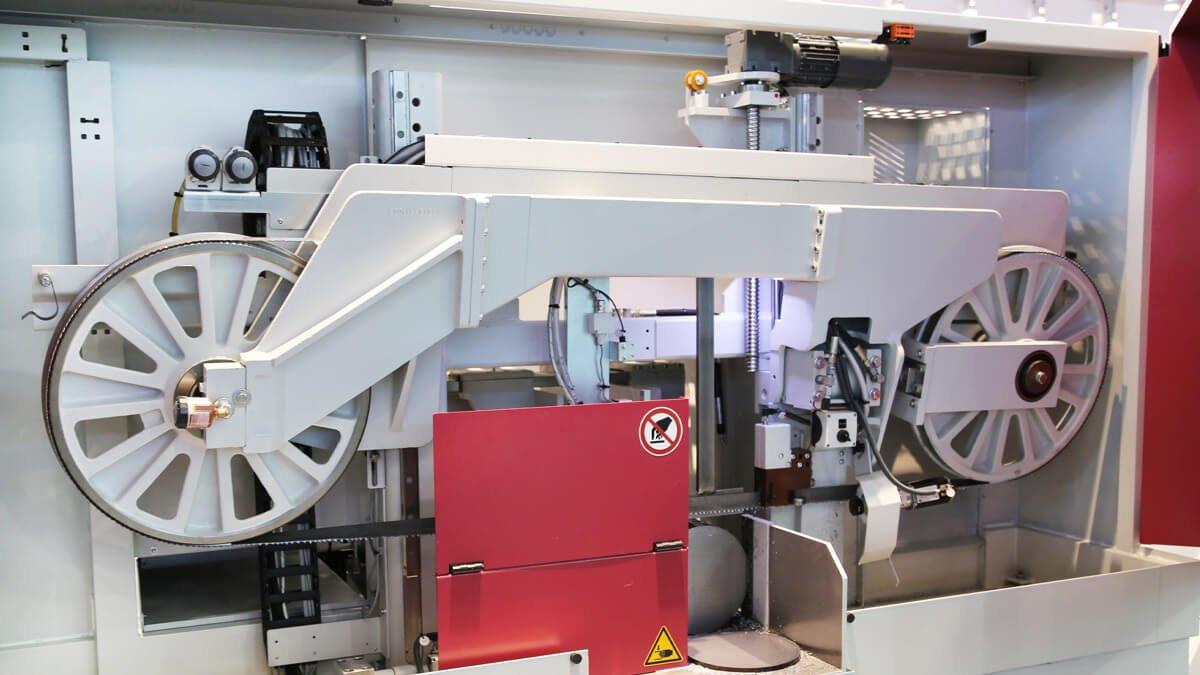

• Precision portal-design guide system
  The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

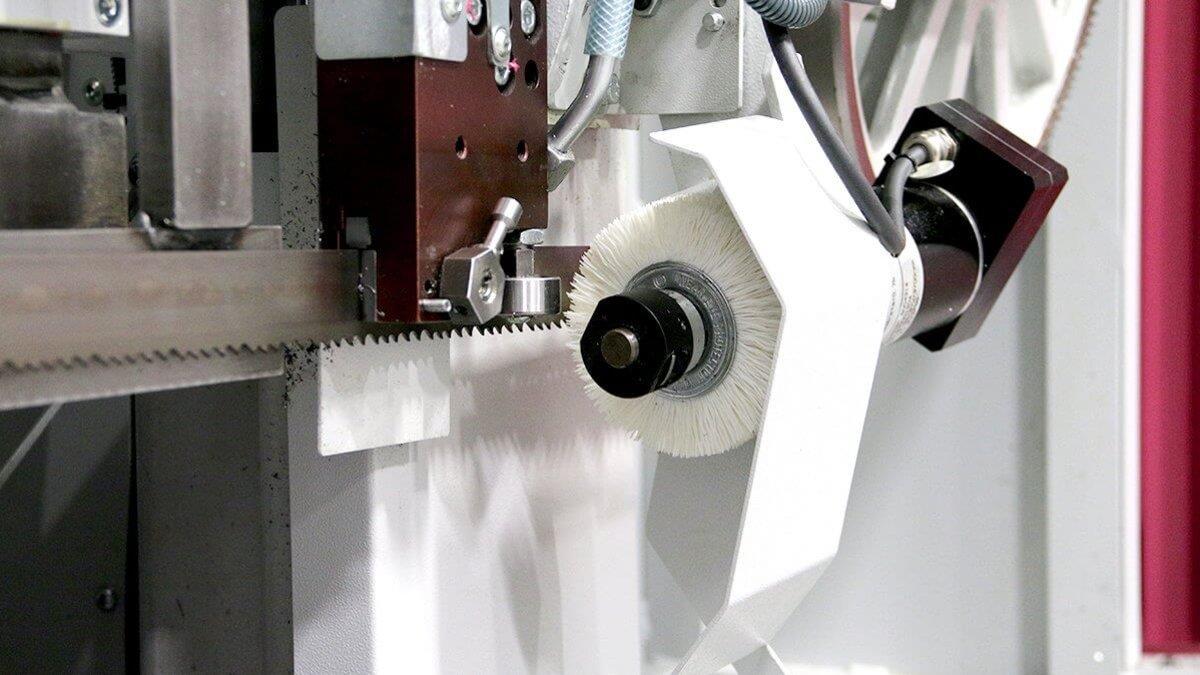

• Electrically driven chip brush
  with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

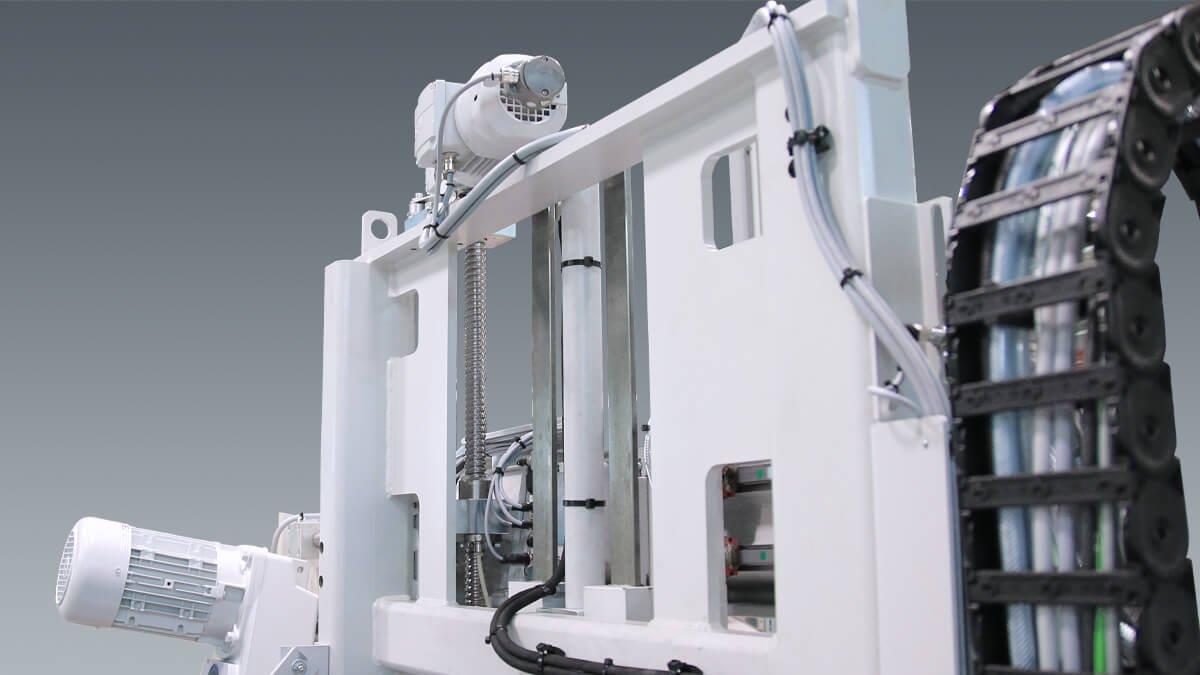

• Servo downfeed system
  The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!

• Automatic guide arm
  Optimum sawing result without any adjustments - even with frequently changing material sizes.

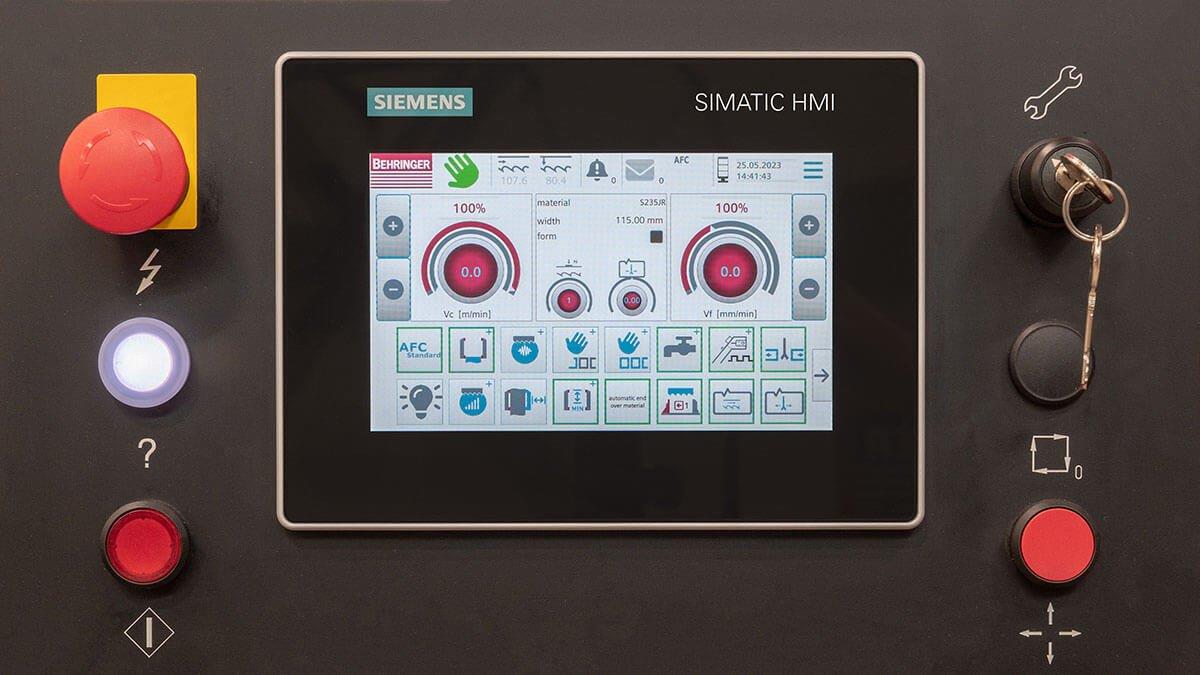

• Easy to use
  Quick and easy operation of all functions of the automatic band saw via touch control.

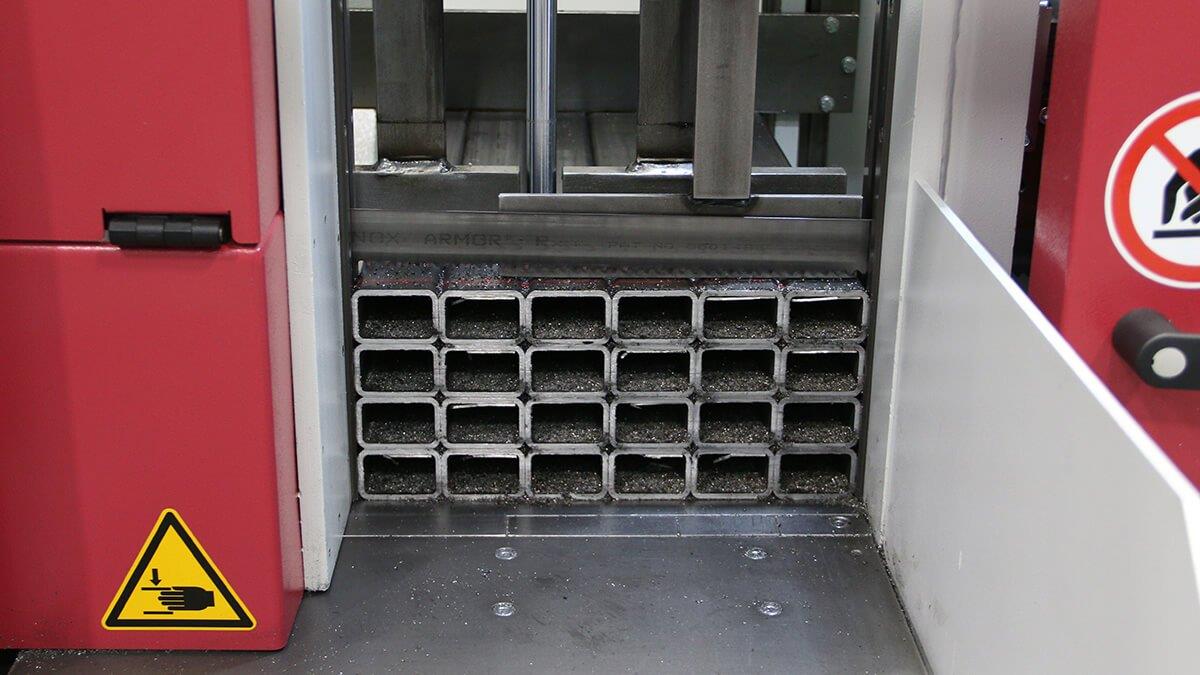

• Double clamping vice
  offers process reliability - especially when sawing bundles or making single cuts. The clamping jaws of the band saw are arranged on the infeed and outfeed side and clamp both the starting material and the finished cut.
