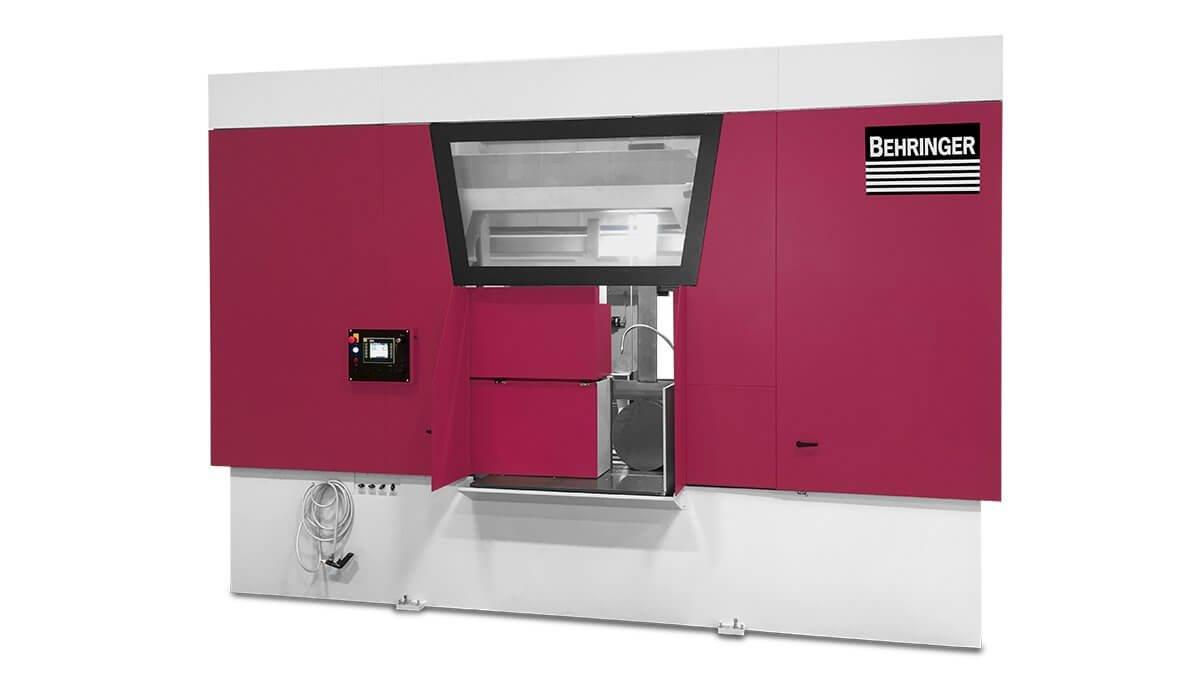

Behringer HBE1060A Performance High-Performance Production Band Saw (HBE1060A)

The high-performance automatic saw HBE1060A Performance is designed for demanding use in the steel trade, manufacturing and metal production. Used for cutting large pipes or solid materials made of steel, plastic or high-alloy materials, they impress with precise and powerful cuts and easy material handling. The HBE1060A Performance is extremely robustly built for rough operation. While fully enclosed and complying with current safety standards, the industrial saw offers good accessibility and special features for single cuts.

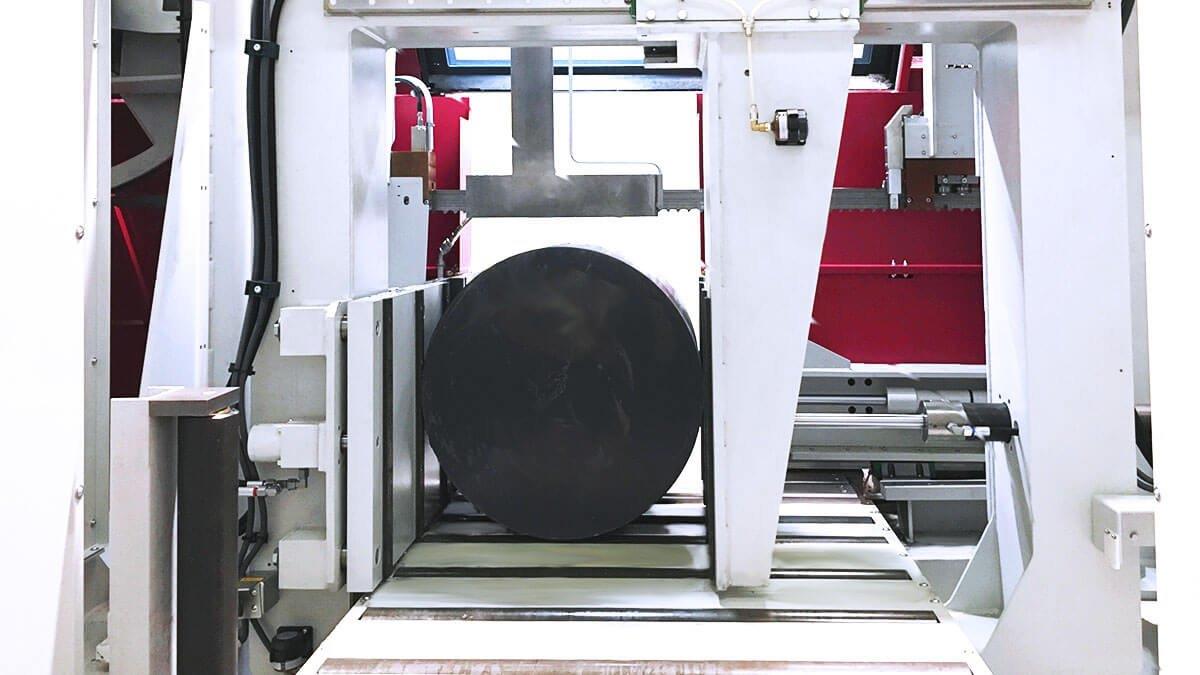

• Robust feeding gripper with linear retracting fixed vice jaw
  positions even solid material weighing tons to a tenth of a millimeter.

• Servo downfeed system
  The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!

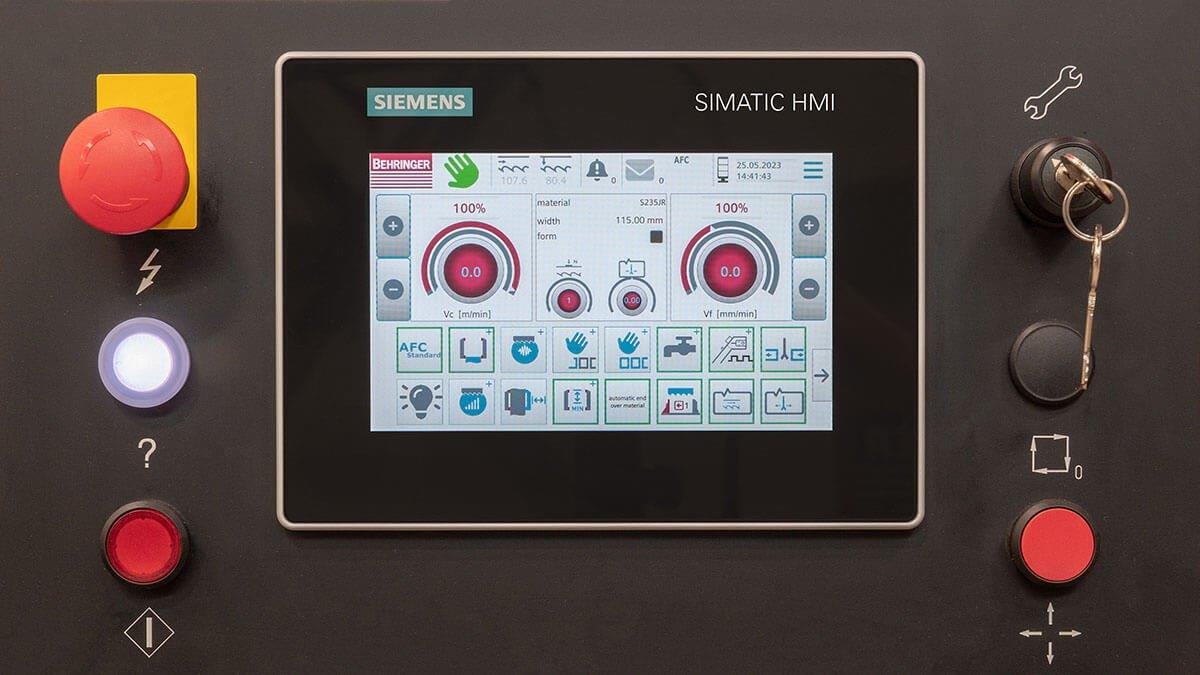

• Auto-Feed-Control
  Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.

• Sensitive Behringer cutting pressure control
  increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

• Automatic guide arm
  Optimum sawing result without any adjustments - even with frequently changing material sizes.

• Optimized for single cuts
  The operator is supported in setting up individual cuts through the use of the feeding gripper and intelligent software.

• Economical use of carbide saw blades
  due to robust design, use of latest servo technology and well dimensioned chip disposal.

• Precision portal-design guide system
  The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

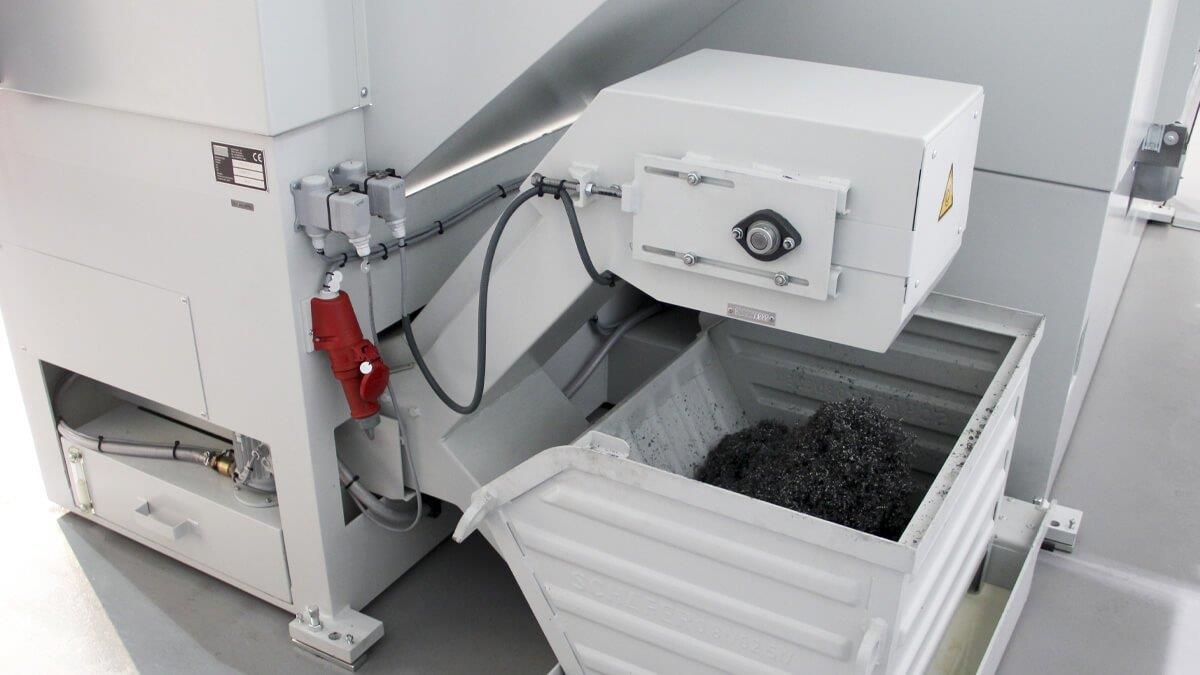

• Powerful chip conveyor
  Optimal chip disposal thanks to the funnel-shaped machine base and the paddle-style chip conveyor with an integrated coolant tank. The ejection height of 800 mm allows the use of large chip buckets.

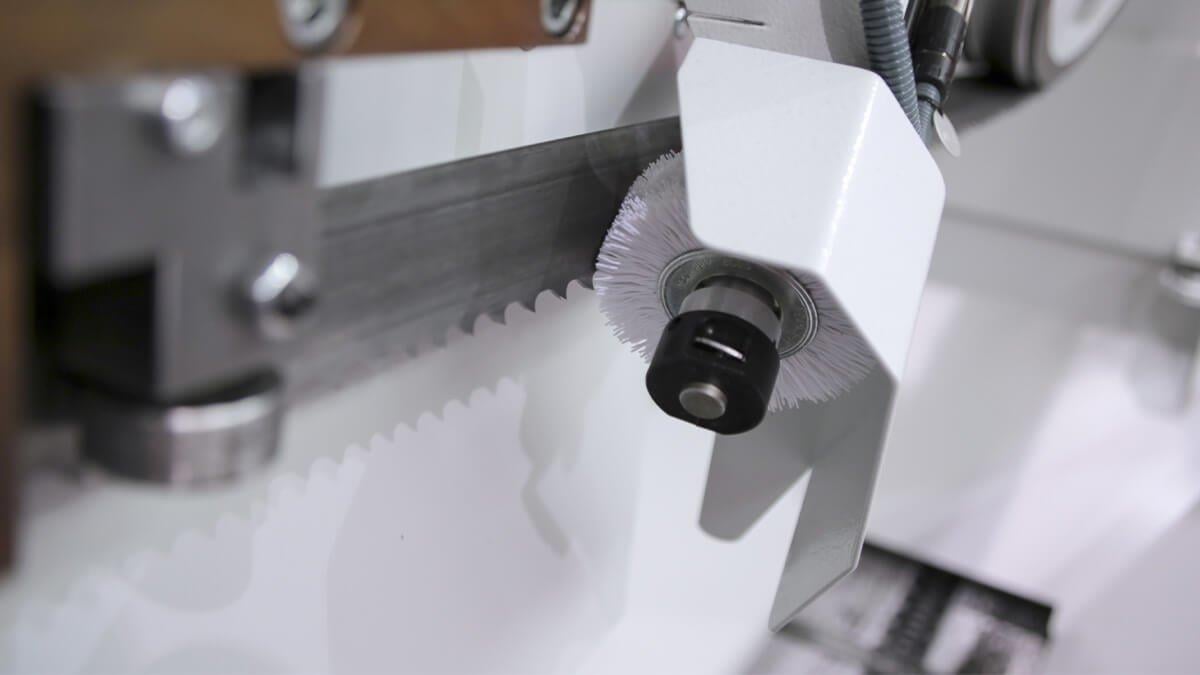

• Cast iron band guiding parts
  are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.
