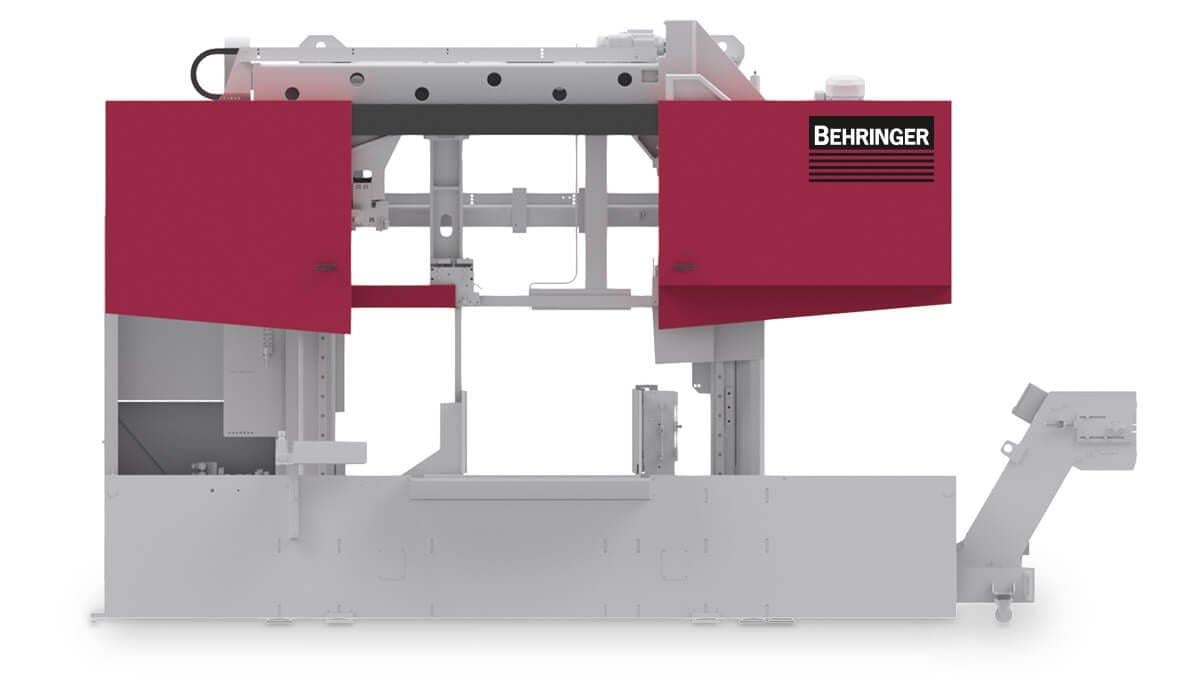

The HBE1060 is a modern, semi-automatic high-performance horizontal bandsaw in a robust design for the economical cutting of solid metals of all grades and large pipes. Especially for single cuts or difficult material geometries, positioning of the parts on sight by means of a crane or roller conveyor and line laser is recommended. For machining large pipes, the HBE1060 can be equipped with a measuring system.
The metal cutting bandsaw HBE1060 impresses with its solid, indestructible basic construction and its high cutting performance, which also allows the economical cutting of difficult-to-machine materials such as high-alloy stainless steels, Inconel or titanium in large diameters with carbide saw blades. The HBE1060 makes your production even more economical with high-performance, precise cuts and low cutting costs at the same time.
Cutting range 90° round
1,060 mm
Cutting range 90° flat
1,060 x 1,060 mm
Smallest dimension to be sawn round
60 mm
Smallest dimension to be sawn flat
60 x 20 mm
Drive power
7.5 kW
Blade speed
10 - 110 m/min
Saw blade dimensions
10,505 x 67 (80) x 1.6 mm
Rest piece length
40 mm
Total power
12 kW
Length
2,000 mm
Width
4,800 mm
Height
3,550 mm
Weight
9,000 kg
Material support height
800 mm
