AWEA AF 1460 (AWEA AF 1460)

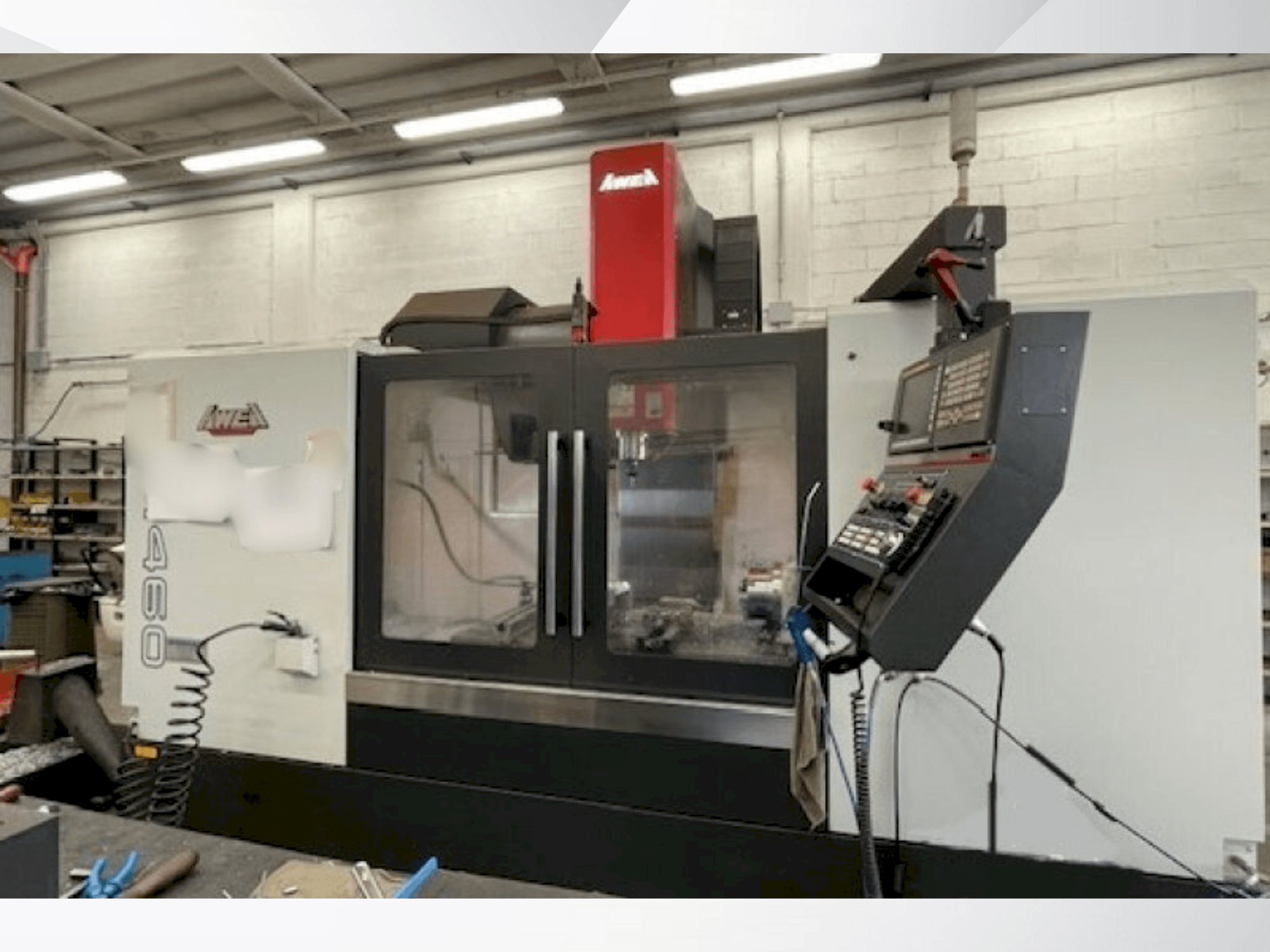

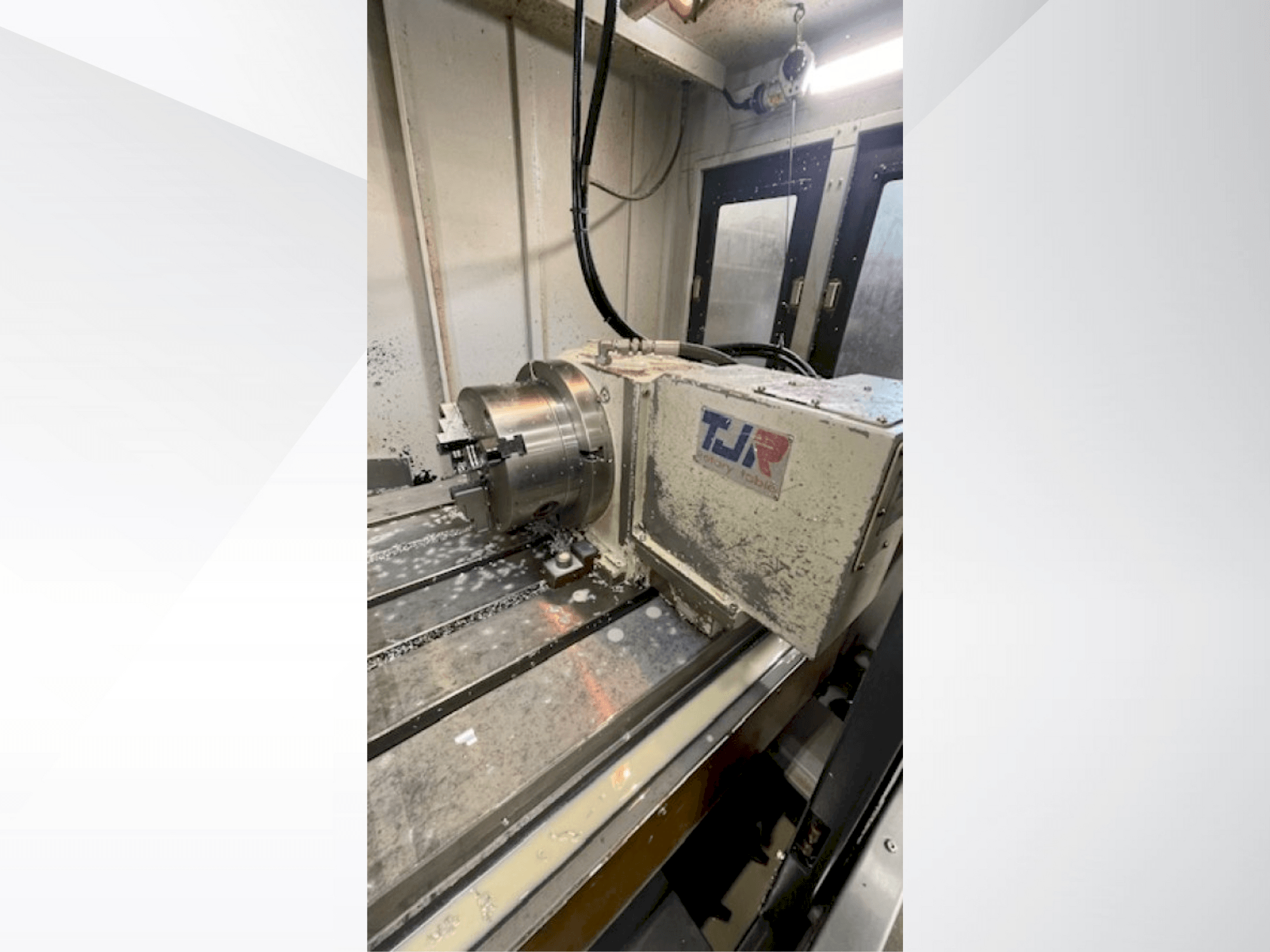

This 4-axis AWEA AF 1460 vertical machining center was manufactured in 2018. It features a FANUC 0i-MF control unit, rapid feeds up to 48 m/min, and a tool magazine with 30 positions. The machine includes a 4th axis rotary table, chip conveyor, and coolant through the spindle at 15 bar. Ideal for complex machining tasks, the AWEA AF 1460 machine we have for sale is robust and versatile. Contact us for further details regarding this vertical machining center.

• Brand: AWEA
• Year: 2018
• Model: AF 1460
• Application type: Milling
• Location: Turkey
• Machine type: Vertical Machining Centre
• Availability: Immediately
• Control unit brand: Fanuc

General Data

• Machine weight: 8200 KG

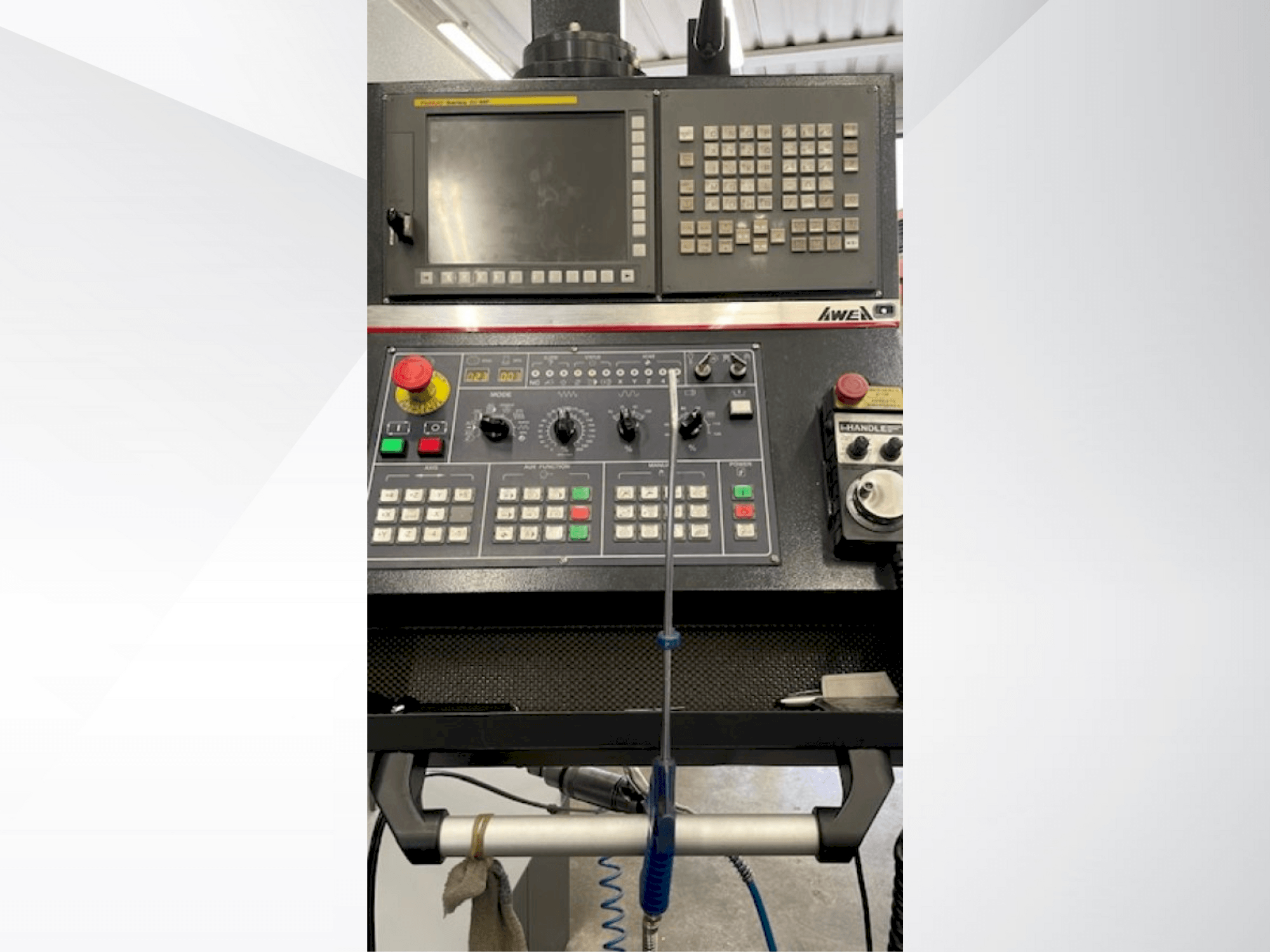

Control Unit

• Model: 0i-MF (Opt. Manual Guide type I)
• Brand: FANUC

Movement

• X-AXIS Movement: 1400 mm
• X-AXIS Rapid traverse: 48 m/min
• Y-AXIS Movement: 620 mm
• Y-AXIS Rapid traverse: 48 m/min
• Z-AXIS Movement: 620 mm
• Z-AXIS Rapid traverse: 36 m/min

Table

• Outer length: 1500 mm
• Outer width: 620 mm
• Min distance between vertical spindle and table: 100 mm
• Max distance between vertical spindle and table: 720 mm
• Table load: 1000 kg

Tools

• Slots in storage: 30
• Max weight: 7 kg
• Max tool diameter: 75 mm
• Max tool length: 150 mm

Media

• Internal cooling: Yes

Machine Benefits

• Technical Machine Benefits:
  • - Cooling pressure: 15 bar
  • - Distance spindle - column: 730 mm

Extra information

• - Machine still under power
