AWEA - AF 610 (AWEA - AF 610)

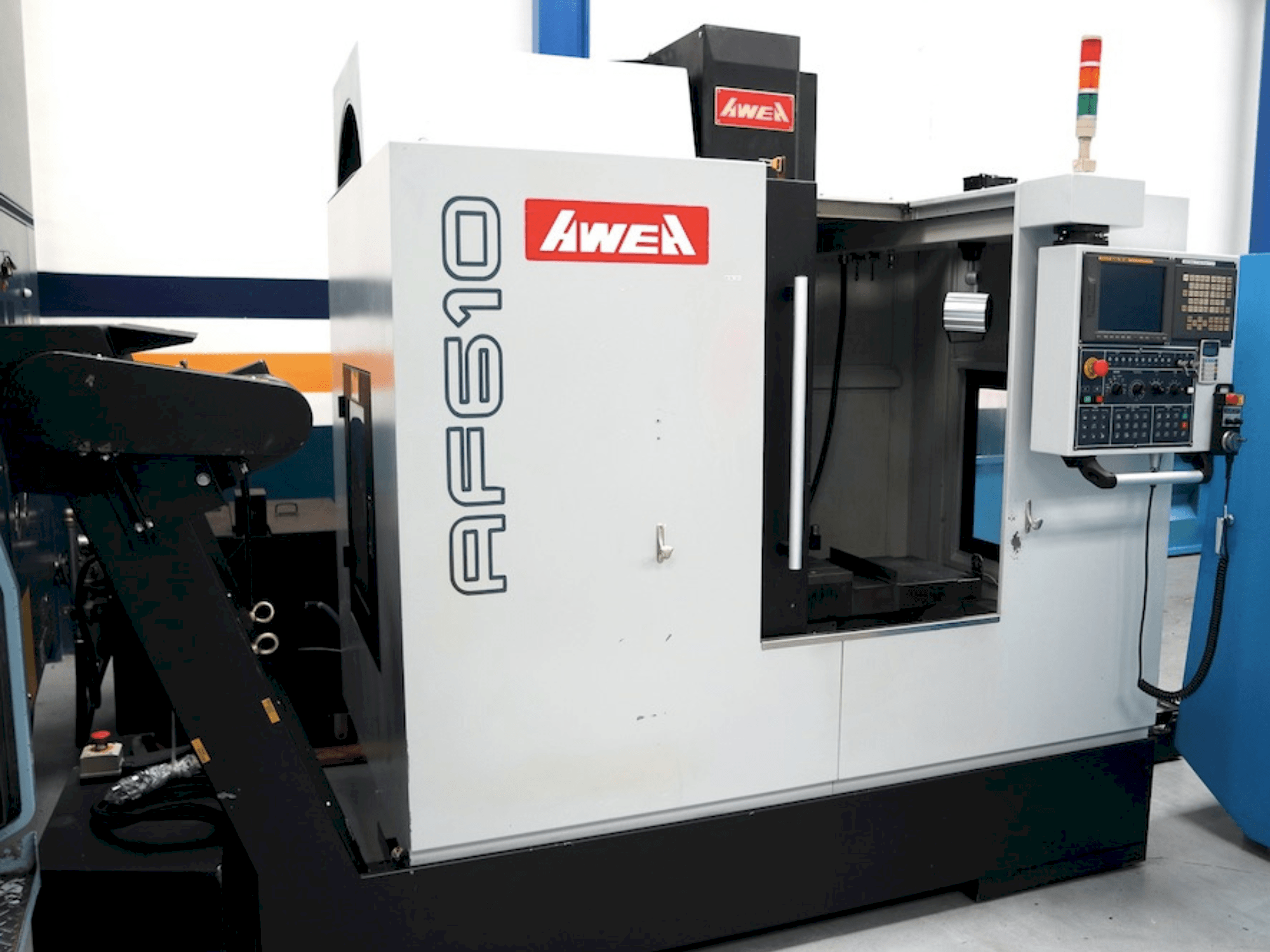

This 3-axis AWEA AF 610 vertical machining centre was manufactured in 2008. It features a FANUC 18i-MB control, with X-axis travel of 610mm, Y-axis of 420mm, and Z-axis of 450mm. The spindle can reach speeds up to 12,000 rpm, supported by a tool magazine with 24 stations. Additional features include a chip conveyor and a coolant system with a 300-liter tank. If you are looking to get high-quality milling capabilities consider the AWEA AF 610 machine we have for sale. Contact us for more information.

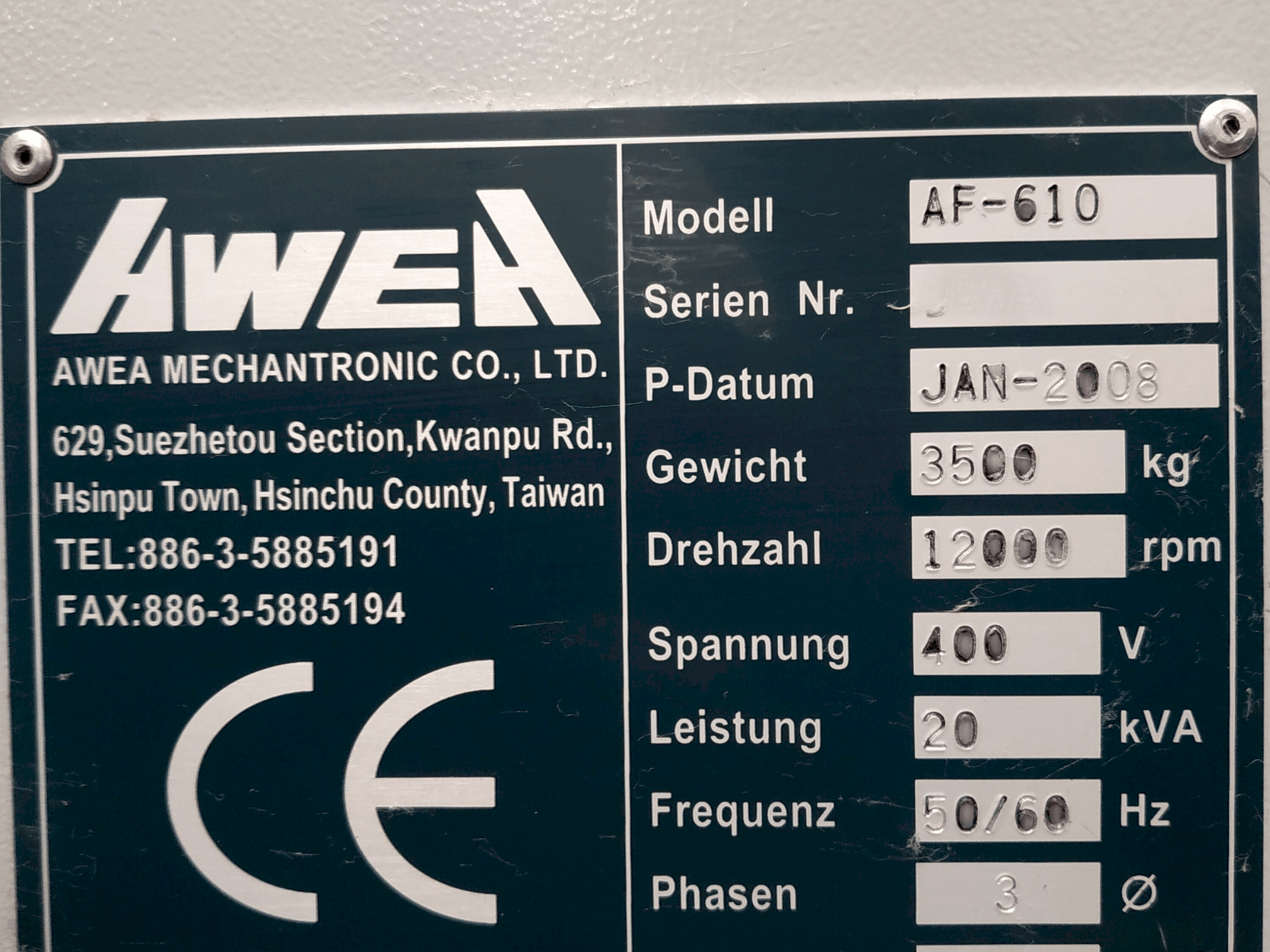

• Year: 2008
• Model: AF 610
• Application type: Milling
• Location: Turkey
• Machine type: Vertical Machining Centre
• Availability: Immediately
• Control unit brand: Fanuc

General Data

• Measurements width: 2150 mm
• Measurements depth: 2600 mm
• Measurements height: 2500 mm
• Machine weight: 3500 kg

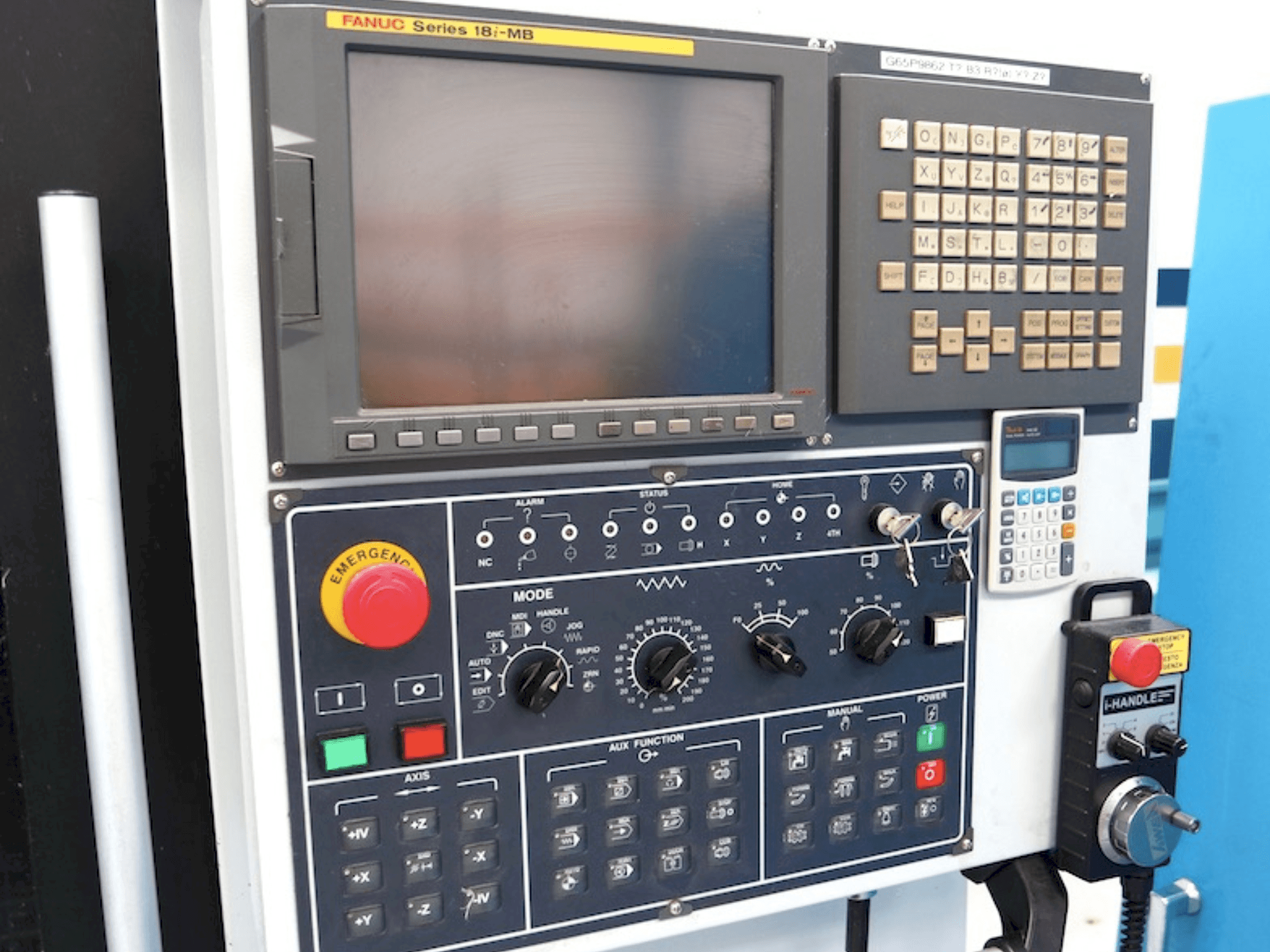

Control Unit

• Brand: FANUC
• Model: 18i‑MB

Main drive

• Spindle speed range: 12000 1/MIN
• Spindle motor power: 7.5 / 11 kW
• Number of axis: 3

Movement

• X-AXIS Movement: 610 mm
• X-AXIS Rapid traverse: 36 m/min
• Y-AXIS Movement: 420 mm
• Y-AXIS Rapid traverse: 36 m/min
• Z-AXIS Movement: 450 mm
• Z-AXIS Rapid traverse: 24 m/min

Workpiece

• Workpiece weight: 450 kg

Tools

• Number of stations: 24
• Max weight: 7 kg
• Max tool diameter: 100 mm
• Max tool length: 250 mm
• Type of tool holder: ISO-40

Media

• Chip conveyor: Yes

• Feed max: 10000 mm/min

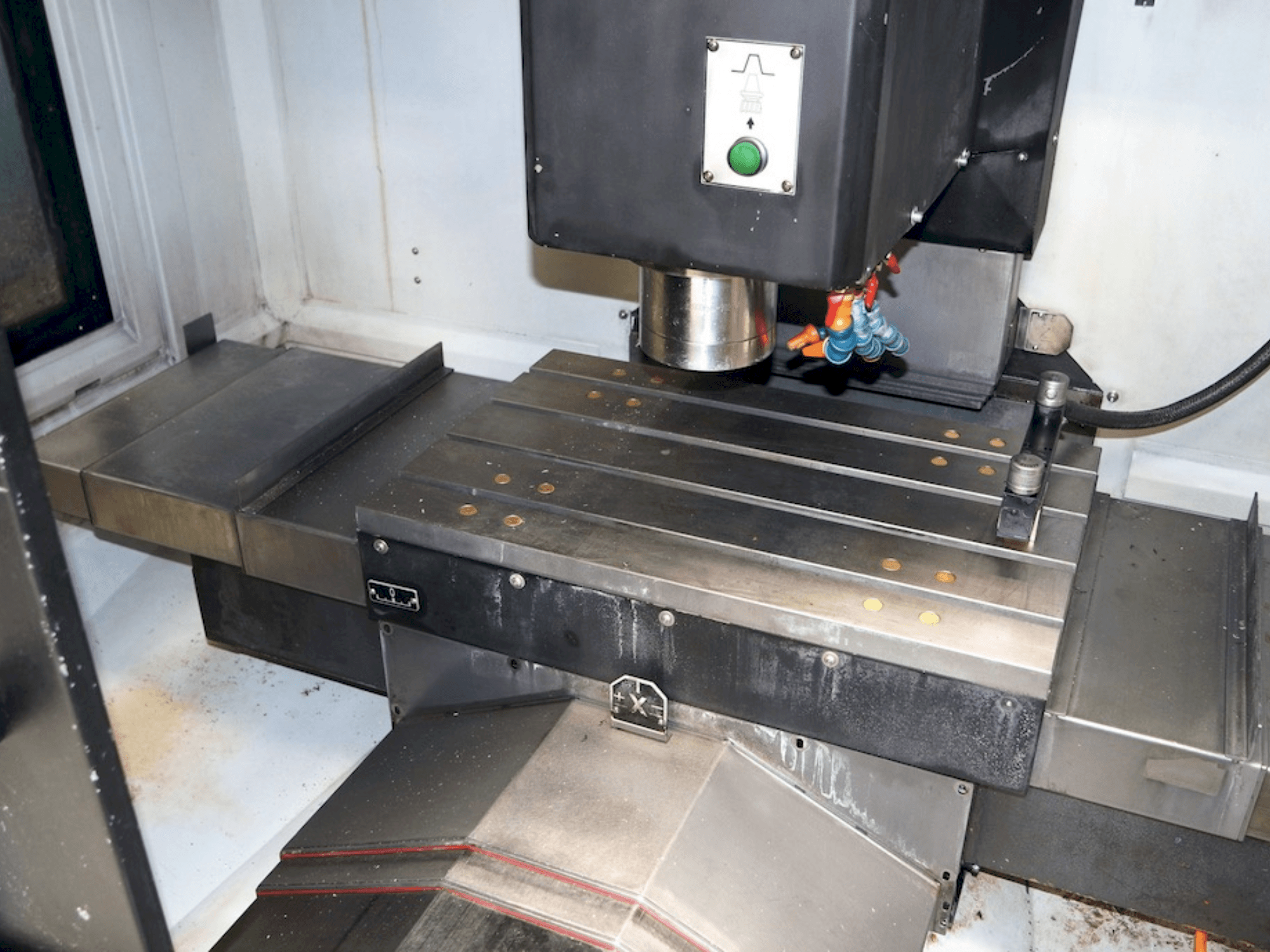

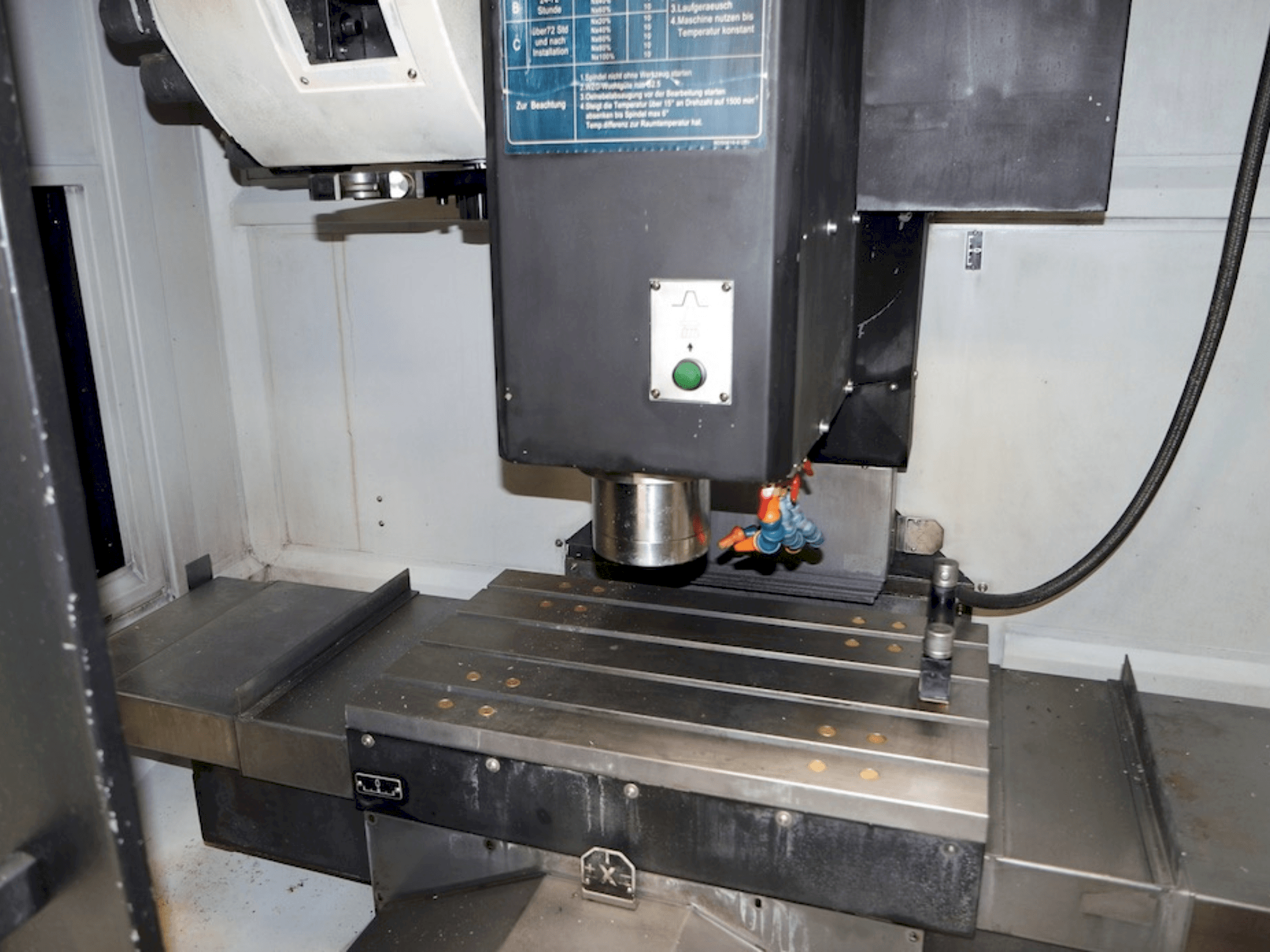

•  Worktable dimensions: 700 x 450 mm

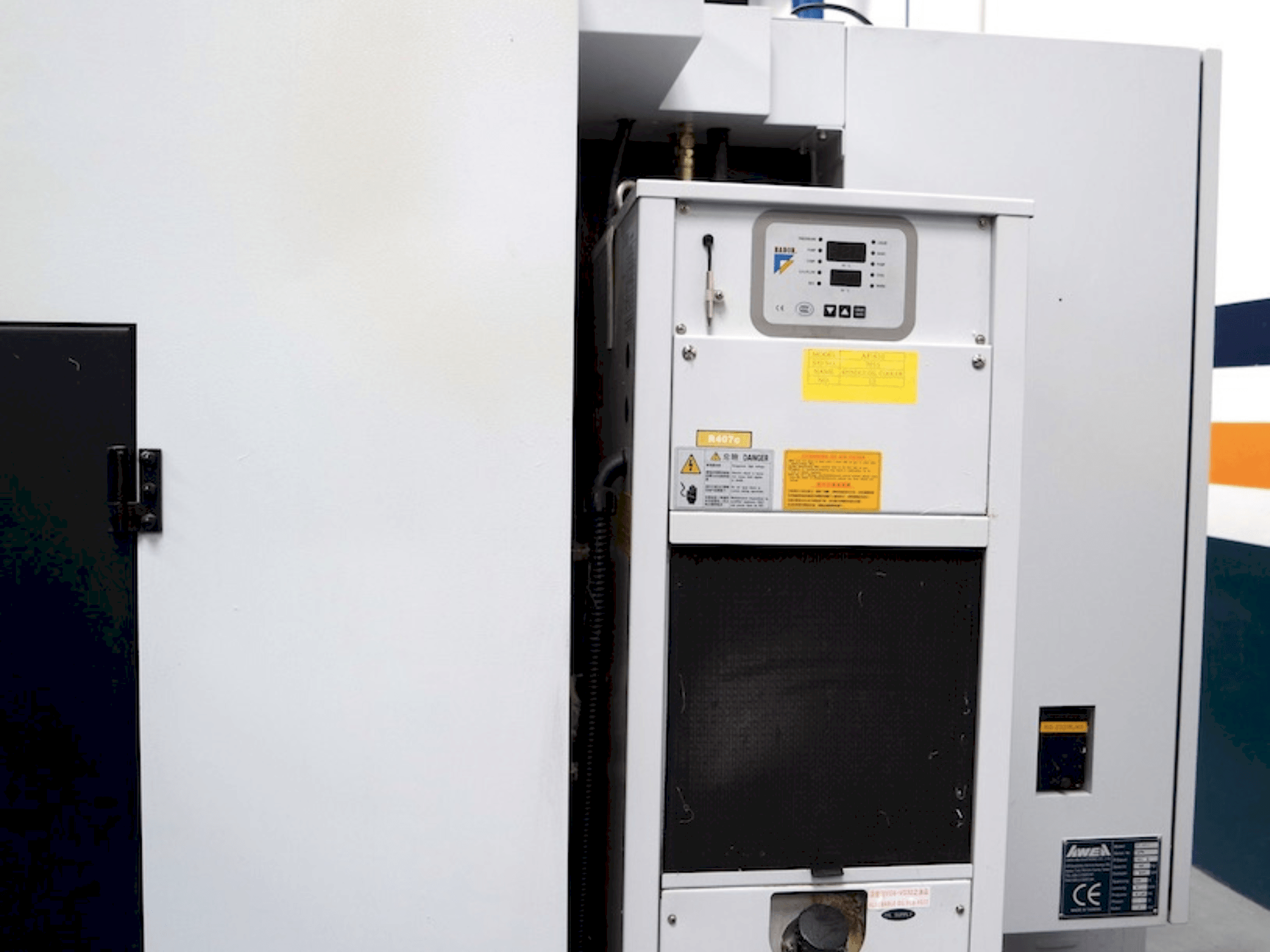

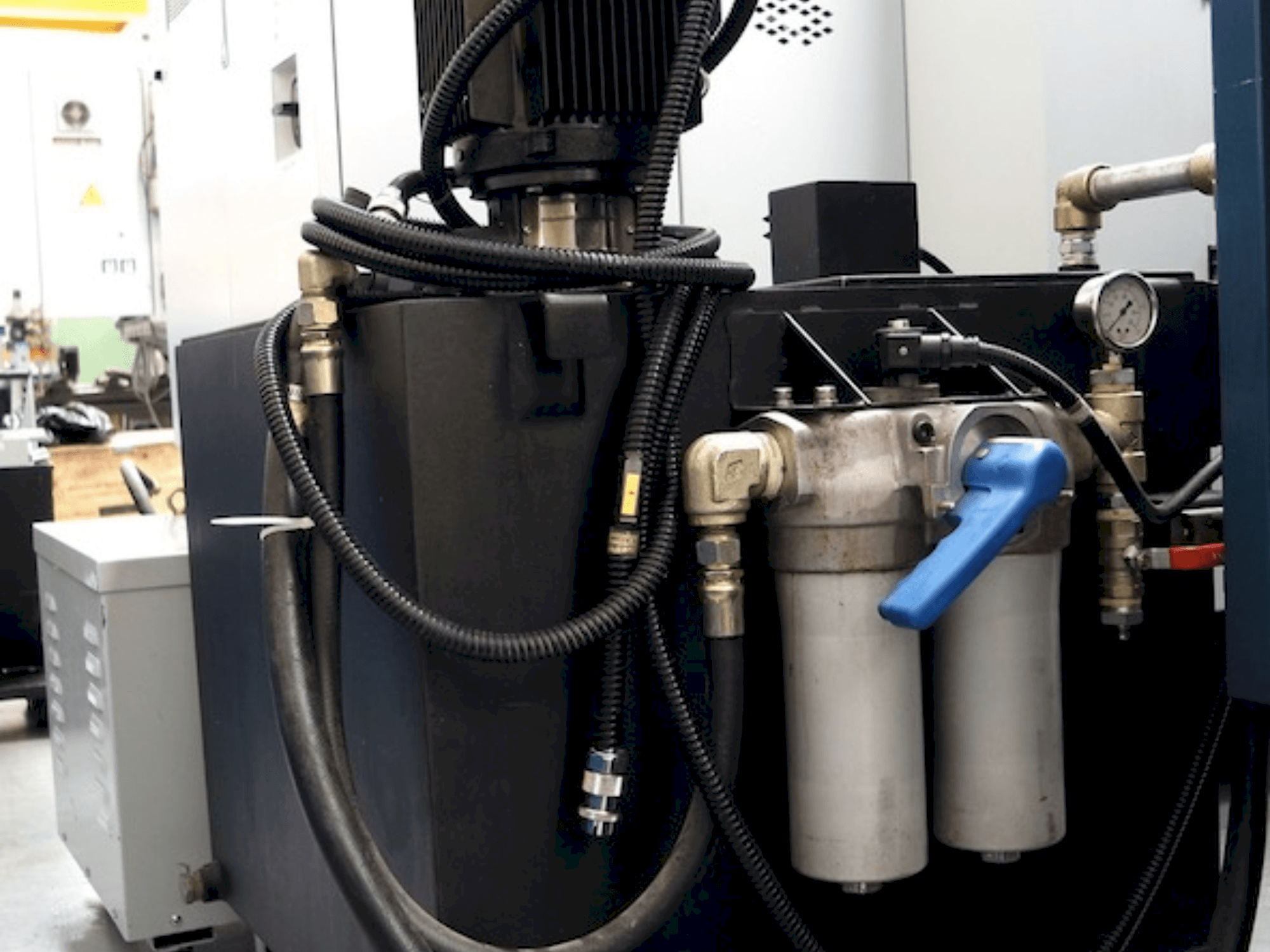

• Cooling through the spindle
• Coolant tank: 300 liters
• Tool diameter with free neighboring places: 150 mm
• Tool changer: random
