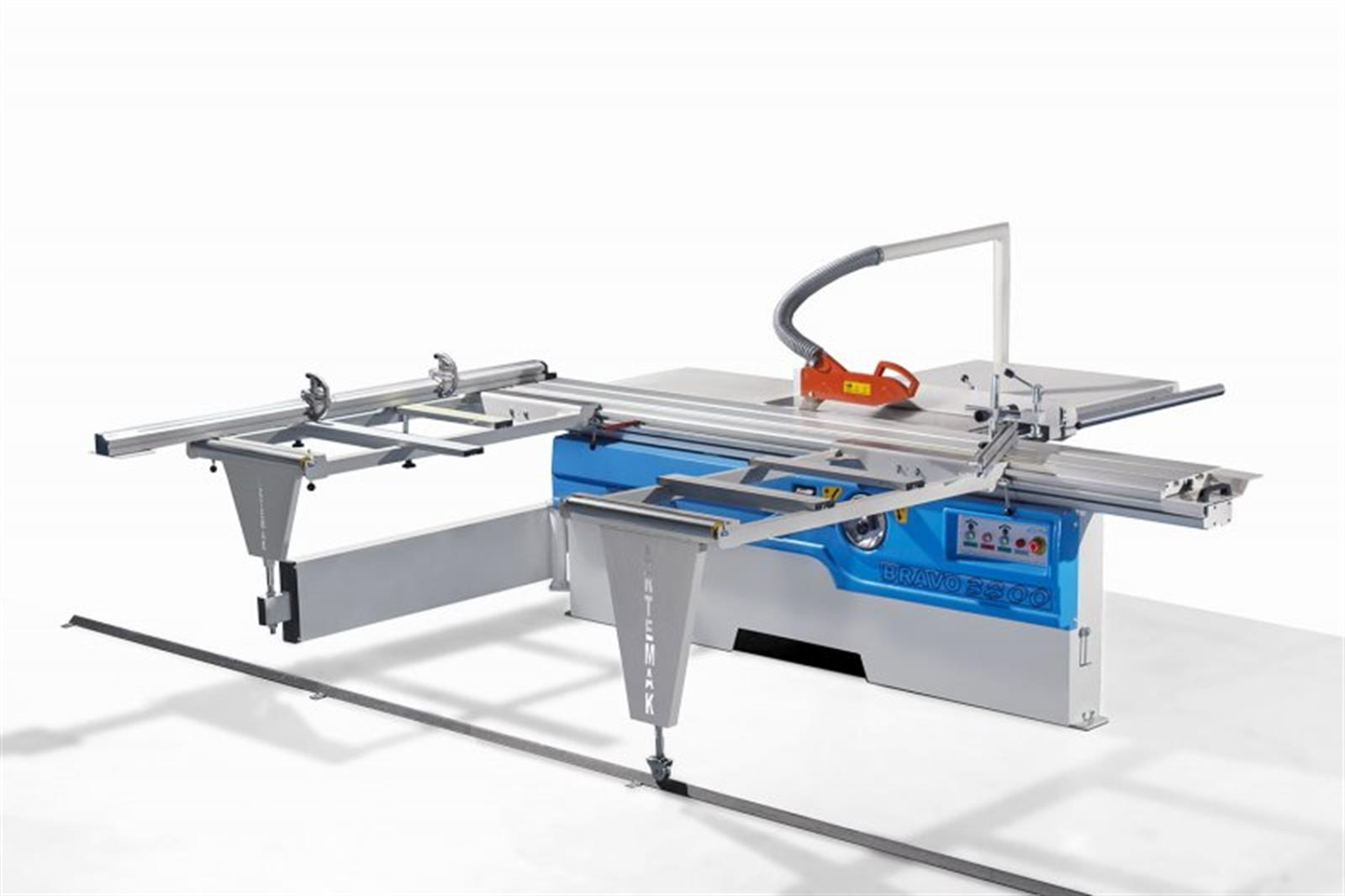

Artemak BRAVO 3800 Tilting Circular Saw Machine (Artemak BRAVO 3800 Tilting Circular Saw Machine)

SLIDING TABLE :

3800 mm

STANDART DIAMETER OF BLADE :

300 mm

DIAMETER OF SPINDLE :

30 mm

MAX. DEPTH OF CUT AT 90 DEGREE :

78 mm

MAX. DEPTH OF CUT AT 45 DEGREE :

55 mm

MAX. WIDTH OF CUT :

1300 mm

MAX. MOVEMENT OF ALUMINIUM TABLE

3800 mm

TABLE DIMENSIONS

950 x 600 m

REAR ADDITIONAL TABLE DIMENSIONS :

950 x 750 mm

SIDE ADDITIONAL TABLE DIMENSIONS :

800 x 500 mm

PROFILE CARRIAGE DIMENSIONS :

1530 x 650 mm

TILTING OF BLADE :

0°- 45°

DUST VACUUMING CONNECTOR :

120 mm

MOTOR POWER :

5,5 hp (4 kW)

SPEED OF BLADE :

3700-5100 rpm

NET WEIGHT :

720 kg
