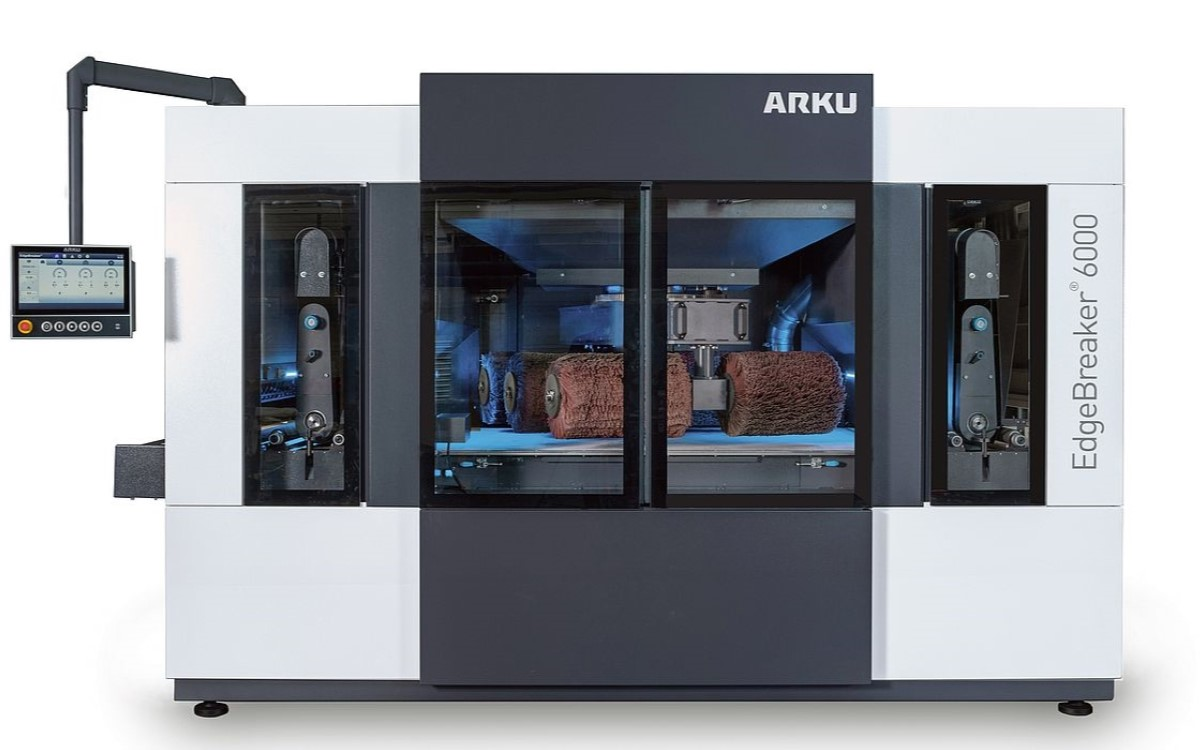

The EdgeBreaker® 6000 is just as flexible as the laser cutting machine itself when it comes to subsequent deburring, edge rounding and, if required, surface finishing. The deburring machine completely processes your punched and laser cut parts in a single pass. First, the grinding belt removes the burrs remaining after cutting. The unique rotary brushes then ensures extremely uniform edge rounding. Even a radius of up to 2.0 mm for sheet metal. Both large and small sheet metal parts can securely be processed thanks to a built-in vacuum table. Thanks to a grinding belt, rotary brushes and surface finishing unit, the EdgeBreaker® 6000 is the most universal deburring machine in the EdgeBreaker® family.

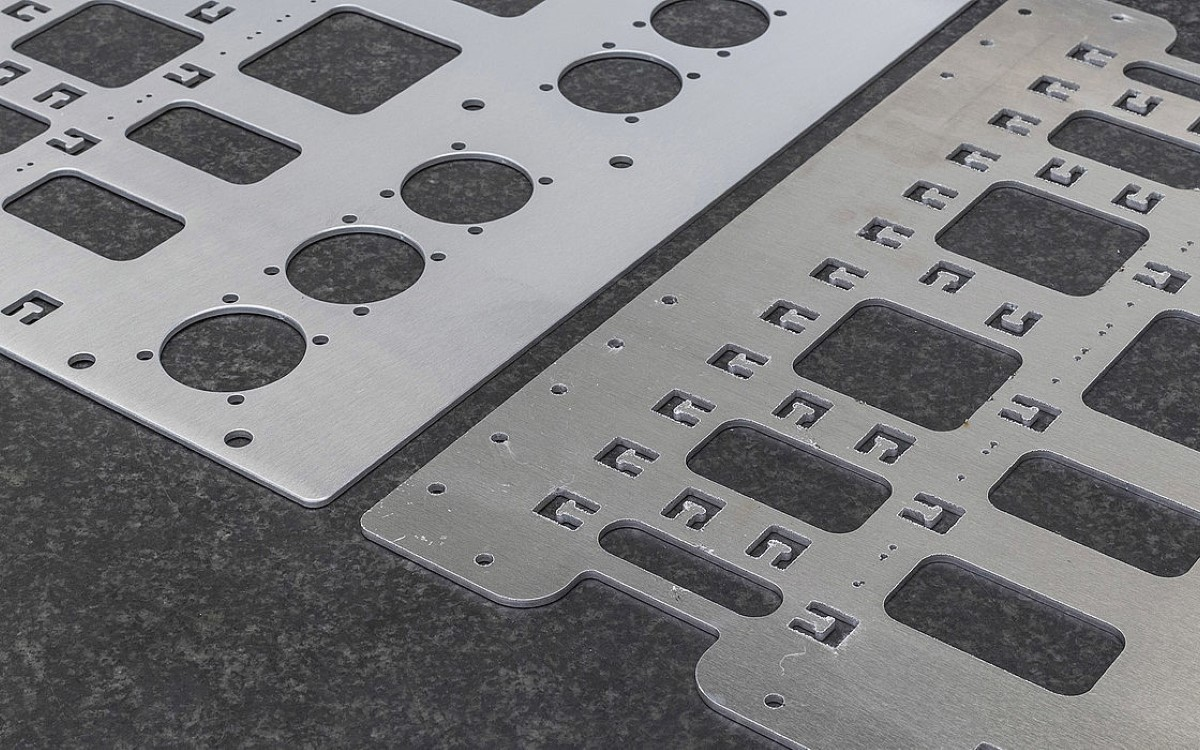

Wide processing spectrum for laser cut and punched parts
The EdgeBreaker® 6000 enables the processing of the widest possible range of sheet metal and sheet metal parts. Whether small sheet metal parts or large metal sheets, this deburring machine provides consistent high-quality results for deburring, edge rounding and surface finishing. The EdgeBreaker® 6000 is particularly suitable for laser-job shops with constantly changing processing requirements.
Achieve edge rounding results of up to 2 mm
The most striking unit in the EdgeBreaker® 6000 makes it possible: the rotary brushes. These rotary brushes achieve a unique edge rounding along the sheet metal edges. As the brushes hit the sheet metal in various directions, you can achieve a very uniform result on the inner and outer contours. If necessary, an edge rounding radius of up to 2 mm is possible.
Quick-change for deburring, edge round and surface finishing tools
All processing units (deburring, edge rounding and surface finishing) are equipped with a quick-change system for the tools (abrasives) to minimize set-up times. You can simply remove the belts and rotary brushes, without any tools needed! The machine can be outfitted with a variety of different tools (various grits and material composites are available). All for optimum deburring, edge rounding, and surface finishing results to suit your changing requirements.
Consistent results for every part thanks to automatic wear compensation for abrasives
For consistent results, it is essential to always know where you stand. The EdgeBreaker® 6000 measures the remaining length of your tools (abrasives), in this case the rotary brushes, within the machine and automatically compensates for the wear off. Leaving you with consistent results from beginning till end of the tools life.
Simple operation and maintenance for the deburring machine
The graphical touchscreen HMI is very intuitive and easy to operate. It supports you in setting up the machine and provides tips on operation and maintenance. it can even be used while wearing safety gloves. For efficient processing without errors.
Tool storage for saving processing parameters
If you produce a particular sheet metal part from time to time, you can save the processing settings diretly in the machine and call upon the values when required. This allows you to quickly setup the deburring machine for repeat production runs. Thus, avoiding errors during setup.
