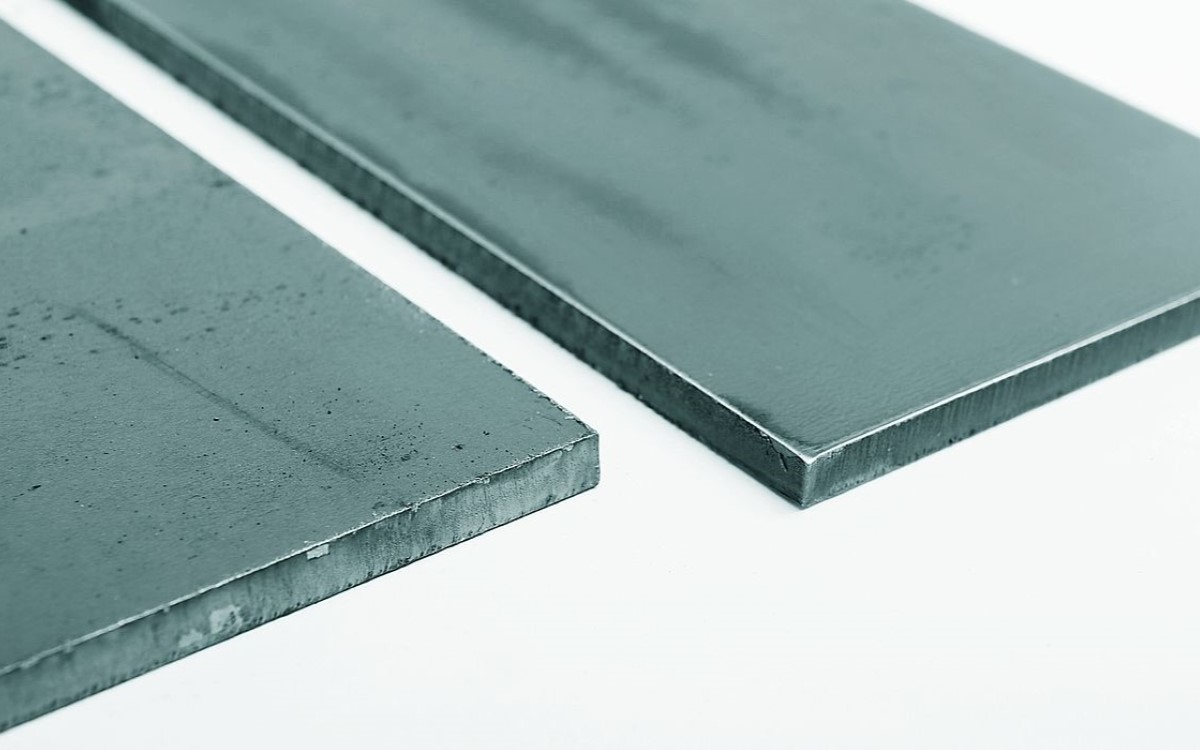

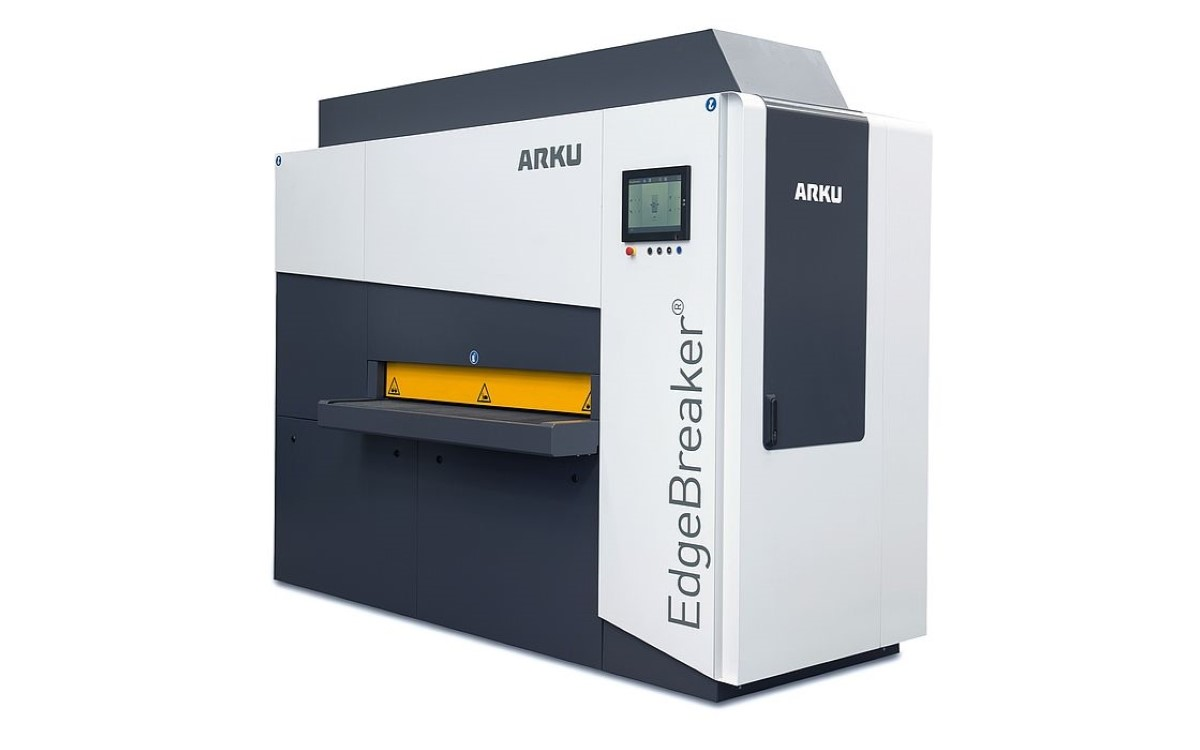

Punched parts or laser cut parts have sharp edges after being cut. The EdgeBreaker® 2000 is ideal for the necessary double-sided edge rounding: it can remove the sharpness and even remove light burrs all the edges in just a single pass. At the same time, the sheet metal parts are given an attractive surface – an added benefit. As the EdgeBreaker® 2000 rounds the edges of the sheet metal on both sides, you save an enormous amount of time during production. Thanks to its’ patented click system, you can swap the edge rounding blocks for deburring blocks if needed. Allowing you complete flexibility when it comes to choosing the correct tools (abrasives) within the machine.
The EdgeBreaker® 2000 processes sheet metal parts which are punched or laser cut from both sides simultaneously. This double-sided edge rounding saves more than 50% of the time. These time savings are possible since this deburring machine not only eliminates the need for a second pass, but also the need to remove, flip, and reinsert the parts.
If you produce a particular sheet metal part from time to time, you can save the processing settings directly in the machine and call upon the values when required. This allows you to quickly setup the deburring machine for repeat production runs. Thus, avoiding errors during setup.
For consistent results, it is essential to always know where you stand. The EdgeBreaker® 2000 measures the remaining length of your tools (abrasives) within the machine and automatically compensates for the wear off.
The graphical touchscreen interface is easy to operate. It supports you in setting up the machine and provides tips on operation and maintenance. For efficient work without errors!

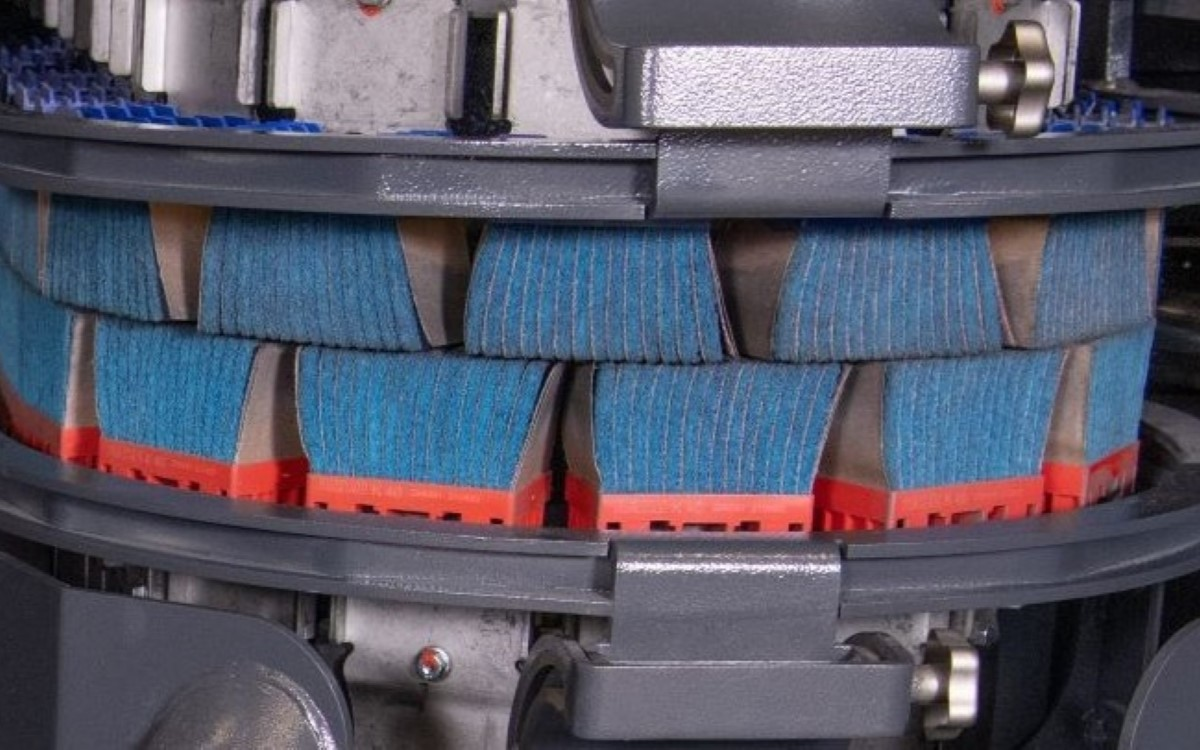

All processing units are equipped with a quick-change system for the abrasives to minimize your set-up times. You can simply remove the brushes and click them back in, without any tools needed! The machine can be outfitted with a variety of different tools. All for optimum edge processing to suit your changing requirements.
