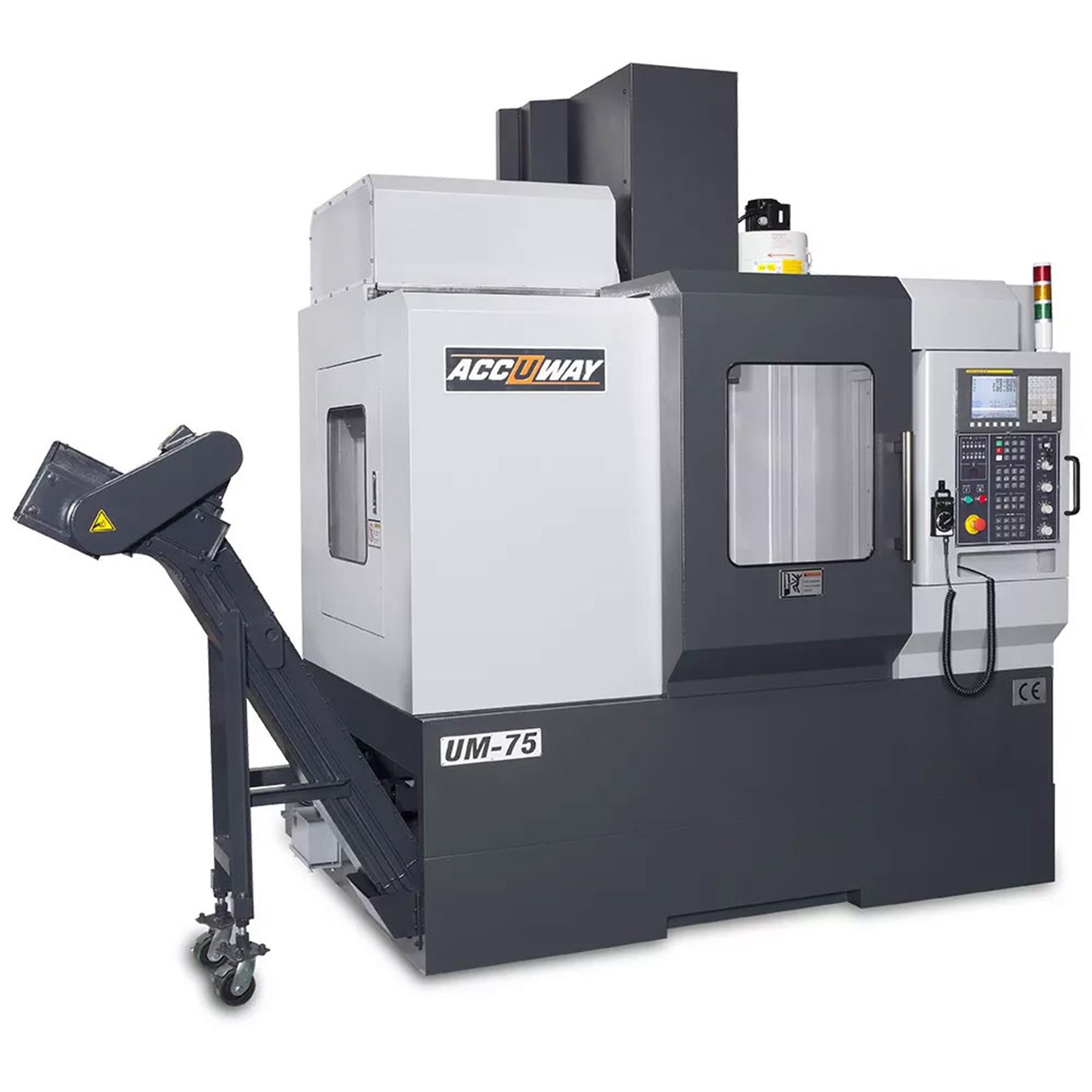

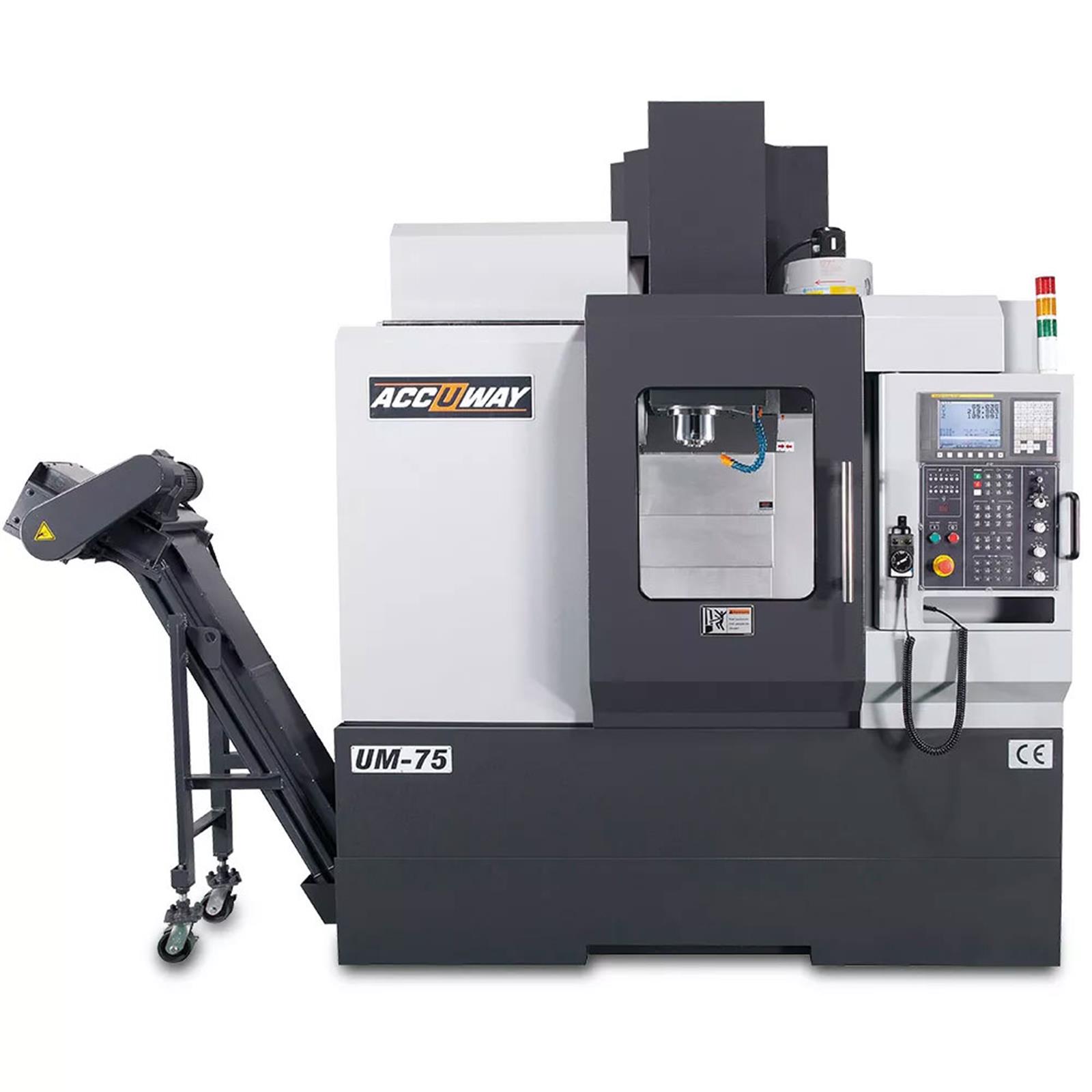

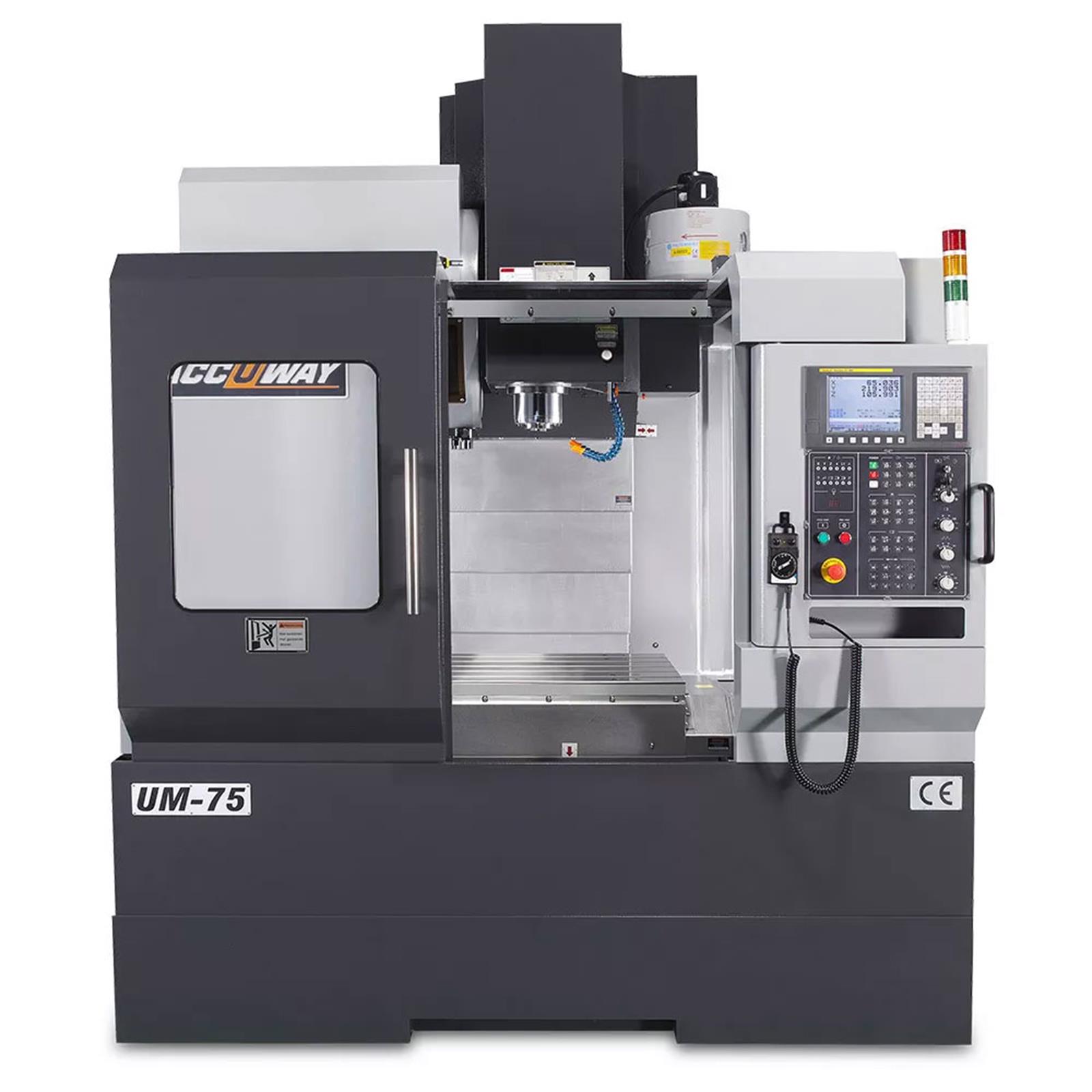

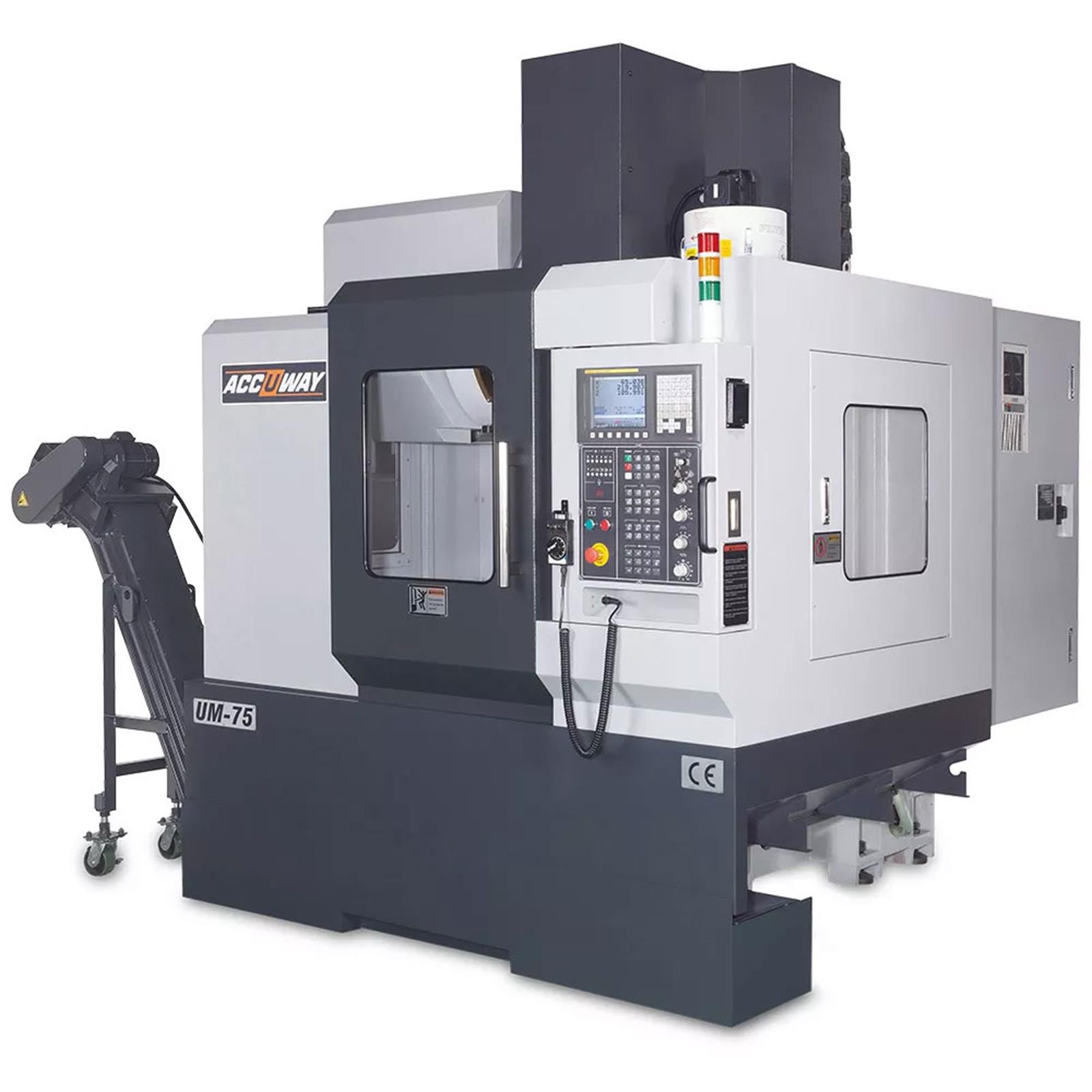

Accuway UM-75 Vertical Machining Center

Brand : Accuway

Stock Code (UM-75)

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Stock Amount : 0

Price : 0,00 EURO(Vat included)

Item is out of stock.

Machining Centers

Vertical Machining Centers

NO.	STANDARD ACCESSORIES
1	FANUC 0i-M controller + AICC II
2	RJ-45 interface
3	Rigid tapping
4	Heat exchanger for electric cabinet
5	10.4" Colored LCD monitor
6	Lubrication system
7	4-bar coolant system
8	Cutter air blast
9	Spray gun
10	Three-color warning light
11	Spindle oil cooling system

NO.	OPTIONAL ACCESSORIES
1	Data server 2G
2	Linear scale (Heidenhain)

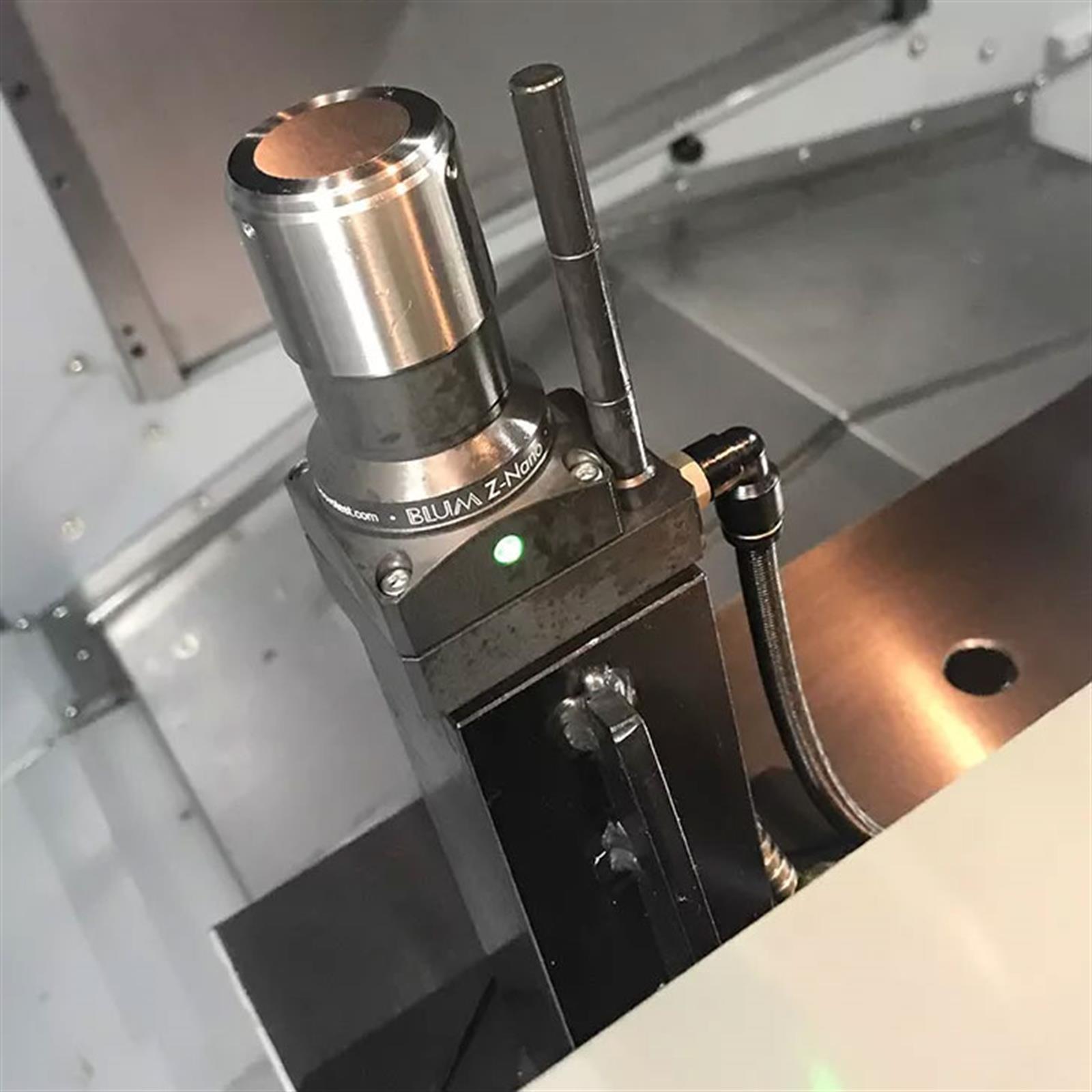

3	Contact tool setter
4	Workpiece touch probe
5	Roller type guide way
6	Air cooler for electric cabinet
7	Spindle speed upgrading
8	Upgrade to 15" Colored LCD monitor
9	20 bar coolant through spindle system
10	Oil-coolant skimmer
11	Oil mist collector
12	4th axis interface + FANUC motor & driver
13	4th axis rotary table
14	Auto door
15	Chain type chip conveyor + chip cart
16	Transformer
17	CE version

ITEM/MODEL		UM-75
Controller		FANUC 0i-M
SPINDLE
Spindle speed	rpm	10000 (12000)
Spindle nose taper		BT40
Bearing inner diameter	mm	70
Drive system		Belt (Direct)
TRAVELS
X-axis travel	mm	750
Y-axis travel	mm	520
Z-axis travel	mm	540
Spindle nose to table	mm	150~660
TABLE
Table dimension	mm	900 x 560
T-slot(No. of T-slot x width x pitch)	mm	5 x 18 x 100
Max. weight on table	kg	750
FEED RATES
X-axis Rapid Traverse Rate	m / min	36
Y-axis Rapid Traverse Rate	m / min	36
Z-axis Rapid Traverse Rate	m / min	30
Cutting feed rate	m / min	12
Ball screw diameter(X/Y/Z)	mm	40/40/40
Guideway bearing type		Ball
AUTOMATIC TOOL CHANGE SYSTEM
Tool magazine capacity	pcs	24
Max.tool weight	kg	7
Max.tool diameter	mm	75
Max.tool diameter without adjacent tools	mm	150
Method of tool exchange		Arm type
Max. tool length	mm	300
MOTOR
AI contour control		AICC I (AICC II)
Spindle motor power(Cont. / 30min)	kW	7.05.2011
X/Y/Z feed motor	kW	3.03.2004
Coolant pump motor(50Hz/60Hz)	kW	0.53+0.85/0.75+1.27
OTHERS
Air supply	kg/cm²	5.May
Machine dimension L x W x H	m	2.2 x 2.7 x 2.8
Net weight	kg	5500
