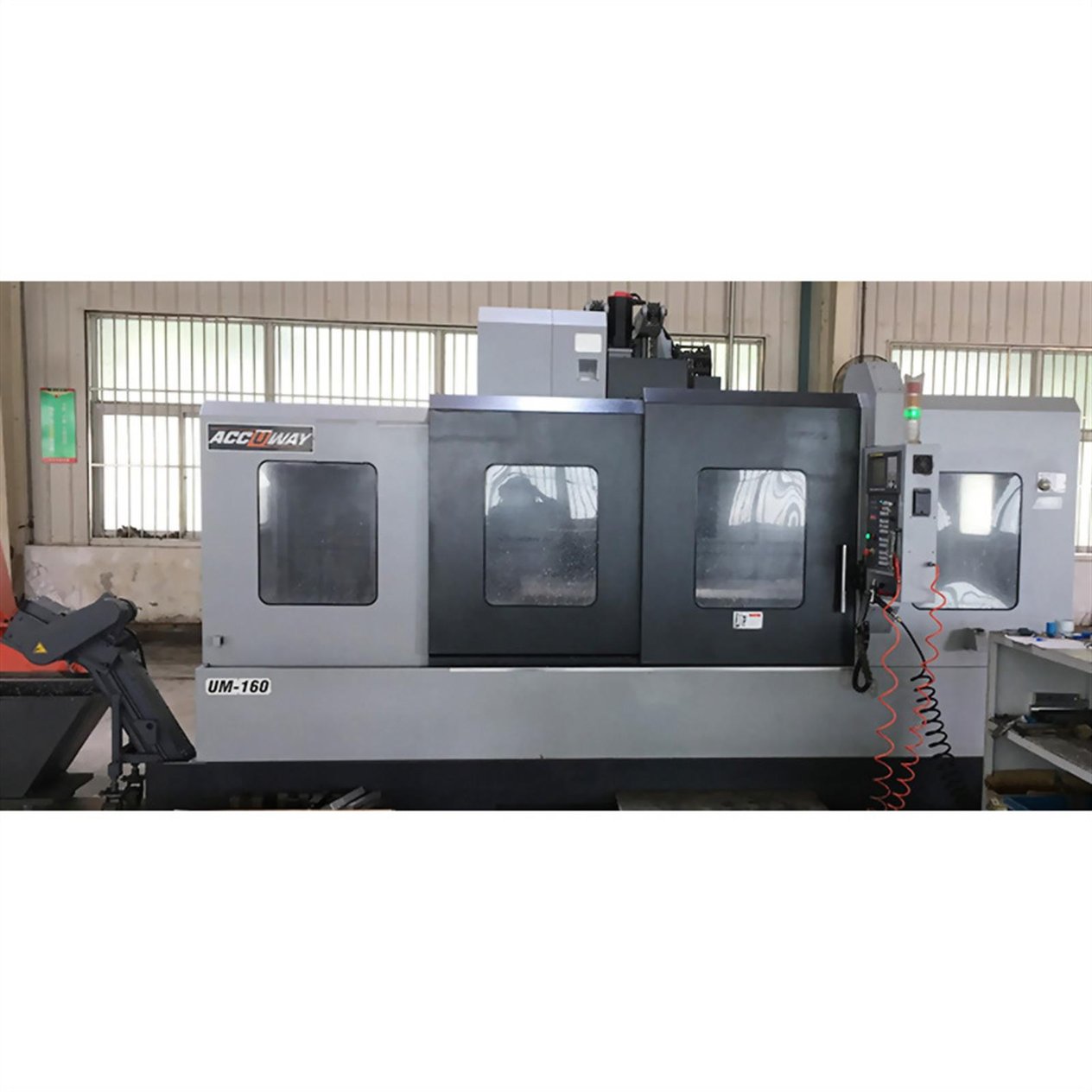

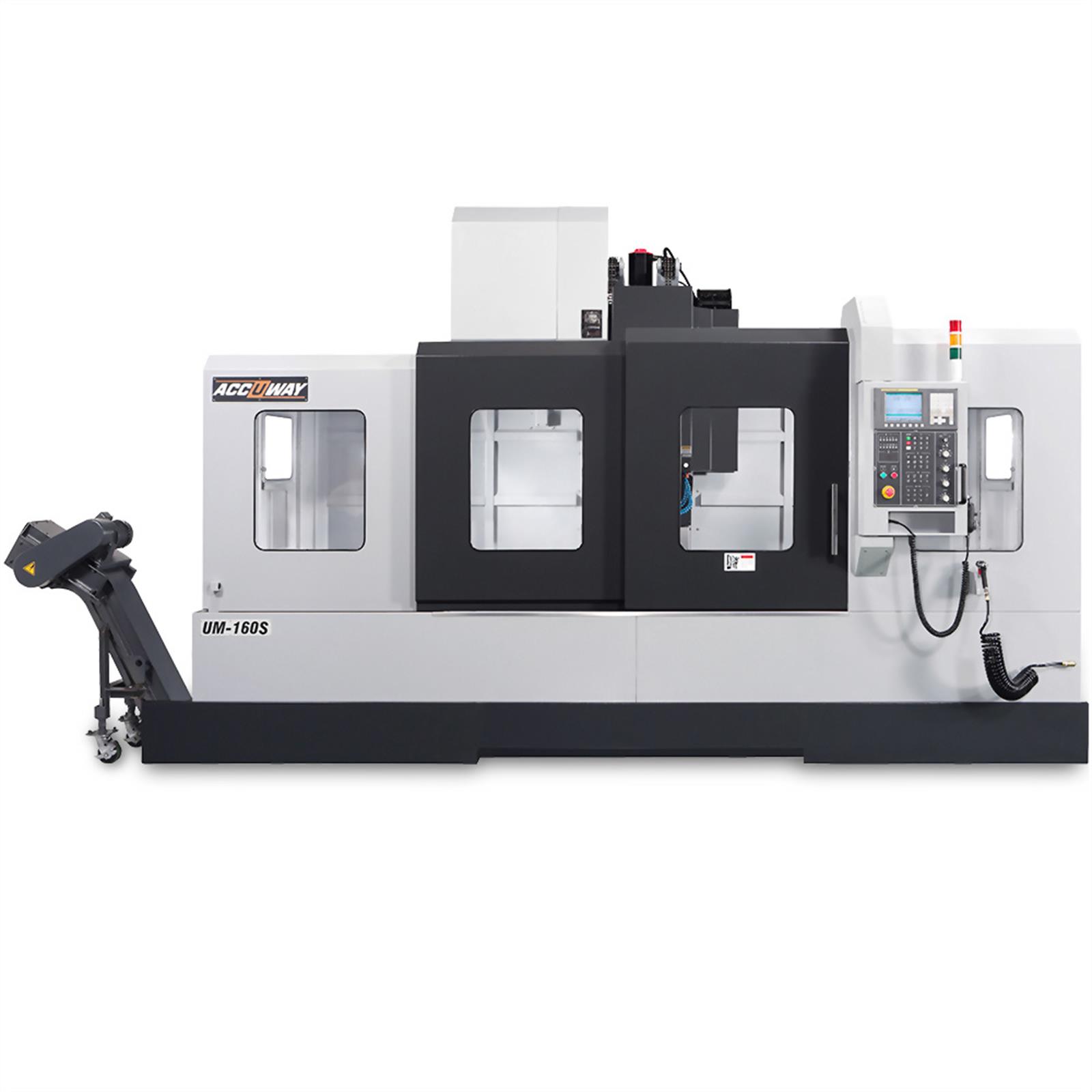

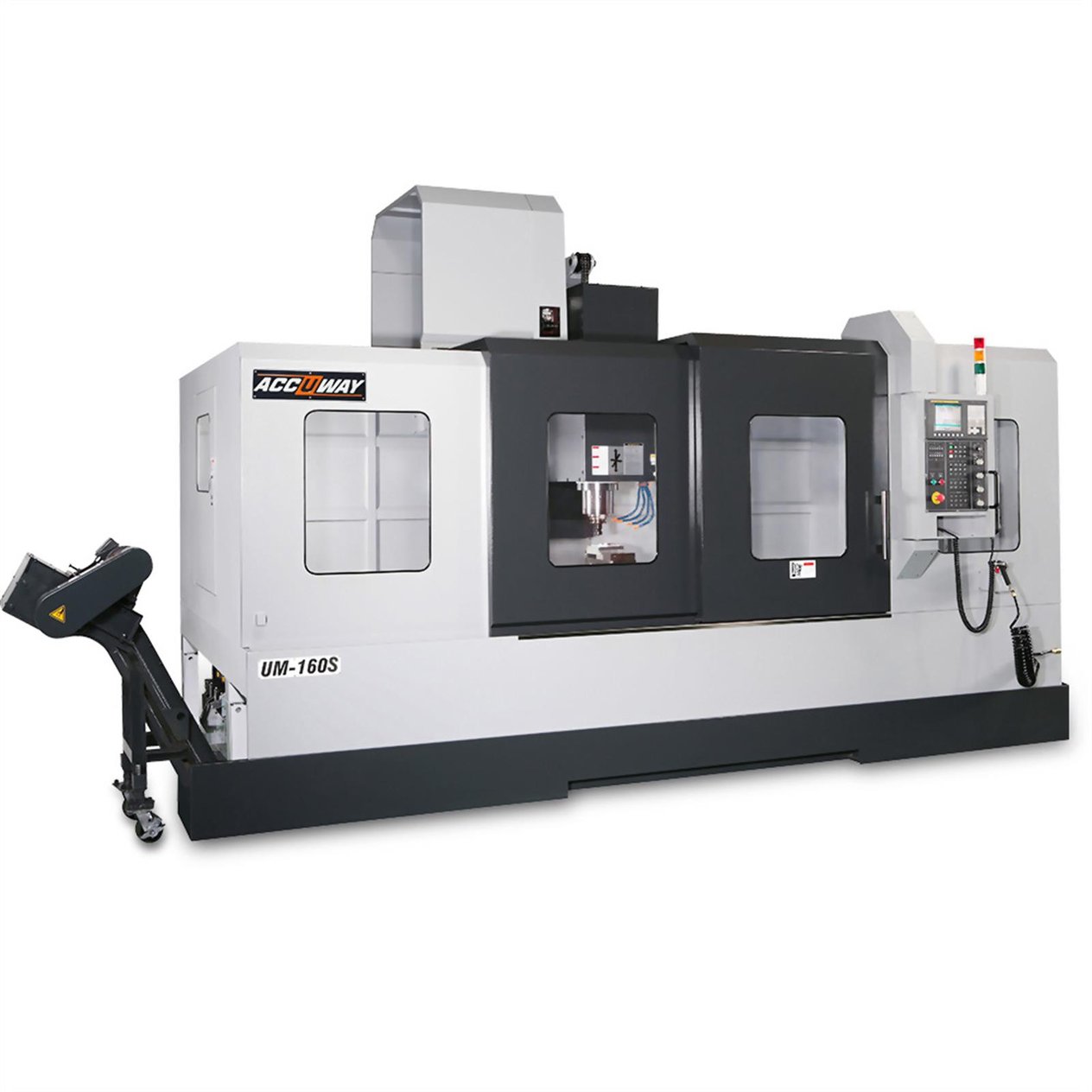

Accuway UM-160S Vertical Machining Center (UM-160S)

Brand : Accuway

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Machining Centers

Vertical Machining Centers

NO.	STANDARD ACCESSORIES
1	FANUC 0i-M controller + AICC II
2	RJ-45 interface
3	Rigid tapping
4	Heat exchanger for electric cabinet
5	10.4" Colored LCD monitor
6	Lubrication system
7	4-bar coolant system
8	Cutter air blast
9	Spray gun
10	Three-color warning light
11	Spindle oil cooling system

NO.	OPTIONAL ACCESSORIES
1	Data server 2G
2	Linear scale (Heidenhain)
3	Contact tool setter
4	Workpiece touch probe
5	Roller type guide way
6	Air cooler for electric cabinet
7	Spindle speed upgrading
8	Upgrade to 15" Colored LCD monitor
9	20 bar coolant through spindle system
10	Oil-coolant skimmer
11	Oil mist collector
12	4th axis interface + FANUC motor & driver
13	4th axis rotary table
14	Auto door
15	Chain type chip conveyor + chip cart
16	Transformer
17	CE version

Item/Model		UM-160S
Controller		FANUC 0i-M
SPINDLE
Spindle speed	rpm	10000(12000)
Spindle nose taper		BT40
Bearing inner diameter	mm	70
Drive system		Belt (Direct)
TRAVELS
X-axis travel	mm	1600
Y-axis travel	mm	850
Z-axis travel	mm	850
Spindle nose to table	mm	150~1000
TABLE
Table dimension	mm	1700 x 950
T-slot(No. of T-slot x width x pitch)	mm	9 x 18 x 100
Max. weight on table	kg	2000
FEED RATES
X-axis Rapid Traverse Rate	m / min	30
Y-axis Rapid Traverse Rate	m / min	30
Z-axis Rapid Traverse Rate	m / min	30
Cutting feed rate	m / min	12
Ball screw diameter (X/Y/Z)	mm	50/50/50
Guideway bearing type		Roller
AUTOMATIC TOOL CHANGE SYSTEM
Tool magazine capacity	pcs	24(30/32)
Max. tool weight	kg	7
Max. tool diameter	mm	75
Max. tool diameter without adjacent tools	mm	150
Method of tool exchange		Arm type
Max. tool length	mm	300
MOTOR
AI contour control		AICC I (AICC II)
Spindle motor power(Cont. / 30min)	kW	15/18.5
X/Y/Z feed motor	kW	4.04.2007
Coolant pump motor(50Hz/60Hz)	kW	0.53+0.85/0.75+1.27
OTHERS
Air supply	kg/cm²	5.May
Machine dimension L x W x H	m	4.4 x 3.2 x 3.2
Net weight	kg	14000
