Geka P MODEL PP Series of Portable Punching Machines ( Geka P MODEL PP Series of Portable Punching Machi)

Geka´s portable punching machines have been designed so that the user can move them. There can be various reasons for this mobility need such as optimizing the space or moving it from one location to another one with ease. This punching machines can punch flat bars and profiles and have a power of 55 tons.

• P Model: Comes with a T Slot table that is suitable with various sets of customized tools.

The second portable punching machine within the PP series. This machine is equipped with a T slot table that is suitable for punching with various customized tool sets.

Portable Punching Machines with a punching power of 55 Tons. Enough Power for punching or marking Steel Pieces.

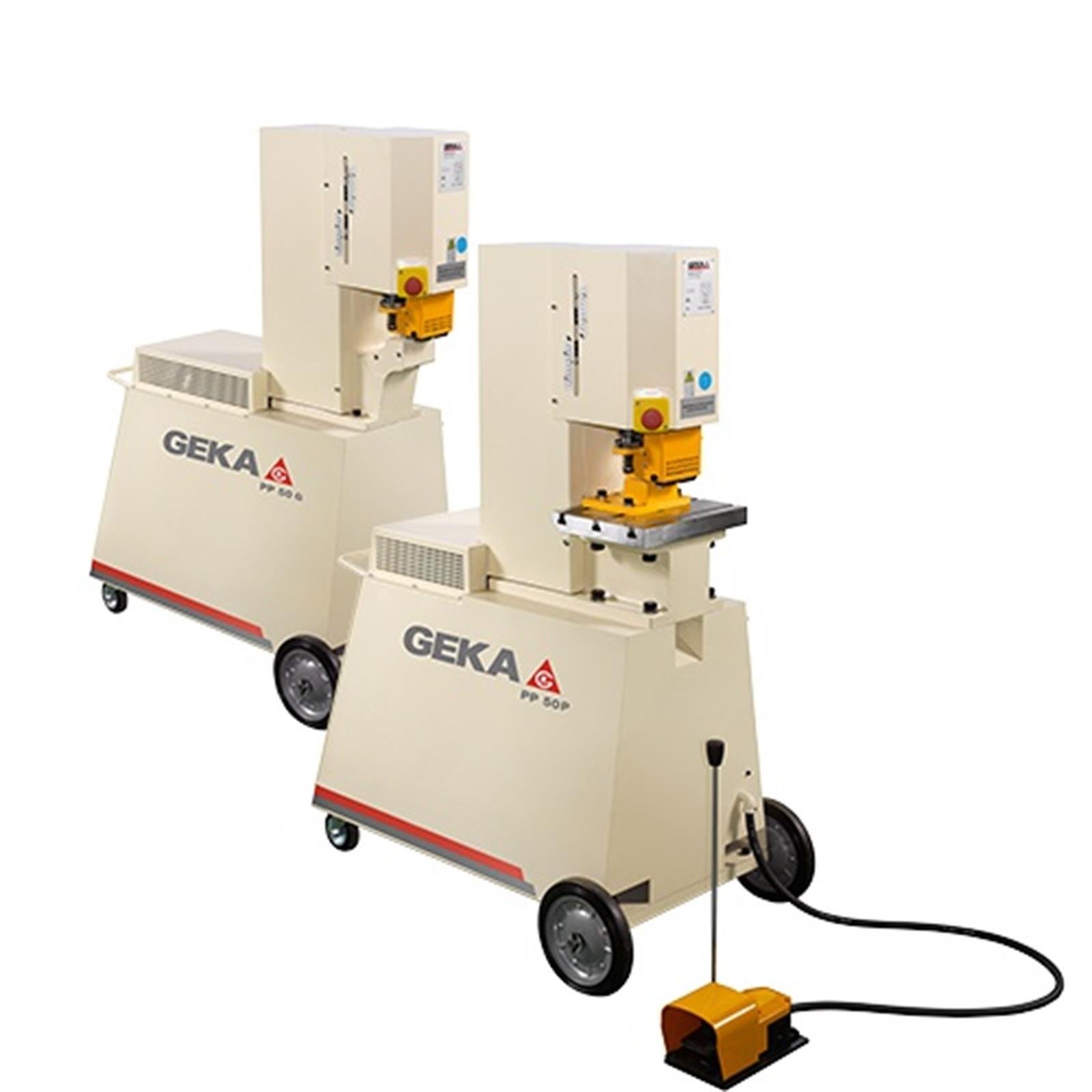

The PP series consists of two portable punching machines. They are portable because they stand over a set of 4 wheels that give these punching machines the ability to be moved with ease.

A pressure Marking station of 40 characters is available. It can do punches with a depth of up to 1 mm deep. If you want to know more about this optional equipment, please contact Geka.

FEATURES	P MODEL
Punching Power	55 Ton
Maximum Capacity	Ø 28 x 10 mm
Throat Depth	130 mm
Motor Power	3 KW
Strokes per minute (on 20mm. stroke)	23
Maximum stroke	30 mm

• Capacities based on a material resistance of 45 Kg/mm2.
• GEKA may change technical specifications, equipment and photographs of models, as well as any other information contained herein.
• Technical characteristics valid except for typographical errors or omissions.
