2-stroke rammers of the Plus series: Always the perfect mix

2 stroke rammers by Wacker Neuson have long been the standard in the construction industry. They are sturdy and rugged, developed for maximum productivity, performance and service life. The 2 stroke rammer offers excellent compaction performance and operating comfort that is impressive again every day. It is driven by the WM80 engine specially developed by Wacker Neuson which, thanks to its catalytic converter, falls well below all exhaust standard limits. The Plus series vibratory rammers are equipped with a separate oil lubrication system that automatically ensures the optimum mixing ratio of the fuel at all times.

Intelligent, electronic automatic low oil shutoff (2Plus vibratory rammer)

• If there is a low oil level, the engine can initially be started but shuts down again after a short time.
• If the low oil level occurs during operation, the engine shuts down automatically.

Individual setting of the carburetor

• Since the carburetor is not adjusted until the engine is installed in the vibratory rammer, it offers an optimum ratio of power, fuel consumption, and low emissions.

Just one lever for starting, idling and stopping

• The vibratory rammer can be operated very comfortably using just one lever. The fuel cock is integrated in the lever. The choke is automatically deactivated at full throttle.

4-stage air cleaner (cyclone, paper filter and 2 foam air cleaners)

• The quadruple air cleaner system offers very reliable filter efficiency with high capacity and thus continuously high engine output.
• The air cleaner housing is designed to keep dirt from falling into the air intake area when removing the filter. This protects the engine from dirt entering during maintenance.
• The air cleaner cover must be opened with a tool: This should prevent the cover from being opened on a dusty construction site or the filter from being completely removed by the operator to work faster. Requiring the use of a tool should ensure that the vibratory rammer is brought to the workshop for air cleaner service.

Comfort

Slim, compact design with optimum machine center of gravity

• The compact design, with its low machine center of gravity, offers tip-safe running and facilitates maneuvering, particularly in narrow trenches.
• The actual depth of compaction can deviate from the values shown here depending on soil condition and environmental influences. In any case, checking the compaction results with suitable measuring instruments is recommended.
• CALIFORNIA Proposition 65 WARNING: The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
• CALIFORNIA Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

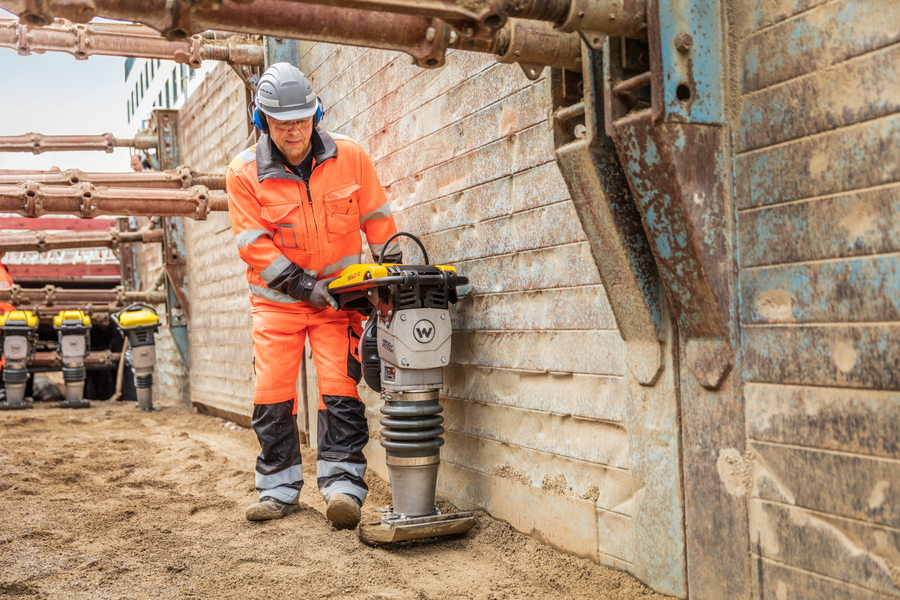

BS50-2plus 11in

2 stroke rammer with oil injection and 280 mm ramming shoe for soil compaction

Item Number 5100030596

BS50-2plus 6in (24mm)

2 stroke rammer with oil injection and 165 mm padfoot for soil compaction

Item Number 5100030597

BS60-2plus 11in

2 stroke rammer with oil injection and 280 mm padfoot for soil compaction

Item Number 5100030604

BS70-2PLUS 11IN

2 stroke rammer with oil injection and 280 mm padfoot for soil compaction

Item Number 5100030609
