The + product
Slim format: for use in confined spaces.
Proven product: all the technical benefits of the M21+ gun format.
Modular: to work with inserts or mini crimping jaws.

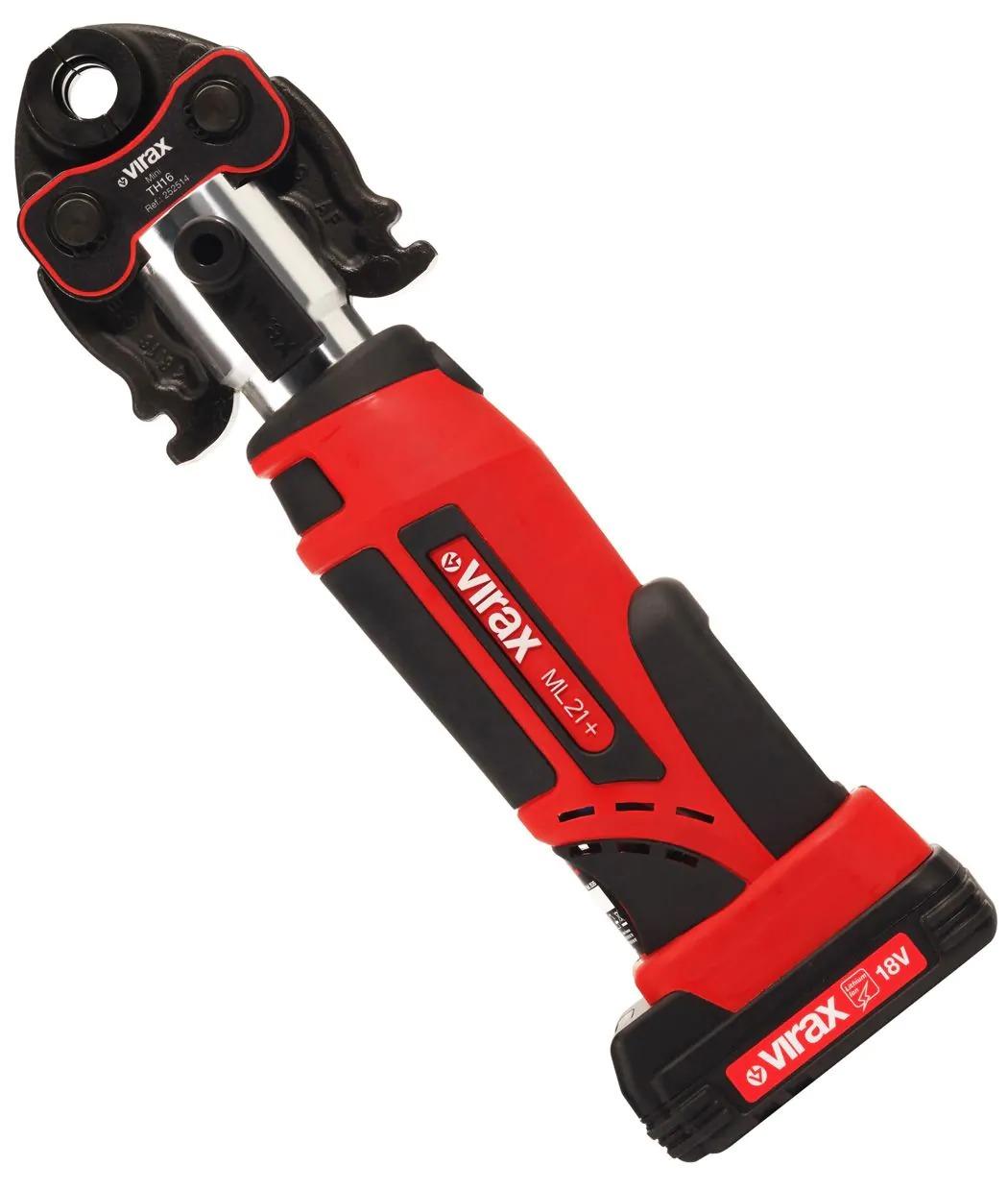

Electro-mechanical 20 kN press fitting machine with automatic piston return.
Slim format for easier access in confined spaces: only 12 cm wide.
Minimized weight (only 3.4 kg with mini crimping jaws). Centre of gravity located on the gripping zone for less user fatigue. Can be placed on its foot between two crimping operations, and improves user comfort. Control by easily accessible push button.
All the technical benefits of the Viper® M21+ press fitting machine (ref. 253502), visible on the previous page.
Dimensions (battery included): 314 x 119 x 79 mm.
View all systems compatible with VIRAX inserts and clamps at the end of the catalogue.
Viper® ML21+ 18V – Without mother jaw
390 x 390 x 140
20
5,472
Viper® ML21+ 18V – Mother jaw
6,575
Viper® ML21+ 18V - Mother jaw - Inserts RFP12-16-20
7,070
Viper® ML21+ 18V - Mother jaw - Inserts TH16-20-26
Viper® ML21+ 18 V - Mother jaw - Inserts U16-20-25
Viper® ML21+ 18 V - Mother jaw - Inserts V12-14-16-18-22
7,270
Viper® ML21+ 18 V - Mother jaw - Inserts V15-18-22
Viper® ML21+ 230V wire adapter – Without mother jaw
3,550
Copper: Ø 12 – 28 mm. Stainless steel: Ø 12 – 28 mm. PER, PEX: Ø 12 – 32 mm (inserts) / 40 mm (mini crimping jaws TH-U). Multilayer: Ø 12 – 32 mm (inserts) / 40 mm (mini crimping jaws TH-U). Electro-zinc steel (or carbon steel): Ø 12 – 28 mm.
- 2 Li-Ion 18 V - 1.5 Ah batteries, 1 fast charger. - 1 mother jaw (except ref. 253520). - In box.
