The + product
Precise pressure die adjustment: optimal pipe clamping and securing during bending for top notch bending.
Compatible and high-performance CAS battery: Lithium-Ion 18V technology, compatible with over 300 machines by CAS partners (Cordless Alliance System).
Ideal for complex bending within a short distance.

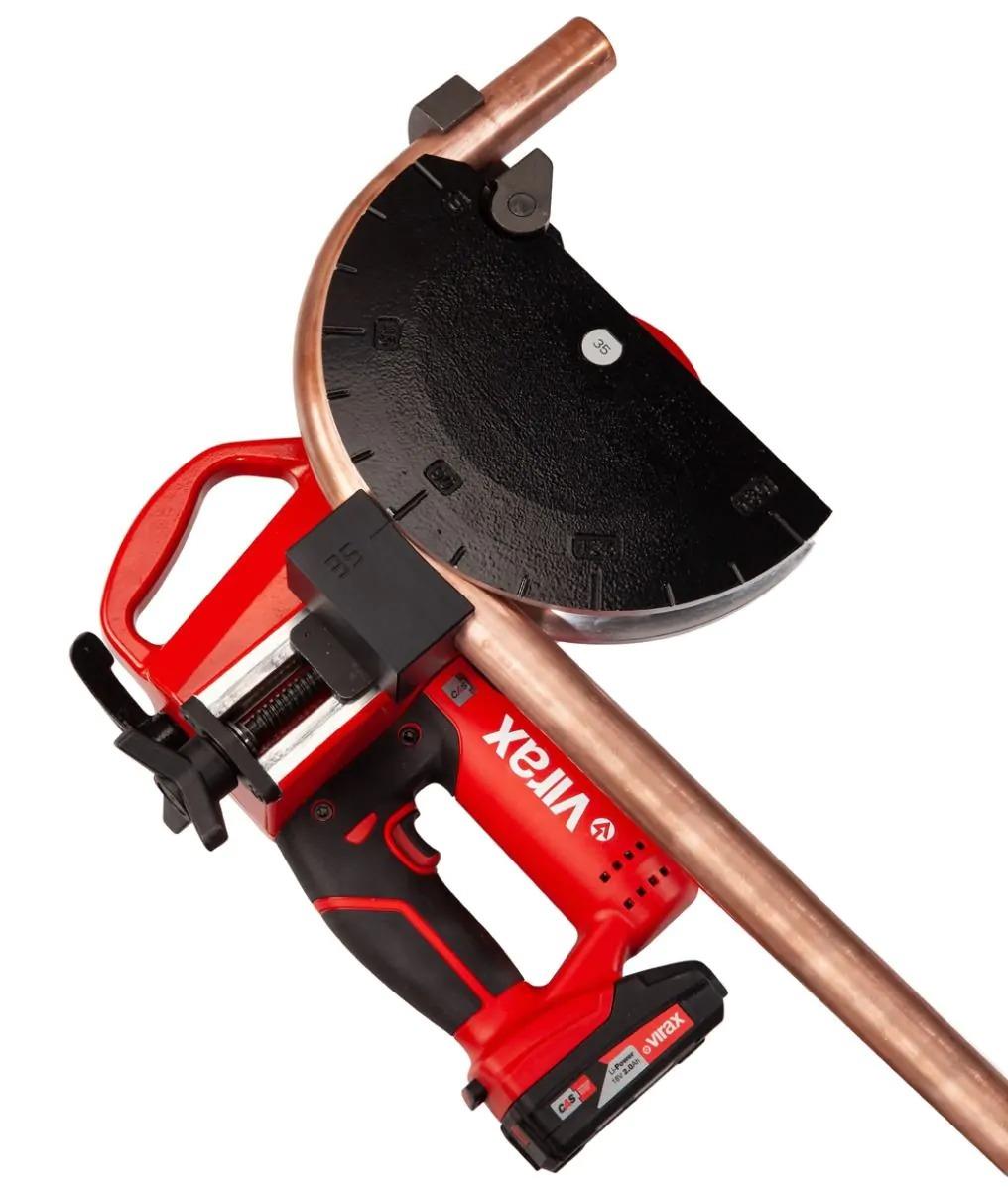

Bender for small and intermediate runs at the factory or the worksite, up to Ø35 mm (copper) and Ø40 mm (multi-layer). Save time and energy thanks to the instantaneous manual bend die return after bending, without need to use either the motor or the battery. Long life, up to 130 bending operations thanks to 2 x 18V - 2 Ah batteries (copper pipe Ø28 mm / 90°). Easy repositioning in the initial angle thanks to drive shaft indexing every 90°. Easy fitting / removal of the pipe thanks to its articulated hook. Clear space around the bend die to allow for multiple bending operations in any plane, even for small diameters. Suitable for working on the flat or vertically when bending long pipes, with two housings for a tripod. Easy gearbox engagement thanks to a self-adjusting clutch. Stop bending at a precise location thanks to a speed controller. Release the bent pipe with no risk of damage simply by pulling the pressure die away. Change the bend and pressure dies quickly, no tools required. Light and solid aluminium casing, gears with wearproof coating, PP handle reinforced with fibre glass. * 251849 : former Ø28mm for stainless steel pipes Ø 28 x 1.2 mm - Bending radius 112mm.
-
1 Virabox
15,210
12-14-16-18-22mm
17,700
14-16-18-22-28mm
18,970
16-18-22-28-35mm
2 Virabox
23,840
16-20-26-32-40mm
27,520
16-20-26-32mm
21,460
15-18-22-28mm (Stainless steel) *
20,920
12-15-18-22mm
17,285
15-18-22-28mm
18,607
Bending angle: up to 180°. Annealed and hardened copper pipe, EN 1057 thickness 1 to 1.5 mm, locksmith pipe: Ø 10 - 35 mm Steel pipe EN 10255 Light and Intermediate Series: Ø 3/8 - 3/4" Stainless steel pipe, max. thickness 1.2 mm, electro galvanised steel: Ø 10 - 28 mm Multilayer pipes: Ø 14 - Ø 40 mm
When working at eye-height, use the tripod (ref. 251809). The bender can be placed in a horizontal or vertical position depending on the dimensions and orientation of the pipe to be bent. For optimal recurrent bending operations on large diameter pipes, a 4.0 Ah battery (ref. 253541) is recommended. Use a bending lubricant spray to reduce forces and make it easier to bend metal pipes (ref. 251804).
- 2 Lithium-Ion 18 V - 2.0 Ah batteries, 1 fast charger. - In a Virabox case, 1 or 2 cases depending on the contents.
* 251849 : former Ø28mm for stainless steel pipes Ø 28 x 1.2 mm - Bending radius 112mm.
2518 : Accessories for Eurostem® II / III
2518 : Concentric Radius Former for Eurostem® II / III
2518 : Former and Counter-Former for Eurostem® II / III
