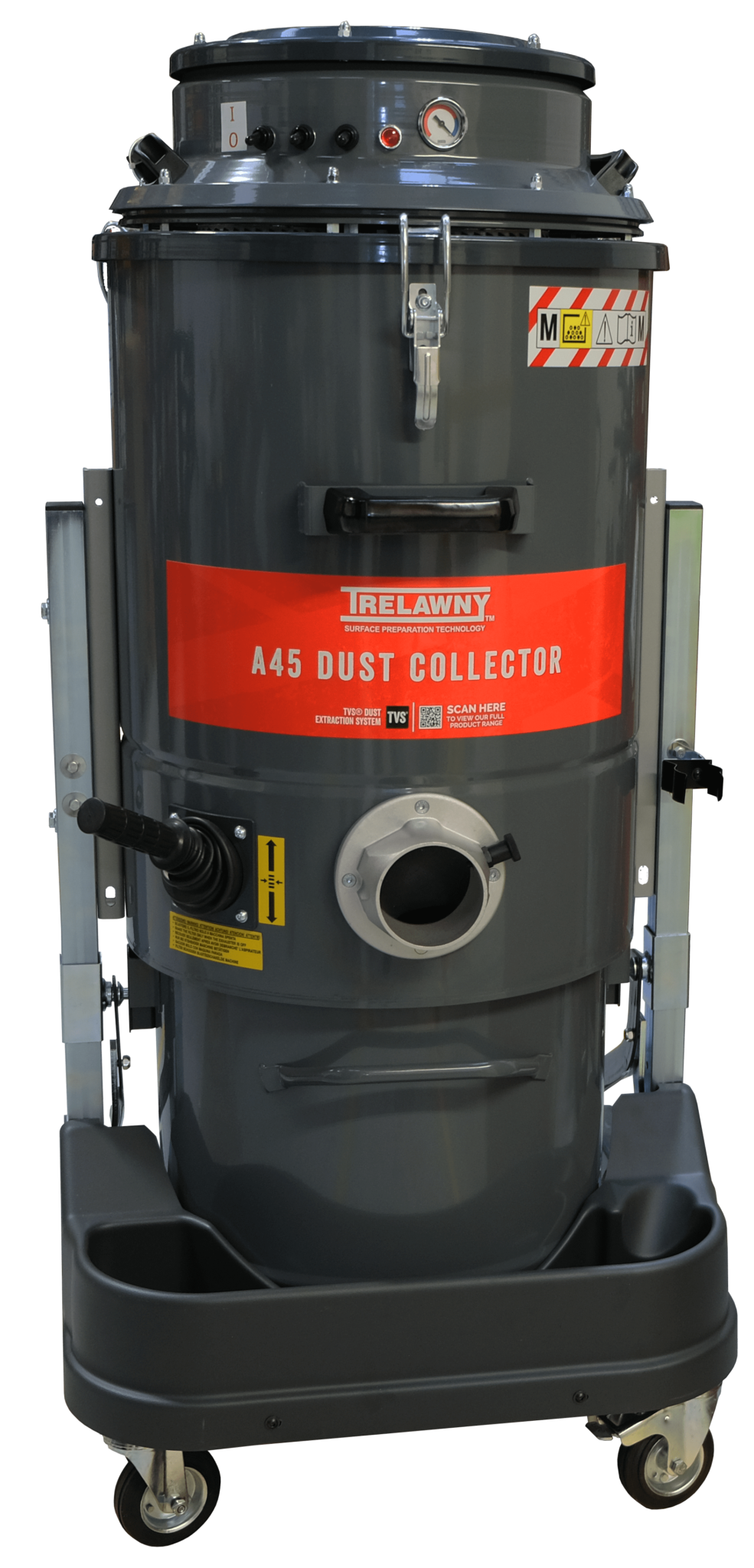

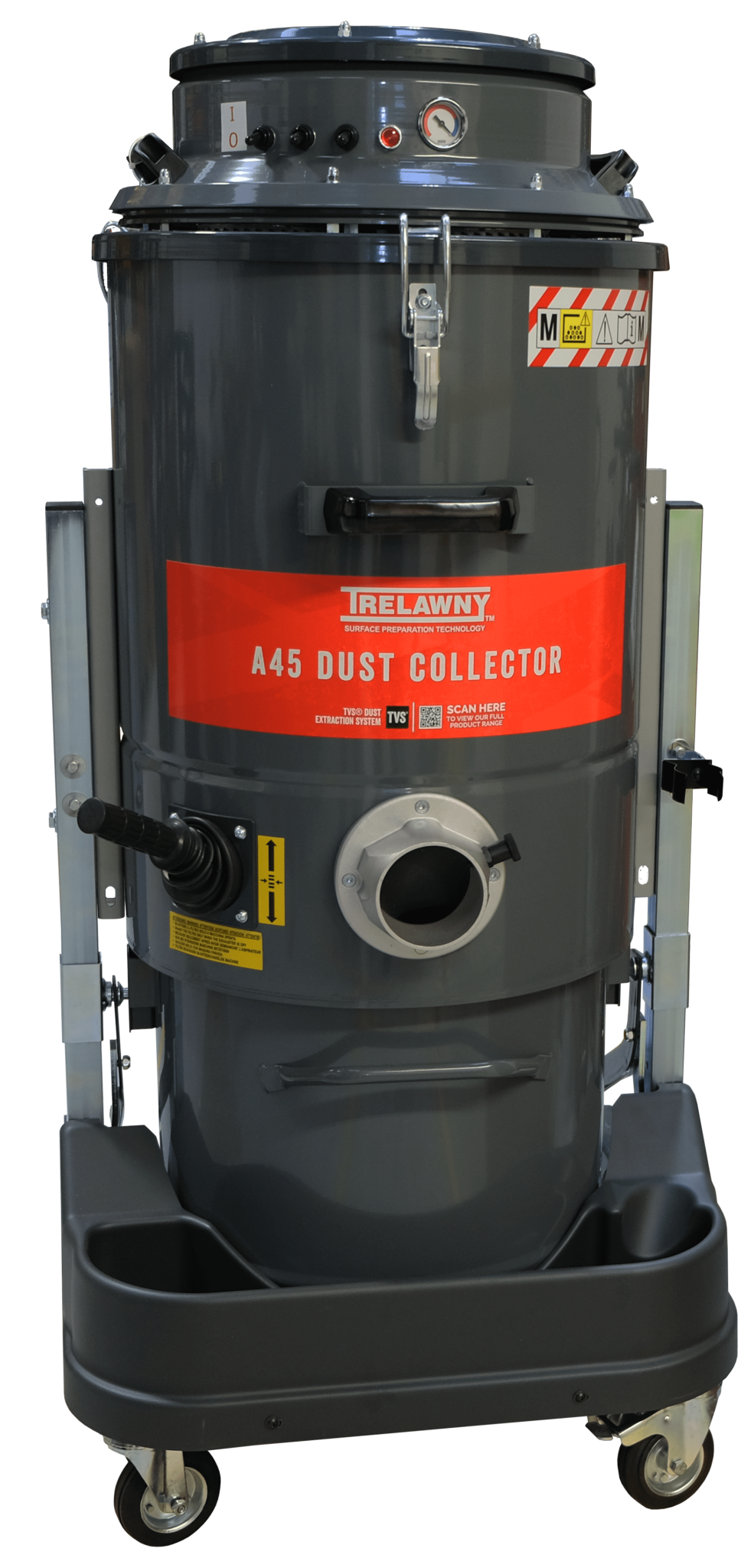

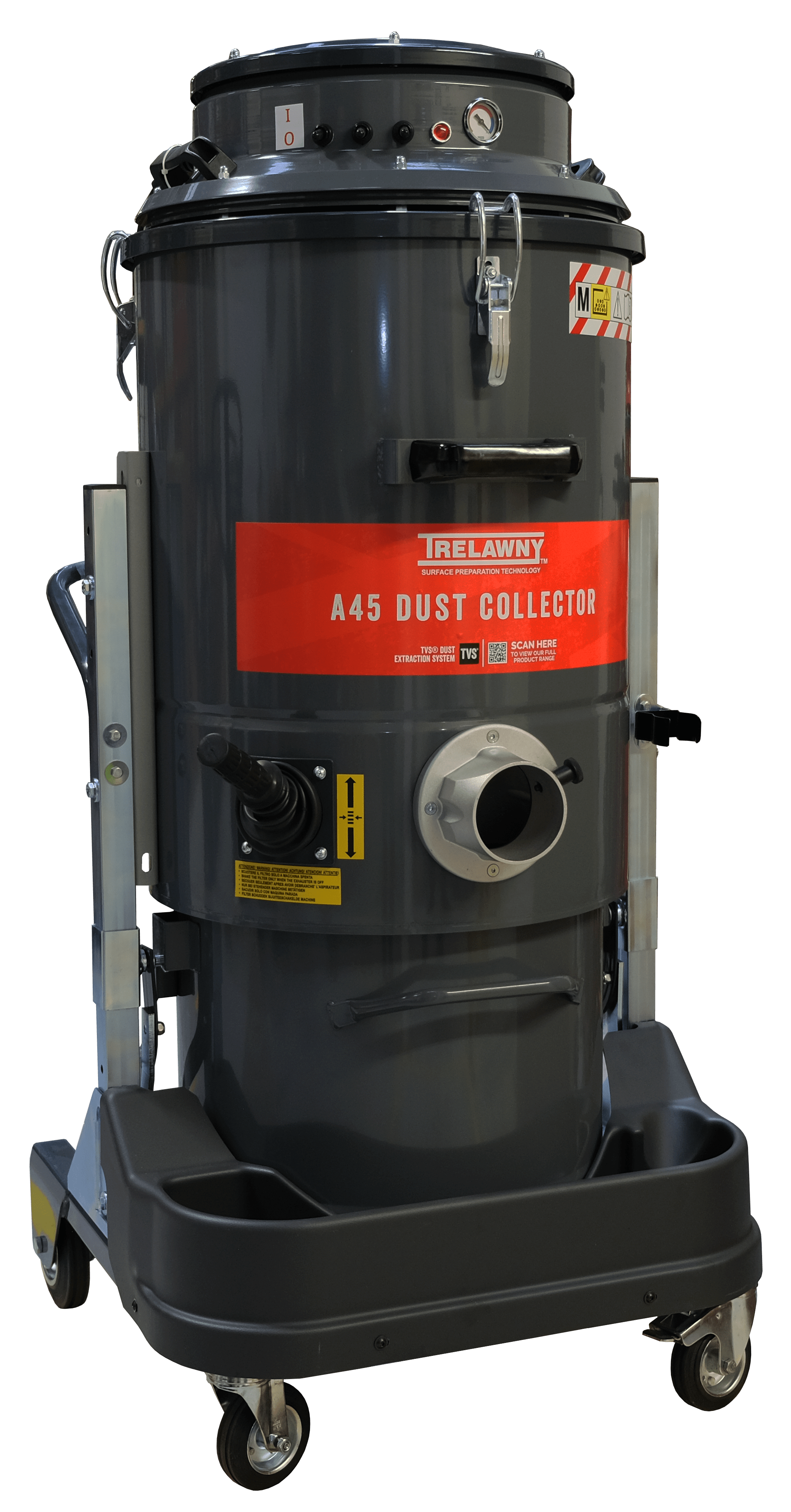

Trelawny A45 BIN Electric Industrial Dust Collector

The A45 is a real overperformer in its segment. For a single-phase dust collector, the A45 can compete with much larger machines. Fitted with 3 motors, producing a total of 3.5Kw, it is the ideal machine for a wide range of Trelawny's surface preparation equipment along with many other general cleaning applications. Complete with a detachable, portable bin for containment, the A45 offers fantastic performance and capacity in a compact and portable unit, due to its multi-purpose design, the A45 is also suitable for collecting liquid wich adds further to its versatile repertoire.

• Perfect partner for small and medium sized surface preparation equipment such as TFP200 & TFP260 scarifiers, TCG250, TCG500 and TPG540 grinders
• Also ideal for use with many other types of construction equipment with options for dust extraction
• General cleaning of fine dust in many other industries

• 60 litre capacity for collection of dust and liquids
• Filter cleaning mechanism with vacuum gauge to ensure optimum performance
• Three single phase motors for performance and usability
• Class M primary filter with optional HEPA filter
• Detachable bin with option to use disposable bags
• Complete with 50mm tool kit

Part No.	303.4110
Single phase motors (N)	3
Output Power (Hp- kW)	4 – 3
Output Flow (M3 per h/ Lt per sec)	540 – 150
Vacuum Rate (mm.H20)	2500
Type of filter	Class M
Filter Surface (cm2)	20.000
Isolation (CL)	1
Filter efficiency (CAT B/A per micron)	G/L (3micron)
Airload on filter (M3/M2/h)	270
Capacity	60
Suction Inlet	80
Noise level (Dd(A))	76
Dimensions (mm)	580 x 600
Height (mm)	1500
Weight (kg)	65

Part No.	303.4112
Single phase motors (N)	3
Output Power (Hp- kW)	4 – 3
Output Flow (M3 per h/ Lt per sec)	540 – 150
Vacuum Rate (mm.H20)	2500
Type of filter	HEPA
Filter Surface (cm2)	20.000
Isolation (CL)	1
Filter efficiency (CAT B/A per micron)	G/L (3micron)
Airload on filter (M3/M2/h)	270
Capacity	60
Suction Inlet	80
Noise level (Dd(A))	76
Dimensions (mm)	580 x 600
Height (mm)	1500
Weight (kg)	65

Part No.	303.4220
Single phase motors (N)	3
Output Power (Hp – kW)	4.6 – 3.5
Output Flow (M3 per h/Lt per sec)	540 – 150
Vacuum Rate (mm.H2O)	2500
Type of filter	Material
Filter Surface (cm2)	20.000
Isolation (CL)	1
Filter Efficiency (CAT B/A per micron)	G/L (3 micron)
Airload on filter (M3/M2/h)	270
Capacity (litres)	60
Suction Inlet	80
Noise Level (Db (A))	75
Dimensions (mm)	580 x 600
Height (mm)	1500
Weight (kg)	65

Part No.	303.4222
Single phase motors (N)	3
Output Power (Hp – kW)	4.6 – 3.5
Output Flow (M3 per h/Lt per sec)	540 – 150
Vacuum Rate (mm.H2O)	2500
Type of filter	HEPA
Filter Surface (cm2)	20.000
Isolation (CL)	1
Filter Efficiency (CAT B/A per micron)	G/L (3 micron)
Airload on filter (M3/M2/h)	270
Capacity (litres)	60
Suction Inlet	80
Noise Level (Db (A))	75
Dimensions (mm)	580 x 600
Height (mm)	1500
Weight (kg)	65

Image	Part Number	Description
	303.5725	Complete Hose + Cuffs   Included as standard
	303.4500	38mm Hose Kit   (10 meters)
	303.5473	PVC Hose per Metre   Max. 20 mtr
	303.5778	Hose Cuff (50 mm)
	303.3488	Y-Piece   50mm x 50mm x 50mm
	303.5484	80 to 50 mm Steel Hose Connector   Included as standard
	303.5740     303.5745	Floor brush for Wet use Only     Floor brush for Dry use Only Included in the accessory kit
	303.5735	Brush on Wheels + Floor Attachment:   80-60mm Steel Hose Connector
	303.5486	Double Bend Floor Wand use for use with Floor Brush Included in the accessory kit
	303.5730	Flat Nozzle
	303.5483	Hand Brush – Dry surfaces
	303.5481	Optional Cyclone for Additional   Filter Protection
	303.5765	ENDLESSBAG Bags
	303.4355	Large Pre Separator
