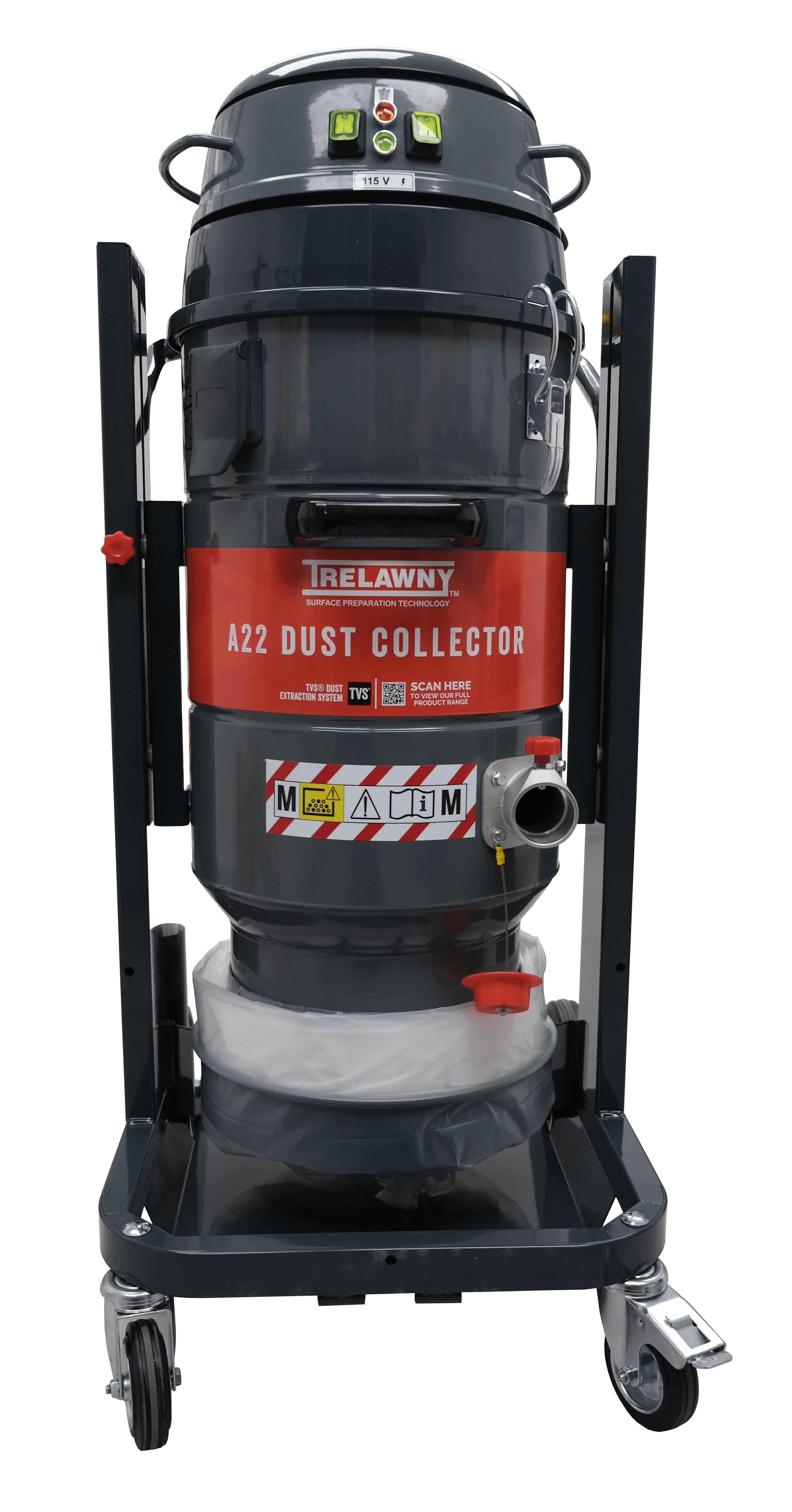

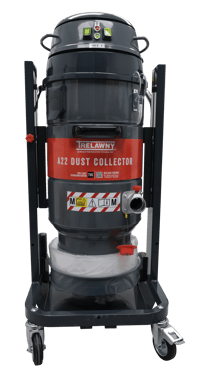

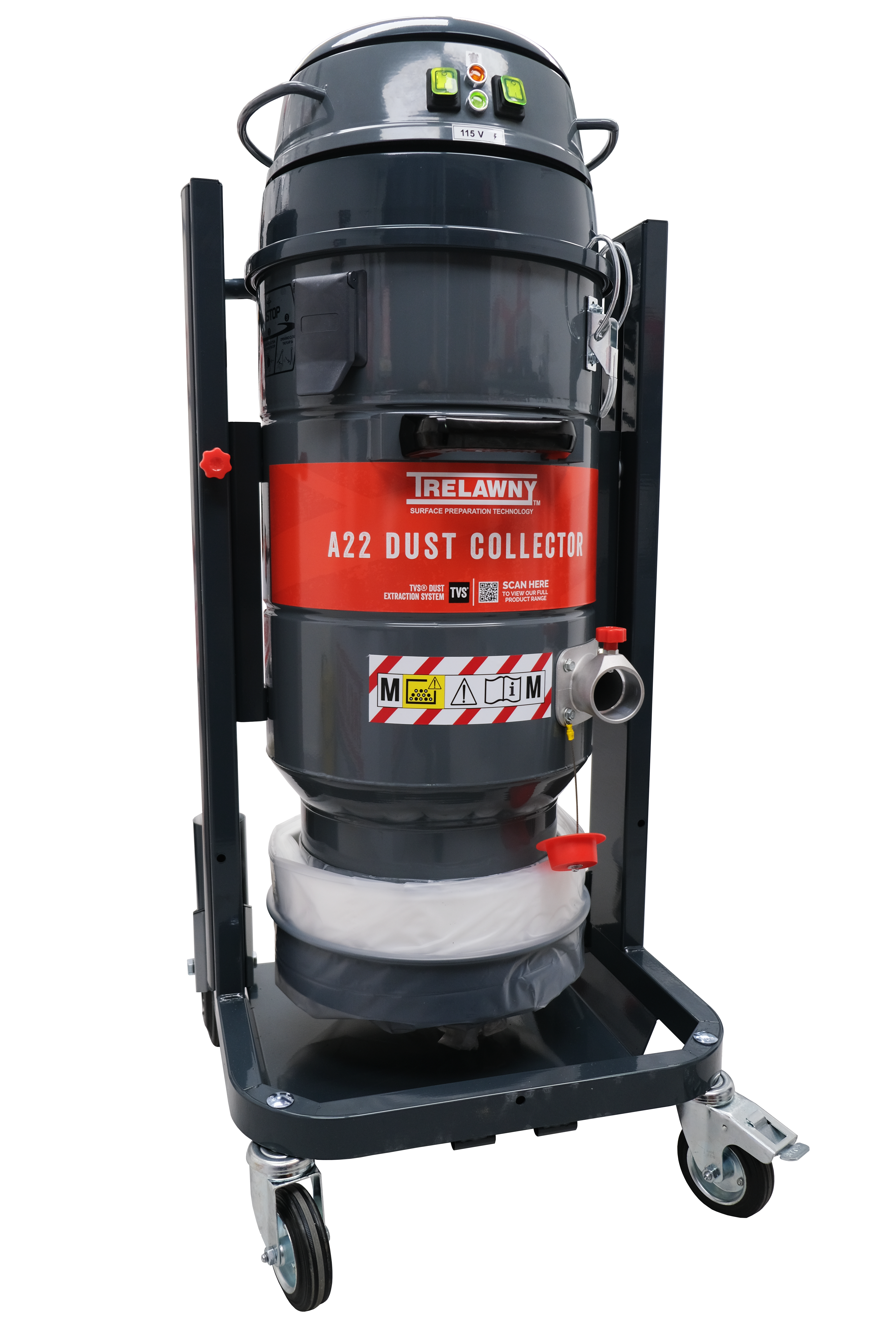

Trelawny A22 Endlessbag Electric Industrial Dust Collector

Trelawny A22 Endlessbag Electric Industrial Dust Collector (A22 ENDLESSBAG)

Brand : Trelawny

Stock Amount : 0

Delivery Time Ready In Stock

Shipment Place Turkiye

Payment Terms % 100 T/T On Order Confirmation

Made In United Kingdom

Min. Order Qty. 1 Pcs.

Warranty1 year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

The A22 single phase dust collector is the perfect partner for our smaller range of single phase grinders and scarifiers. Available with the ENDLESSBAG system for dust collection into disposable plastic bags or a portable bin in the A22 is the ultimate compact unit for surface preparation machines and general cleaning applications.

A perfect partner for smaller surface preparation equipment such as TFP200 scarifier, TCG hand grinders and TCG250 single head grinder
Also ideal for use with many other smaller types of construction equipment with options for dust extraction
General cleaning of fine dust in many other industries

100% steel construction for long service life
Two motors
Class M primary filter with optional HEPA filter
Complete with 40mm tool kit
Filter shaker mechanism for ensuring optimum performance and long service
Low noise level
ENDLESSBAG or bin type options available

Part Number	303.4103
Voltage	110v
Vacuum Rate (mm.H2O)	2500
Output Flow (M3 per h/Lt per sec) ((Max Air Flow in manual))	360 – 100
Noise level (Db(A))	75
Filtering surface (Primary) (cm2) (Filter surface area in brochure)	30,000
Filtering surface (HEPA) (cm2)	190.00
Capacity (ltrs)	20
Vacuum inlet (Ø) (Suction Inlet in brochure)	50
Dimensions	53 x 56 x 130
Weight	35
Output Power (Hp – kW)	3.1 – 2.3
Filter Type	Class M
Type of Filter (material)	Cartridge
Filter Efficiency (CAT B/A per micron)
Airload on Filter (M3/M2/h)	120
Single phase motors (N)	2

Part Number	303.4107
Voltage	230
Vacuum Rate (mm.H2O)	2500
Output Flow (M3 per h/Lt per sec) ((Max Air Flow in manual))
Noise level (Db(A))	75
Filtering surface (Primary) (cm2) (Filter surface area in brochure)	30,000
Filtering surface (HEPA) (cm2)	190.00
Capacity (ltrs)	20
Vacuum inlet (Ø) (Suction Inlet in brochure)	50
Dimensions	53 x 56 x 130
Weight	35
Output Power (Hp – kW)	3.1 – 2.3
Filter Type	Class M
Type of Filter (material)	Cartridge
Filter Efficiency (CAT B/A per micron)
Airload on Filter (M3/M2/h)	120
Single phase motors (N)	2

Part Number	303.4104
Voltage	110
Vacuum Rate (mm.H2O)	2500
Output Flow (M3 per h/Lt per sec) ((Max Air Flow in manual))	360 – 100
Noise level (Db(A))	75
Filtering surface (Primary) (cm2) (Filter surface area in brochure)	4.9m²
Filtering surface (HEPA) (cm2)
Capacity (ltrs)
Vacuum inlet (Ø) (Suction Inlet in brochure)	50
Dimensions	53 x 56 x 130
Height
Weight	35
Output Power (Hp – kW)	3.1 – 2.3
Filter Type	HEPA
Type of Filter (material)
Filter Efficiency (CAT B/A per micron)	99.995%
Airload on Filter (M3/M2/h)
Single phase motors (N)

Part Number	303.4108
Voltage	230
Vacuum Rate (mm.H2O)	2500
Output Flow (M3 per h/Lt per sec) ((Max Air Flow in manual))	360 – 100
Noise level (Db(A))	75
Filtering surface (Primary) (cm2) (Filter surface area in brochure)	4.9m²
Filtering surface (HEPA) (cm2)
Capacity (ltrs)
Vacuum inlet (Ø) (Suction Inlet in brochure)	50
Dimensions	53 x 56 x 130
Height
Weight	35
Output Power (Hp – kW)	3.1 – 2.3
Filter Type	HEPA
Type of Filter (material)
Filter Efficiency (CAT B/A per micron)	99.995%
Airload on Filter (M3/M2/h)
Single phase motors (N)

Image	Part Number	Description
	303.5750	D.40 Chromed Bend Included in the accessory kit
	303.5630	D.38 Black Flexible Hose (5mt) + 50/40 Flex Connection (Left Thread) + D.40 PVC Connection Included as standard
	303.5482	40mm threaded hose connection to 50mm machine connection 2 Included as standard
	303.5477	40mm threaded hose connection to 40mm machine connection 1 Included as standard
	303.5755	D.40mm 400 Dust Brush Included in the accessory kit
	303.5485	D.40 PVC Brush Included in the accessory kit
	303.5760	D.40 Rubber Cone Section with Connection Included in the accessory kit
	303.5765	ENDLESSBAG Bags Pack of 4 x 20m tubes – included as standard with 303.4103 & 303.4107

Image	Part Number	Description
	303.5750	D.40 Chromed Bend Included in the accessory kit
	303.5630	D.38 Black Flexible Hose (5mt) + 50/40 Flex Connection (Left Thread) + D.40 PVC Connection Included as standard
	303.5482	40mm threaded hose connection to 50mm machine connection 2 Included as standard
	303.5477	40mm threaded hose connection to 40mm machine connection 1 Included as standard
	303.5755	D.40mm 400 Dust Brush Included in the accessory kit
	303.5485	D.40 PVC Brush Included in the accessory kit
	303.5760	D.40 Rubber Cone Section with Connection Included in the accessory kit
	303.5765	ENDLESSBAG Bags Pack of 4 x 20m tubes – included as standard with 303.4103 & 303.4107
