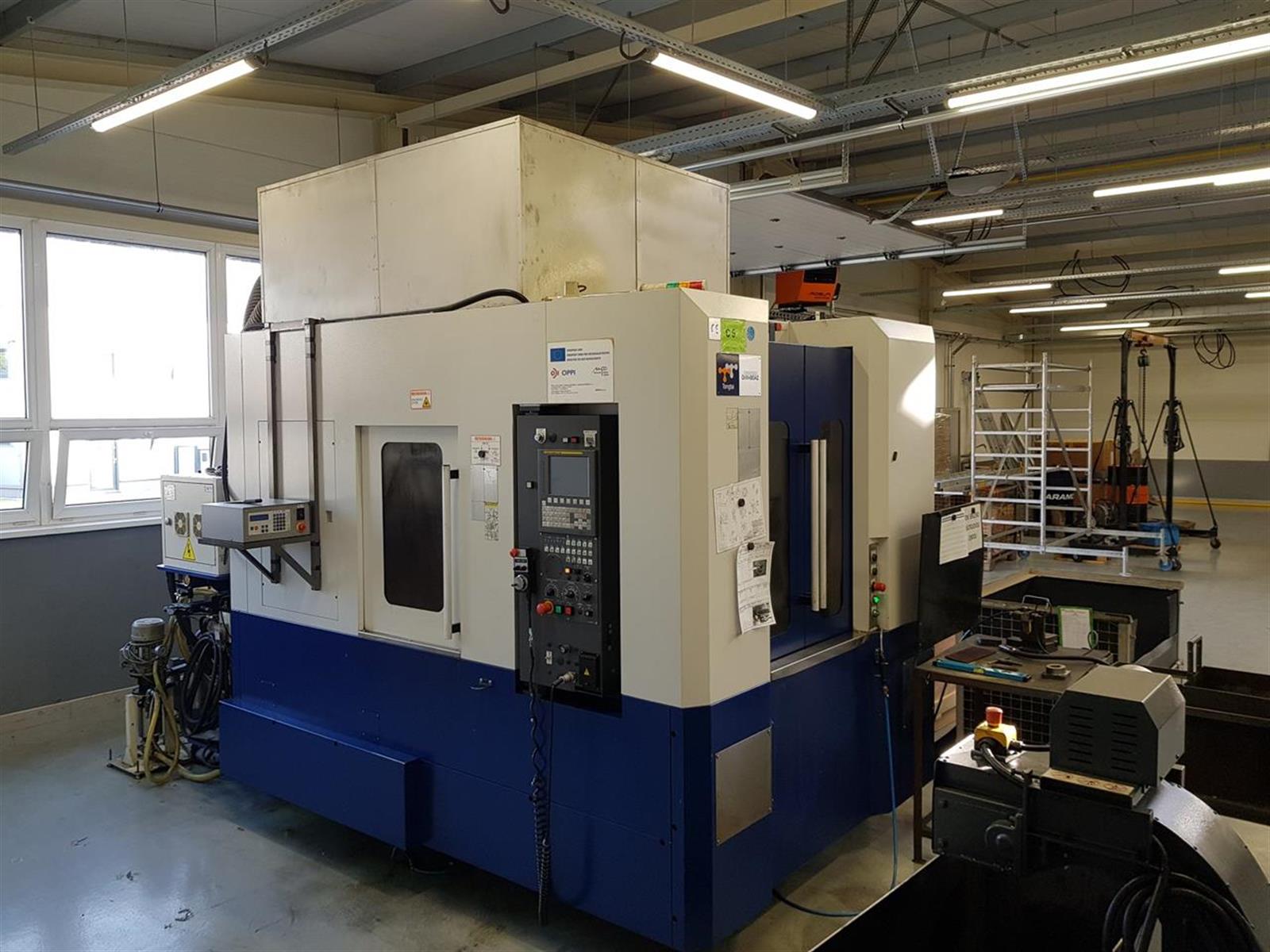

Topper QVM 610AII Machining center - vertical

Topper QVM 610AII Machining center - vertical (Topper QVM 610AII Machining center - vertical)

Brand : Topper

Price : 0,00 EURO(Vat included)

Stock Amount : 0

Est. Delivery TimeReady In Stock

Shipment Place Turkiye

Payment Terms% 100 T/T On Order Confirmation

Made In USA

Min. Order Qty.1 Pcs.

WarrantyNo Warranty

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Control System: FANUC Oi-MD
Working table length: 700 mm
Working table width: 410 mm
Maximum table load (evenly): 400 kg
Spindle drive power: 9 kW
Maximum spindle rotation speed: 8000 rpm
Maximum X-axis feed rate: 36 m / min
Maximum Y-axis feed: 36 m / min
Z-axis maximum feed speed: 30 m / min
X / Y / Z: 610/410 / 460mm
Cone: 40
Maximum number of tools: 24 pcs
Maximum tool length: 250 mm
Maximum tool weight: 7 kg
Machine height: 2880 mm
Machine length: 2440 mm
Machine width: 4090 mm
Machine weight: 7500 kg
Accessories:
Chip conveyor
Automatic lubrication system
Hydraulic power unit
Air system
Spindle load indicator

Axis X	610 mm
Axis Y	410 mm
Axis Z	460 mm
Rotary table (4th axis)	no
Type of CNC	FANUC Oi-MD
Table length	700 mm
Table width	410 mm
Max. part weight	400 kg
Number of tool pockets	24
Spindle taper	40
Max. spindle speed	8000 rpm
Spindle motor power	9 kW
-------------------
Length x width x height	2440.0 × 4090.0 × 2880.0
Weight	7500 kg
Worked hours
Hours under power
State	good
At local norms	---------
Status
