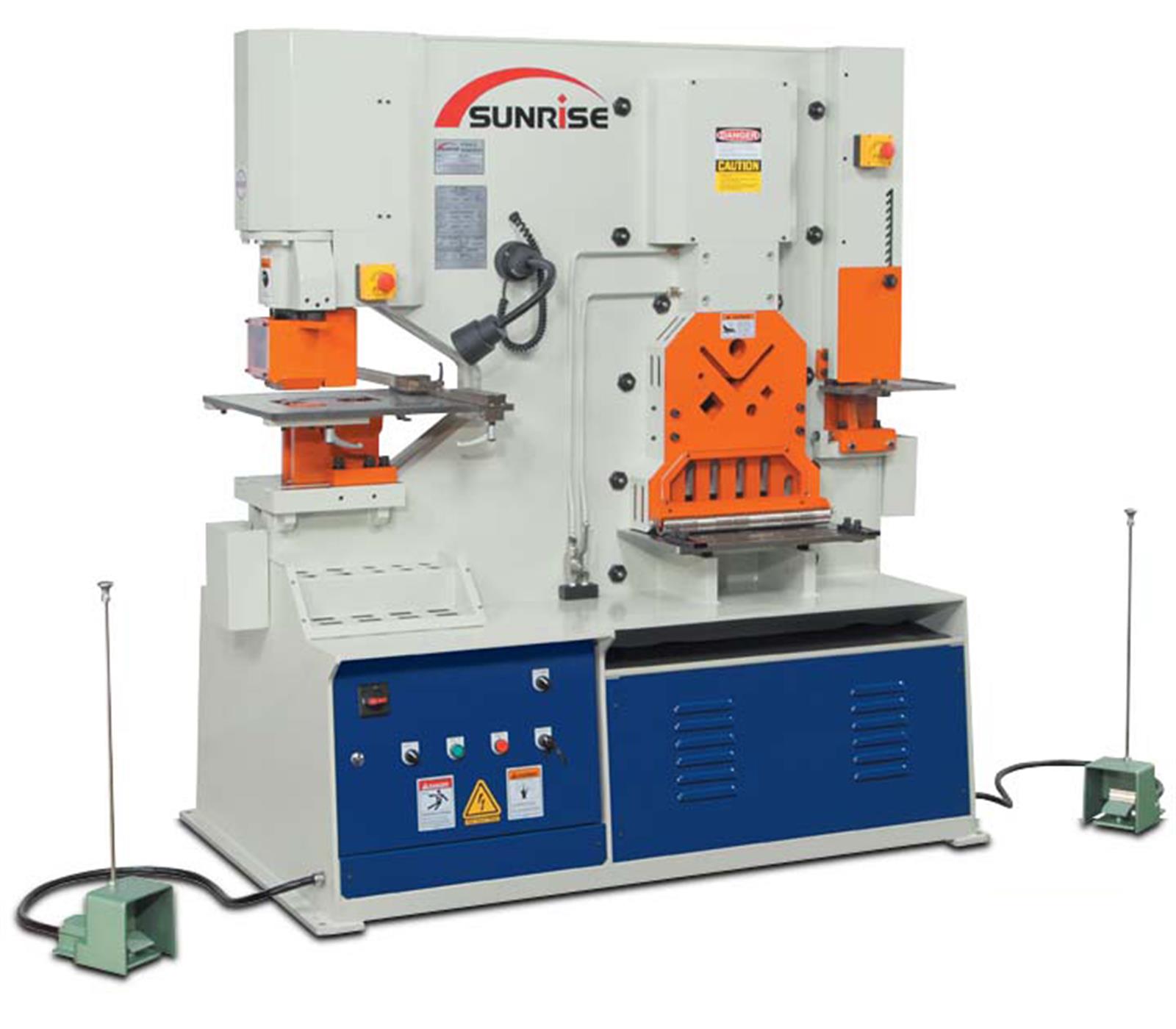

Sunrise K Seies IW-85KD Hydraulic Ironworker

Sunrise K Seies IW-85KD Hydraulic Ironworker (IW-85KD)

Brand : Sunrise

Stock Amount : 0

Est. Delivery Time75 Days After Order

Shipment Place Turkiye

Payment Terms%30 On Order, %70 Before Shipment

Made InTaiwan

Minimum Order Quantity1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Punching & Punching-Shearing Machines

Hydraulic Steelworkers-Ironworkers-Double Piston

1. Two cylinders for simultaneous dual operation.
2. 410mm of punching station throat.
3. Hydraulic hold-down for all shearing stations.
4. Punching accessories for Mubea tooling up to 50mm.
5. Electric backgauge.
6. Working light.

Model	IW-85KD
Punching
Punching Force	85 Ton
Punch Capacity	ø27 x 22
(Diameter x Thickness)	ø50 x 12
Throat Depth	410
Max. Stroke Length	100
Cycles / Min. (15mm stroke)	38
Working Height Up to Die	1050
Angle Shearing
Shearing Force	110 Ton
Shearing Cylinder Stroke Length	50
At 90° Shearing	130 x 130 x 12
Working Height	1040
Flat Shearing
Flat Bar Shear	406 x 17
Blade Length	410
Working Height	726
Bar Shearing
Round Bar Shear	ø45
Square Bar Shear	45 x 45
Channel Shear (H x B)	152*
I Beam Shear (H x B)	152*
Notching
Rectangular Notcher (WxDxT)	63.5 x 90 x 12
Vee-Notcher (Side x Side x T)	105 x 105 x 12*
Working Height	1050

* : Optional Tooling

Note: Based on material strength of 45kg / mm² tensile. Design and specifications subject to change without notice.

Model	IW-85KD
Large Vee-Notcher (Side x Side x T)	145 x 145 x 10*

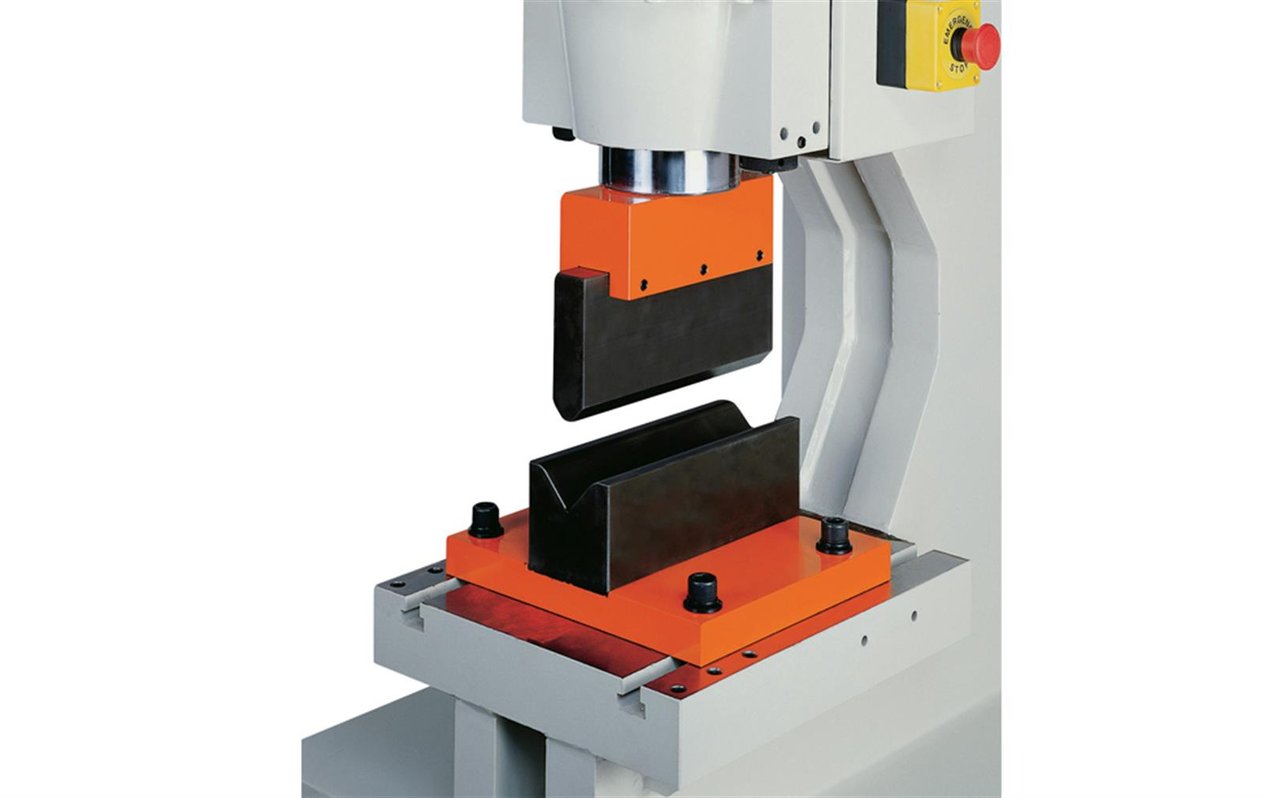

Single Vee Press Brake (W x T)	250 x 12*
Multi Vee Press Brake (W x T)	500 x 5*
Angle Bending	100 x 100 x 7*
Pipe Notching	ø100*

* : Optional Tooling

Note: Based on material strength of 45kg / mm² tensile. Design and specifications subject to change without notice.

Model	IW-85KD
Electric Power (HP)	10 HP
Net Weight (Apr.)	2720 kg
Gross Weight (Apr.)	2920 kg
Machine Dimension (Apr.)	1755 x 1020 x 1865
Packing Dimension (Apr.)	2000 x 1140 x 2120
