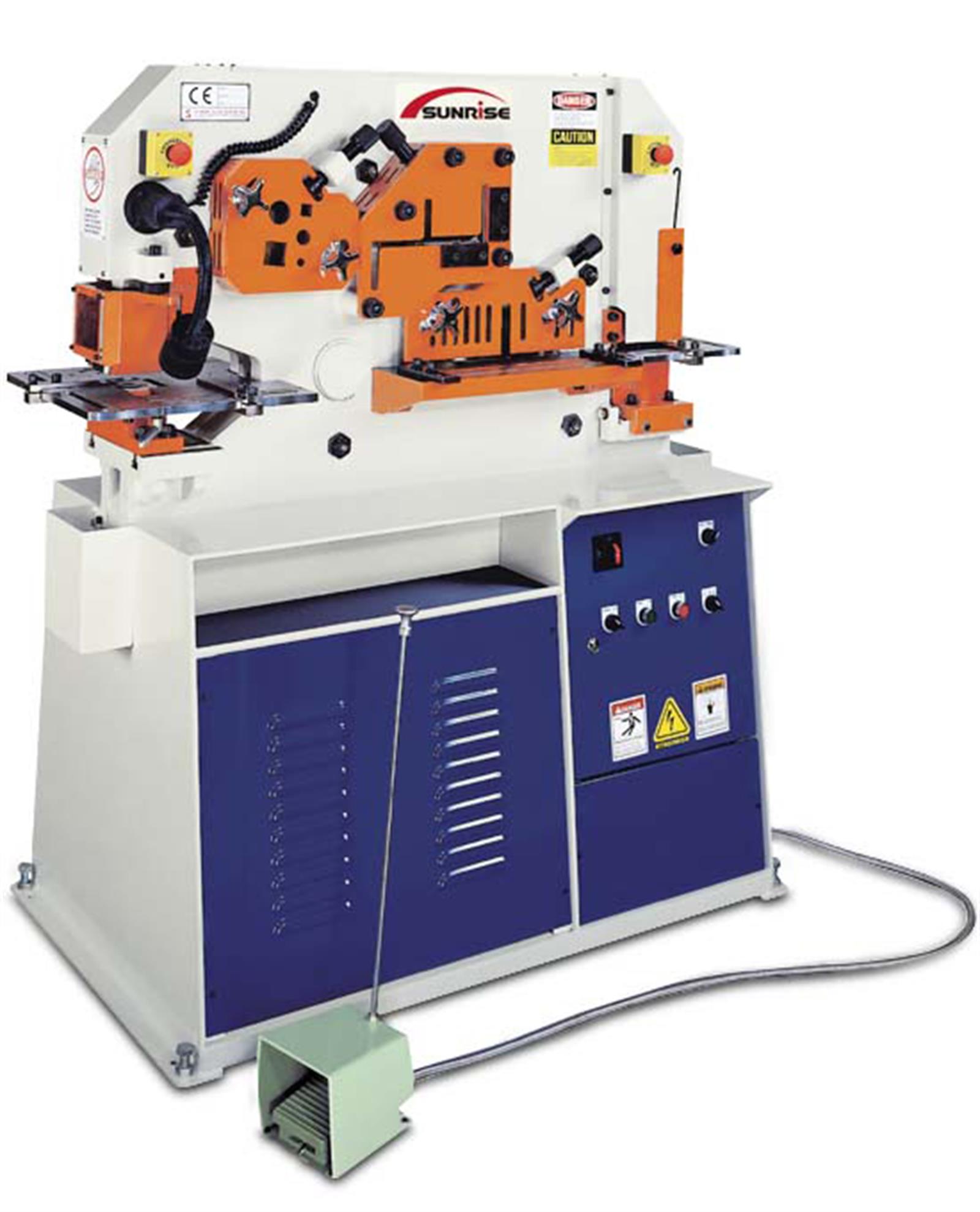

Sunrise K Seies IW-60H Single Cylinder Hydraulic Ironworker

The IW-60H features the "Z" shape aperture at the angle shear station, which makes this model capable of doing both the internal and external miter shear on angles. The round/square bar shearing on this model is a stand-alone station that has large shearing capability.

Model	IW-60H
Punching
Punching Force	60 Ton
Punch Capacity	ø28 x 15
(Diameter x Thickness)	ø40 x 11
Throat Depth	220
Max. Stroke Length	55
Cycles / Min. (15mm stroke)	29
Working Height Up to Die	1000
Angle Shearing
At 90° Shearing	100 x 100 x 13
At 45° Miter Shearing	75 x 75 x 6
Working Height	1236
Flat Shearing
Flat Bar Shear	350 x 15
(Width x Thickness)	210 x 20
Blade Length	360
Angle Flange Trim	100
Working Height	1006
Bar Shearing
Round Bar Shear	ø40
Square Bar Shear	38 x 38
Channel Shear	100 x 50*
Working Height	1260
Notching
Rectangular Notcher (WxDxT)	50.8 x 90 x 8
Vee-Notcher (Side x Side x T)	90 x 90 x 10*
Working Height	1006

* : Optional Tooling

** : On IW-45M the notcher is optional tooling to be installed at the punching station.

Note: Based on low carbon / mild steel material strength of 45kg / mm² tensile. Design and specifications subject to change without notice. A 1-hole die holder and a 2-piece gauging table are provided as standard equipment on all single cylinder models.

Model	IW-60H
Electric Power (HP)	7.5 HP
Net Weight (Apr.)	1500 kg
Gross Weight (Apr.)	1650 kg
Machine Dimension (Apr.) (L x W x H)	1460 x 770 x 1560
Packing Dimension (Apr.) (L x W x H)	1730 x 930 x 1840
