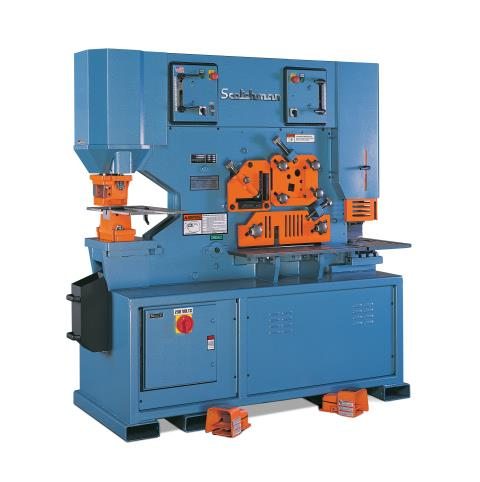

A dual-operator, fully-integrated ironworker features built-in tools and is best suited for repetitive operations and higher volume projects. Run two operations, such as punching and notching, simultaneously!
The dual operator 85-ton ironworker machine has a hydraulic system designed with two pumps allowing two operators to use the machine at the same time and ensures that both operations have full hydraulic pressure and speed. With an 85-ton punch capacity, the DO85 can punch a 1-1/16" hole in 1" thick mild steel.
The DO 8514-20M has many standard features that include: 6" x 6" x 1/2" angle shear, rod shear that will shear 1-1/2" round and 1-1/4" square rod, and a rectangular notcher that can notch 3" x 5" x 1/2". The 20" flat bar shear features a low rake angle and has the ability to shear up to 1" x 12" and 3/4" x 20" material. This machine is ideal when shearing lots of channel iron and is capable of accepting additional tooling such as press brakes, tube shears, picket tools, and special custom-built tools.
This American-made ironworker is built tough and utilizes a tandem hydraulic system with electric valves & remote foot pedals for ease of use, two adjustable electric stroke controls with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support!
Punching Capacity
85 ton 1-1/16" in 1"
77 mt 27 in 25 mm
Special Tooling
4" Max. Dia.
102 Max. Dia.
Throat Depth
14"
355 mm
Flat Bar Shear
20" Length 1" x 14" 3/4" x 20"
508 mm 25 x 355 mm 19 x 508 mm
Angle Shear 90 degree
6" x 6" x 1/2"
152 x 152 x 12 mm
Angle Shear 45 degree (w/Bar Shear)
4" x 4" x 1/2"
102 x 102 x 12 mm
Brake 12"
85 ton
77 mt
Brake 24"
Open End Brake (Notcher Station)
Max. 1/2" x 6" [Flat or Angle Iron]
12 x 152 mm
Open End Brake (Punch Station)
Max. 1/4" x 5" [Flat or Angle Iron]
6 x 127 mm
Pipe Notcher Schedule 40
3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher
2" x 4" x 1/2"
51 x 101 x 12 mm
90 degree V-Notcher (Punch Station)
6" x 6" x 5/16"
152 x 152 x 8 mm
90 degree V-Notcher (Notcher Station)
3" x 3" x 1/2"
76 x 76 x 12 mm
Punch Attachment (Notcher Station)
50 ton 1-1/4" in 1/2"
32 in 12 mm
Throat Depth w/Punch Attachment (Notcher Station)
4-7/16"
113 mm
Channel Shear
2" to 6"
51 to 152 mm
Unistrut Shear
Samples Required
Rod Shear Round (max.) Square (max.)
4 Cavity - 1/2", 3/4", 1", 1-1/2" 1 Cavity - 1-1/2"
12, 19, 25, 38 mm 38 mm
Square Tube Shear
1/2" to 2" 12 gauge
12 to 51 mm 0.105" / 2.7 mm
Picket Tool
1/2", 3/4" & 1" 16 gauge
12, 19, & 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)
2" wide x 3/8"
51 x 10 mm
Offset Die Holder
Max. 40 ton
Max. 36 mt
Strokes per Minute in Light Material
45 spm [Punch Station]
1/4" Stroke
Strokes per Minute in Heavy Material
18 spm [Punch Station]
3/4" Stroke
Hydraulics
3,350/3,800 psi
231/262 bar
Motor Standard
10 hp 208/230/460, 380/575v; 3 ph
7.46 kW
Motor Optional
10 hp 220v, 1 ph
Dimensions
L: 77-1/2" W: 32-1/4" H: 74"
L: 197 cm W: 82 cm H: 188 cm
Shipping Weight (may vary)
5,504 lbs
2,497 kg
