A dual-operator ironworker is often the best option when two simultaneous operation (e.g. punching and notching) are required.

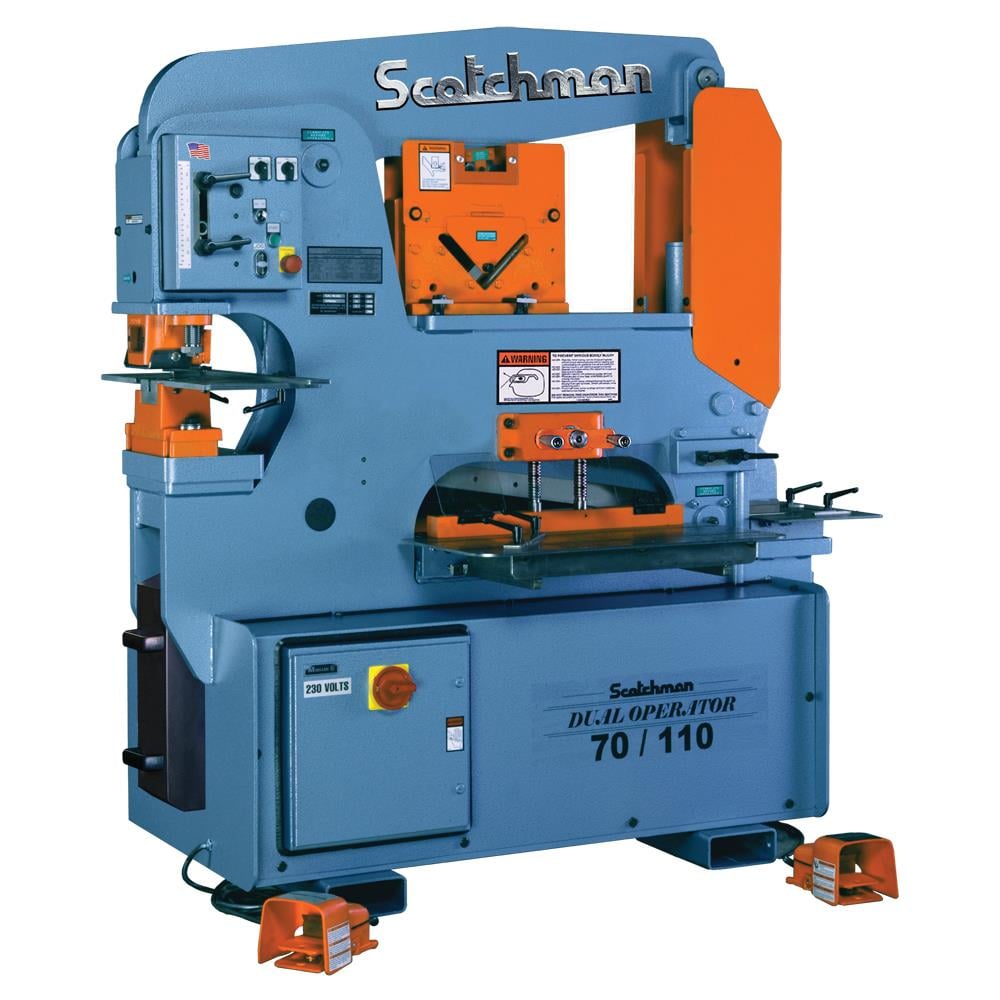

The dual operator 70-ton ironworker machine (DO70) has a hydraulic system designed with two pumps allowing two operators to use the machine at the same time and ensures that both operations have full hydraulic pressure and speed.
The 70-ton capacity punch and a 9" throat depth, which can punch a 1-1/8" hole in 3/4" thick mild steel. Standard features include: 6" x 6" x 1/2" angle shear and a rectangular notcher that can notch 3" x 4" through 1/2" material. The 24" flat bar shear features a low rake angle and has the ability to shear up to 1" x 6" and 3/8" x 24" mild steel. This versatile ironworker allows additional tooling to be easily swapped in and out so you can customize the machine to fit your needs!
This American-made ironworker is built tough and utilizes a hydraulic system with electric valves & remote foot pedals for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support!
Punching Capacity
70 ton 1-1/8" in 3/4"
63 mt 29 in 19 mm
Special Tooling
4" Max. Dia.
102 Max. Dia.
Throat Depth
9"
229 mm
Flat Bar Shear (Sabre Blade - Standard)
24" Length 1" x 6" 3/4" x 10" 1/2" x 14" 3/8" x 24"
610 mm 25 x 152 mm 19 x 254 mm 12 x 356 mm 10 x 610 mm
Angle Shear 90 degree
6" x 6" x 1/2"
152 x 152 x 12 mm
Angle Shear 45 degree w/Tool w/Bar Shear
3" x 3" x 3/8" 4" x 4" x 1/2"
76 x 76 x 10 mm 102 x 102 x 12 mm
Brake 12"
65 ton
59 mt
Brake 24"
45 ton
40 mt
Open End Brake
Max. 1/4" x 5" [Flat or Angle Iron]
6 x 127 mm
Pipe Notcher Schedule 40
3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher
3" x 5" x 3/8" 3" x 4" x 1/2"
76 x 127 x 10 mm 76 x 101 x 12 mm
90 degree V-Notcher
6" x 6" x 5/16" 3" x 3" x 3/8"
152 x 152 x 8 mm 76 x 76 x 10 mm
Notching in Leg of Channel
6" to 10"
152 to 254 mm
Channel Shear
2" to 6" adj.
51 to 152 mm adj.
Unistrut Shear
Samples Required
Rod Shear Round (max.) Square (max.)
9 Cavity - 1/4" to 1-1/4" 1 Cavity - 1/4" to 1"
6 to 32 mm 6 to 25 mm
Square Tube Shear
1/2" to 2" 12 gauge
12 to 51 mm 0.105" / 2.7 mm
Picket Tool
1/2", 3/4"& 1" 16 gauge
12, 19, & 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)
2" wide x 3/8"
51 x 10 mm
Offset Die Holder
Max. 40 ton
Max. 36 mt
Strokes per Minute in Light Material
38 spm [Punch Station]
1/4" Stroke
Strokes per Minute in Heavy Material
15 spm [Punch Station]
3/4" Stroke
Hydraulics
3,000/3,000 psi
207/207 bar
Motor Standard
10 hp 208/230/460, 380/575v; 3 ph
7.46 kW
Motor Optional
10 hp 220v, 1 ph
Dimensions
L: 69" W: 37-1/2" H: 71"
L: 175 cm W: 95 cm H: 180 cm
Shipping Weight (may vary)
3,800 lbs.
1,724 kg
