A dual-operator ironworker is often the best option when two simultaneous operations are required (e.g. punching and notching).

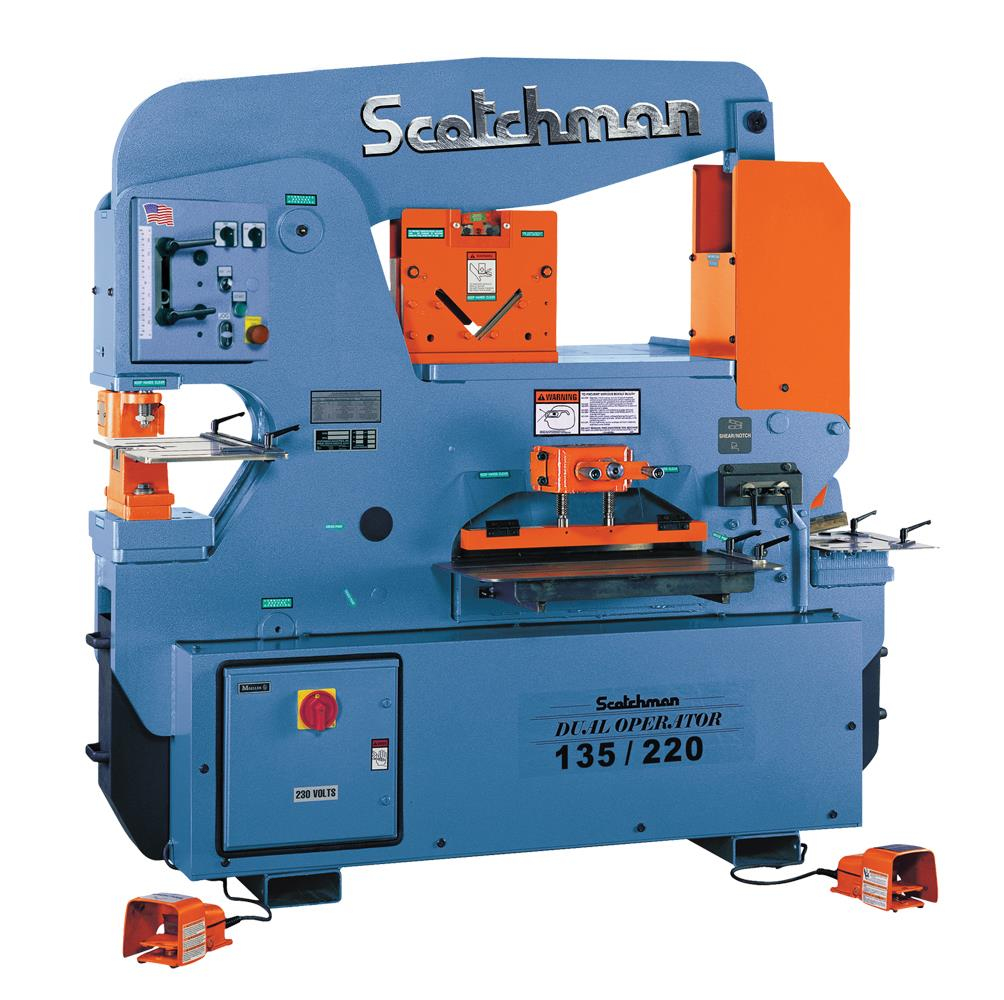

The dual operator 135-ton ironworker machine has a tandem hydraulic pump system designed to allow two operators to use the machine at the same time ensuring that both operations will have full hydraulic pressure and speed.
The DO135 has a 135-ton capacity punch and a 12" throat depth, which can punch a 1-11-16" hole in 1" thick mild steel. The DO 135/220-24M is made in America with many standard features that include: 6" x 6" x 1/2" angle shear and a rectangular notcher that can notch 3" x 5-3/4" through 1/2" material. The 24" flat bar shear features a low rake angle and can shear up to 1" x 12" and 1/2" x 24" steel plate. This machine also accepts optional equipment such as press brakes, rod shear, tube shear, picket tool, as well as custom-built tooling. The versatility of Scotchman ironworkers is unmatched as our machine's design allows for additional tooling to be quickly & easily swapped in and out of the tool table workstation so you can customize this machine to fit your needs!
This American-made ironworker is built tough and utilizes a hydraulic system with electric valves & remote foot pedals for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support!
Punching Capacity
135 ton 1-11/16" in 1"
122 mt 42 in 25 mm
Special Tooling
4" Max. Dia.
102 mm Max. Dia.
Throat Depth
12"
305 mm
Flat Bar Shear (Sabre Blade - Standard)
24" Length 1" x 12" 3/4" x 20" 1/2" x 24"
610 mm 25 x 305 mm 19 x 508 mm 12 x 610 mm
Angle Shear 90 degree
6" x 6" x 1/2"
152 x 152 x 12 mm
Angle Shear 45 degree w/Tool w/Bar Shear
3" x 3" x 3/8" 4" x 4" x 1/2"
76 x 76 x 10 mm 102 x 102 x 12 mm
Brake 12"
90 ton
81.6 mt
Brake 24"
70 ton
63.5 mt
Open End Brake
Max. 1/4" x 5" [Flat or Angle Iron]
6 x 127 mm
Pipe Notcher Schedule 40
3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher
3" x 5-3/4" x 1/2"
76 x 146 x 12 mm
90 degree V-Notcher
6" x 6" x 5/16" 3" x 3" x 1/2"
152 x 152 x 8 mm 76 x 76 x 12 mm
Notching in Leg of Channel
6" to 10"
152 to 254 mm
Channel Shear
2" to 6" adj.
51 to 152 mm adj.
Unistrut Shear
Samples Required
Rod Shear Round (max.) Square (max.)
9 Cavity - 1/4" to 1-1/4" 1 Cavity - 1/4" to 1"
6 to 32 mm 6 to 25 mm
Square Tube Shear
1/2" to 2" 12 gauge
12 to 51 mm 0.105" / 2.7 mm
Picket Tool
1/2", 3/4" & 1" 16 gauge
12, 19, 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)
2" wide x 3/8"
51 x 10 mm
Offset Die Holder
Max. 40 ton
Max. 36 mt
Strokes per minute in light material
39 spm [Punch Station]
1/4" stroke
Strokes per minute in heavy material
15 spm [Punch Station]
3/4" stroke
Hydraulics
3,500/3,500 psi
241/241 bar
Motor Standard
10 hp 208/230/460, 380/575v; 3 ph
7.46 kW
Motor Optional
10 hp 220v, 1 ph
Dimensions
L: 83" W: 38-1/2" H: 76-1/2"
L: 211 cm W: 98 cm H: 194.5 cm
Shipping Weight (may vary)
6,204 lbs.
2,814 kg
