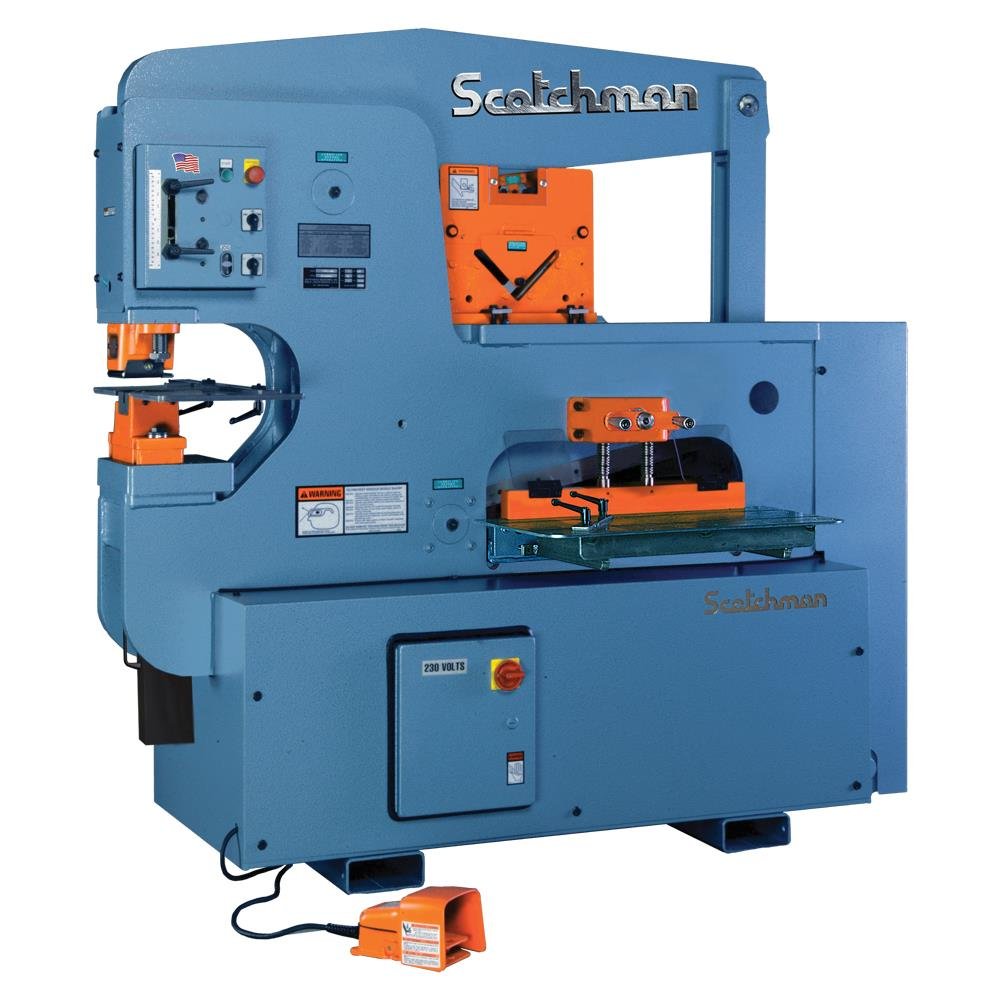

Ideal for medium to larger metal fabrication businesses! With its 120-ton punch station this ironworker can punch a 1-1/2" hole in 1" thick, 65,000 tensile mild steel plate.
The 12012-24M hydraulic ironworker also features a 24" wide flat bar shear which can shear 1" x 12" and 1/2" x 24" plate. The bar shear blades can be rotated four times for maximum blade life. The angle shear can max cut 6" x 6" x 1/2", and like all Scotchman angle shears, is designed to give a distortion free cut.
The tool table design is a bonus feature and workstation that allows the operator to quickly and easily mount various optional tools making this ironworker adaptable to your specific job. This machine is versatile and is capable of accepting additional equipment such as press brakes, rod shear, tube shear, picket tool, as well as custom-built tooling.
This American-made ironworker is built tough and utilizes a two-stage hydraulic pump system with electric valves & a remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support!
Punching Capacity
120 ton 1-1/2" in 1"
108 mt 38 in 25 mm
Special Tooling
4" Max. Dia.
102 mm Max. Dia.
Throat Depth
12"
305 mm
Flat Bar Shear
24" Length 1" x 12" 3/4" x 20" 1/2" x 24"
610 mm 25 x 305 mm 19 x 508 mm 12 x 610 mm
Angle Shear 90 degree
6" x 6" x 1/2"
152 x 152 x 12 mm
Angle Shear 45 degree w/Tool w/Bar Shear
3" x 3" x 3/8" 4" x 4" x 1/2"
76 x 76 x 10 mm 102 x 102 x 12 mm
Brake 12"
83 ton
75 mt
Brake 24"
65 ton
59 mt
Open End Brake
Max. 1/4" x 5" [Flat or Angle Iron]
6 x 127 mm
Pipe Notcher Schedule 40
3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher
2" x 2-1/2" x 3/8"
51 x 63 x 10 mm
90 degree V-Notcher
6" x 6" x 5/16"
152 x 152 x 8 mm
Channel Shear
2" to 6" adj.
51 to 152 mm adj.
Unistrut Shear
Samples Required
Rod Shear Round (max.) Square (max.)
9 Cavity - 1/4" to 1-1/4" 1 Cavity - 1/4" to 1"
6 to 32 mm 6 to 25 mm
Square Tube Shear
1/2" to 2" 12 gauge
12 to 51 mm 0.105" / 2.7 mm
Picket Tool
1/2", 3/4" & 1" 16 gauge
12, 19, & 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)
2" wide x 3/8"
51 x 10 mm
Offset Die Holder
Max. 40 ton
Max. 36 mt
Strokes per Minute in Light Material
1/4" Stroke [Punch Station]
47 spm
Strokes per Minute in Heavy Material
3/4" Stroke [Punch Station]
19 spm
Hydraulics
2,600 psi
179 bar
Motor Standard
5 hp 208/230/460, 380/575v; 3 ph
3.73 kW
Motor Optional
5 hp 220v, 1 ph
Dimensions
L: 79" W: 32" H: 75"
L: 201 cm W: 81 cm H: 191 cm
Shipping Weight (may vary)
5,204 lbs.
2,360 kg
