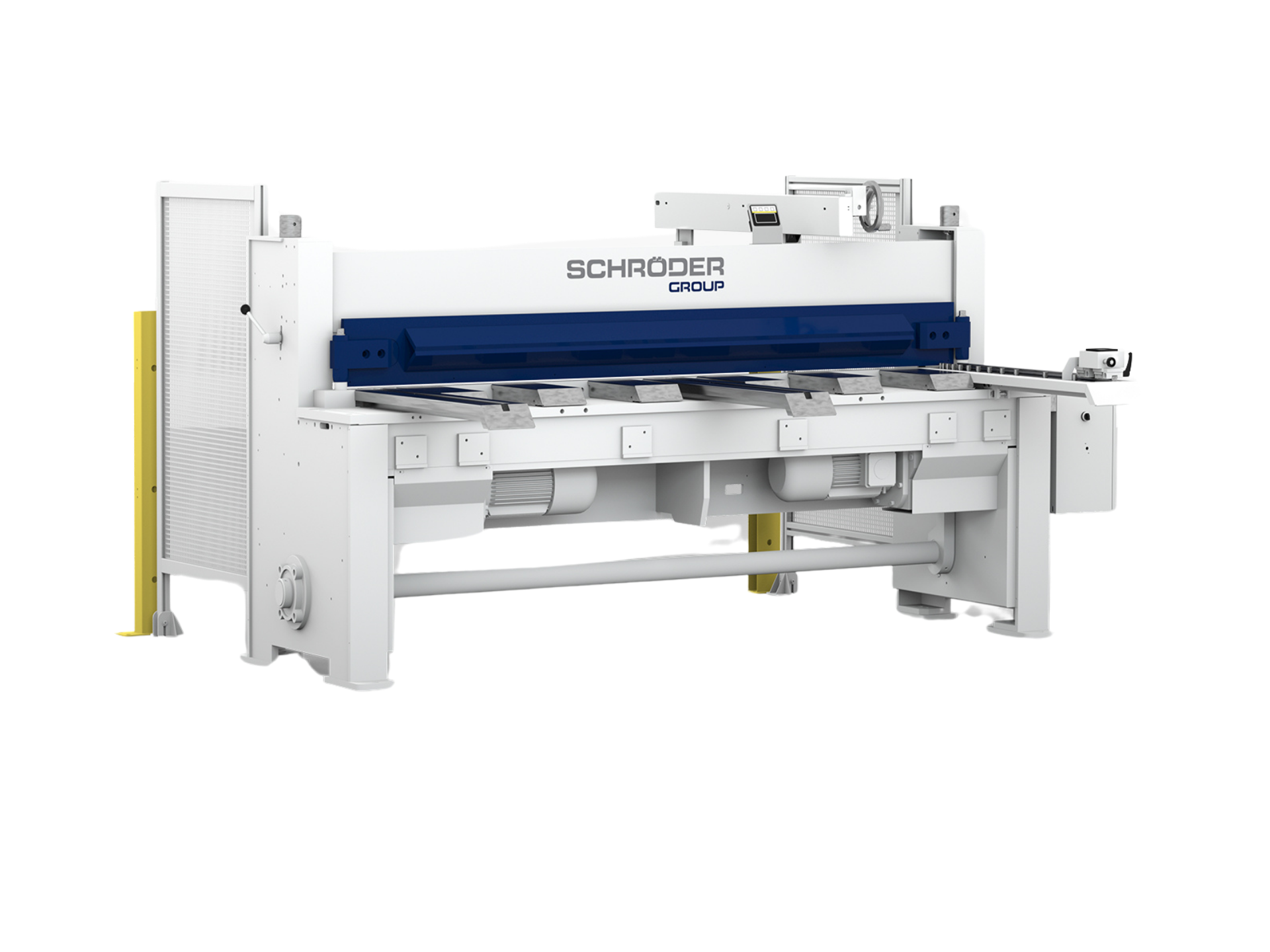

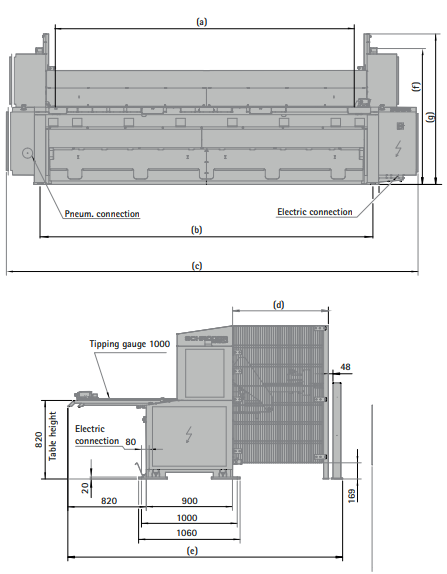

Schröder PDC 1500×4.5 mm Power-Operated Shear

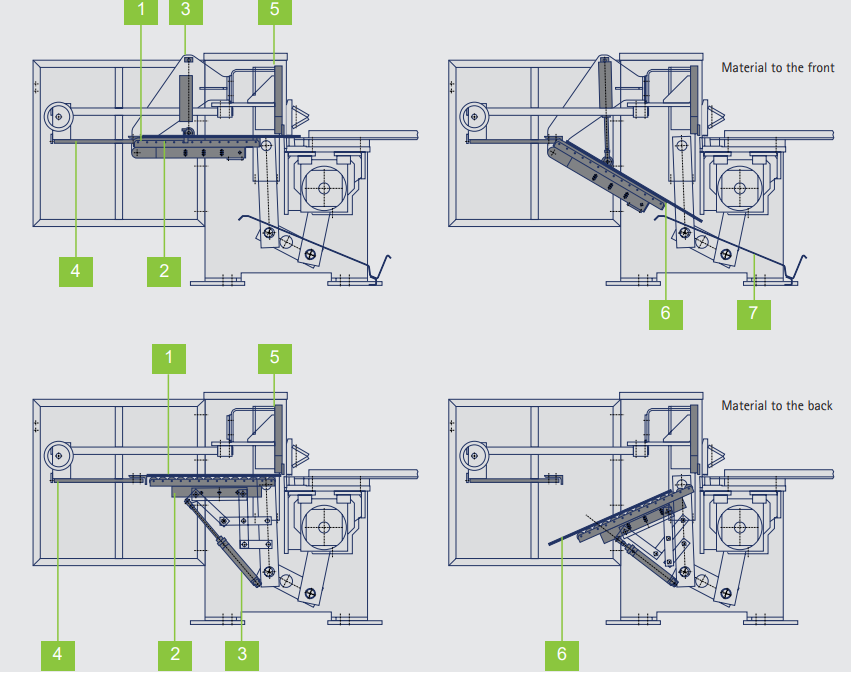

Technical description of the sheet support system

1. Cutting material
2. Tilting depositing device
3. Cylinder
4. Gauge
5. Cutting bar
6. Blank
7. Sheet separator

High rigidity already in its basic configuration

The motorized shear PDC is based on a torsion-free rigid welded construction and a „Duo-Cut“ drive with two powerful dynamic low-noise geared motors. The high static and dynamic rigidity are guaranteed thanks to sturdy key components such as cutting bar, sheet support table, lateral frames and main drive units.

The generously designed flat cutting bar guides dispose of robust and wear-resistant special sliding covers. This maintenance free sliding cover ensures optimum guidance and dampening characteristics.

Efficient sheet support

The sheet support holds the sheet upwards and leads the sheet in horizontal position to the gauge. After a successful cut the sheet will be deposited to the back or to the front.

Software Classic Cut

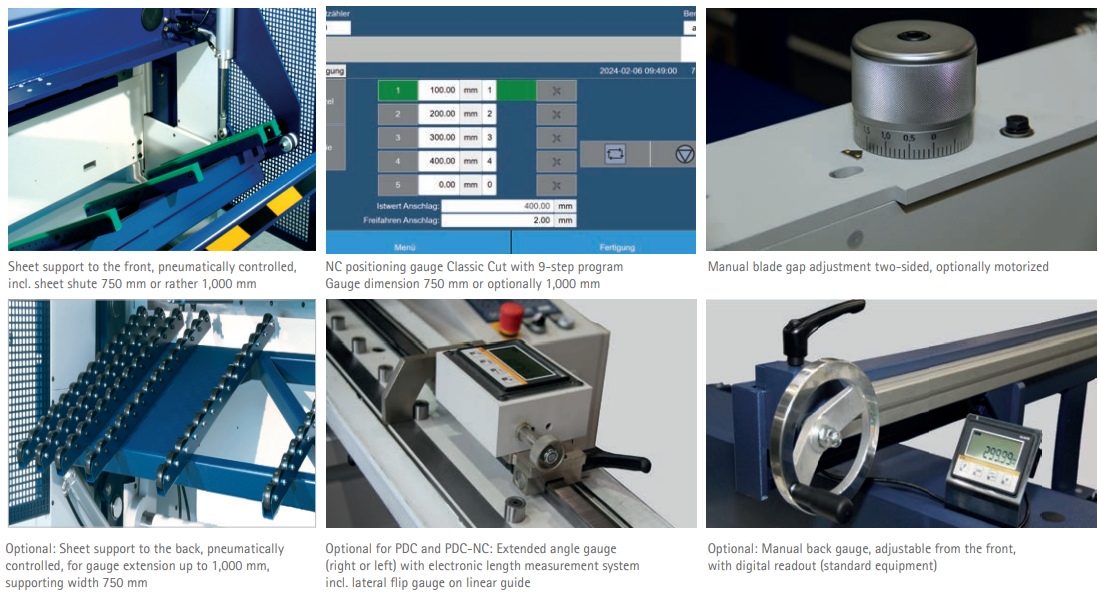

The back gauge, which is manually adjustable in the standard version, promises high cutting performance with minimum effort thanks to a modern, low-friction and virtually wear-free crank drive. As an option, the back gauge, which is equipped with servo motors, can be adjusted via the software Classic Cut. The manual blade gap adjustment for material thickness setting is also optionally available motorized.

The Classic Cut with 9-fold program can program gauge lengths up to 750 mm or 1 000 mm and significantly facilitate handling and precise positioning compared to the manual adjustment.

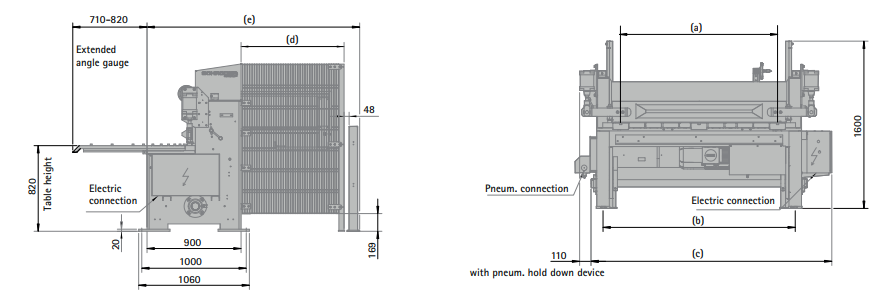

Exact positioning

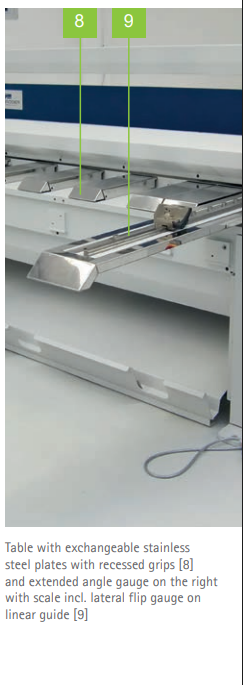

In order to be able to position a sheet exactly right-angled, it is recommended to make use of an extended angle gauge. Big sheets can be processed even better and more efficiently. As an extra feature the extended angle gauge is also available with an electronic length measurement system.
