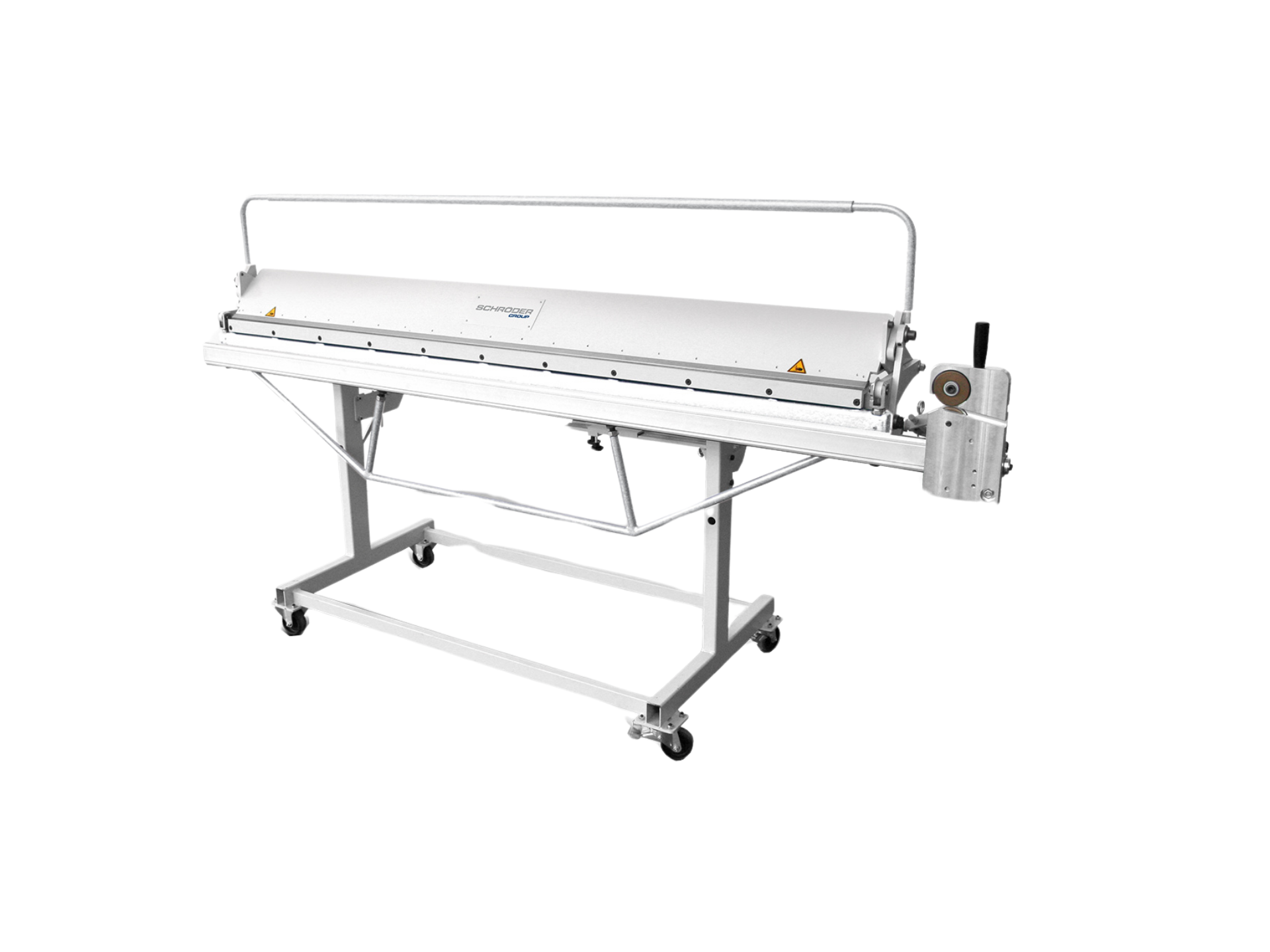

Schröder BAM 1000×0.8 mm Mobile Folding Machine

The BAM extends the range of sheet metal working machines produced by Hans Schröder Maschinenbau. It is small, light, but offers very high functionality and mobility.

BAM 1000

• The quick rotating clamping beam is the highlight of the BAM. Sharp rail for standard and goat‘s foot for narrow bends complement each other, an option found otherwise only in a few CNC-controlled machines, e.g. the Schröder PowerBend Multi.
• The big clearances allow profiles, e.g. narrow U-bends, that are simply not feasible in other machines.

BAM 1000

• The cutting head slices neatly through the clamped sheet. The solid aluminium structure runs on the linear guide with almost no friction. The blades are adjustable and exchangeable.
• Optionally you can choose adjustable beading rods in 12 mm /14 mm or 16 mm with one set of twist clamps.
• Quick rotating clamping beam with sharp blade
  and goat’s foot blade for narrow bendings
• Folding blade 15 mm
• Easy to disassemble and transport
• Quick clamping beam
• Sheet support and back gauge system 500 mm
• Cutting device incl. guide rail for max. sheet thickness 0,8 mm St37
• Stand with 4 castors:
  2 fixed and 2 steering castors, lockable
• Angle indicator

Options

• Adjustable beading device without beading and twist clamp
• Beading rod 12 mm, 14 mm or 16 mm incl. one set of twist clamp
