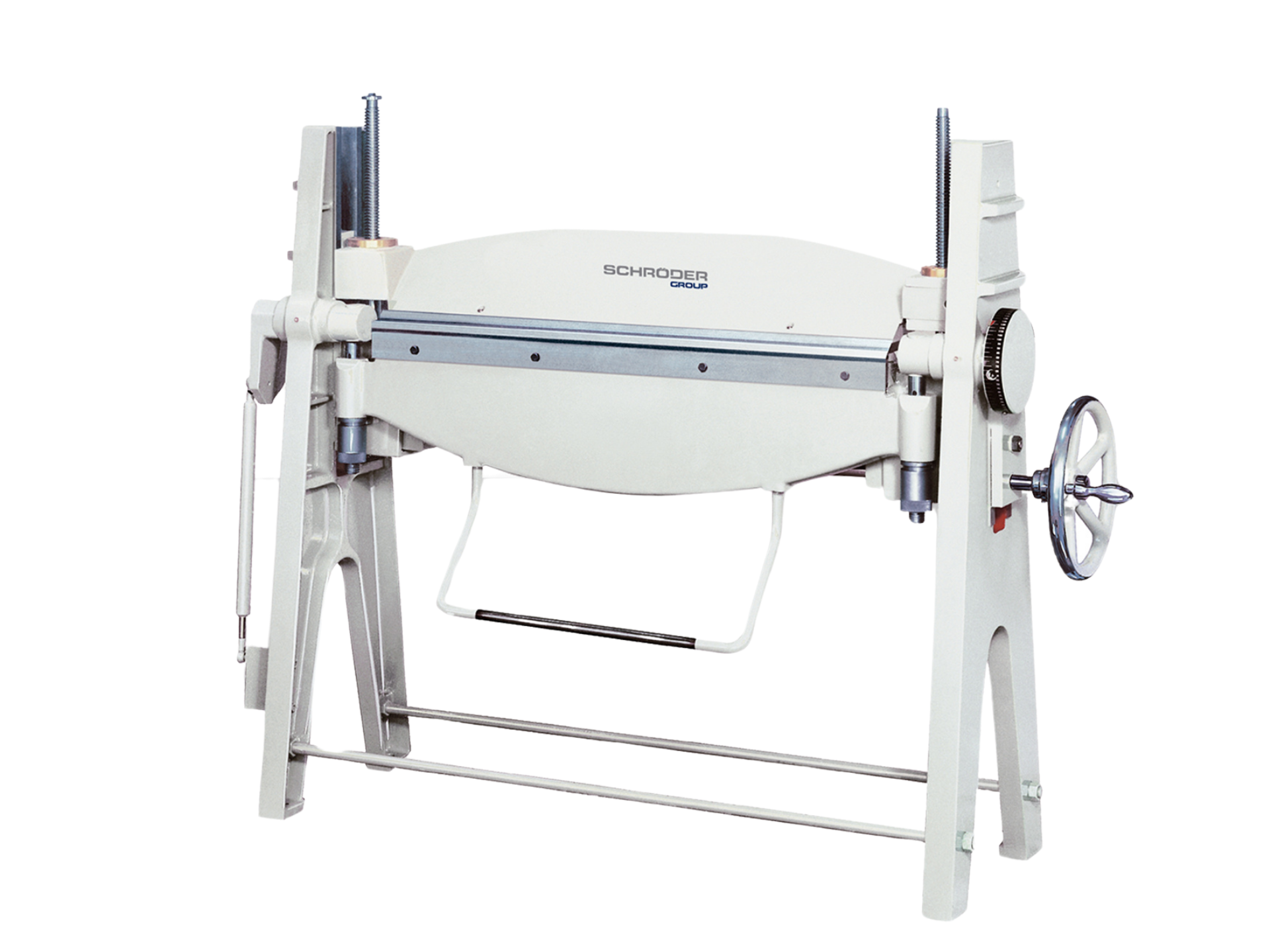

Schröder 204 10-2 mm Manual Folding Machine ( 204 10-2)

The favourite in handicraft: essential in workshops, sample construction and repair shops.

Clamping beam

• Sufficient stroke height for different tool geometries
• Drive with handwheel and bevelled gears
• Short change-over time by quick clamp system for tools
• Space for flanged parts

Folding beam

• Adjustable for exact radius bending
• Adjustable angle gauge for identical bending angles
• Folding beam supported by gas spring

Bottom beam

• Adjustable via radius tools

Standard equipment

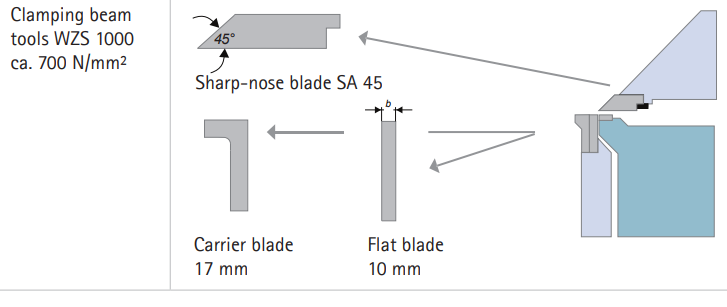

• Sharp-nose blade „SA“ 45° (WZS 1000), ca. 700 N/mm²
• 2 folding blades consisting of: - 10 mm flat blade and - 17 mm carrier blade
• Folding beam- and bottom beam adjustment 60 mm
• Adjustable angle gauge
• Clamping beam stroke 220 mm

Options

Tools ca. 700 N/mm²

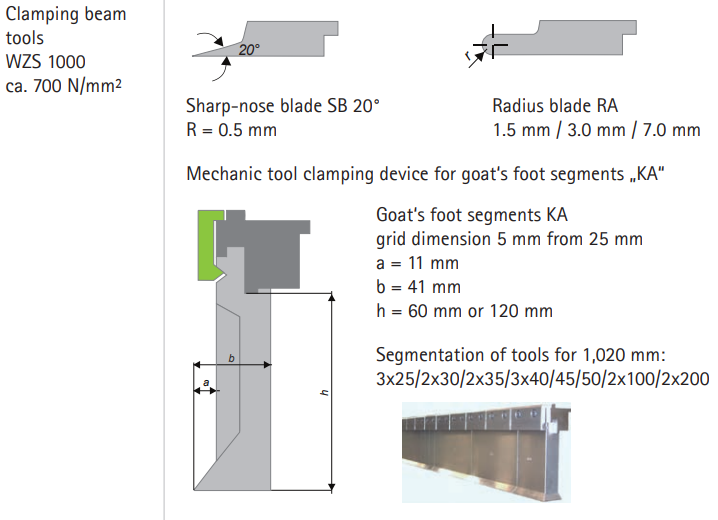

• Sharp nose blade “SB” 20° R = 0,5
• Radius blade “RA” 1,5 mm
• Radius blade “RA” 3,0 mm
• Radius blade “RA” 7,0 mm
• Mechanic tool clamping device for goat’s foot segments “KA”,  grid dimension 5 mm from 25 mm
  • H = 60 mm, 45°, clearance 11 mm, foot width 41 mm
  • H = 120 mm, 45°, clearance 11 mm, foot width 41 mm

Back gauge system

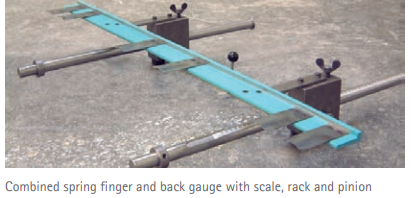

• HAH 21 – manual back gauge, combined spring finger- and back gauge with scale, rack and pinion,
  adjustment range 0 – 600 mm
• Pneumatic bending support
