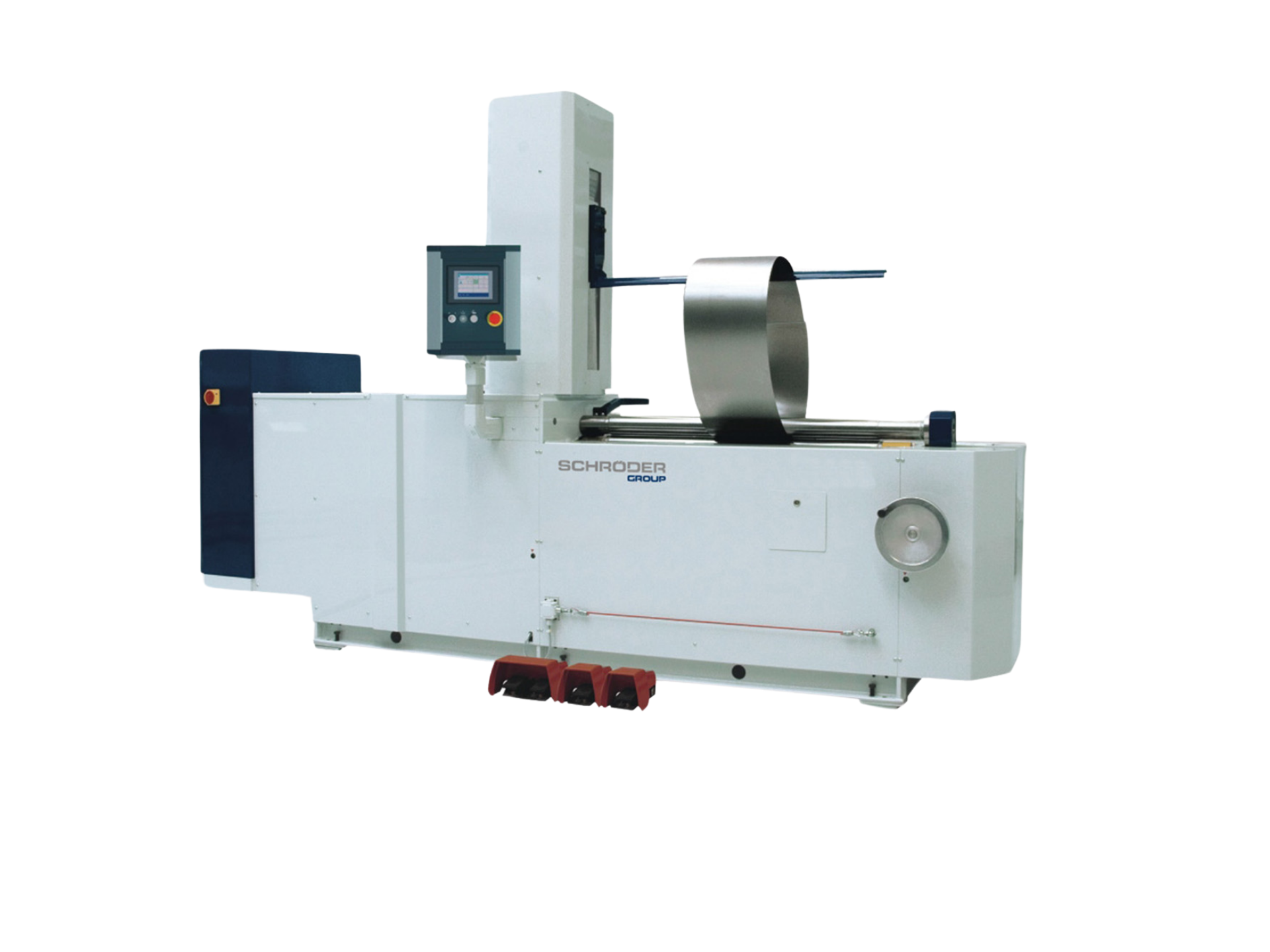

Schröder 114 10-2 Automatic NC-Controlled Slip Bending Roll

Schröder 114 10-2 Automatic NC-Controlled Slip Bending Roll

Schröder 114 10-2 Automatic NC-Controlled Slip Bending Roll (114 10-2 )

Brand : Schröder

Price : 0,00 EURO(Vat included)

Stock Amount : 0

Delivery Time 45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made InGermany

Min. Order Qty. 1 Pcs.

Warranty1 Year

Add to Favorites

Add to My Wish List

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Automatic NC-controlled slip bending roll.

Software control CR80 on turnable monitor
Positioning of back rolls frequency-controlled
Rolls, ca. 700 N/mm² tensile strength
Three roll drive
Hydraulic prebending roll- and bottom roll adjustment
Automatic opening of top roll
Foot switch
Electrical safety control

Crowned rolls, approx. 700 N/mm² tensile strength
Top and buttom roll motorized
Hydraulic pre-bending roll adjustment
Hydraulic bottom roll adjustment
Automatic release of top roll support

FM 5 R NC control

LCD Touch-Screen Display 5.7“
Each program with max. 99 program steps
Memmory card with 64 MB capacity approx. 7000 programs
Back roll adjustment via frequency controlled motor
Frequency controlled top and buttom rolls
Operation mode: Manual or automatic
Control on swivel arm
Foot switch
Elektrical safety system

Optional extras:

Hardened and ground rolls
Exchangable top roll
Three-roll drive
Sheet support for thinwalled tubes
Ejector for finished tubes
Hydraulic tube support for larger tube diameters acc. To sheet thickness

Working length	mm	1080
Material thickness at 400 N/mm	mm	2
Roll diameter	mm	90
Electrical power	kW	8,2
Weight	kg	1800
