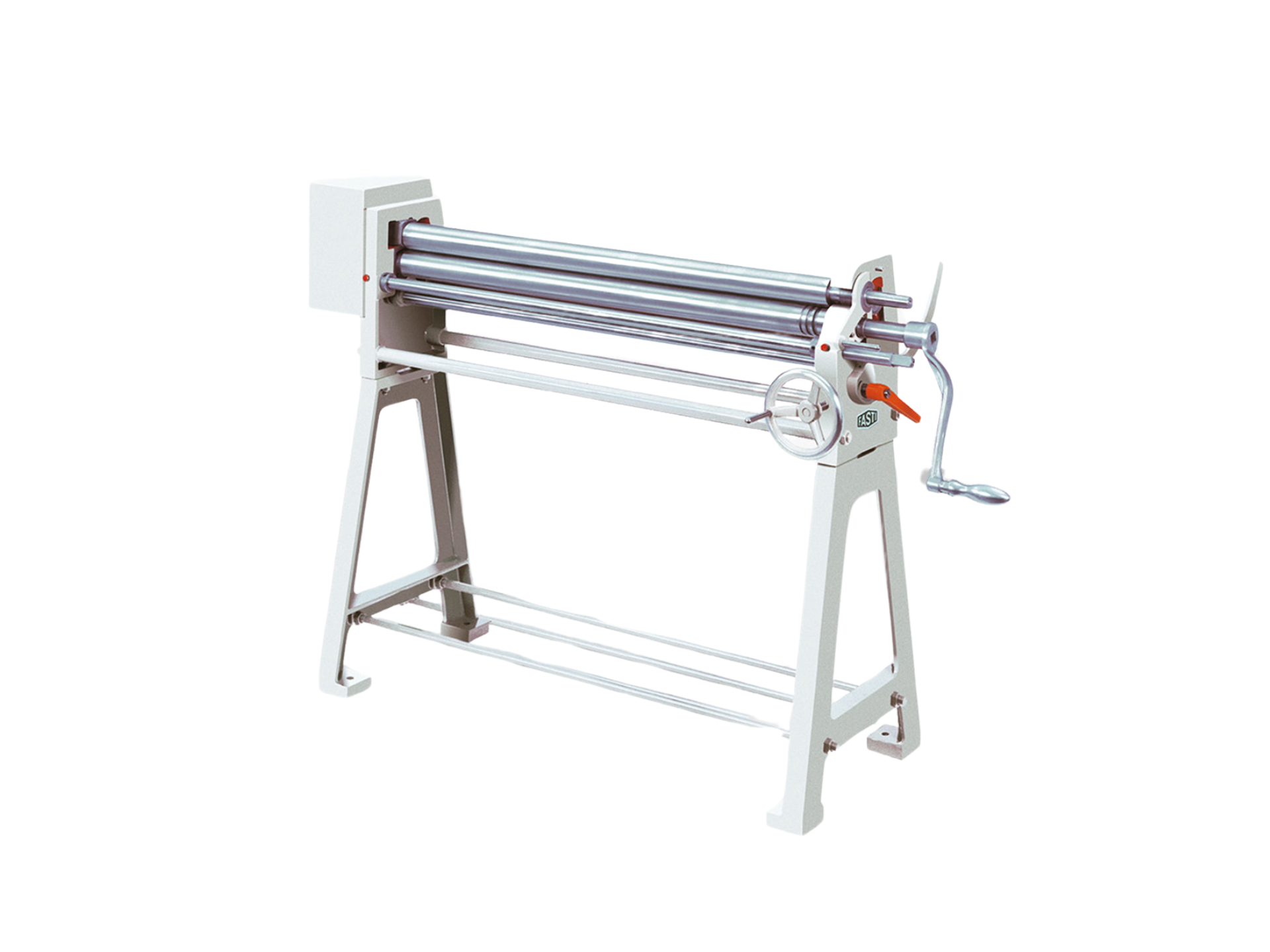

Schröder 102 10-1-5 Slip Bending Roll (102 10-1-5)

Brand : Schröder

Price : 0,00 EURO(Vat included)

Stock Amount : 0

Delivery Time 45-60 Days After O.C.

Shipment Place Turkiye

Payment Terms % 50 T/T On O.C., % 50 T/T B.S.

Made InGermany

Min. Order Qty. 1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

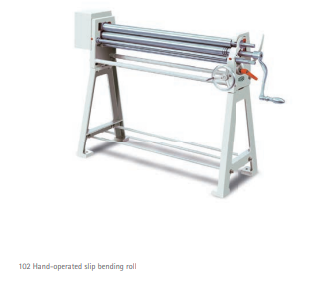

The small slip bending roll machine 102 is suitable for construction areas as well as for repair shops. Because of its high accuracy it is also often used in model workshops or training centers.

Slip bending rolls 102

Pre-bending and fi nal bending very easy with our slip bending rolls - With its special roll concept, wide range of accessories and robust design, this is the machine for truly universal and cost-effective work on single jobs and in series production.

The small slip bending roll 102 is suitable for construction areas as well as for repair shops. Because of its high accuracy it is also often used in model workshops or training centers. The one who knows Schröder-Fasti will fi nd what he is looking for: rigid engineering, solid bearings, high tool accuracy. The solild construction guarantees the necessary continous accuracy even for small series production.

The Schröder-Fasti principle: Why not insist on precision if you can get it. The elementary details of this machine are identical to type 102. Pre-bending and fi nal bending takes place in the machine. Small parts can easily be unloaded by the one-side location of the drive. Thanks to an easy inclination of the backroll, simple conical bending is possible. The high quality of rounding is reached by the asymetric roll arrangement.

Standard Equipment

The rolls are crowned and have a tensile strength of ca. 700 N/mm²

The top roll with pivotable bearing has a seam groove for the production of seam tubes.

Lower roll and back roll are equipped with wire grooves. Adjustment of the lower roll is done with a lever whereas adjustment of the backroll is made with a handwhee

Manual drive

Special Equipment

Cone guide for cone rolling

Hardened and coated rolls, ca. 1 000 N/mm²

Machine type	102
Working length (mm)	1 020
Sheet thickness (400 N/mm2 )	1,5
Roll diameter (mm)	65
Drive power (kW)	-
Weight basic machine (kg)	190
Outer dimensions
Height (mm)	1020
Width (mm)	1 645
Depth (mm)	465
